Hi guys,
My painter misplaced my body bolts for my 27 touring.
I’ve searched in vain and cannot determine what size they were.
I’ve used Bruce McCalley’s hardware list and but I still can’t seem to locate the size, thread pitch and nut size.
I been through all of the catalogs too. No luck. Perhaps I’m missing something somewhere.
Any help would be appreciated.
Thanks in advance,
Brent
-
Pep C Strebeck
- Posts: 578
- Joined: Sun Jan 06, 2019 11:12 am
- First Name: Joseph
- Last Name: M
- Location: MI
Post
by Pep C Strebeck » Fri Dec 03, 2021 7:04 pm
They are 7/16-20, and I believe they are 3 different lengths, front 25/32" center 1" and rear 1-9/16". And if I remember correctly the nut is 11/16" and the bolt head is 9/16".
"Remember son, there are two ways to do this: The right way, and your way” Thanks Dad, I love you too.
LOOKING FOR A LUFKIN No. 9A Height Gage Attachment.
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Post
by Mark Gregush » Fri Dec 03, 2021 10:04 pm
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
-
Topic author
Brent Mize
- Posts: 255
- Joined: Sun Jan 06, 2019 12:36 pm
- First Name: Brent
- Last Name: Mize
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring & 1927 Sport Runabout
- Location: Reynoldsburg, Oh
Post
by Brent Mize » Sat Dec 04, 2021 4:45 pm
Thanks for your help!
Brent
-
R.V.Anderson
- Posts: 680
- Joined: Tue Jan 08, 2019 6:01 pm
- First Name: R.V.
- Last Name: Anderson
- * REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
- Location: Kennedy, NY
Post
by R.V.Anderson » Sat Dec 04, 2021 8:23 pm
Brent, are you looking for the body MOUNTING bolts? If so, and you can wait just a bit, these have finally come up to the top on my fasteners project list, now that the rear axle housing bolts/nuts are finished. I have sent the factory drawings to my "small run" automatic screw machine shop (owned by a cousin) and am awaiting their quote on full sets of these bolts. They do top quality work and make many of the fasteners I supply.
-
Topic author
Brent Mize
- Posts: 255
- Joined: Sun Jan 06, 2019 12:36 pm
- First Name: Brent
- Last Name: Mize
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring & 1927 Sport Runabout
- Location: Reynoldsburg, Oh
Post
by Brent Mize » Sun Dec 05, 2021 12:40 pm
Rv,
Yes, the body mounting bolts for the 27 touring. I’m looking at Spring 2022, so if you could have them by that time, I’d like a set.
Just let me know.
Thanks so much!
Brent!
-
R.V.Anderson
- Posts: 680
- Joined: Tue Jan 08, 2019 6:01 pm
- First Name: R.V.
- Last Name: Anderson
- * REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
- Location: Kennedy, NY
Post
by R.V.Anderson » Sun Dec 05, 2021 6:45 pm
Brent, they should be ready by the middle of January.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Post
by TRDxB2 » Sun Dec 05, 2021 8:13 pm
Pep C Strebeck wrote: ↑Fri Dec 03, 2021 7:04 pm
They are 7/16-20, and I believe they are 3 different lengths, front 25/32" center 1" and rear 1-9/16". And if I remember correctly the nut is 11/16" and the bolt head is 9/16".
Right on
-

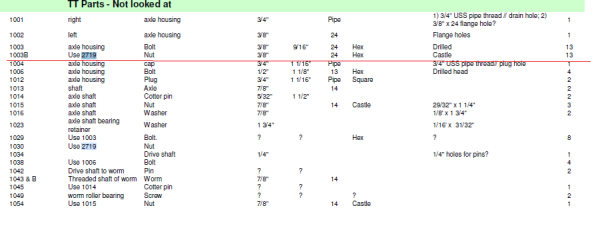

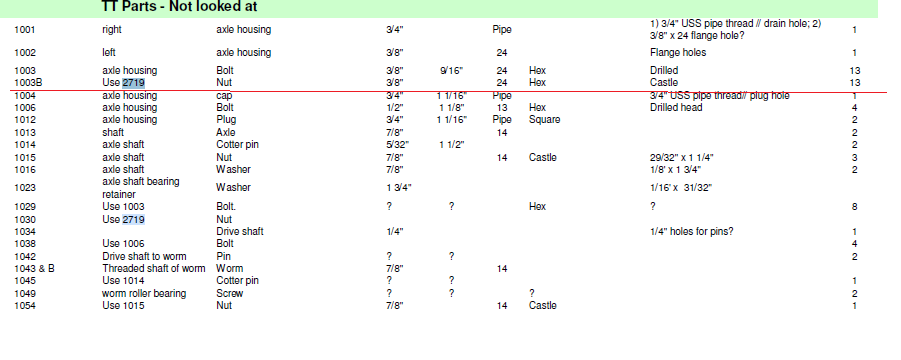

Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
-
Topic author
Brent Mize
- Posts: 255
- Joined: Sun Jan 06, 2019 12:36 pm
- First Name: Brent
- Last Name: Mize
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring & 1927 Sport Runabout
- Location: Reynoldsburg, Oh
Post
by Brent Mize » Mon Dec 06, 2021 1:23 pm
Thank you all for your help!
Brent
-
J1MGOLDEN
- Posts: 1230
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: James
- Last Name: Golden
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Roadster
- Location: Bowie, MD
Post
by J1MGOLDEN » Mon Dec 06, 2021 2:13 pm
R V, a friend of mine exhausted all sources look for a set of body bolts for a 1916 Touring.
He will buy a set if you get some of those!
Keep me posted.
