Rare TT Truck factory body?

Post by John kuehn » Thu Jul 16, 2020 5:21 pm

Going through my reprint Ford March 1927 body parts book I saw this Truck body. The book calls it a Canopy Roof and Screens body for 24-26 Trucks. Didn’t see one on the Photos page for Trucks. Maybe I missed it somewhere else.
I’ve seen the rest but not this one. Is it scarce?
Attachments

User avatar

RajoRacer
Posts: 1634
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Rare TT Truck factory body?

Post by RajoRacer » Thu Jul 16, 2020 5:42 pm

I read in a Ford Truck publication that only 33,000 of that box mounted on factory trucks were built - I have one that my Gramps' bought new in Seattle in early 1924 ! My Gramps removed the screens to add sideboards as he used it for hauling bulk.
Attachments
grandpa's truck0001.jpg
grandpa's truck0001.jpg (27.45 KiB) Viewed 1716 times


Topic author
John kuehn
Posts: 1281
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Rare TT Truck factory body?

Post by John kuehn » Thu Jul 16, 2020 5:56 pm

Somebody has one like I thought! Just wondering if you still have the screens, neat.

User avatar

RajoRacer
Posts: 1634
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Rare TT Truck factory body?

Post by RajoRacer » Thu Jul 16, 2020 7:38 pm

No, unfortunately they were long gone before I inherited the old girl !


Dallas Landers
Posts: 1857
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: Rare TT Truck factory body?

Post by Dallas Landers » Thu Jul 16, 2020 7:59 pm

I wonder if it was to compete with the DB screen side ?


Topic author
John kuehn
Posts: 1281
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Rare TT Truck factory body?

Post by John kuehn » Thu Jul 16, 2020 8:11 pm

Wonder what the screens would have used for at the time. Probably why you see more of the panel and stake bed style than the screens. The screens weren’t that popular.


Kevin Pharis
Posts: 437
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA

Re: Rare TT Truck factory body?

Post by Kevin Pharis » Thu Jul 16, 2020 10:45 pm

And before synthetic fibers... how durable could they have been?


HPetrino
Posts: 456
Joined: Sun Jan 06, 2019 11:14 am
First Name: Henry
Last Name: Petrino
Location: Modesto, CA

Re: Rare TT Truck factory body?

Post by HPetrino » Thu Jul 16, 2020 11:46 pm

I'm purely guessing, but in looking at the same photo as the one John posted in my copy of the book it looks to me like the "screen" material is a woven chain link style steel mesh. It looks to me like that sort of heavy chain link that's woven out of a heavy gauge wire. If I'm correct it would have been pretty stiff.

Maybe someone else will know for sure.....

User avatar

Duey_C
Posts: 1042
Joined: Sun Jan 06, 2019 12:28 pm
First Name: Duane
Last Name: Cooley
Location: central MN
MTFCA Number: 32488
Board Member Since: 2015

Re: Rare TT Truck factory body?

Post by Duey_C » Fri Jul 17, 2020 1:36 am

Or expanded metal. Very tough indeed. Encaptured sharp edges in the crimped-on frames.
Interesting photos!
Since I lost my mind mind, I feel more liberated


Wayne Sheldon
Posts: 1733
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Rare TT Truck factory body?

Post by Wayne Sheldon » Fri Jul 17, 2020 2:10 am

I have seen original Dodge screenside material. A good friend many years ago had a very nice one, restored from a solid original. Not really like chain link. Not at all expanded material. It was steel wire run through a crimping machine that gave it a zig-zag kind of shape. The wire other than the zig-zag were long and basically straight. The wires were woven together at a 90 degree angle to each other and about two inches apart. The zig-zags were spaced to lock together and once multiple rows of wires were woven together in both directions, it made a nice wire wall that held together very nicely. I suspect Ford used the same stuff.
That sort of wire mesh was quite common, and came in a wide variety of sizes, both in wire and mesh spacing. One used to find it in old industrial buildings, sports gyms, and incinerators. I have a panel of very heavy duty wire (about four foot by four foot?), it looks as though it may have been in a incinerator. I can't figure out what to do with it.
A very similar material in smaller wire and about a half inch weave was used for stone guards for automobile radiators. They have been reproduced for model A Fords for at least sixty years. But if you know someone with one, it is the same basic idea.


Herb Iffrig
Posts: 674
Joined: Sun Jan 06, 2019 11:47 am
First Name: Herb
Last Name: Iffrig
Location: St. Peters, MO

Re: Rare TT Truck factory body?

Post by Herb Iffrig » Fri Jul 17, 2020 6:38 am

I have seen that type of screen used in factories to secure the tool room.


It's Bill
Posts: 137
Joined: Mon Jan 07, 2019 6:41 pm
First Name: Bill
Last Name: Hoffer
Location: Newtown, PA
MTFCA Number: 32571
MTFCI Number: 24364
Board Member Since: 2016

Re: Rare TT Truck factory body?

Post by It's Bill » Fri Jul 17, 2020 8:16 am

McMaster Carr sells this material as "wire cloth" in various materials and mesh sizes, so you can make up a set of screens. Cheers, Bill

User avatar

Rich Eagle
Posts: 2991
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Rare TT Truck factory body?

Post by Rich Eagle » Fri Jul 17, 2020 8:47 am

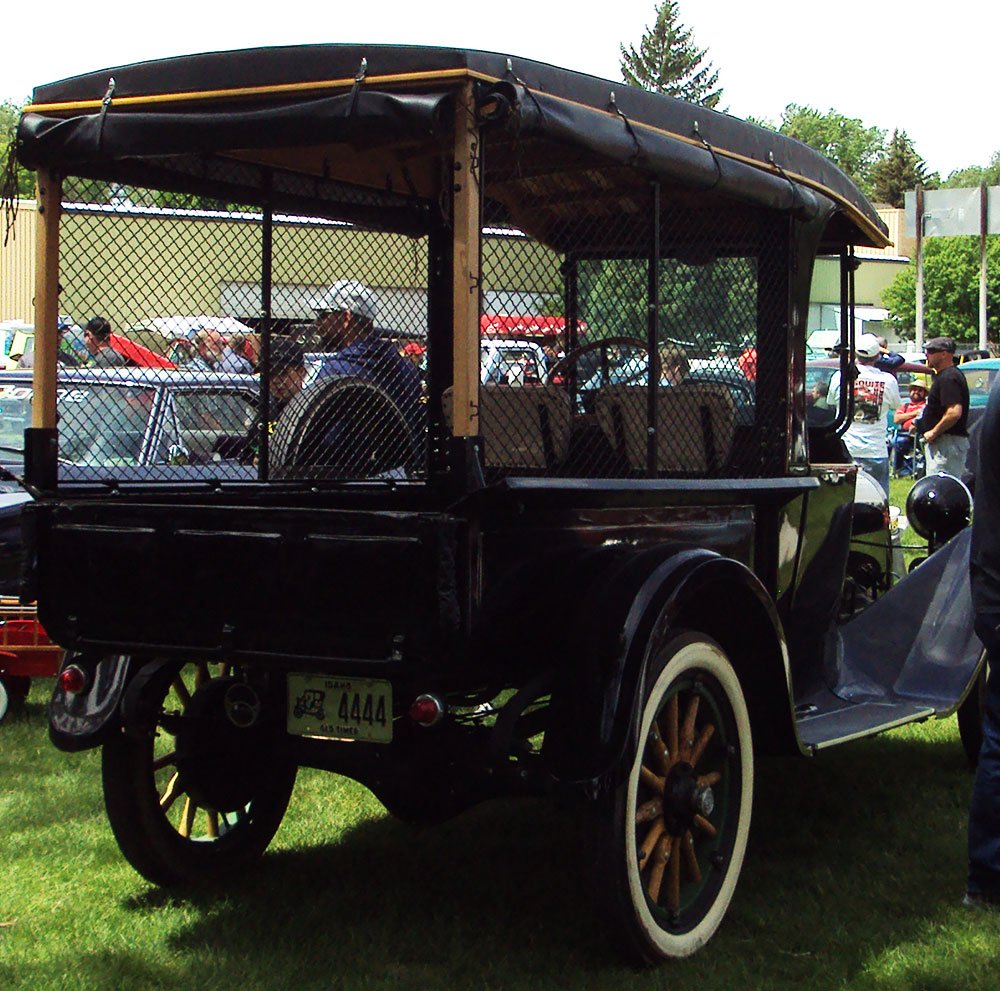

Here is a restored Dodge screenside. About 1922 I believe.
A project I worked on in the 70's used panels like that. The company made them in a variety of sizes and you could order custom sizes. At the time I though how similar they were to the ones in the parts book photo. I don't recall the company but they could have been in business back in the 70s.

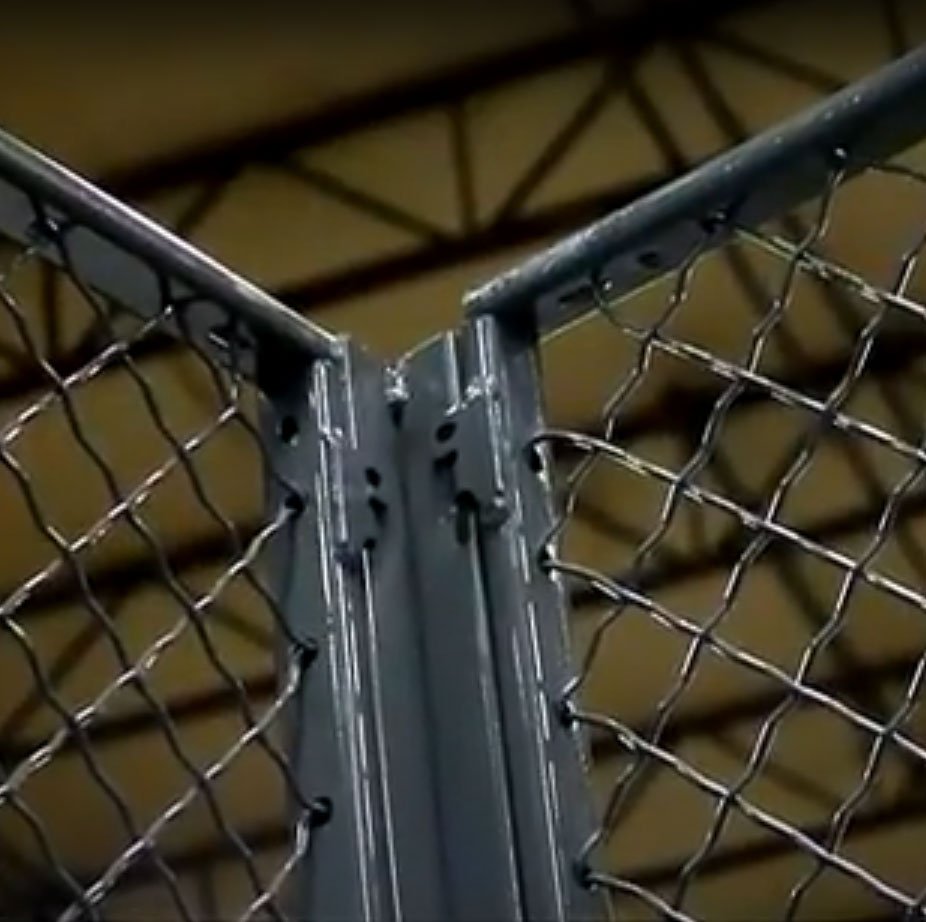

Global Industrial makes something similar as shown here. As Herb mentioned they were used for tool cribs and security enclosures.
https://images.globalindustrial.com/ima ... PG2428.jpg
https://th.bing.com/th/id/OIP.r-jnAyDvd ... =5&pid=1.7

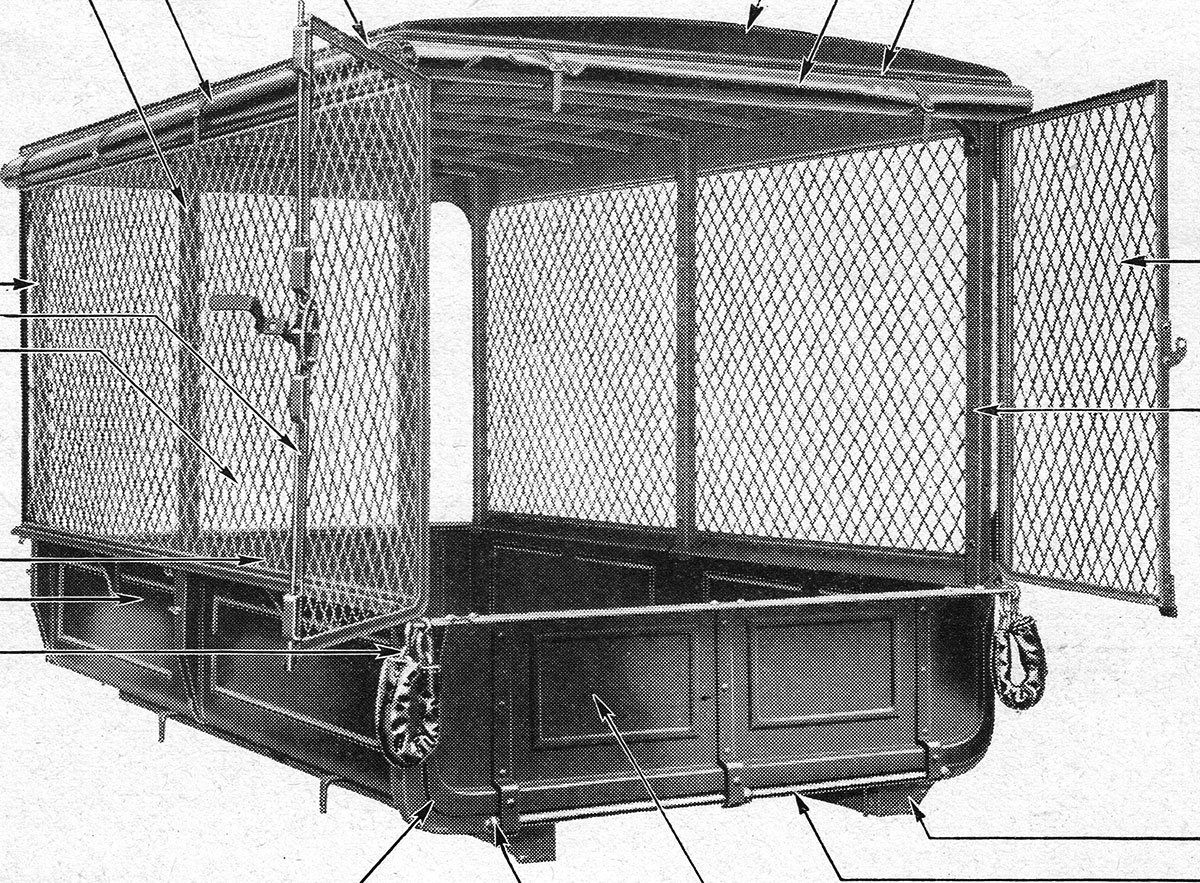

This is scanned from an original Parts book:
When did I do that?

User avatar

perry kete
Posts: 720
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
Location: Jefferson Ohio

Re: Rare TT Truck factory body?

Post by perry kete » Fri Jul 17, 2020 9:05 am

I think they were used to keep flys off the fruit! :roll:
1922 Coupe & 1927 Touring


Topic author
John kuehn
Posts: 1281
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Rare TT Truck factory body?

Post by John kuehn » Fri Jul 17, 2020 9:09 am

Interesting information. There was a type of the woven screen similar to what’s pictured in some of the air base hangers I worked in years ago.
If a Dodge Truck body with the screen survived there should be a Ford screen body somewhere I would think that survived. But like a lot of the less popular Ford items they went to the scrappers most likely or maybe the screens did and stakes were used used on the bodies instead just as Rajo’s Grandpa did.


Original Smith
Posts: 1579
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Rare TT Truck factory body?

Post by Original Smith » Fri Jul 17, 2020 10:36 am

There must be a surviving example somewhere?

User avatar

ModelTSpeedster
Posts: 48
Joined: Mon Jan 07, 2019 7:13 am
First Name: Randy
Last Name: Brown
Location: Austin, Texas
MTFCA Number: 7352
Contact:

Re: Rare TT Truck factory body?

Post by ModelTSpeedster » Fri Jul 17, 2020 11:41 am

Years ago when the Pate Swap Meet was still in the cow pasture, southwest of Ft. Worth, I took a couple of pictures of what I understood at the time to be a TT with the screen side bed.
Attachments
TT Screen side body.jpg
TT Screen side body 1.jpg

User avatar

Rich Eagle
Posts: 2991
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Rare TT Truck factory body?

Post by Rich Eagle » Fri Jul 17, 2020 11:57 am

That certainly matches all the details in the Body Parts Book doesn't it?
Thanks for posting.
Rich
When did I do that?


Topic author
John kuehn
Posts: 1281
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Rare TT Truck factory body?

Post by John kuehn » Fri Jul 17, 2020 1:30 pm

I went to those early pasture Pate swap meets. Around 30+ years ago at the very least.
Wonder where that TT went to. At least there is one out there somewhere. Maybe.


Sarikatime
Posts: 254
Joined: Sun Jan 06, 2019 12:47 pm
First Name: Frank
Last Name: Seress
Location: Prescott, Arizona
MTFCA Number: 27707

Re: Rare TT Truck factory body?

Post by Sarikatime » Fri Jul 17, 2020 2:07 pm

I may be wrong, but, Mark Chaffins was selling a T with that exact body a few months ago.


AandTman
Posts: 24
Joined: Wed Jan 16, 2019 7:55 pm
First Name: Donald
Last Name: Vagasky
Location: Tucson AZ
MTFCA Number: 10280
MTFCI Number: 11688

Re: Rare TT Truck factory body?

Post by AandTman » Sat Jul 18, 2020 5:04 am

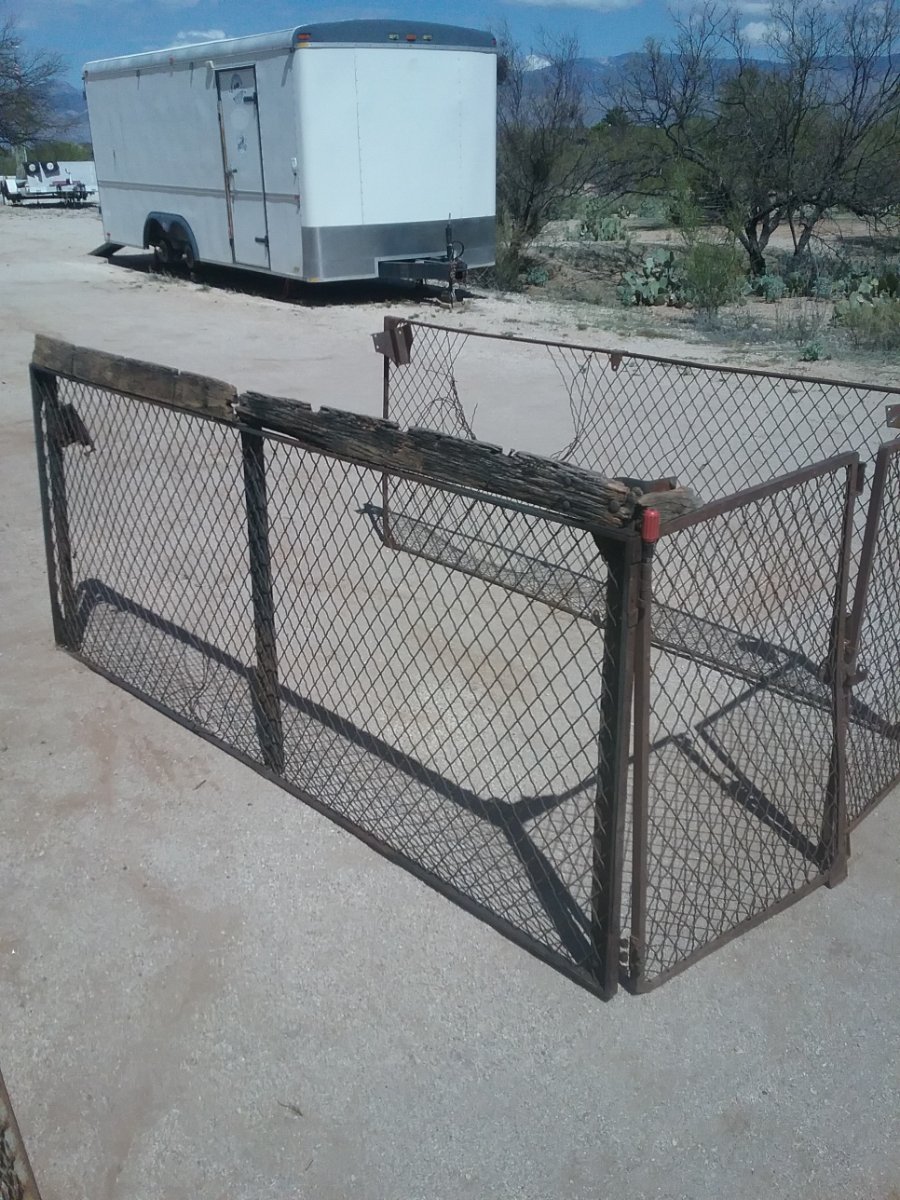

I have those screen sides with the side boards, (since removed). The doors were missing, but I since found them, and a extra side. I also have enough screen panels to reproduce at least two full sets for sale in the future. The frames for the side panels are 3/4 bar channel. The special corner brackets will also be available for those just wanting a canopy top like Steve's. Note the big hole in the right panel,......something or somebody was very persistent about getting on the other side of that screen.
That wire is not easy to bend either......
Don
Attachments


Original Smith
Posts: 1579
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Rare TT Truck factory body?

Post by Original Smith » Sat Jul 18, 2020 10:40 am

Don: Is that wire configuration obtainable, or is it something that has to be specially made?


AandTman
Posts: 24
Joined: Wed Jan 16, 2019 7:55 pm
First Name: Donald
Last Name: Vagasky
Location: Tucson AZ
MTFCA Number: 10280
MTFCI Number: 11688

Re: Rare TT Truck factory body?

Post by AandTman » Sat Jul 18, 2020 2:22 pm

Larry, I hear that McMaster-Carr now has quite a selection, not sure if they would work or not. Could not find the correct screen anywhere when I first started this project.


D Stroud
Posts: 925
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO 64470
Board Member Since: 2011

Re: Rare TT Truck factory body?

Post by D Stroud » Sun Jul 19, 2020 12:47 am

Don, rock crusher screen is made very similar to those and is available in many different sizes, very hard stuff as it has to withstand a lot of wear. Probably pretty spendy though. The "holes" are square rather than diamond shaped as the ones on the original are. I believe the "holes" on your extras are square too, but I doubt very many people would notice that. If the 3/4" channels are "junior" channels, they may be hard to find. We used to build wood stoves and the 3/4" junior channel was perfect to mount heat resistant (fake asbestos) rope for door gaskets. This was back in the '70's and '80's and we never could find any of it new. We had to scrounge it up in salvage yards and junk piles. It may be easier to find now, I don't know. Junior channel has a much smaller lip than standard channel. Dave
1925 mostly original coupe.


Original Smith
Posts: 1579
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Rare TT Truck factory body?

Post by Original Smith » Sun Jul 19, 2020 9:59 am

This maybe a dumb question, but do you think the screen could be repaired with new wire of the same gauge?


AandTman
Posts: 24
Joined: Wed Jan 16, 2019 7:55 pm
First Name: Donald
Last Name: Vagasky
Location: Tucson AZ
MTFCA Number: 10280
MTFCI Number: 11688

Re: Rare TT Truck factory body?

Post by AandTman » Sun Jul 19, 2020 9:26 pm

Larry, yes, but it is bear to weave new wire while still in the frame. Do not get the rock crusher grade as it is probably very difficult to bend with out heating.
What is the diameter and mesh of your screens? Are they rusty?
Dave, yes the holes are square, but with the screen out of the frame, I can "rack" it to align with the holes in the frame. And I did find a source for the 3/4 X 3/8 channel.

User avatar

RustyFords
Posts: 1329
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Rare TT Truck factory body?

Post by RustyFords » Mon Jul 20, 2020 12:07 pm

John kuehn wrote:
Fri Jul 17, 2020 1:30 pm
I went to those early pasture Pate swap meets. Around 30+ years ago at the very least.
Me too John. Those were great meets. Used to walk half of it one day, then sleep in the bed of my pickup in the parking field across the highway and walk the second half the second day.

As for the screened-in TT....wow...never knew such a thing existed. Learn something new every day.
1924 Touring
