Service Station Equipment Test stand ?
Posted: Mon Jan 11, 2021 3:43 pm
by Dan Hatch
Does anyone here know what the Ford Service Station Starter/Generator test stand is?
I am looking for a manual for it. Will post a picture tomorrow. Thanks, Dan.
Re: Service Station Equipment Test stand ?
Posted: Tue Jan 12, 2021 11:16 am
by Dan Hatch
Here is a picture of the unit.
Re: Service Station Equipment Test stand ?
Posted: Tue Jan 12, 2021 4:14 pm
by Brent Mize
Dan,
Do you need the manual for the tester pictured?
I have a 3 manuals for this tester and I would be glad to copy it for you.
It will take a day or two. There’s several pages.
Let me know.
Brent
Re: Service Station Equipment Test stand ?
Posted: Tue Jan 12, 2021 4:15 pm
by Brent Mize
One manual won’t post.
This is a Fairbanks Morse unit.
Here’s a photo of one at a Ford Factory in use setting up starters and generators.
If you look at the left side of the photo you will see the first version of this tester with a wood legged base.
Ford used these in the factory.
Re: Service Station Equipment Test stand ?
Posted: Tue Jan 12, 2021 4:35 pm
by Dan Hatch
Yes please! Here is my email so we can t ah ok there.
- 43C5F508-CADF-4B35-85A5-F94001856A0E.jpeg (50.1 KiB) Viewed 2296 times
I think there is was something in the Service Bulletin about these for dealers. Thanks Dan
Re: Service Station Equipment Test stand ?
Posted: Tue Jan 12, 2021 5:07 pm
by Brent Mize
Yes, they are shown in the service bulletins for December 1st of 1919.
I’ll work on the scan tomorrow.
Re: Service Station Equipment Test stand ?
Posted: Wed Jan 13, 2021 5:48 am
by Brent Mize
Dan,
Files have been sent.
Brent
Re: Service Station Equipment Test stand ?
Posted: Wed Jan 13, 2021 6:33 am
by TBill

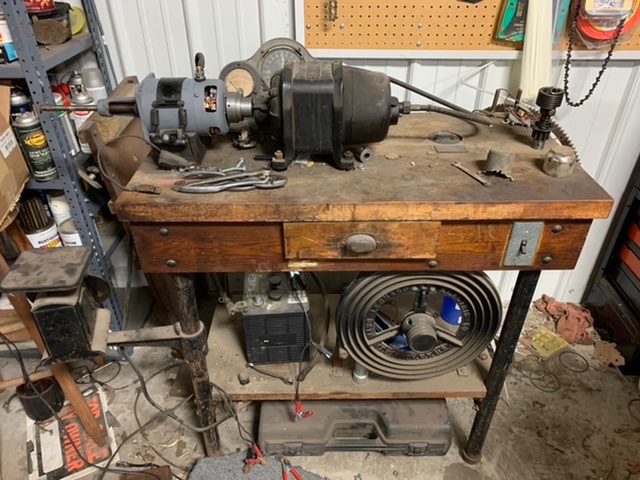

I made my own. Looks similar.
