I am working on a rear drop bracket for my speedster and I need to know the outside diameter of the rear spring mount (the one at the end of the axle). I want to be sure that the bracket will clear the spring when the suspension flexes. I don’t have one of the original mounts here to measure.
Could someone measure an original bracket for me?
Need a measurement for the rear spring mount
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Reno Speedster
Topic author - Posts: 602
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
-
TRDxB2
- Posts: 6435
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Need a measurement for the rear spring mount

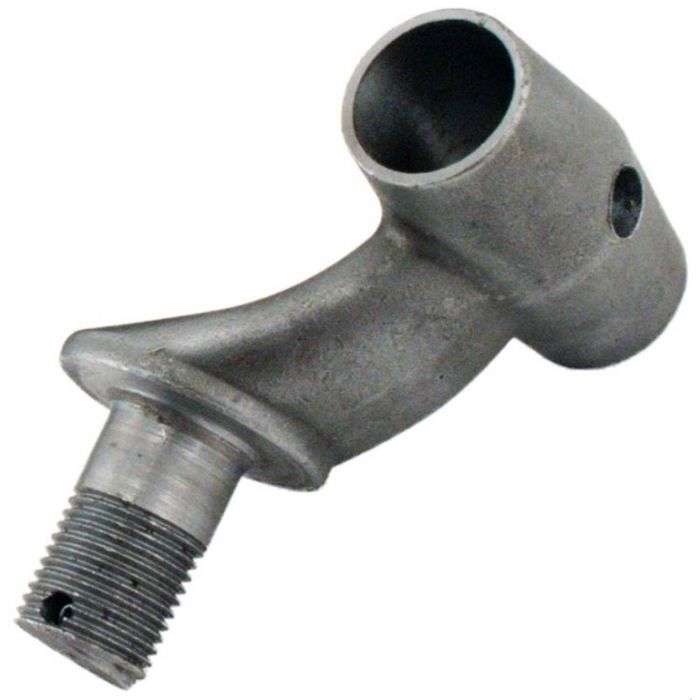

I don't understand what to measure and on what year rear axle. Do mean the perch?
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Reno Speedster
Topic author - Posts: 602
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
Re: Need a measurement for the rear spring mount

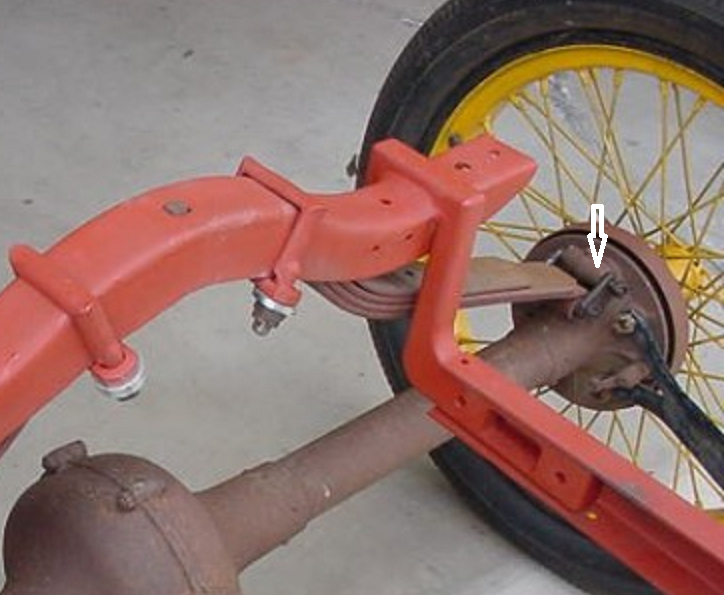

Apologies if I used the incorrect terminology. I am looking for the outside diameter of this part, where the shackle bolt bushing passes through. Based on the shackle and the spring, the part is 2” wide.
