Steering wheel nut
The nut in the center of the steering wheel on my 11 keeps coming loose. When I try to tighten puts the steering wheel in a bind and hard to turn. How can I fix this? Art
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Steering wheel nut
Best guess. One or more of your repop parts has let you down. Common for the gear case cover to be too tall. A little shave may be needed.
The spider is being clamped to the cover. When you have the fit correct, the nut will be able to be tightened & the wheel will turn freely with minimal clearance.
The spider is being clamped to the cover. When you have the fit correct, the nut will be able to be tightened & the wheel will turn freely with minimal clearance.
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Steering wheel nut
It would help to post pictures of the threads on the shaft (wheel on & off if you can) & the nut to see their condition. Without those its all guessesArt Ebeling wrote: ↑Mon Apr 24, 2023 6:11 pmThe nut in the center of the steering wheel on my 11 keeps coming loose. When I try to tighten puts the steering wheel in a bind and hard to turn. How can I fix this? Art
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Art Ebeling
Topic author - Posts: 483
- Joined: Sun Jan 06, 2019 10:43 am
- First Name: Art
- Last Name: Ebeling
- * REQUIRED* Type and Year of Model Ts owned: 1911 touring 14 runabout
- Location: Hillsboro IL
Re: Steering wheel nut

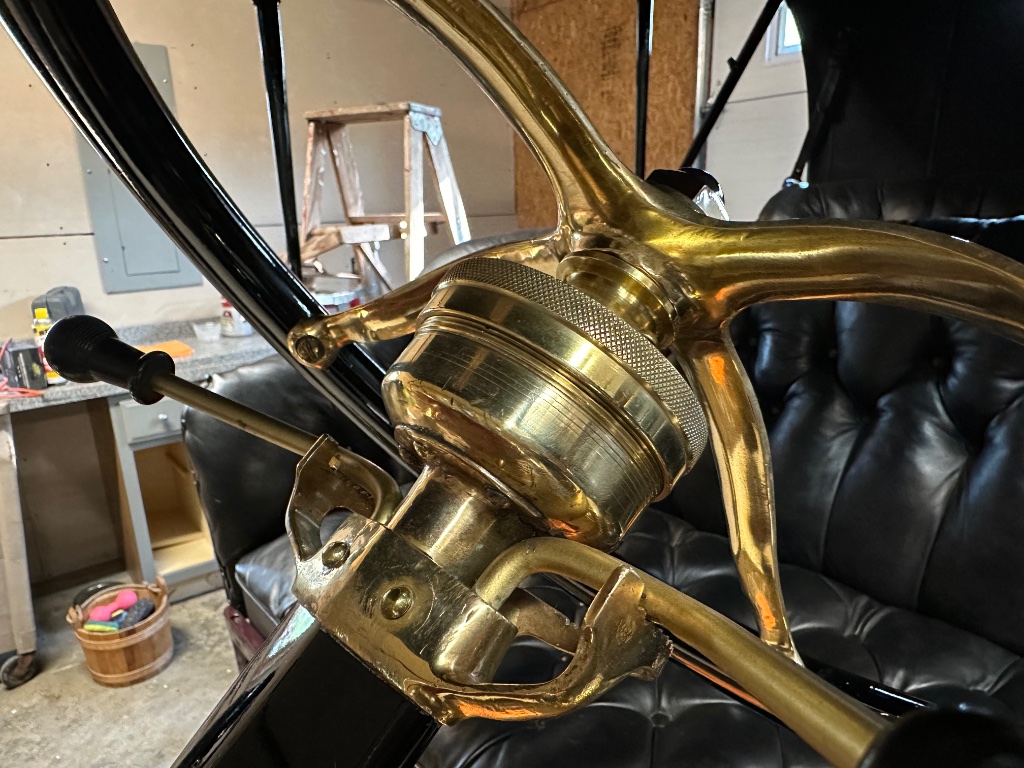

Here are pictures. Thanks
- Attachments
-
-
-
-
-
Last edited by Art Ebeling on Mon Apr 24, 2023 6:44 pm, edited 2 times in total.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Steering wheel nut
The nut is doing its job. There is not enough clearance between the cover & the spider.speedytinc wrote: ↑Mon Apr 24, 2023 6:26 pmBest guess. One or more of your repop parts has let you down. Common for the gear case cover to be too tall. A little shave may be needed.
The spider is being clamped to the cover. When you have the fit correct, the nut will be able to be tightened & the wheel will turn freely with minimal clearance.
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Steering wheel nut
Is the steering gear cover down as far as it should be - lots of threads showing (like John indicates). That would cause the steering wheel spider to interfere with threading the nut all the way down. The threads on the steering gear pinion look a bit worn too. What the spot on the threads inside the nut. they look a bit stretched too
- Attachments
-
- cover gap.png (371.93 KiB) Viewed 1502 times
-
- threads.png (164.93 KiB) Viewed 1502 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
jsaylor
- Posts: 411
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: John
- Last Name: Saylor
- * REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1927 Tudor
- Location: Citrus Heights, Ca
- Board Member Since: 1999
Re: Steering wheel nut
Your cover is not on all the way as others have said. It needs to be on farther with the 6-32 lock screw at the top. Should ne a Knoch for the set screw to anchor into. This will keep the cover from unscrewing over time and all of the sudden you have the wheel in your hands and not connected to the steering column.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Steering wheel nut
The cover may not go on any further. It is likely locked down on the gear shaft. The test is to remove the steering shaft & see if it goes down further. I believe you will find it will. The extra material would be properly removed from the gear case side. Not my first rodeo.
-
Art Ebeling
Topic author - Posts: 483
- Joined: Sun Jan 06, 2019 10:43 am
- First Name: Art
- Last Name: Ebeling
- * REQUIRED* Type and Year of Model Ts owned: 1911 touring 14 runabout
- Location: Hillsboro IL
Re: Steering wheel nut
That is what I did to correct it. Thanks for the answers. Artspeedytinc wrote: ↑Tue Apr 25, 2023 6:17 pmThe cover may not go on any further. It is likely locked down on the gear shaft. The test is to remove the steering shaft & see if it goes down further. I believe you will find it will. The extra material would be properly removed from the gear case side. Not my first rodeo.
