How much clearance?

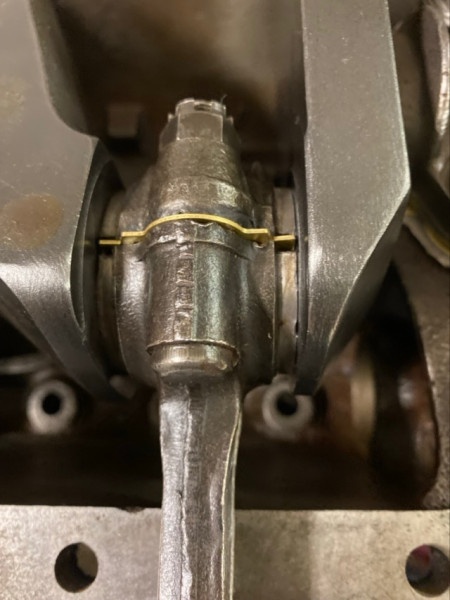

How much clearance should there be between the rod cap and the crankshaft lobe? Skat crank has tight tolerances!!! Old cranks dont have this issue… lots of slop between journal lobes.
- Attachments
-
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: How much clearance?
Ford specs are the crank is 1.505" and rod is 1.5" wide.
-
michaelb2296
Topic author - Posts: 205
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
Re: How much clearance?
How do i sand .0025 off each end? Ford used a big damn file on the caps!
Last edited by michaelb2296 on Wed Jun 19, 2024 7:26 pm, edited 1 time in total.
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: How much clearance?
Is the rod turning or binding?
-
michaelb2296
Topic author - Posts: 205
- Joined: Tue Sep 13, 2022 4:01 pm
- First Name: Michael
- Last Name: Bunner
- * REQUIRED* Type and Year of Model Ts owned: 1912 Torpedo Roadster 1917 Smith Form-a-Truck
- Location: Cary, NC
- Board Member Since: 2007
Re: How much clearance?
Nope! New babbit. Not turning… super tight but does fit around the journal
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: How much clearance?
OK, usually it is the fillet cut that is tight, not cut deep enough to clear the fillet on the edge of the crank journal, but if you think it is too wide then rub the rod on a flat piece of glass with a sheet of about 320 sand paper. Run the rod bearing in with time saver.
-
Joe Bell
- Posts: 1174
- Joined: Thu Feb 21, 2019 1:20 pm
- First Name: Joe
- Last Name: Bell
- * REQUIRED* Type and Year of Model Ts owned: 24 Fordor
- Location: Tiffin Ohio
Re: How much clearance?
I would rather have a large radius than a small one, less chance of breakage.
-
JTT3
- Posts: 1855
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: John
- Last Name: Tannehill
- Location: Hot Coffee, MS
Re: How much clearance?
Amen Joe. As stated time saver will be your friend in fitting the rods on the journal, yellow 60 grit
