Starter wireing diagram help needed.
Posted: Sun Jul 28, 2024 10:28 am
by Sarikatime
A friend gave me a starter, working well but full of mud.
I took it apart to clean it but forgot where the two field wires were hooked to.
Can someone enlighten me as to where the two field wires are supposed to be hooked up!
Thank you in advance. Frank
Re: Starter wireing diagram help needed.
Posted: Sun Jul 28, 2024 11:04 am
by Dan Hatch
Service manual under starter repair.
Re: Starter wireing diagram help needed.
Posted: Sun Jul 28, 2024 11:35 am
by JTT3
Deleted to not confused anyone
Re: Starter wireing diagram help needed.
Posted: Sun Jul 28, 2024 11:43 am
by TRDxB2
Re: Starter wireing diagram help needed.
Posted: Sun Jul 28, 2024 2:38 pm
by Ron Patterson
The two field winding pigtails are connected to the two insulated (from the brushplate) brush holders.
If you follow that rule it is impossible to connect them incorrectly.
Ron Patterson
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 2:28 pm
by Sarikatime
Gentleman, great advice, Franks data I cannot open.
As you can see from my picture, I have a situation. What should I do next, my starter does not match the diagram above. Do I cross the leads?
JTT3 wrote: ↑Sun Jul 28, 2024 11:35 am
Hope this helps. Note the positive & negative configuration of the field coils.
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 2:37 pm
by speedytinc
Leads do not get crossed in a starter.
1) I doubt you could & reach the brush holders. 2) Both wires are tied together electrically, so it wouldn't matter.
JTT3's picture is for a generator, not a starter.
Also, the mica does not get cut back on a starter commutator.
See the service manual.
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 2:46 pm
by Sarikatime
Thank you John. Now to my original question. Where do I place the two field connection wires, to which carbon brush?
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 3:50 pm
by Ron Patterson
For the second time! The two field winding pigtails connect to the two insulated brusholders on the brusplate (NOT the two brusholders without insulators and are grounded to the brushplate)
If you follow this rule it is inpossible to connect them to the brusholders incorrectly.
Ron Patterson
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 3:53 pm
by Ron Patterson
The diagram posted above is for a generator filed winding NOT a starter field winding.

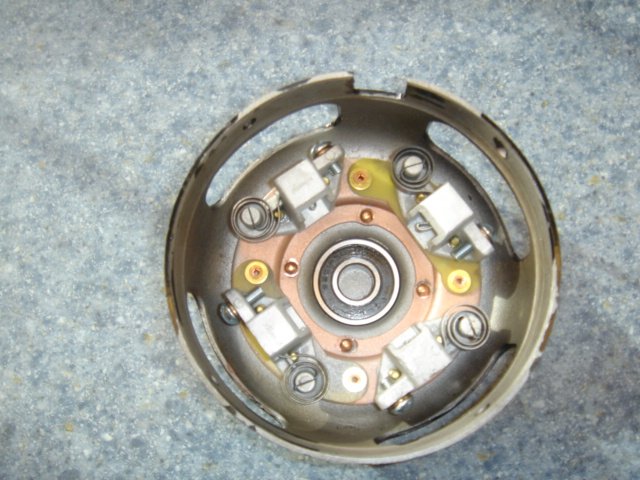

Attached is a photo of the brushplate inside the brushcap
and you can see the two insulated brusholders.
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 6:08 pm
by JTT3
Sorry about that folks I mistakenly was trying to help Frank out with a quick diagram so took a picture from the Starter section of the MTFCA BOOK THE Electrical System, page 22, without noticing that the picture was of a generator
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 8:18 pm
by J1MGOLDEN
Something about that starter does not look right!
Re: Starter wireing diagram help needed.
Posted: Mon Jul 29, 2024 8:35 pm
by Moxie26
What would that be? James?
Re: Starter wireing diagram help needed.
Posted: Tue Jul 30, 2024 1:11 am
by TRDxB2
Sarikatime wrote: ↑Mon Jul 29, 2024 2:28 pm
Gentleman, great advice, Franks data I cannot open.
As you can see from my picture, I have a situation. What should I do next, my starter does not match the diagram above. Do I cross the leads?
JTT3 wrote: ↑Sun Jul 28, 2024 11:35 am
Hope this helps. Note the positive & negative configuration of the field coils.
Don't know why you couldn't open the link by just clicking on it.
