Position of tail lamp bracket, 1912 roadster
Looking for information about where exactly to mount my rear tail lamp bracket on my 1912 roadster. Also wondering whether to use wood screws or machine screws with nuts and washers.
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Position of tail lamp bracket, 1912 roadster
When I was restoring my ‘14 runabout I researched this very topic. THF Archives said machine screws. I used carriage bolts. Anchored with 2 thick square nuts to the rear (outside). However nothing was said about where to center the tail lamp bracket.
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Position of tail lamp bracket, 1912 roadster
These photos may help.
The rear shot is from a 1912 Commercial runabout that has been for sale on eBay. Close up shows holes where the taillamp bracket would be. Wood screws won't hold the hanging weight or the vibrations. Carriage bolt on the wood side, and square nuts out. The other photo is an original1911-12 touring, and shows the mounting hardware.
View of taillamp position.
The rear shot is from a 1912 Commercial runabout that has been for sale on eBay. Close up shows holes where the taillamp bracket would be. Wood screws won't hold the hanging weight or the vibrations. Carriage bolt on the wood side, and square nuts out. The other photo is an original1911-12 touring, and shows the mounting hardware.
View of taillamp position.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
RGould1910
Topic author - Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: Position of tail lamp bracket, 1912 roadster
Wow, thank you both for the information. I never would have guessed nuts on the outside.
-
RGould1910
Topic author - Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: Position of tail lamp bracket, 1912 roadster

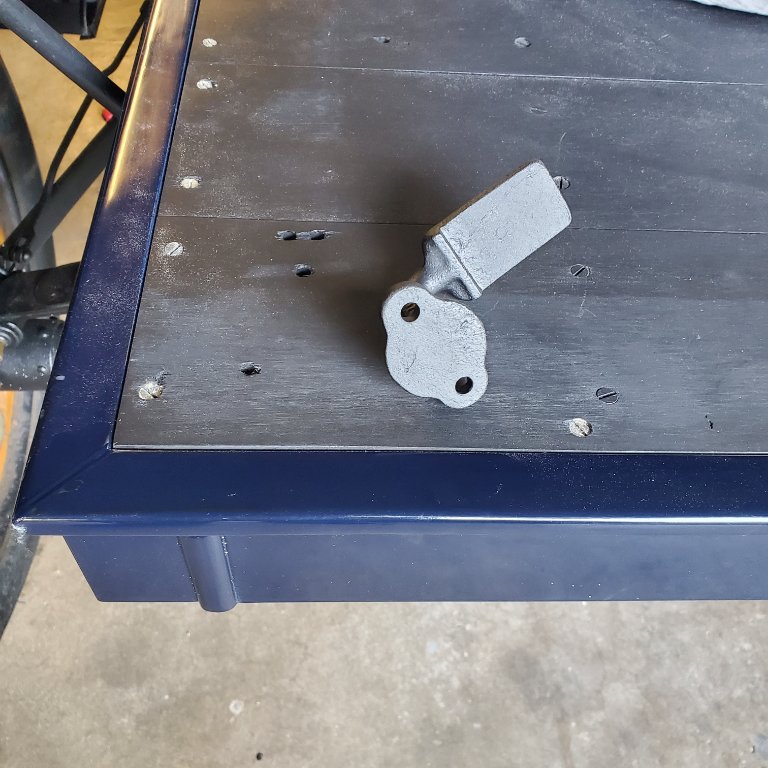

Lamp bracket Installed. My rear panel is not quite the same a the original picture but the placement of the bracket is close to the same.
