Question re 26-27 running board bracket

Post by rgould1910 » Thu May 30, 2019 4:44 pm

Does the front running board bracket on a 26-27 car have a dip between the frame rails to clear the pan or driveshaft?
I removed a Warford and the prior owner cut the bracket to make room. I intend to weld in a piece from another but am unsure if it has a dip like the controller shaft.

User avatar

dobro1956
Posts: 321
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
Location: Hills of Arkansas

Re: Question re 26-27 running board bracket

Post by dobro1956 » Thu May 30, 2019 10:19 pm

The front and rear running board brackets are identical. Both will have a hump in the center, not a dip like the handbrake. The 26-27 style are the same as 21-25 style everywhere except each end of the bracket is longer and has two holes at each end instead of one so they would fit the wider 26-27 running boards.. The two holes were there so the 26-27 brackets could be cut off to use as replacement parts for the 21-25 era cars

User avatar

TRDxB2
Posts: 392
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Question re 26-27 running board bracket

Post by TRDxB2 » Thu May 30, 2019 10:35 pm

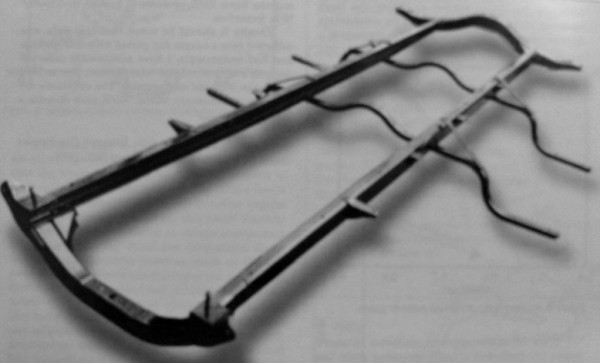

Here is a complete '26 frame with brackets - http://www.mtfca.com/discus/messages/50 ... 1445887806
Attachments
26' 27' frame.jpg


Topic author
rgould1910
Posts: 179
Joined: Tue Jan 22, 2019 8:16 am
First Name: Richard
Last Name: Gould
Location: Folsom, CA

Re: Question re 26-27 running board bracket

Post by rgould1910 » Fri May 31, 2019 5:28 am

Thank you for the explanation and photo. The referenced thread was interesting. The Warford I removed was the aluminum type with no cross bar supporting the weight and nothing like the aftermarket truss rod support shown in the thread. I suspect a lot of folks run with a Warford that way.
