The KR Wilson Drive Shaft Pinion Gear Puller has been spoken for.

Thanks MTFCA!

LOCParts

The KR Wilson drive shaft bushing end mill has been spoken for.

Thanks MTFCA!

LOCParts

The Western Auto reamer has been spoken for.

Thanks MTFCA!

LOCParts

The 5-Z-806 special generator wrench has been spoken for.

Thanks MTFCA!

LOCParts

For Sale: Genuine Ford 5-Z-806 s-shaped wrench. The design of this special wrench allows it to teach the generator’s third brush nut. This nut must be loosened before the generator’s third brush can be moved to adjust the generator’s amperage output. Improperly adjusted generators will not keep the ...

LOCParts

For Sale: The Western Auto Company was an aftermarket automotive parts supplier during the early 20th century. Their catalog offered a full line of accessories, replacement parts, and tools for the Model T. This is a Genuine Western Auto reamer for fitting piston pins. It is marked 3022-1/2 and with...

LOCParts

For Sale: Genuine KR Wilson Propeller Shaft End Mill for trimming the drive shaft front bushing to the proper length when fitting the universal joint. The flange on driveshaft bushings is what takes up the end play of the Model T drive shaft and sets the engagement depth of the drive shaft pinion ge...

LOCParts

The Stevens T-155 Sleeve Puller has been spoken for.

Thanks MTFCA!

LOCParts

The 5-Z-287 has been spoken for.

Thanks MTFCA!

LOCParts

The 4 priming cups have been spoken for.

Thanks MTFCA!

LOCParts

For Sale: Stevens, NY T-155 Rear Axle Roller Bearing Sleeve Puller. This is the sturdiest, heaviest, highest quality and most effective roller bearing sleeve puller ever designed for the Model T. It securely locks into the grease hole in a sleeve and will not slip out. The hole at the top of the pul...

LOCParts

For Sale: 5-Z-287 Genuine Ford Rear Wheel Hub Puller for Model Ts with wood spoked wheel. This example is a bit different because the name “Ford” is embossed on the puller body rather than sunk in which is more commonly found. The puller is in excellent condition, almost like new. The internal threa...

LOCParts

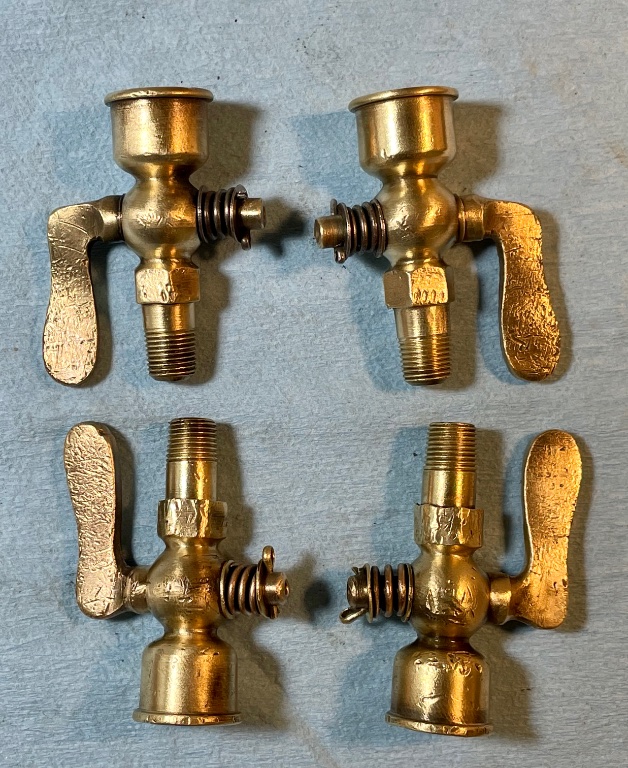

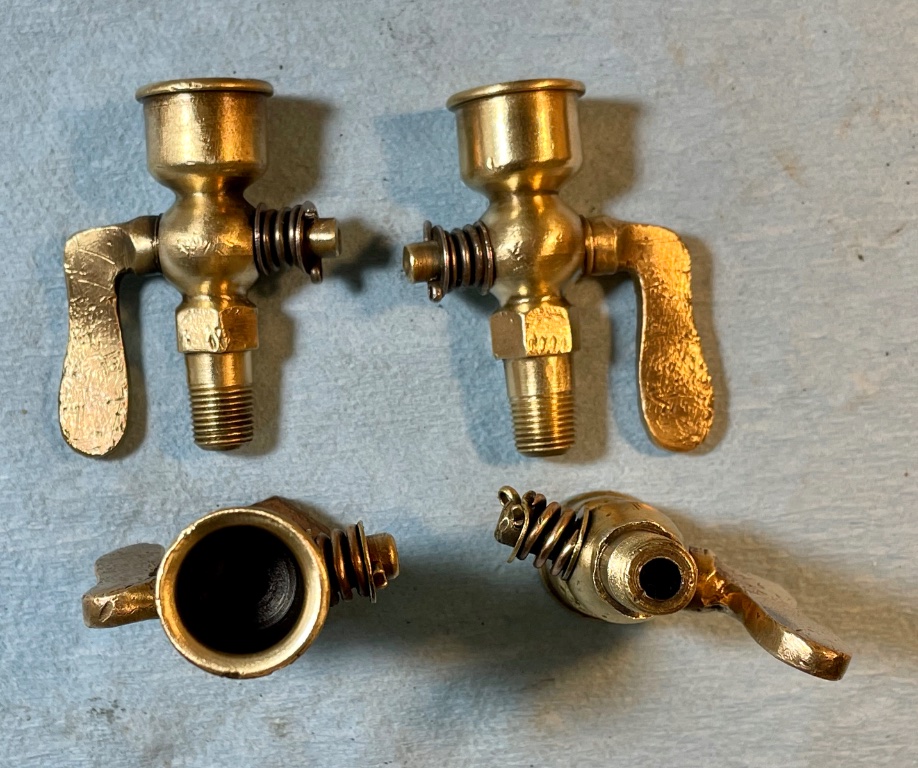

For Sale: Set of four brass priming cups. These cups are in good used condition. $40 plus shipping.

LOCParts

This is a less common example of the Stevens, NY T-122 drive shaft roller bearing sleeve remover. This version has a cast iron body and uses two steel half moon clamshell pieces to capture the sleeve while pulling it off the end of the drive shaft. Later pullers were made entirely of steel and used ...

LOCParts

For Sale: a special feeler gauge made by the LS Starrett company for KR Wilson. The leaves of the gauge are designed to aid in setting ignition point and spark plug gaps on Model A and V8 Fords. This unique piece is marked both KR Wilson and LS Starrett and is in excellent condition. $95 including s...

LOCParts

For sale: one KR Wilson driveshaft pinion gear puller. This is an original puller in good condition. We do want to point out that when we acquired this piece the original hex bolt was missing and we had to have a new replacement made. Everything works as it should. $300 plus shipping. F840DE0D-B293-...

LOCParts

The Alvord main bearing reamer has been spoken for.

Thanks MTFCA!

LOCParts

The Walden 6318 speed wrench has been spoken for.

Thanks MTFCA!

LOCParts

For Sale: A Walden Worcester #6318 9/16” speed wrench with the 6418 attachment that turns this speed wrench into a one man tool for loosening or tightening 9/16 inch size bolts and nuts commonly found on Model T motors. Unlike many other speed wrenches of this type, the 6418 attachment is removable ...

LOCParts

For Sale: Alvord F3031-2-3 Model T main bearing reamer. This is a long reamer made by the Alvord Reamer Company of Millersburg, PA. It is designed to ream all three main bearings simultaneously. It is a good reamer to have when fitting a crankshaft to existing babbitt bearings. The reamer cuts beari...

LOCParts

The Holley 4500 carburetor has been spoken for.

Thanks MTFCA!

LOCParts

The self-adjusting connecting rod bolts have been spoken for.

Thanks MTFCA!

LOCParts

The Stevens 2713-14 spindle bushing reamer has been spoken for.

Thanks MTFCA!

LOCParts

For sale: A genuine Stevens, NY reamer for the spindle body and spindle arm bushings. This reamer is two sizes and will do both the bushings in the spindle body and the spindle arms. Most importantly, it will ream the spindle body bushings to the correct .503” size Ford recommended when replacing th...

LOCParts

For Sale: A complete set of self-adjusting connecting rod bolts for the Model T. These bolts replace the stock Ford connecting rod bolts. They are self-adjusting or tightening to keep the connecting rod bearings properly adjusted. The bolts are complete and in good used condition. This is a full set...

LOCParts

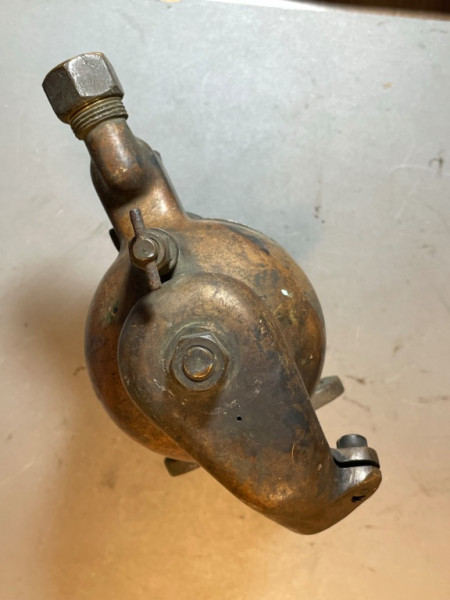

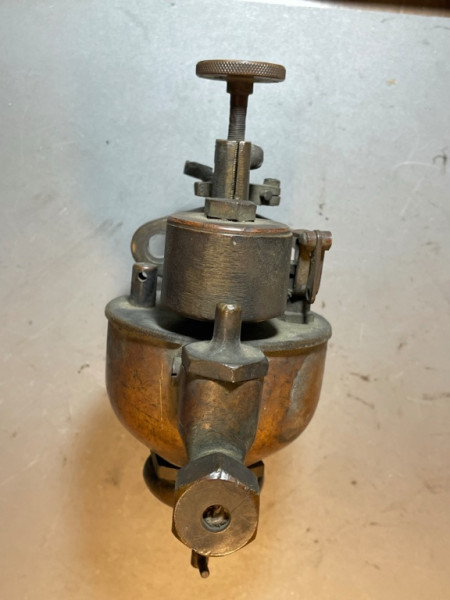

Additional photos of the Holley 4500 carburetor we are offering:

LOCParts

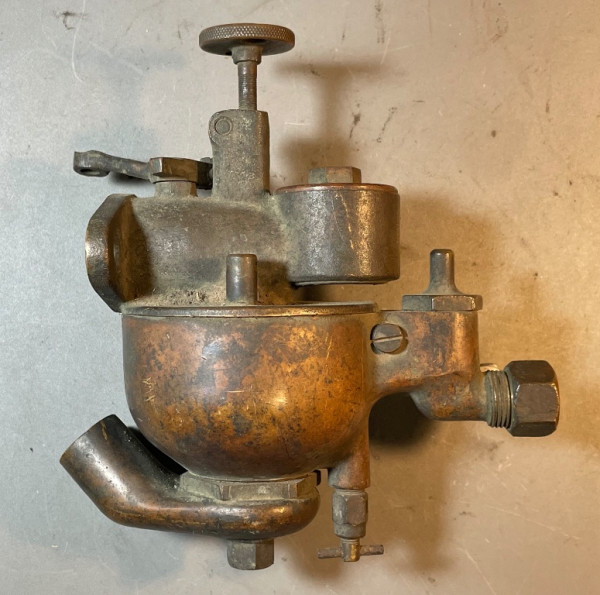

For sale: An original 1911 Holley 4500 carburetor. The carburetor we are offering is all brass, complete and in very good condition. The levers and adjustment screw move freely, and the float also free. It can easily be restored to show quality. $1800 plus shipping. F951CC59-D568-44CA-8005-FFF390122...

LOCParts

The Stevens driveshaft bushing remover has been spoken for.

Thanks MTFCA!

LOCParts

The Stevens T-80 Universal Joint Tongs have been spoken for.

Thanks MTFCA!

LOCParts

FS: A Stevens NY T-80 Universal Joint Tongs. These tongs make installing a Model T rear axle in a car much easier because the mechanic can grab the male end of the universal joint and twist it to align with the square hole in the transmission output shaft. Stevens included a set of these tongs in it...

LOCParts

FS: Genuine Stevens NY driveshaft bushing extractor. This tool quickly and easily removes the bushing from the front end of a Model T drive shaft tube. This tool was included in the Stevens driveshaft overhaul tool set. The tool consists of the guide plate, extractor and the extractor nut. This tool...

LOCParts

Which size (standard or undersize for reground undersize crankshaft)?

LOCParts

The KR Wilson Front Spring Perch Puller has been spoken for.

Thanks MTFCA!

Lang’s

LOCParts

The Stevens T-122 Driveshaft Sleeve puller has been spoken for.

Thanks MTFCA!

LOCParts

For Sale: A genuine Stevens, NY T-122 drive shaft sleeve puller. The Model T drive shaft sleeve is one of the most difficult parts to remove without damaging the driveshaft or the driveshaft thrust bearing. Some mechanics try to remove the drive shaft roller bearing sleeve with a hammer and chisel. ...

LOCParts

For sale: a KR Wilson Front Spring Perch Puller. These were offered in the 1926 KR Wilson tool catalog and are used to push front spring perches out of Model T front axles. The tool is in good condition. $300 plus shipping. FB5AFB51-6381-4669-BC7E-868BFF69A919.jpeg 99EDDD37-51FB-42F7-9A3F-7E8A65CEC4...

LOCParts

When Ford shipped new Model T engine blocks to dealers they were sent in wood crates: 049B4939-5327-4828-89E9-CFEB8A024501.jpeg B242671F-B69B-4277-9374-7A55246D755B.jpeg 95AB67D8-E39A-42D1-8682-769090C9795D.jpeg 19C5E634-FE71-4DA1-A7A8-FA3035094B84.jpeg Most parts had their machined surfaces coated ...

LOCParts

Just a reminder that we have a truck leaving this week for Tulsa, OK. We can either deliver the KR Wilson tools to you or meet you along the route and save you the cost of shipping.

Thanks,

Lang’s

LOCParts

The Stevens driveshaft bushing jig and reamer have been spoken for.

Thanks,

MTFCA

LOCParts

Addition photos:

LOCParts

For sale: a complete, fully equipped KR Wilson combination machine for Model T and A Fords. This outfit includes a complete KR Wilson combination machine and… 1) all the tooling for Model T main bearings including: - combination machine with universal joint and feed rod, - bearing pouring bar, pouri...

LOCParts

For sale: Genuine Stevens NY T-244 Drive Shaft bushing reaming jig and No. 2581 reamer. This is the reamer and jig Stevens sold for reaming the bushing at the front of the Model T drive shaft tube. The jig is in very good condition and retains almost all of its original green paint. The No. 2581 rea...

LOCParts

This is a genuine Ford 20-Z-340/21-Z-366 (aka 5-Z-457) valve seat cutter for the Model T. This tool is in very good condition. The cutter is marked with the name Ford in script and the tool number 5-Z-340. The cutter is designed to cut the valve seats to a radius to better mate with the valve when g...

LOCParts

Frank is the closest. T-732 is the clutch finger used on the first 2500 Model Ts only (that’s the hardest part of the question). After the first 2500 cars the finger was redesigned and the adjustment screw was added. The redesigned clutch finger was given the factory symbol number T-732-B. The first...

LOCParts

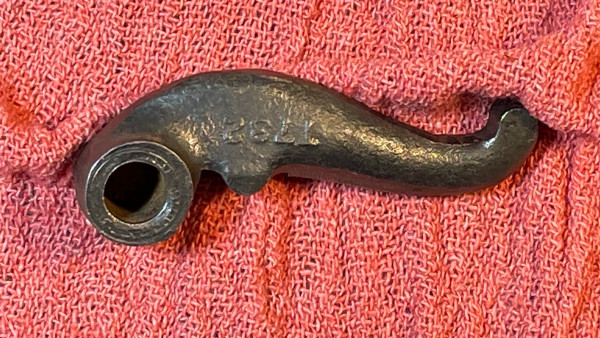

This is a NOS Model T part that recently came in with some others we acquired.

Can you identify this part? The correct answer will include the name Ford gave this piece AND the years it was used?

LOCParts

We have a NOS Model T block available. This block is the the 1926-27 style, and still in the original shipping crate. We can also supply NOS front and center finished bored main bearing caps. We do not have any NOS rear main caps. $2500 fob Baldwinsville, MA. If interested contact Ashley@modeltford....

LOCParts

The Quick Bolts have been spoken for.

Thanks MTFCA!

LOCParts

One complete Set of KR Wilson main bearing quick bolts for Model T and A Fords. These are used when fitting the main crankshaft bearings and allows the bearing caps bolts to be quickly tightened or loosened. Without these special bolts quite a bit of time is wasted putting in the stock main bearing ...

LOCParts

The Stevens T-121 Drive Shaft Sleeve Driver has been spoken for.

Thank you MTFCA!

LOCParts

How many do you want? We only have 10.

LOCParts

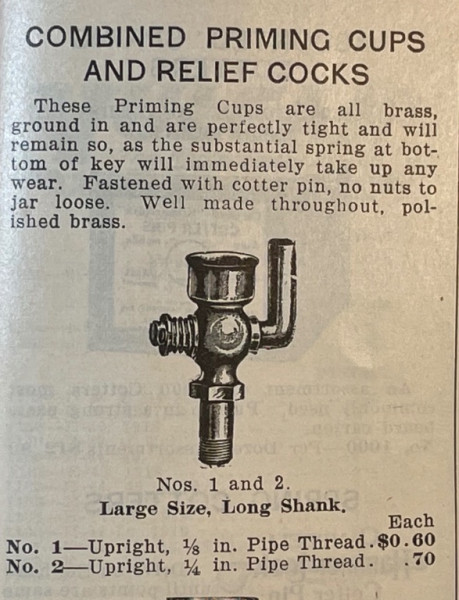

For Sale: New Old Stock Combination Priming Cups/Relief Cocks. These are made of brass and are nickel plated. They are the short version and in perfect condition. We only have 10 of them. $10 each plus $9 USPS Priority Mail shipping per order.

LOCParts

For sale is one Stevens T-121 Drive Shaft Sleeve Driver. The T-121 is one of the tools Stevens included in their drive shaft overhaul tool kit. It is used when replacing the roller bearing sleeve on the drive shaft. When installed the sleeve has to be aligned with the key way for the pinion gear key...

LOCParts

The “backwards seven” is probably a”T”. The factory symbol number for the early intake manifold is 512. So the complete designation is T 512 for the early intake intake manifold. The factory symbol number was a designation Ford used internally to keep track of parts and their production. The enginee...

LOCParts

The Stevens Front Axle Bushing Set has been spoken for.

Thanks,

Lang’s

LOCParts

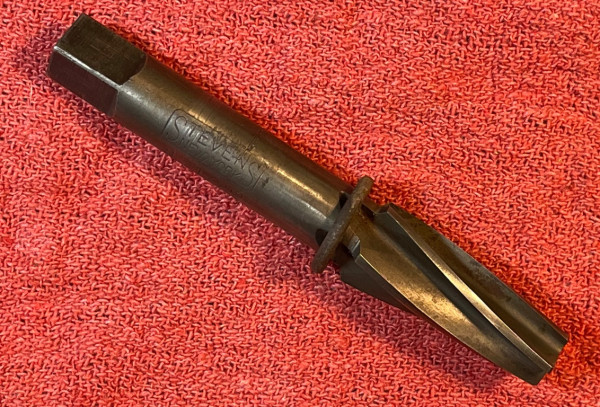

Here are some closeups of the Stevens top bushing reamer. The reamer is marked Stevens 8-1/8.

LOCParts

This is a complete Stevens Front Axle Repair tool for the Model T. This set of tools is used to replace worn out tops and bottoms of the front axle yokes that result from driving the car when the spindle bolts are loose. A worn hole on the top is replaced with a conical bushing, and stripped threads...
