Early T question
For those who own or are familiar with a 1909/10 Touring, was the rear floorboard covered with a fitted, snap-in carpet? I don't think the early cars used the cocoa mat but I could be wrong. I've seen a couple touring cars on-line with the short pile, fitted carpet and Gail Rodda has one in his 1909. If this is the case where would I go to have this carpet made? Any input would be greatly appreciated!
-
- Posts: 1627
- Joined: Sun Jan 06, 2019 8:35 pm
- First Name: Darel
- Last Name: Leipold
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring
- Location: Excelsior MN
- Board Member Since: 1999
Re: Early T question
When I bought my 1910 Touring in 1946 it had a coca mat on the rear floor. I have reason to believe it is the original mat that came with the T. I still have that mat.
-
- Posts: 198
- Joined: Sun Jan 13, 2019 6:17 pm
- First Name: Pete
- Last Name: Eastwood
- Location: Southern Califiornia
Re: Early T question
in Gail's book , it says they had " cut pile black carpet "
My dad's '09 , which he bought in 1953, had carpet , & he was the third owner .
My dad's '09 , which he bought in 1953, had carpet , & he was the third owner .
-
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Early T question
I have never liked the cocoa mats that are currently being made. I can't believe someone doesn't have an original one we can see.
-
- Posts: 1201
- Joined: Mon Jan 07, 2019 10:58 am
- First Name: Mario
- Last Name: Brossard
- * REQUIRED* Type and Year of Model Ts owned: 1911 Touring and 1914 speedster
- Location: Quebec City Canada
- Board Member Since: 1999
Re: Early T question
According to litterature, use of the cocoa mat in 1909-10 is correct.
Super Mario Bross
1911 Touring
1914 Speedster

1911 Touring
1914 Speedster
-
- Posts: 1201
- Joined: Mon Jan 07, 2019 10:58 am
- First Name: Mario
- Last Name: Brossard
- * REQUIRED* Type and Year of Model Ts owned: 1911 Touring and 1914 speedster
- Location: Quebec City Canada
- Board Member Since: 1999
Re: Early T question
But I'm may be wrog too, because another source said:
"1909-1910
Off-white rubber in front; wool carpet in rear of tourings. White rubber mat on rear of mother-in-law seat roadsters.
http://www.mtfca.com/encyclo/F-H.htm#flor2
Sometimes not easy to find the accurate info. Hope that help as well
"1909-1910
Off-white rubber in front; wool carpet in rear of tourings. White rubber mat on rear of mother-in-law seat roadsters.
http://www.mtfca.com/encyclo/F-H.htm#flor2
Sometimes not easy to find the accurate info. Hope that help as well
Super Mario Bross
1911 Touring
1914 Speedster

1911 Touring
1914 Speedster
-
- Posts: 370
- Joined: Tue Jan 08, 2019 9:01 am
- First Name: Russ
- Last Name: Furstnow
- * REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
- Location: Flagstaff, AZ
- MTFCA Life Member: YES
Re: Early T question

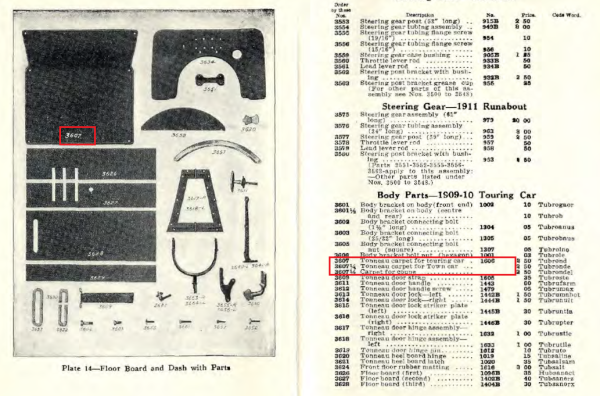

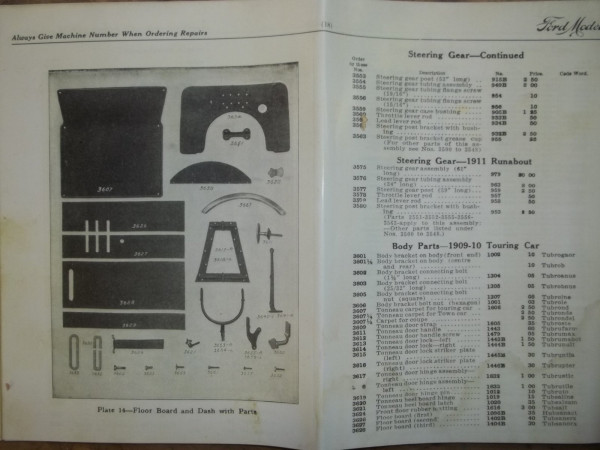

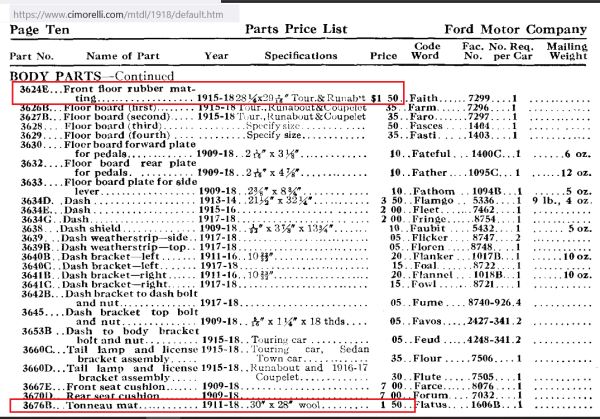

Bill, Here is a photo of an early Ford parts book that shows the rear tonneau carpet (Part number 3607) for the 1909-1910 touring. You can see by the shape that the wool carpet extends up the floorboard behind the gas tank. I found a company that sold imported black cut pile wool carpet, and cut and and edged the carpet for my 1909. I hope this helps. Russ Furstnow
-
- Posts: 1554
- Joined: Sun Jan 06, 2019 12:16 pm
- First Name: Kim
- Last Name: Dobbins
- * REQUIRED* Type and Year of Model Ts owned: 1909 touring, 1910 touring, 1913 touring, 1916 couplet, 1925 roadster pickup.
- Location: Southern California
Re: Early T question
I did the same as Russ, I remember finding documentation some where that at least on early cars the rear floor was carpet.
-
- Posts: 663
- Joined: Fri Jan 04, 2019 11:15 am
- First Name: Tony
- Last Name: Bowker
- * REQUIRED* Type and Year of Model Ts owned: 1914 touring
- Location: La Mesa, CA
- MTFCA Life Member: YES
- Board Member Since: 2005
Re: Early T question
My 1909 kit of parts included a white rubber mat, I guess it must be a repro from sometime in the past. If does look quite nice and matches the white rubber mat at the front. Mind you I rather prefer the look of the stained and varnished wood floor.
Tony Bowker
La Mesa, California
1914 Touring, 1915 Speedster, 1924 Coupe.
La Mesa, California
1914 Touring, 1915 Speedster, 1924 Coupe.
-
- Posts: 24
- Joined: Mon Jan 07, 2019 4:17 pm
- First Name: David
- Last Name: Dryden
- Location: Australia
Re: Early T question

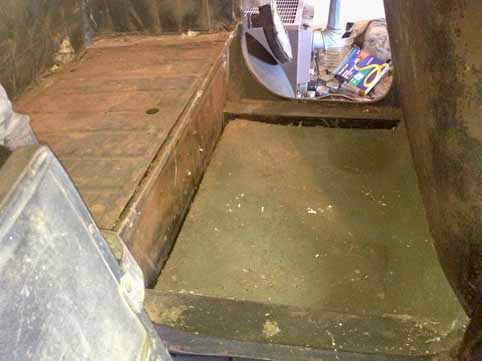

I have an original early 1909 January engine #685 but very original, its had paint put on it in the early 1940's and this car has still got it original floor mat in the rear which is carpet with the press studs in the corners and to me it looks like a green sort of color in the carpet. If you want any more particulars email and I can help with information and photos.
-
- Posts: 61
- Joined: Fri Jul 19, 2019 4:20 pm
- First Name: Wilber
- Last Name: Elliott
- * REQUIRED* Type and Year of Model Ts owned: 1910 Model T Touring
- Location: Ray, Michigan
- Board Member Since: 2007
Re: Early T question
Wow, thanks for all the input, especially the parts sheet and photos showing the actual carpet! So am I correct in assuming that only the 1909 and early '10's had carpet and then the cocoa mat was used? If so, does anyone know what the "cutoff" date would have been? Mine is a February of 1910.
-
- Posts: 370
- Joined: Tue Jan 08, 2019 9:01 am
- First Name: Russ
- Last Name: Furstnow
- * REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
- Location: Flagstaff, AZ
- MTFCA Life Member: YES
Re: Early T question
Bill, I sent you a PM, Russ Furstnow
-
- Posts: 61
- Joined: Fri Jul 19, 2019 4:20 pm
- First Name: Wilber
- Last Name: Elliott
- * REQUIRED* Type and Year of Model Ts owned: 1910 Model T Touring
- Location: Ray, Michigan
- Board Member Since: 2007
Re: Early T question
Thanks Russ! Did they cut it to size and band the edges too or did you do that?
-
- Posts: 423
- Joined: Mon Jan 07, 2019 11:21 am
- First Name: Brent
- Last Name: Terry
- * REQUIRED* Type and Year of Model Ts owned: 1909 Tourabout, 1914 Runabout, 1915 Touring, 1916 Speedster, 1925 Speedster, 1926 Hack
- Location: Eastern Tennessee
- Board Member Since: 1999
- Contact:
Re: Early T question - TOURABOUT

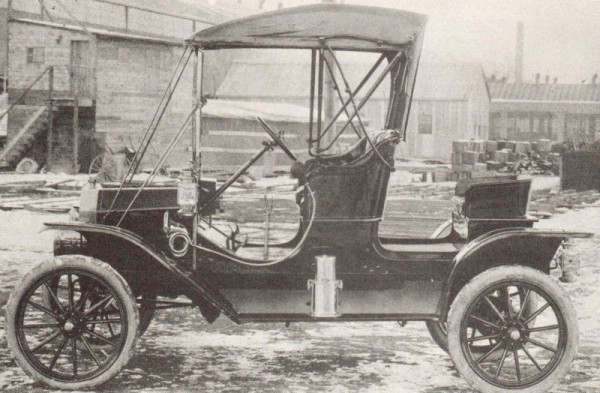

Can I bring this thread back from the "depths" to ask a question as it pertains to a Tourabout? Would the factory-assembled Tourabouts have been furnished with a White Rubber Mat, -or would it have had a special sized Cocoa Mat (-i.e.: 30½"w X 21¾"l)?
-
- Posts: 117
- Joined: Mon Jan 28, 2019 4:54 pm
- First Name: Pat
- Last Name: Branigan
- * REQUIRED* Type and Year of Model Ts owned: 1909 two1910,1911, 1913 Tourings
- Location: River Falls and Oconto Falls Wi
Re: Early T question
I am the third owner of my car and being very original built March 10 1910 with I believe is the original coco mat.
-
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Early T question

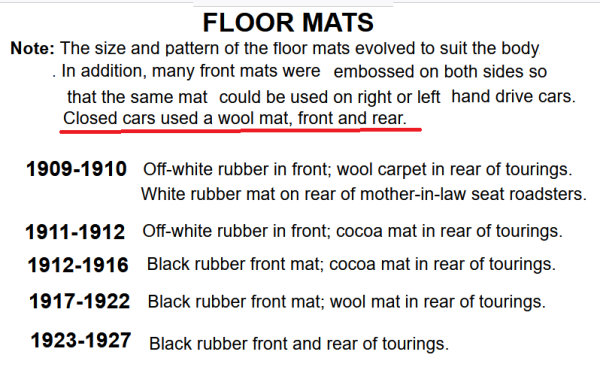

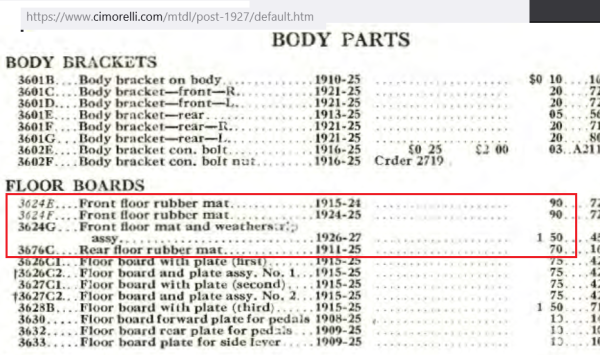

From the MTFCA Encyclopedia and
Internet (Wool carpets are highly absorbent, and whilst this can be a good trait for removing humidity from the air, it’s not so good when it comes to spills or regular exposure to water, such as in or near a bathroom. Larger volumes of water can saturate wool fibres and over time can result in mildew forming, causing discolouration and an undesirable smell.)
-- --
--
Closeups
Internet (Wool carpets are highly absorbent, and whilst this can be a good trait for removing humidity from the air, it’s not so good when it comes to spills or regular exposure to water, such as in or near a bathroom. Larger volumes of water can saturate wool fibres and over time can result in mildew forming, causing discolouration and an undesirable smell.)
-- --
--
Closeups
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 423
- Joined: Mon Jan 07, 2019 11:21 am
- First Name: Brent
- Last Name: Terry
- * REQUIRED* Type and Year of Model Ts owned: 1909 Tourabout, 1914 Runabout, 1915 Touring, 1916 Speedster, 1925 Speedster, 1926 Hack
- Location: Eastern Tennessee
- Board Member Since: 1999
- Contact:
Re: Early T question
TRDxB2 wrote: ↑Wed May 29, 2024 1:39 pmFrom the MTFCA Encyclopedia and
Internet (Wool carpets are highly absorbent, and whilst this can be a good trait for removing humidity from the air, it’s not so good when it comes to spills or regular exposure to water, such as in or near a bathroom. Larger volumes of water can saturate wool fibres and over time can result in mildew forming, causing discolouration and an undesirable smell.)
--
mats 2.png
--
--
Closeups
floor mats.png
Frank, I apologize in advance but I am struggling to follow you on this. I see where you underlined the portion about a Wool Mat being used in closed cars, but are you addressing this thread from back in 2020 about Touring car rear mat, -or are you answering my question?
-
- Posts: 348
- Joined: Mon May 06, 2024 9:32 pm
- First Name: Kurt
- Last Name: Andersson
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring
- Location: Panama City Beach, FL
Re: Early T question
Ok, so I have to ask....are original cocoa mats like unicorns??Original Smith wrote: ↑Fri Jul 31, 2020 11:39 amI have never liked the cocoa mats that are currently being made. I can't believe someone doesn't have an original one we can see.
Just asking, cuz I was told by the prior owner, family was 2nd owner since 1930, that the mat in mine is original. Not that I know how to authentic, but.... just curious about your comment and relative obscurity of original mats....
Call me anything you want...just so long as it isn't "late for dinner"
-
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Early T question
I like the appearance of the wool mat pictured above. What's with the snaps. I find it hard to believe Ford did that?
-
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Early T question
Sorry should have explained better.BRENT in 10-uh-C wrote: ↑Wed May 29, 2024 3:49 pmTRDxB2 wrote: ↑Wed May 29, 2024 1:39 pmFrom the MTFCA Encyclopedia and
Internet (Wool carpets are highly absorbent, and whilst this can be a good trait for removing humidity from the air, it’s not so good when it comes to spills or regular exposure to water, such as in or near a bathroom. Larger volumes of water can saturate wool fibres and over time can result in mildew forming, causing discolouration and an undesirable smell.)
--
mats 2.png
--
--
Closeups
floor mats.png
Frank, I apologize in advance but I am struggling to follow you on this. I see where you underlined the portion about a Wool Mat being used in closed cars, but are you addressing this thread from back in 2020 about Touring car rear mat, -or are you answering my question?
The Encyclopedia states that coco mats were used in open cars & wool in closed cars. The picture that 1906jford provided didn't indicate if that was from a closed or open car. BUT given the wear pattern it looks like the binding for a wool carpet.
So coco for open cars & wool for closed cars.
A few coco mats from that era would be helpful, not just for a Model T, to see how how they were made then.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Early T question - TOURABOUT
My guess would be the Tourabout used the Roadster w/ Mother Law rear mat, p/n 4409 Factory # 1665, "Floor Mat, Rear Roadster, 30 3/8" x 30"BRENT in 10-uh-C wrote: ↑Wed May 29, 2024 11:40 amCan I bring this thread back from the "depths" to ask a question as it pertains to a Tourabout? Would the factory-assembled Tourabouts have been furnished with a White Rubber Mat, -or would it have had a special sized Cocoa Mat (-i.e.: 30½"w X 21¾"l)?
Both appear white rubber.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
- Posts: 227
- Joined: Thu Mar 10, 2022 11:46 am
- First Name: Stan
- Last Name: Gadson
- * REQUIRED* Type and Year of Model Ts owned: 1915 touring
- Location: USA
Re: Early T question

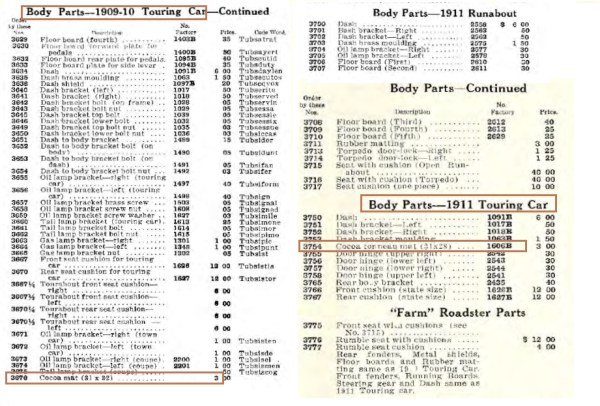

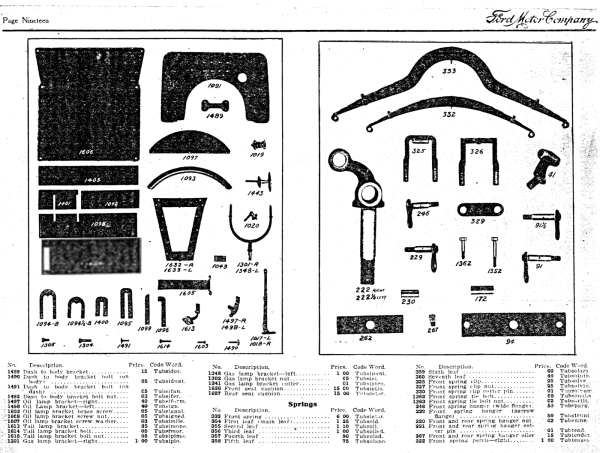

That 1909 tonneau carpet shows up as part 1606 in an early parts list, possibly 1908. It's listed on a separate page as "1606 Tonneau carpet" for 2.50.
Last edited by hull 433 on Tue Jun 04, 2024 6:33 pm, edited 1 time in total.
-
- Posts: 102
- Joined: Sun Mar 27, 2022 10:54 pm
- First Name: Mark
- Last Name: Cameron
- * REQUIRED* Type and Year of Model Ts owned: 1909touring 1915 touring
- Location: Owatonna, MN
Re: Early T question

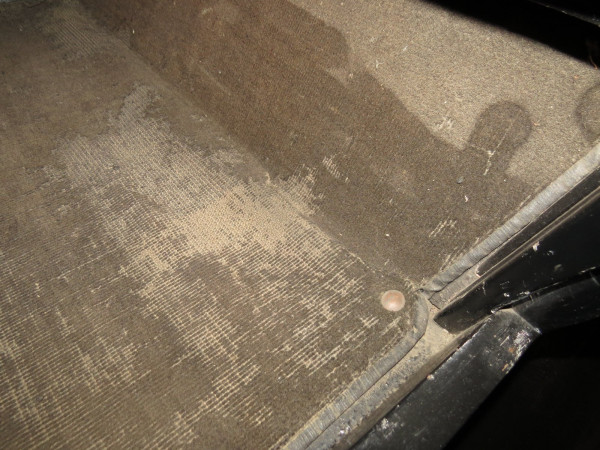

Without question the earliest cars had a carpet in the back. I have worked on a few 1909 cars and the button snap posts are usually still in place on the floorboards. I have the factory blueprint for the carpet in my files somewhere but it doesnt have much detail. The one shown here is one of few remaining examples. Hope it can be studied in detail.
-
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Early T question
Why doesn't this answer the question on what mats where used where on what models?
https://www.mtfca.com/encyclo/F-H.htm#flor2
"Earliest Cars having carpet" is an ambiguous reference as not indicating year or model.

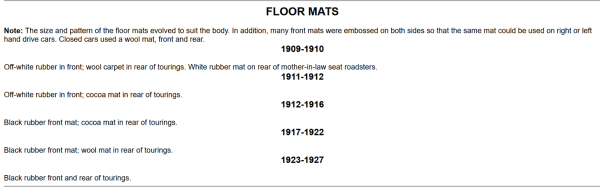

From the Model T Ford Club of America Encyclopedia (click on the image to enlarge it) or read the one below it.
https://www.mtfca.com/encyclo/F-H.htm#flor2
"Earliest Cars having carpet" is an ambiguous reference as not indicating year or model.
From the Model T Ford Club of America Encyclopedia (click on the image to enlarge it) or read the one below it.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Early T question
We need to find out the real answer to this question. Someone who is able needs to go to the Benson Ford archives and pull the record of changes on this mat! It obviously evolved over the years, and we need to know. No guesses!
-
- Posts: 7235
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Early T question
I'm inclined to go with Bruce's information posted by Frank. But Larry's suggestion of fact-checking it with original sources to be sure is not a bad idea.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Early T question

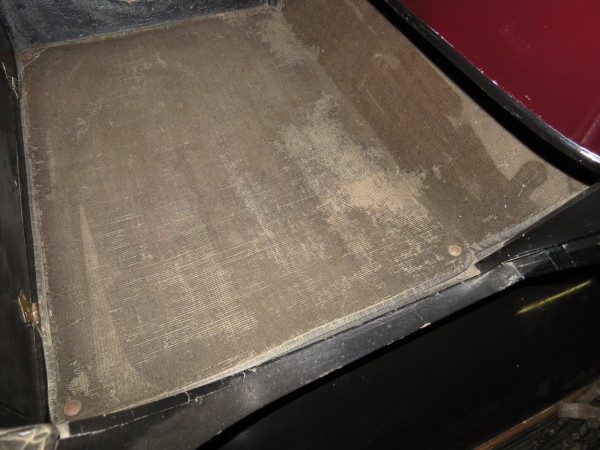

Since there is an example of a 1909 with the original rear carpet, certainly there must be examples of later T's with the original mats still. How about some of your 1913-1916 cars coming forward and showing us what you believe is original mats for your cars!
-
- Posts: 423
- Joined: Mon Jan 07, 2019 11:21 am
- First Name: Brent
- Last Name: Terry
- * REQUIRED* Type and Year of Model Ts owned: 1909 Tourabout, 1914 Runabout, 1915 Touring, 1916 Speedster, 1925 Speedster, 1926 Hack
- Location: Eastern Tennessee
- Board Member Since: 1999
- Contact:
Re: Early T question
Steve, the problem with solely relying on Bruce's research is that based on my own first-hand experiences is when researching is done, we are always uncovering new facts that often contradicts what we thought we already knew as 'facts'. A great example of this is when you look at Dan's photos from above, it tends to make a compelling argument for using an off-white Rubber Mat in lieu of a Cocoa mat in the tonneau area of a Tourabout. Since the Tourabout and the Touring did not share the same size of floor area in the tonneau area, Ford would have needed to manufacture two different sizes of Cocoa Mats whereas the rubber Mat was already in production for the Runabout which was a direct fit for the Tourabout. Bruce never addressed the Tourabout mats.Steve Jelf wrote: ↑Mon Jun 03, 2024 1:19 pmI'm inclined to go with Bruce's information posted by Frank. But Larry's suggestion of fact-checking it with original sources to be sure is not a bad idea.
Larry, unfortunately that is just not possible. Before COVID I generally spent 4 - 5 full weeks each year at the Benson Research Center researching Prints, EIs, M-Specs, Photos, and Foreman's Logs for my business. Linda (past curator) and Brian (Archive Mgr) knew me because of the visits, and I even looked up things for and sent them to Randall. I say this to explain that you (-or whomever) can go to the 'Benson Ford archives' if you like however you will be met with a locked door. The Henry Ford has not allocated funding for staff both during and in the post-pandemic era, ...and many of the volunteers that used to work there in the Research Center were students from a local college that were receiving college credits because of grant funding however the college(s) have not been given funding either, so they do not have the staff available any longer to open the doors. IMHO based on the length of time it has been closed, and with listening to the whispers from within, my guess is the archives will probably never be re-opened to the public again. So what is your next recommendation??Original Smith wrote: ↑Mon Jun 03, 2024 12:51 pmWe need to find out the real answer to this question. Someone who is able needs to go to the Benson Ford archives and pull the record of changes on this mat! It obviously evolved over the years, and we need to know. No guesses!
-
- Posts: 7235
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Early T question
...my guess is the archives will probably never be re-opened to the public again.
Can you still buy copies of parts drawings online?
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Early T question
Check out Bruce's black book, and the article on the Rip Van Winkle. It shows the carpet in the rear of the car, and says it is rather thick wool, and is bound all around the edges. There must be other examples of cars from the early teens out there? How about some owners of these cars coming forward?
-
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Early T question
Where did "Bruce W. McCalley" get his information?Original Smith wrote: ↑Mon Jun 03, 2024 12:51 pmWe need to find out the real answer to this question. Someone who is able needs to go to the Benson Ford archives and pull the record of changes on this mat! It obviously evolved over the years, and we need to know. No guesses!


https://www.hemmings.com/stories/2017/1 ... rch-center
"McCalley spent many hours in the Benson Ford Research Center in Dearborn, Michigan, unraveling the mysteries of the Model T’s 19-year production run."
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 423
- Joined: Mon Jan 07, 2019 11:21 am
- First Name: Brent
- Last Name: Terry
- * REQUIRED* Type and Year of Model Ts owned: 1909 Tourabout, 1914 Runabout, 1915 Touring, 1916 Speedster, 1925 Speedster, 1926 Hack
- Location: Eastern Tennessee
- Board Member Since: 1999
- Contact:
Re: Early T question
Frank, wouldn't you agree there has only been one book ever written that was without errors, ...and with all due respect & recognition for what Mr. McCalley did, Bruce's book just is not that Book!!TRDxB2 wrote: ↑Tue Jun 04, 2024 2:05 pmWhere did "Bruce W. McCalley" get his information?If you doubt some of his research then why not all of it?
![]()
https://www.hemmings.com/stories/2017/1 ... rch-center
"McCalley spent many hours in the Benson Ford Research Center in Dearborn, Michigan, unraveling the mysteries of the Model T’s 19-year production run."

Think about it, there is not any way that Bruce could have thoroughly researched nearly 20 years of production changes for our beloved Model-T. The Ford Model-A that was only produced for less than 4½ years has been in constant research ever since George DeAngeles went dumpster diving and saved all of the information that Ford had thrown away. This information for the Model-A was first compiled in book form in 1989 after about 20 years of research. Because new information has been continually found that corrected previous information, there subsequently has been 4 major revisions (-in 1994, 1997, 2011, & 2016) to that book, ...and there now has been enough new information gathered for yet a 5th revision.
Additionally, there have been WAY more of us including both national Model-A club's JSC members that have compiled and provided research, and we are still finding information on Engineer's drawings, Engineering notes, and Foreman's logs that contradict what the first Model-A Judging Standard had written, -so if a team of over 100 men have been spending nearly 50 years researching a Ford vehicle that was only produced for around 4 years, how likely is it that Bruce and his small(er) team could compile 5X as much information in that same amount of time and been able to get everything correct without any need for revisions??
-
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Early T question
Yes.Steve Jelf wrote: ↑Tue Jun 04, 2024 1:39 pm...my guess is the archives will probably never be re-opened to the public again.
Can you still buy copies of parts drawings online?
You contact Benson Research via email, response is quick, have done it several times, and email reply will be with file that you can download on your computer to view the doc or print.
The Factory Number must be used, and that can be a dilemma on the 'wool' or 'carpet' discussion for the '09-'10.
Review of two different Ford Parts and Price Lists shows this:
April 1914 List: '09-'10 p/n 3607 is listed as "Tonneau (sic rear) carpet for Touring Car" 33 1/4" x 32 3/8" with Factory Number 1606A
Sept 1912 List: '09-'10 p/n 3676 is listed as Cocoa Mat 31" x 32" with Factory Number 1606A
Note the Factory Numbers are the same! So print may not show material, but perhaps other records.
If I knew the Factory Number for the Tonneau (rear) mat or carpet for the Tourabout body , would be happy to get this from the Benson Research, but can't find such number. The Tourabout rear seat cushions (L and R) have Factory Nos. 2289 and 2290, but can't find listing for the mat or carpet.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
- Posts: 227
- Joined: Thu Mar 10, 2022 11:46 am
- First Name: Stan
- Last Name: Gadson
- * REQUIRED* Type and Year of Model Ts owned: 1915 touring
- Location: USA
Re: Early T question
From the parts list for touring cars, there were four consecutive types of tonneau mats.
Wool carpet 1909-10
Coca mat 1911-17
Wool felt 1917-21
Rubber Mat 1923 -
An original 1915 from Illinois posted here some time ago might have a wool felt mat in the tonneau. It's in the picture. The 1917 Rip Van Winkle car definitely has a wool felt mat, described by Bruce as "thick" with binding stitches around the corners. Not sure what color.
Parts lists for 1912 still stock wool carpet for 1909-10 cars, while 1911-12 cars were cocoa mats. All replacement mats whether for 1909-10 or 1911 up were cocoa after 1912, probably once the stock of wool carpet was gone.
Cocoa mats appear in parts lists for very early 1917, replaced by wool felt by June 1917. Looks like the switch was made mid year.
We've seen it before - a progression of changes towards less expensive alternatives.
Wool carpet 1909-10
Coca mat 1911-17
Wool felt 1917-21
Rubber Mat 1923 -
An original 1915 from Illinois posted here some time ago might have a wool felt mat in the tonneau. It's in the picture. The 1917 Rip Van Winkle car definitely has a wool felt mat, described by Bruce as "thick" with binding stitches around the corners. Not sure what color.
Parts lists for 1912 still stock wool carpet for 1909-10 cars, while 1911-12 cars were cocoa mats. All replacement mats whether for 1909-10 or 1911 up were cocoa after 1912, probably once the stock of wool carpet was gone.
Cocoa mats appear in parts lists for very early 1917, replaced by wool felt by June 1917. Looks like the switch was made mid year.
We've seen it before - a progression of changes towards less expensive alternatives.
- Attachments
-
- IMG_4626.jpg (45.04 KiB) Viewed 3865 times
Last edited by hull 433 on Wed Jun 05, 2024 12:06 pm, edited 1 time in total.
-
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Early T question
I see some research was done by others while I was doing the same. Images of the parts book pages are included for further verification
When the parts book doesn't specify a particular Model, it can not always be assumed that it will fit.
While the part books give specific part numbers for Model/years they also omit needed information to correctly answer the question "what was used where" Then again they are just another reference for potential error
From the 1910-11 parts list (see 1910-11 parts lists below)
The word "carpet" is used for part numbers 3606 for Touring, 3606 1/4 for Town Car, 3606 1/5 for Coupe
Cocoa mat part 3676 is noted for the 1909-10 Touring
Cocoa mat part 3754 is noted for the 1911 Touring From the 1918 parts list (see 1918 parts list below)
Tonneau mat part 3676B is noted as wool but there is no designation of Model, just a size 30" x 28"
Websters definition of Tonneau : a rear part or compartment of an automobile body, containing seats for passengers. From the 1927 parts list (see 1927 parts list below)
Rear floor rubber mat, part 3676C, is noted for years 1911-25 but does not mention a model or the size of the mat.
When the parts book doesn't specify a particular Model, it can not always be assumed that it will fit.
While the part books give specific part numbers for Model/years they also omit needed information to correctly answer the question "what was used where" Then again they are just another reference for potential error
From the 1910-11 parts list (see 1910-11 parts lists below)
The word "carpet" is used for part numbers 3606 for Touring, 3606 1/4 for Town Car, 3606 1/5 for Coupe
Cocoa mat part 3676 is noted for the 1909-10 Touring
Cocoa mat part 3754 is noted for the 1911 Touring From the 1918 parts list (see 1918 parts list below)
Tonneau mat part 3676B is noted as wool but there is no designation of Model, just a size 30" x 28"
Websters definition of Tonneau : a rear part or compartment of an automobile body, containing seats for passengers. From the 1927 parts list (see 1927 parts list below)
Rear floor rubber mat, part 3676C, is noted for years 1911-25 but does not mention a model or the size of the mat.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 7235
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Early T question
You contact Benson Research via email, response is quick, have done it several times, and email reply will be with file that you can download on your computer to view the doc or print.
Yes, that's what I did planning to make a new firewall. I'm glad that service is still available.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
- Posts: 227
- Joined: Thu Mar 10, 2022 11:46 am
- First Name: Stan
- Last Name: Gadson
- * REQUIRED* Type and Year of Model Ts owned: 1915 touring
- Location: USA
Re: Early T question
Just updated the chronology in my post above - cocoa mats from 1911 to mid 1917, wool felt to 1921 or 22, rubber afterwards, all for touring cars.
I think tourabouts were considered "open" cars in that they had no doors, and the rear seat was thought of as just a larger rumble seat, so white rubber mats, same as the front. Touring cars, while plenty open, had doors on the tonneau and were then considered to be semi-formal, hence the use of carpet or coaca fibre compared to the front seat rubber mat.
I think tourabouts were considered "open" cars in that they had no doors, and the rear seat was thought of as just a larger rumble seat, so white rubber mats, same as the front. Touring cars, while plenty open, had doors on the tonneau and were then considered to be semi-formal, hence the use of carpet or coaca fibre compared to the front seat rubber mat.
