Does anybody know what these look like? I know what the rear one looks like and the middle one, but the front one (according to catalogs) is for 24-27....so, is the 1909 bearing different than this later one?

Also need to know which way the bearing clip goes, at the moment I've got it drawn on the top side of the bearing, because this puts the set screw hole perpendicular to the right side of the engine block.

[RGould1910]

09 to 23 front bearing was shaped different because the front cam lobes were not lengthened as were those on later camshafts. There are examples in quite a few sources eg Fahstocks articles, parts catalogues etc. I belive the Model T manual has illustrations.
There may be other changes I'm not aware of but that's the major difference.

[VowellArt]

Richard, you say it is shaped different, how, is it shorter? I've seen some 1909 camshafts and the wear on the front bearing cam surface shows that the bearing is almost right up against if not against the front cam lobe. I'm wondering if they made that particular end thicker, so as to keep the lobe from hanging up on the bearing.

As for getting pictures I don't have any of those sources you mentioned available to me, so I thought I'd ask y'all here what the bloody thing looks like and maybe even get a photo of one (don't need much, just a side view would be fine).

[Kerry]

Early bearings had no babbitt, don't know when the change, I'll check my stock of bearings later to see if I still have them.

[jsaylor]

Check this article by Glen Chaffin on Cams. Talks about end play and differences in early and late cams.

[Dan McEachern]

The "early" front cam shaft bearings have a notch on the rearward facing end. This notch was to provide clearance on the top side of the bearing for the #1 exhaust lifter. The earlier cams had a narrower front lobe than later camshafts. The notch was troublesome because the rear face, being interrupted, could not effectively control the forward thrust of the cam. Over time, the front cam lobe would begin to wear into the notch. I suspect this was not a great issue with the straight cut timing gears, but the introduction of the helical cam gears increased the forward thrust of the cam. Ford solved this by making the front cam lobe wider, which allowed for a shorter front bearing, eliminating the clearance issue with the valve lifter.

Kerry is correct, early cam bearings were not babbitt lined. The cam journals ran directly on the cast iron bearing.

[speedytinc]

Early, early cam bearings have no babbit. They also look radically different in that instead of the solid body as the later ones have, they have ribs, like cooling ribs that contact the block on those rib edges. Much less contact & wear those ribs into the block to fit looser faster.
I don't know when they changed to the solid type body. There must be guys out there that have found these early bearings in original motors that can narrow the time they were used.

[ewdysar]

Back to Martynn's original post. Can anyone provide a decent image of what the early front cam bearings look like? It sounds like he is working on another of his excellent mechanical drawings of the Model T components, and he would like this drawing to be as accurate as possible.

Keep crankin',
Eric

[Dan McEachern]

I will try to dig out an example of the style that John refers to above.

[Dan McEachern]

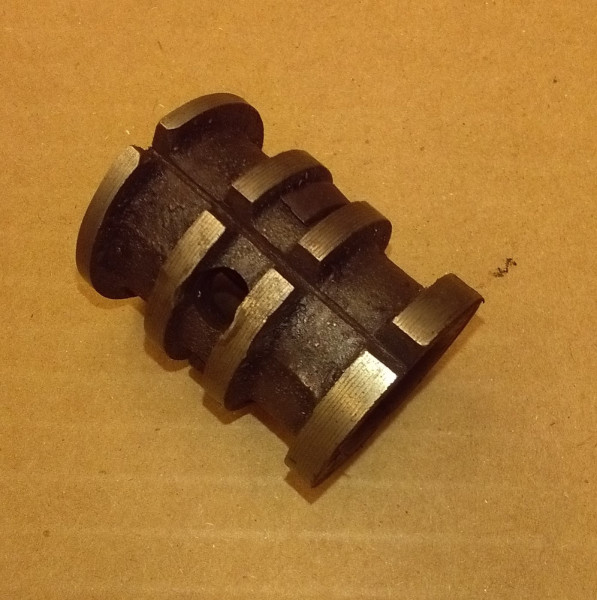

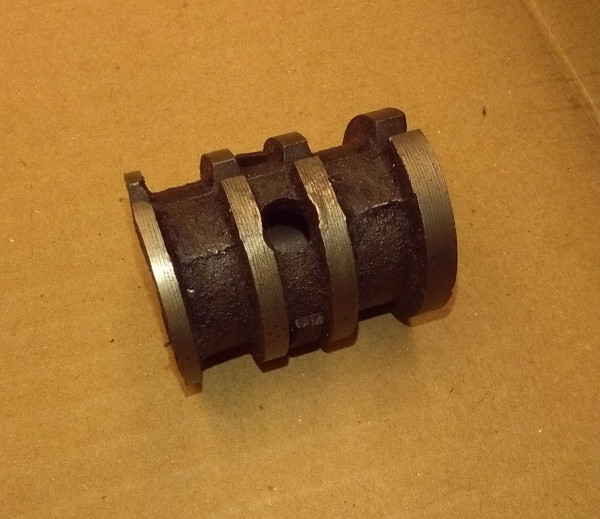

I will try to dig out an example of the style that John refers to above. On Edit- here are a few pictures of the true early cam bearing. This bearing has had the rear side ground off at some point (on the left in the pictures) so it appears shorter with the notch removed. This is the only example I had. The clip was still used in the center groove to hold the shells together.

[speedytinc]

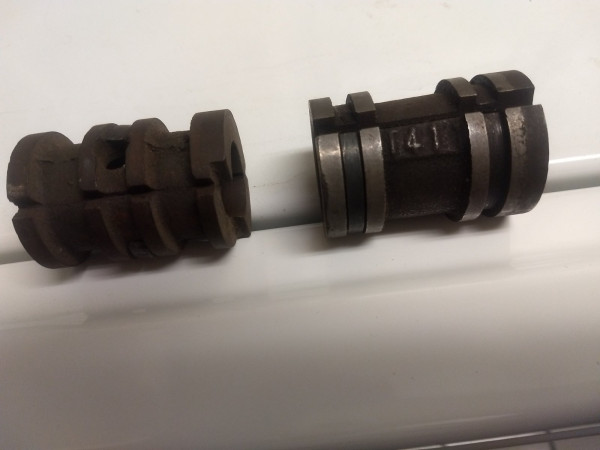

Early cam bearings

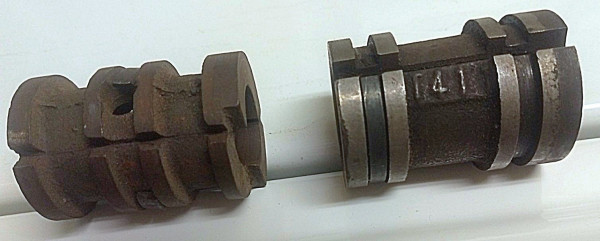

I found 2 early cam bearings. The one on the left is like Dans. (not as clean)
The one on the right, I suspect is earlier.
You can see the part # in raised cast. T41 or T411.
Note there is 2 ring groves. One on each end. Only one ring installed.

Maybe some of the guys that work/have worked on early motors can tell us the correct years they were used.
