We have a 1916 Ford Touring we are restoring. We are replacing the original engine with a later model electric start engine. So I think I can use 1.0 wire from the 8 volt battery to started switch, and then on to the starter motor. Do I need a fuse? My hope is use the magneto for ignition. As to the generator, how do I wire it to charge the battery? Negative ground . . . .correct?
Thanks for the input.
We're excited to meet everyone at Lake George! Our T won't be ready but getting closer!
Campbell Tellman II
Beaufort, NC
Engine Swap
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Campbell Tellman
Topic author - Posts: 65
- Joined: Mon Oct 11, 2021 9:28 am
- First Name: Campbell
- Last Name: Tellman
- * REQUIRED* Type and Year of Model Ts owned: 1916 Ford Touring
- Location: Beaufort, NC
-
speedytinc
- Posts: 5075
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Engine Swap
Your coil box should have 2 terminals for power in. 1 from the magneto. the second for battery ignition from the battery.
Thats a handy spot to put the generator power wire to. Dont mix the 2 terminals up lest you kill the mag.
Its a good idea to keep the generator output low in the 4-6 amp range for 8v. Also adding an ammeter is a good idea to keep a monitor on the generator. Otherwise if there is a failure, the generator will be destroyed before you will know it.
Henry didnt install a fuse. I dont either.
There are others with opposing opinions on the subject.
Thats a handy spot to put the generator power wire to. Dont mix the 2 terminals up lest you kill the mag.
Its a good idea to keep the generator output low in the 4-6 amp range for 8v. Also adding an ammeter is a good idea to keep a monitor on the generator. Otherwise if there is a failure, the generator will be destroyed before you will know it.
Henry didnt install a fuse. I dont either.
There are others with opposing opinions on the subject.
-
DHort
- Posts: 2946
- Joined: Sun Jan 06, 2019 1:30 pm
- First Name: Dave
- Last Name: Hjortnaes
- * REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
- Location: Men Falls, WI
Re: Engine Swap
Go to www.texastparts.com for wiring diagrams. They do not go as far back as a 1916, but you can look at the 1919-25 and see where most of your wires will be placed. I highly recommend a fuse and the diagram will show you where to place it.
-
AndreFordT
- Posts: 551
- Joined: Sun Jan 06, 2019 12:25 pm
- First Name: Andre
- Last Name: Valkenaers
- * REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
- Location: Scherpenheuvel
Re: Engine Swap
John is so right about the ampmeter.
I build mine in an empty coil.

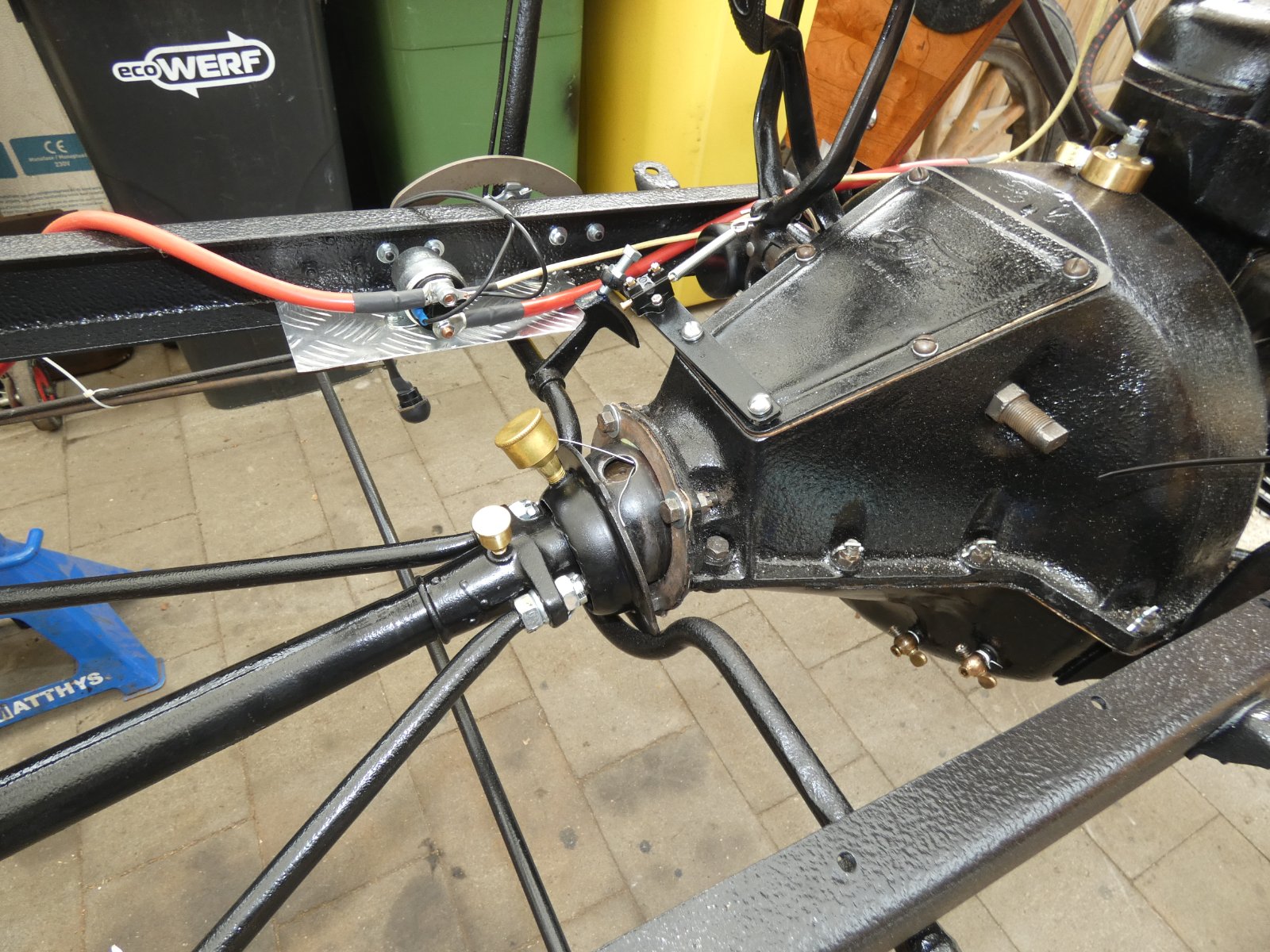

Photos are from a 1912 Torpedo runabout.

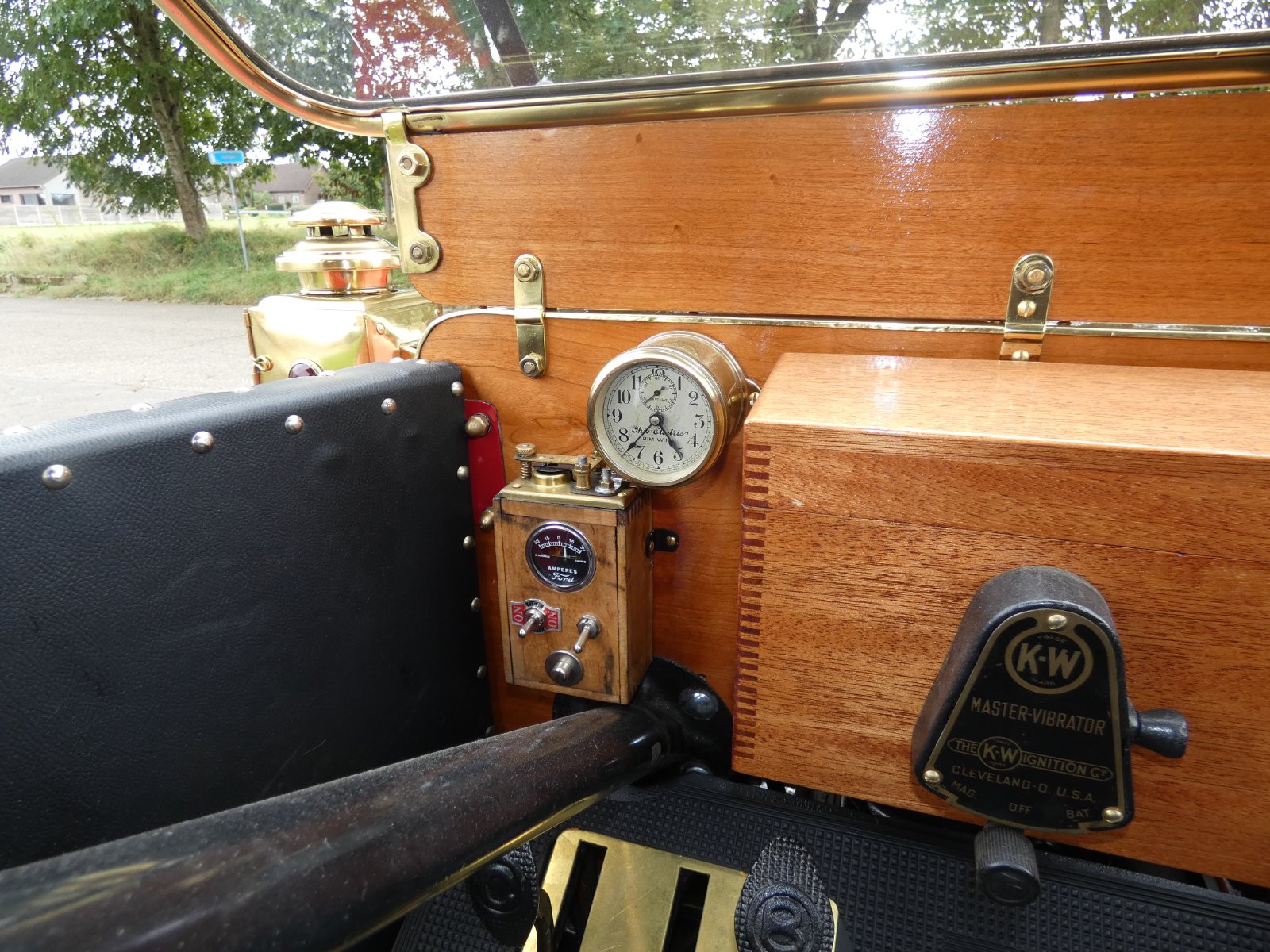

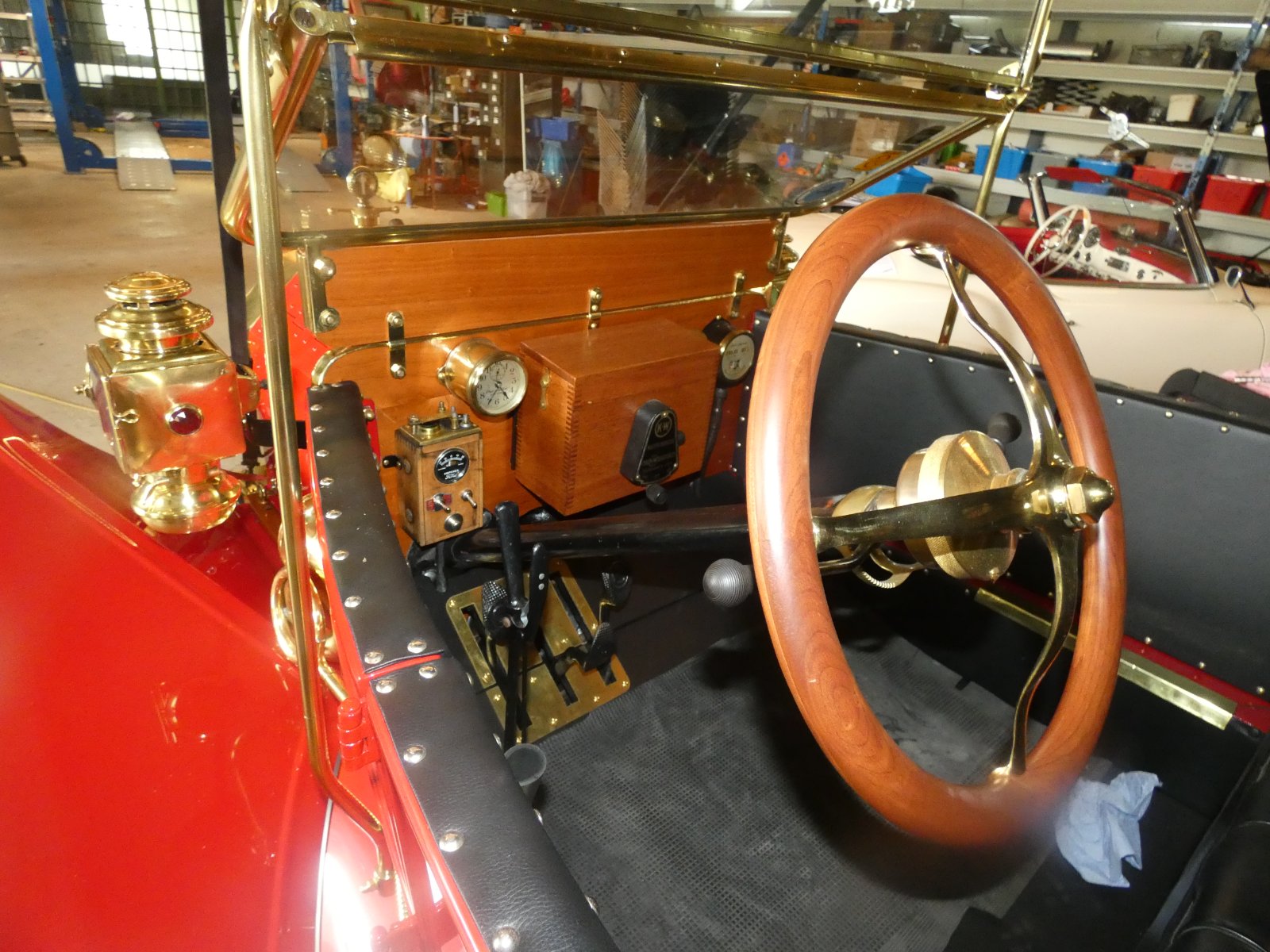

The on-off-on switch is for the flasher, the push button is for the starter( I installed a starter relais to command the starter) the other switch is for the lights.
I use a 30Amp to secure the electrics.
Andre
Belgium
I build mine in an empty coil.
Photos are from a 1912 Torpedo runabout.
The on-off-on switch is for the flasher, the push button is for the starter( I installed a starter relais to command the starter) the other switch is for the lights.
I use a 30Amp to secure the electrics.
Andre
Belgium
