TT Battery Arrangement
Can any of my fellow TT owners post a pictures of how the “as built” battery box/tray set up, preferably for a 1924 or later with ford supplied cab. My 1924 set up with my C-Cab is not original and as I’m revamping this area, I’d like to make it as close to original as possible.
-
George House
- Posts: 3021
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: TT Battery Arrangement
Here you go Bruce,

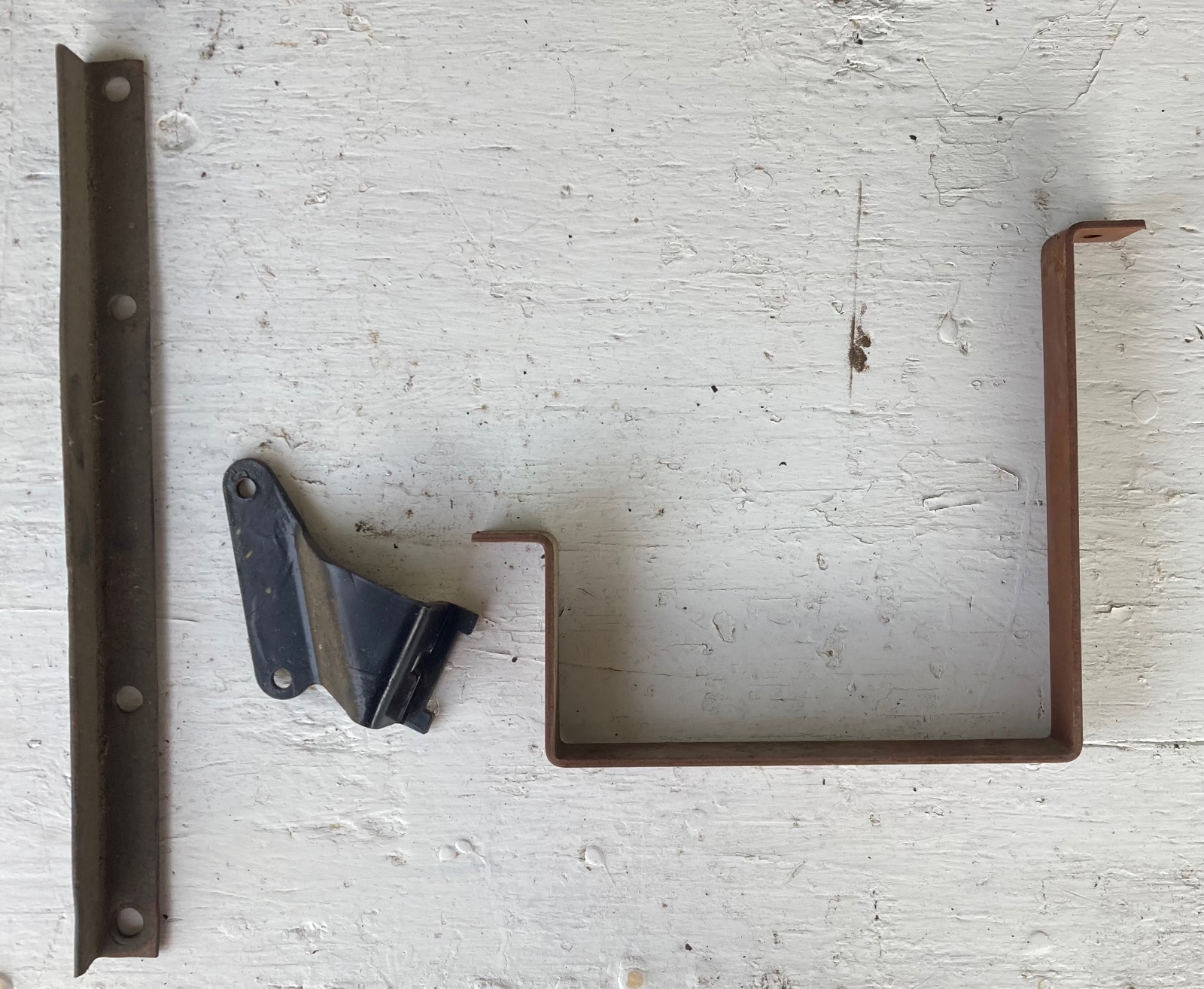

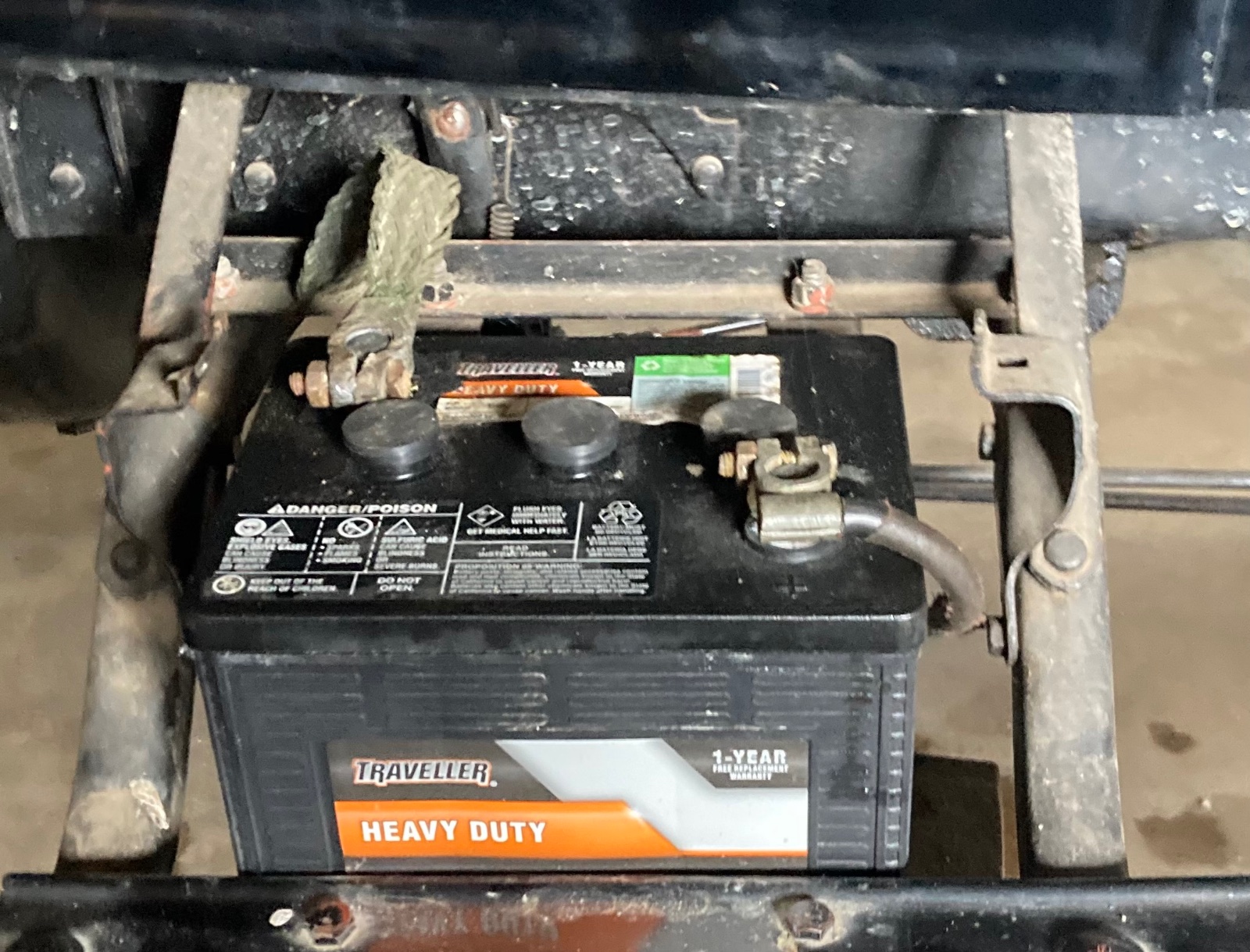

You need 5 pieces - all of which I think Snyders or Langs sell. One photo shows how they all fit together. There’s one angle iron with 4 holes. Outboard 2 bolt into the runningboard supports. Inboard 2 bolt to the 2 strap metal pieces. Other end of the strap metal pieces bolt to existing holes in the runningboard. Then you’ll fashion a wood base to fit in this strap metal cradle into which you’ll place your battery. Finally, theres 2 hard to find brackets that bolt into 2 holes (5/16”) pre drilled in the runningboard supports. I only picture one. If you can’t find these from the vendors, call Paul Ray Martin outside of Slaton……
Or me…..
You need 5 pieces - all of which I think Snyders or Langs sell. One photo shows how they all fit together. There’s one angle iron with 4 holes. Outboard 2 bolt into the runningboard supports. Inboard 2 bolt to the 2 strap metal pieces. Other end of the strap metal pieces bolt to existing holes in the runningboard. Then you’ll fashion a wood base to fit in this strap metal cradle into which you’ll place your battery. Finally, theres 2 hard to find brackets that bolt into 2 holes (5/16”) pre drilled in the runningboard supports. I only picture one. If you can’t find these from the vendors, call Paul Ray Martin outside of Slaton……
Or me…..
- Attachments
-
-
-
By all means marry. If you get a good wife, you’ll become happy. If you get a bad wife, you’ll become a philosopher….Socrates
-
George House
- Posts: 3021
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: TT Battery Arrangement

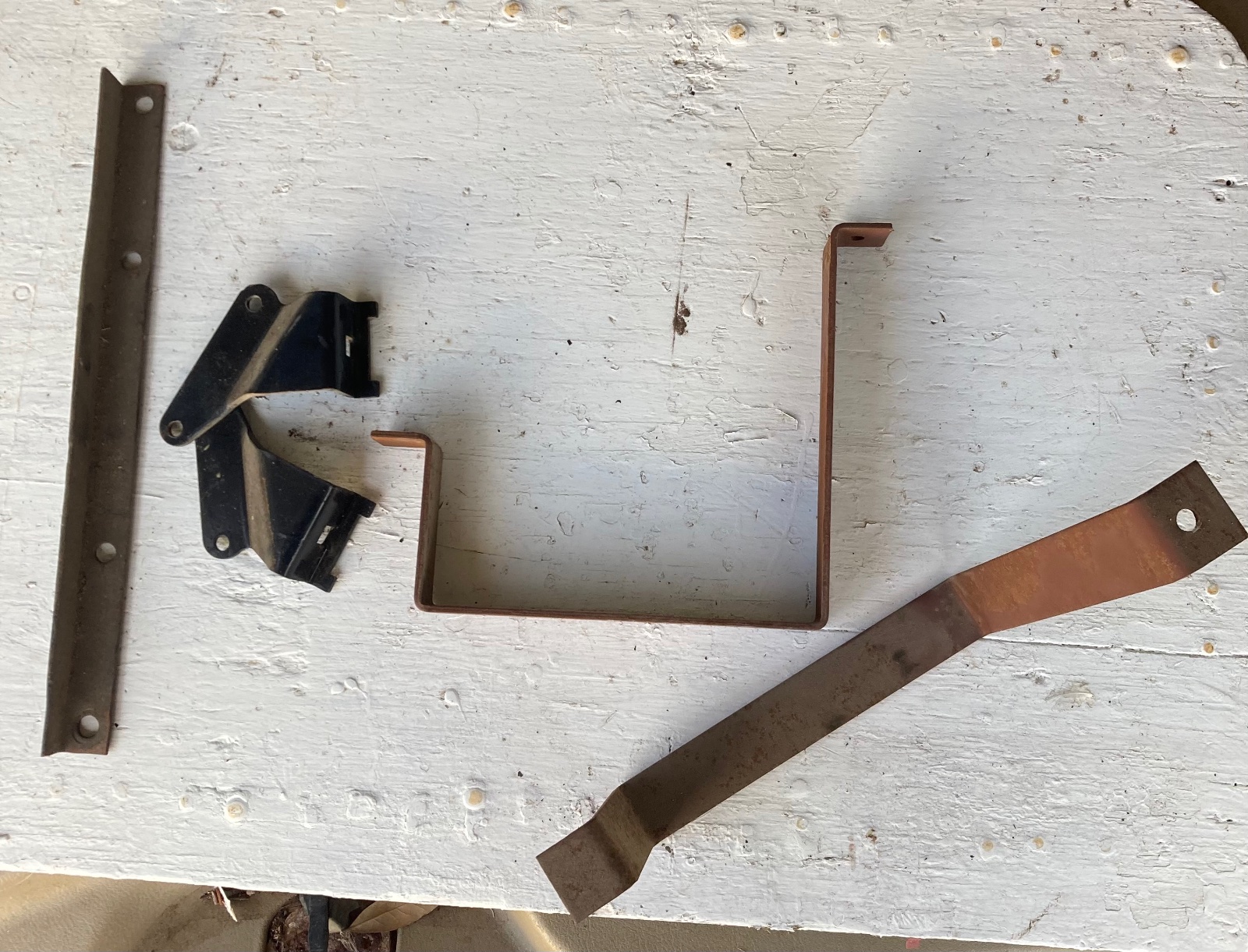

OK; I gathered up the 2nd strap metal piece and the 2nd clad in gold spot price bracket that bolts to the other runningboard support…the 2 straps and angle iron are easily farm made.
- Attachments
-
By all means marry. If you get a good wife, you’ll become happy. If you get a bad wife, you’ll become a philosopher….Socrates
-
abcarswell
Topic author - Posts: 56
- Joined: Tue Feb 05, 2019 8:58 pm
- First Name: Bruce
- Last Name: Carswell
- * REQUIRED* Type and Year of Model Ts owned: 1924 Model TT, 1934 Fordor
- Location: Lubbock, Texas
- Board Member Since: 2019
Re: TT Battery Arrangement
Thanks George! This helps. Fortunately, in one of my early parts orders, I included the formed hold down brackets which are now not available so I have those. The rest of the parts look straightforward enough. I’m now in the market for one of the now discontinued plastic battery cases to enclose an Optima 6 volt.
-
Moxie26
- Posts: 2063
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: TT Battery Arrangement
If you're looking for one of those plastic battery cases that holds an Optima 6 volt battery, you'll find that the battery case is the size for a Model. A battery, not for Model T battery...... The Optima 6 volt battery fits perfectly in that case, although the case is slightly larger than the opening for the original Model T Ford battery holder.
-
Jacob Mangold
- Posts: 227
- Joined: Sun Feb 26, 2023 2:57 pm
- First Name: Jacob
- Last Name: Mangold
- * REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1924 TT, 1928 A Coupe
- Location: Henderson, Nevada
- Board Member Since: 2023
Re: TT Battery Arrangement

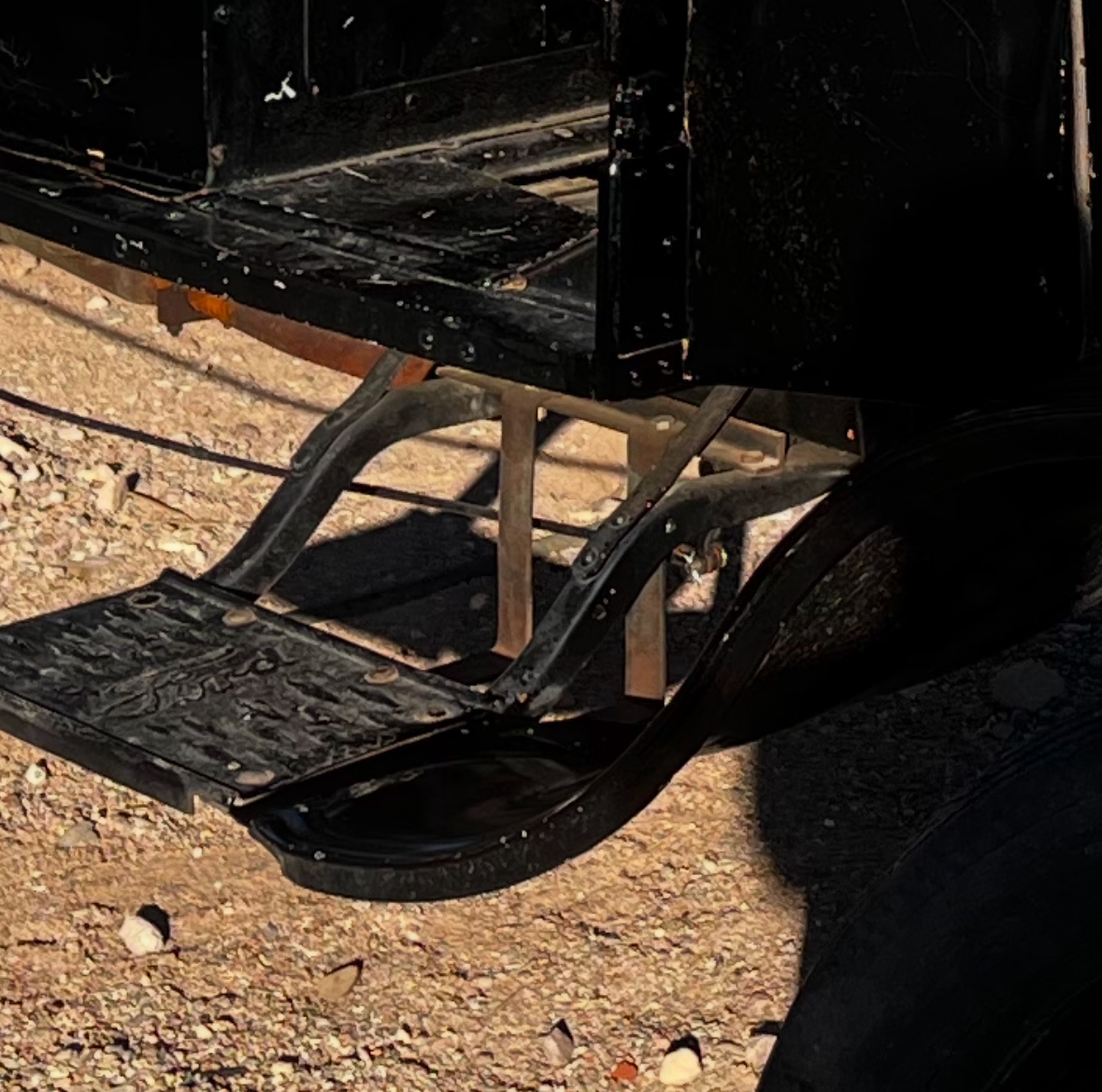

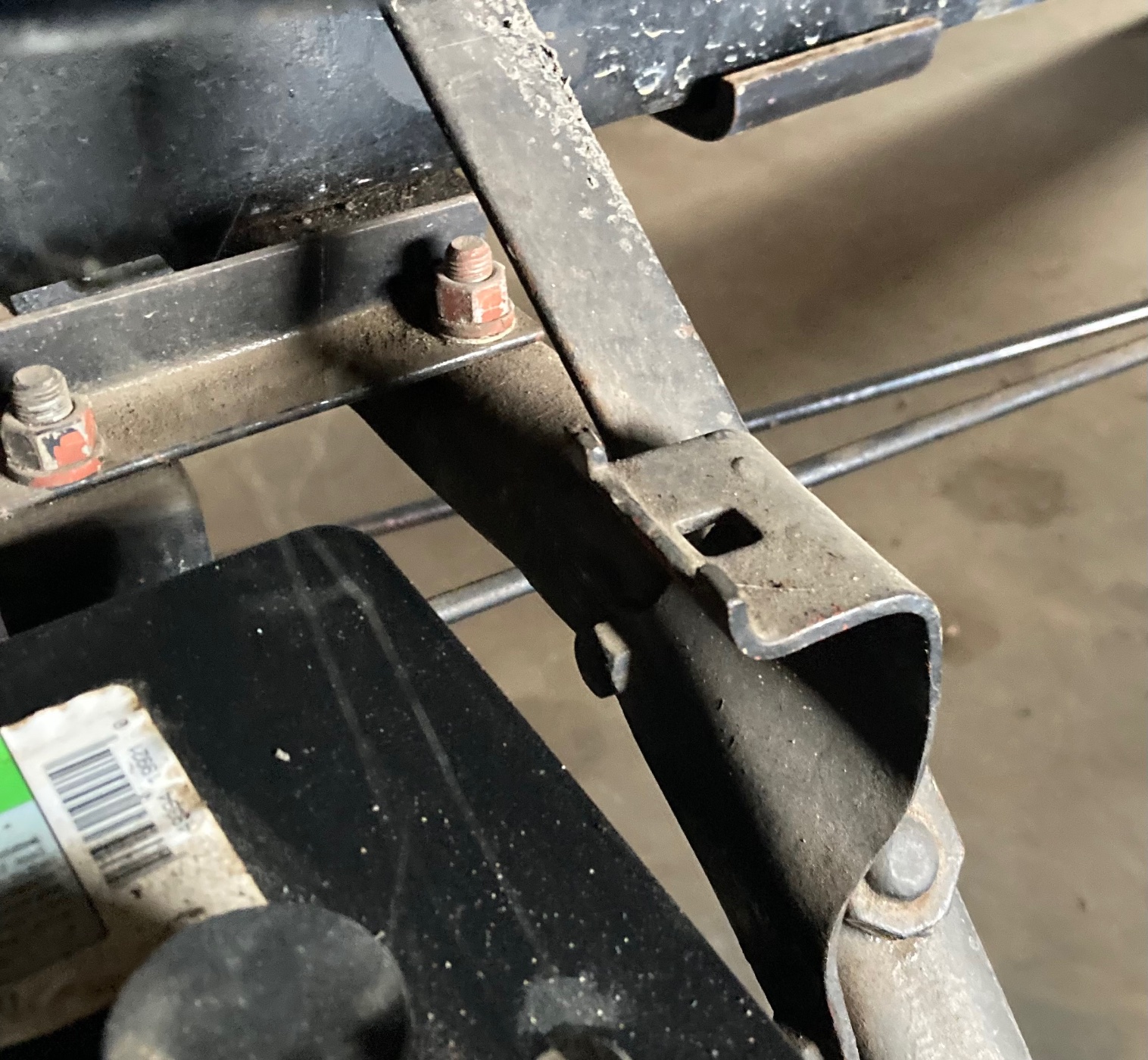

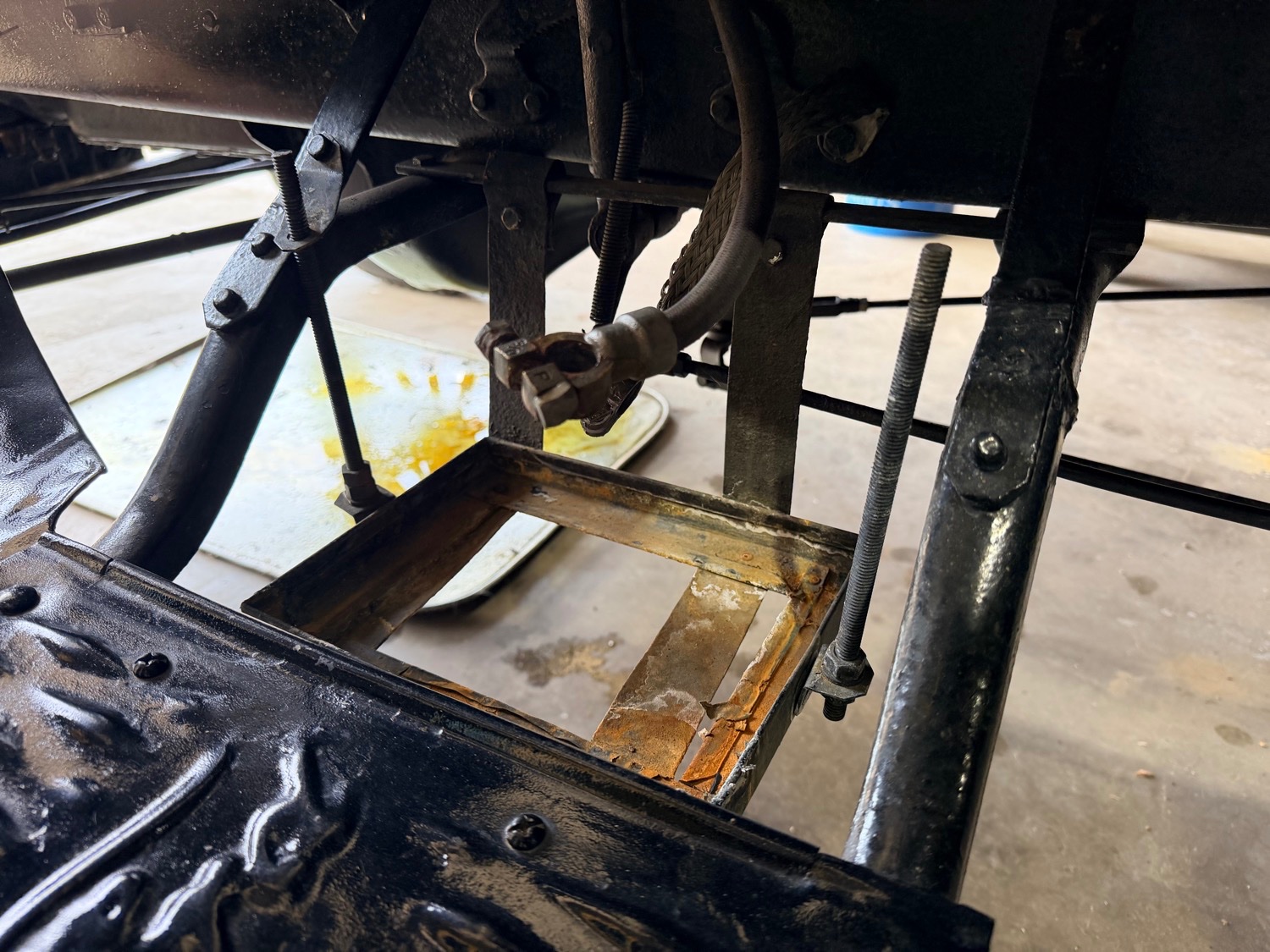

I second George. My TT actually has battery holders on both sides since it used to have 2 batteries but now I only use the holder on the drivers side since I converted it back to 1 six volt. This is the best picture I have of it currently. Hope it helps.
- Attachments
-
-
Allan
- Posts: 7257
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: TT Battery Arrangement
An Optima 6 volt battery fits into a standard T battery carrier, diagonally. This means the terminals can be off-set just like the originals. It also means that a wooden battery box can have triangular pieces in each corner to strengthen the box. Henrietta has such a box, on the running board, rather than beneath the tray.
Allan from down under.
