U & J ready to go -- what takes the time!!

Post by StanHowe » Tue Feb 11, 2020 12:52 am

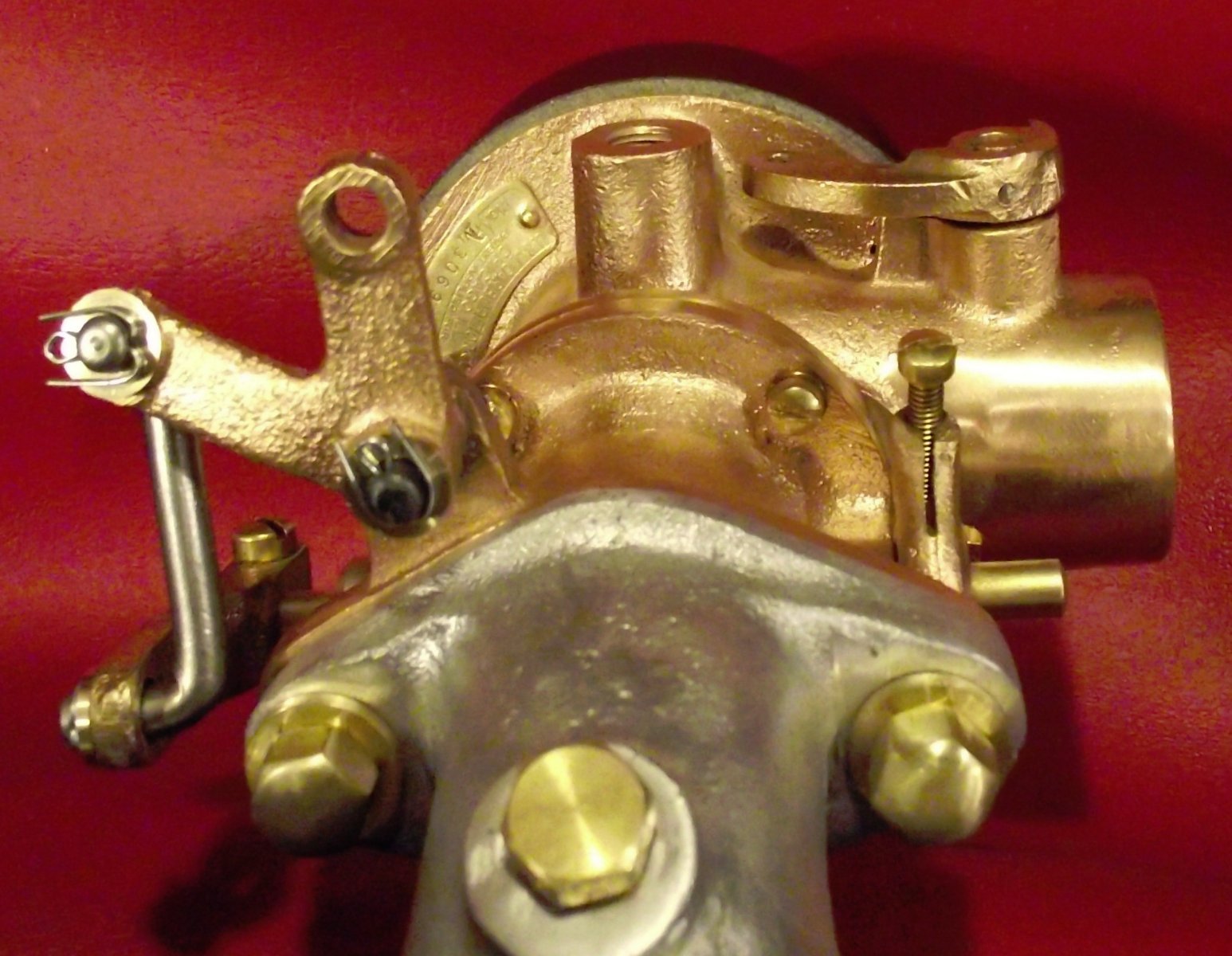

Be in a box and in the mail tomorrow. This is what takes the time.......custom bolts for mounting to the manifold, 5/16 x 18 with a custom washer . Yeah, I have every possible size of bolt and washers, but a carb this pretty going on a nice speedster begs for a little more brass.

Three little custom brass washers on the bell crank and arm, too. This is one of the last U & J carbs, built with a bell crank and arm to allow for a foot feed. Haven't seen many of these.




User avatar

Rob
Posts: 535
Joined: Fri Jan 04, 2019 1:53 pm
First Name: Rob
Last Name: Heyen
Location: Eastern Nebraska

Re: U & J ready to go -- what takes the time!!

Post by Rob » Tue Feb 11, 2020 7:45 am

That’s pretty! Almost hate to put these carbs on a motor and get them “dirty.” Waiting for pistons to get our racer back on the road. I can’t wait to try the carb you built.


Mark Osterman
Posts: 669
Joined: Mon Jan 07, 2019 10:18 pm
First Name: Mark
Last Name: Osterman
Location: Rochester, NY

Re: U & J ready to go -- what takes the time!!

Post by Mark Osterman » Tue Feb 11, 2020 8:11 am

Very fancy mounting bolts. Was that a U&J design or your own custom design?


Mike Lebsack-Iowa
Posts: 139
Joined: Sun Jan 06, 2019 10:22 pm
First Name: Mike
Last Name: Lebsack
Location: Iowa
Board Member Since: 2008

Re: U & J ready to go -- what takes the time!!

Post by Mike Lebsack-Iowa » Tue Feb 11, 2020 9:49 am

Just sent an email Stan. Mike

User avatar

RustyFords
Posts: 1020
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: U & J ready to go -- what takes the time!!

Post by RustyFords » Tue Feb 11, 2020 10:51 am

As they'd say in south Texas, where I grew up...."Que chula!!"
1924 Touring


Topic author
StanHowe
Posts: 567
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: U & J ready to go -- what takes the time!!

Post by StanHowe » Tue Feb 11, 2020 11:32 am

Thanks for the calls and messages, this one is sold and has been in the queue for a couple months.
I have a couple cores but none with this bell crank setup.
I have never been able to find any literature showing the bell crank but I think it was close to the end of the run for u and j. There are other minor differences, too. The adjuster is larger, slightly different air bleeder, etc.
I think I responded to all the messages, I don't have good luck with this message system, if I didn't get back to you contact me at stanhowemt@aol.com, I should get that.


Topic author
StanHowe
Posts: 567
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: U & J ready to go -- what takes the time!!

Post by StanHowe » Tue Feb 11, 2020 11:36 am

Mark, I make a lot of bolts and screws from brass hex stock. This had the original bolts with it when it came in but they were rusty and rounded off so I made these.


Topic author
StanHowe
Posts: 567
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: U & J ready to go -- what takes the time!!

Post by StanHowe » Tue Feb 11, 2020 11:47 am

I also used the last of the original needle and seat assemblies that I have been modifying in these.
I finally broke down and bought the odd size thread tap and die set some of them need. Some are SAE standard and some aren't.

Just like the bowl nut. I have never been able to find a tap in that size with a tpi that matches.

It must be some obscure European thread/size system that is long obsolete.

So I turn the stem down and rethread it to sae standard and make new bowl nuts.

There is more to this than swishing them around in carb cleaner and polishing them with an oily rag.


Topic author
StanHowe
Posts: 567
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: U & J ready to go -- what takes the time!!

Post by StanHowe » Tue Feb 11, 2020 11:51 am

It also makes a difference what condition the core is in. One that is beat all to hell, missing parts and has some soup can Venturi soldered in is a lot harder to rebuild than a nice core.
That said, I sure wish there was a source for brass bowls for these, Holley two screw, Holley H1, Holley G, etc.


Philip Lawrence
Posts: 78
Joined: Thu Jan 10, 2019 11:42 am
First Name: Philip
Last Name: Lawrence
Location: Auburn, CA
MTFCA Number: 5591
MTFCI Number: 25062
Board Member Since: 2014

Re: U & J ready to go -- what takes the time!!

Post by Philip Lawrence » Tue Feb 11, 2020 12:27 pm

Stan, why not have the steel bowls brass plated?


Topic author
StanHowe
Posts: 567
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: U & J ready to go -- what takes the time!!

Post by StanHowe » Tue Feb 11, 2020 12:45 pm

Powder coating pretty well hides the pock marks and imperfections.
Brass coating highlights them.

Plus there are not enough hours in the day, days in the week or weeks in the year to do everything.


Joe Bell
Posts: 353
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: U & J ready to go -- what takes the time!!

Post by Joe Bell » Tue Feb 11, 2020 2:40 pm

Just sent the same thing to Iowa and I am sure it will head your way!


Mike Lebsack-Iowa
Posts: 139
Joined: Sun Jan 06, 2019 10:22 pm
First Name: Mike
Last Name: Lebsack
Location: Iowa
Board Member Since: 2008

Re: U & J ready to go -- what takes the time!!

Post by Mike Lebsack-Iowa » Tue Feb 11, 2020 4:53 pm

Joe, I am betting you are right. Stan, watch your mailbox next week. Thanks to both of you. Mike
