Any idea what this is?

Post by Newtexaz » Tue Apr 21, 2020 9:02 pm

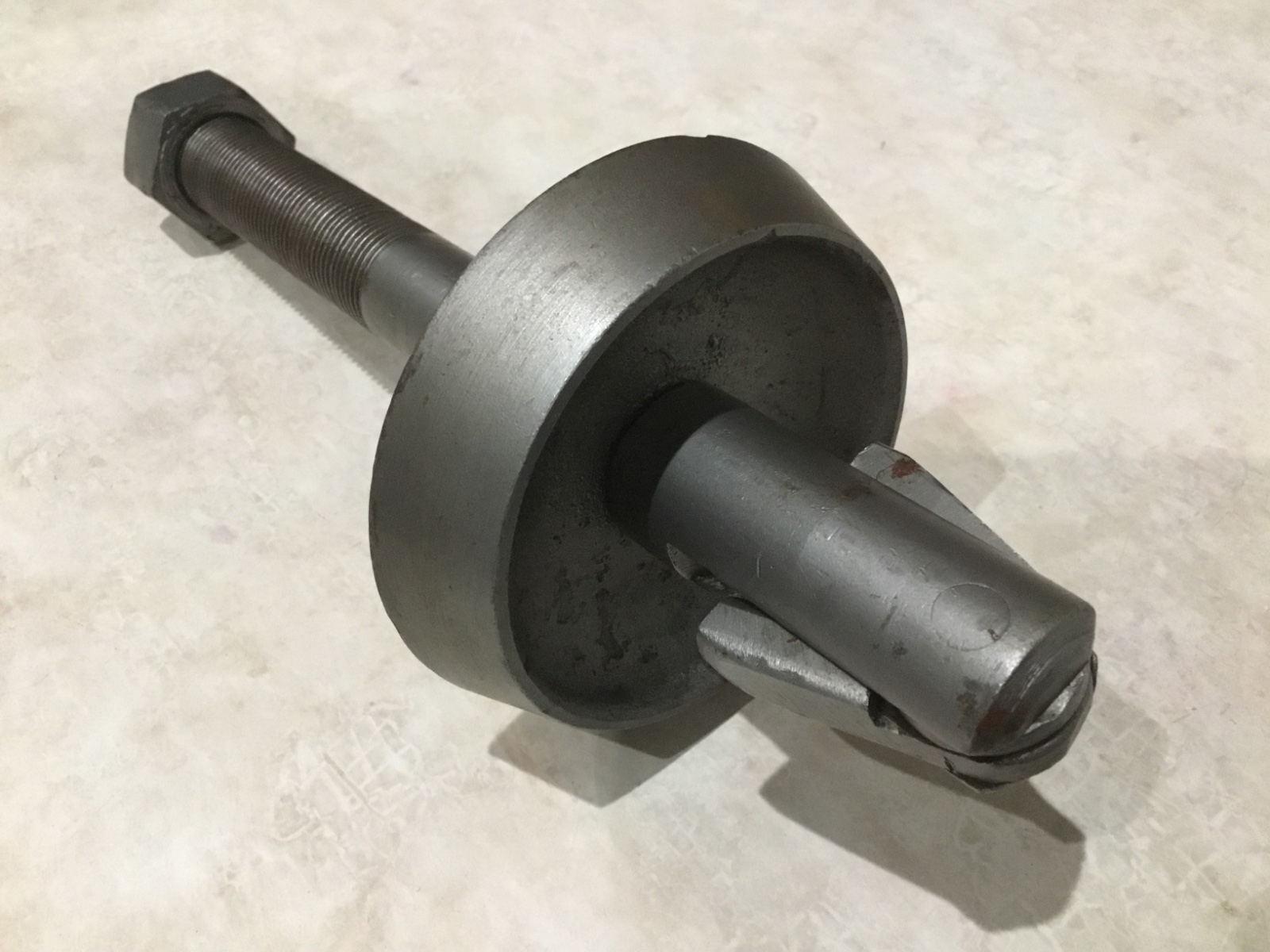

This tool is marked “Truth”. It came with a Truth “model T front bearing race press” I purchased. It looks like it’s for a bearing race because of the taper but the bearing race would be close to 3” in diameter. The 2 pieces on the one end are spring loaded and can both be pushed into the diameter of the shaft.
Attachments


Jim, Sr.
Posts: 125
Joined: Sun Jan 06, 2019 11:13 pm
First Name: Jim, Sr.
Last Name: Rodell
Location: Wisconsin
MTFCA Number: 2406
MTFCI Number: 22213

Re: Any idea what this is?

Post by Jim, Sr. » Tue Apr 21, 2020 9:22 pm

Your tool was made by Truth Tool Company in Mankato, Minnesota. I have a 1934 catalog, but it does not show your tool.
1922 Coupe , 1926 Touring


Scott_Conger
Posts: 2681
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Any idea what this is?

Post by Scott_Conger » Tue Apr 21, 2020 9:33 pm

It appears to be for removing drive shaft bushing.

If it is for sale, please contact me.

thank you
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
Newtexaz
Posts: 26
Joined: Fri Oct 25, 2019 11:46 am
First Name: Randy
Last Name: Clemens
Location: Fort Worth Texas

Re: Any idea what this is?

Post by Newtexaz » Tue Apr 21, 2020 9:39 pm

Ahh....that makes sense. I couldn’t picture in m mind what this would be for. Thank you, I think you are right!

User avatar

RajoRacer
Posts: 1357
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Any idea what this is?

Post by RajoRacer » Tue Apr 21, 2020 9:59 pm

Appears to be just that - close resemblance to a Stevens d.s. bushing remover.

User avatar

A Whiteman
Posts: 283
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
Location: South Island, New Zealand

Re: Any idea what this is?

Post by A Whiteman » Wed Apr 22, 2020 2:36 am

This tool looks like it is for installing front wheel taper bearing cones into hubs. Dimensions would help in the analysis.
The race is fitted onto the tapered bush, the part with the hinge goes through the hub and expands to hold the inner side of the hub, then the race is pushed in by tightening the nut?
Other uses may well be found.

It sure looks like a 'shade tree' race press I have.

:-)


Topic author
Newtexaz
Posts: 26
Joined: Fri Oct 25, 2019 11:46 am
First Name: Randy
Last Name: Clemens
Location: Fort Worth Texas

Re: Any idea what this is?

Post by Newtexaz » Thu Apr 23, 2020 11:04 am

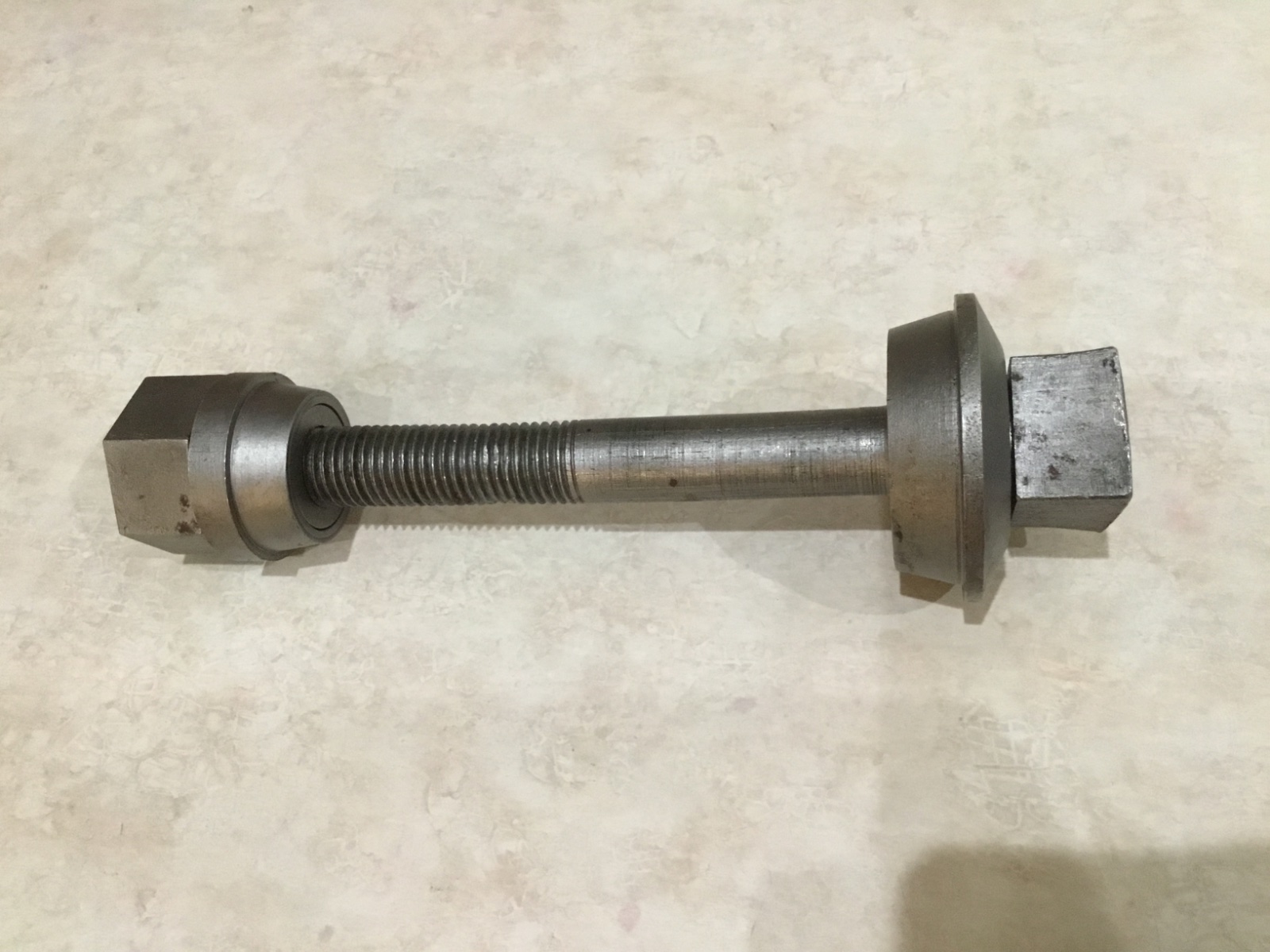

I picked both of these at the same time. I know the one is for pressing the wheel bearing races in place into the front hubs. I think those who said the first tool is for drive shaft bushing removal are on to something. The cone fits into the U-joint ball real well. Thank everyone
Attachments

User avatar

RajoRacer
Posts: 1357
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Any idea what this is?

Post by RajoRacer » Thu Apr 23, 2020 11:30 am

That bearing cone press is an actual Ford "Z" tool - quite rare and quite useful. That's only the 3rd one I've seen !


Topic author
Newtexaz
Posts: 26
Joined: Fri Oct 25, 2019 11:46 am
First Name: Randy
Last Name: Clemens
Location: Fort Worth Texas

Re: Any idea what this is?

Post by Newtexaz » Thu Apr 23, 2020 4:49 pm

Really.... thanks. Good to know. Will certainly take care of it.
