Mystery Front Axle Bits

Post by RustyFords » Sat Feb 08, 2020 11:21 am

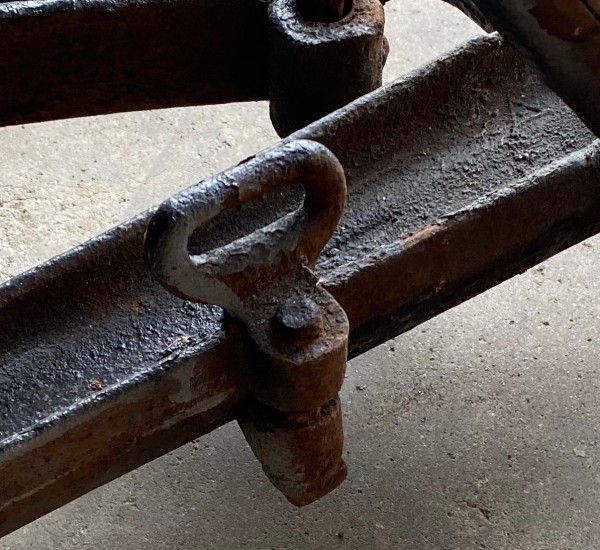

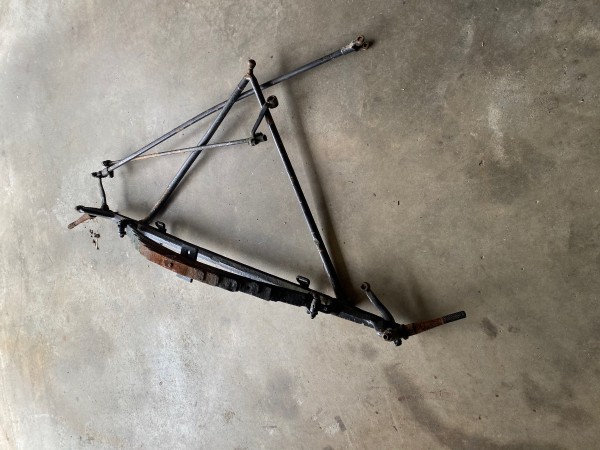

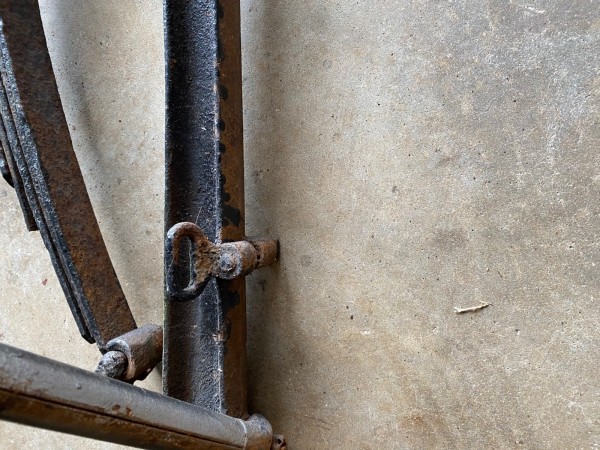

I’m working hard to save every last little usable bits off of my ‘25 parts chassis before I haul the rest to the metal recycler and came across these little clamps.

I thought at first that they might be towing hooks, but they’re facing the wrong way. Could they be part of an aftermarket gizmo of some sort? If so, and someone is needing them, I’d like to find a new home for them.

They look too purposeful and fit too precisely to make me think they’re homemade.
Attachments
1924 Touring

User avatar

Rich Eagle
Posts: 2066
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Mystery Front Axle Bits

Post by Rich Eagle » Sat Feb 08, 2020 11:43 am

I think they are for a strap type of shock absorber.
When did I do that?


Dan McEachern
Posts: 258
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Mystery Front Axle Bits

Post by Dan McEachern » Sat Feb 08, 2020 12:08 pm

Rich is correct- those clamps are for the webbed strap from a snubber to attach to the front axle. I believe Ford offered a snubber as an accessory on the improved Fords of 26-27. A common brand name was Gabriel. The snubber unit attached to the side rail of the frame near the front cross member and the strap from the snubber unit extended vertically down to the clamp on the front axle.

User avatar

dobro1956
Posts: 481
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
Location: Hills of Arkansas

Re: Mystery Front Axle Bits

Post by dobro1956 » Sat Feb 08, 2020 12:15 pm

They are correct. They are snubber strap brackets. Someone needs them. That is the part that is usually missing.

User avatar

Rich Eagle
Posts: 2066
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Mystery Front Axle Bits

Post by Rich Eagle » Sat Feb 08, 2020 12:50 pm

Similar to these:
When did I do that?


Jsteele
Posts: 47
Joined: Sun Jan 06, 2019 11:25 am
First Name: John P.
Last Name: Steele
Location: Montana
MTFCA Number: 374
MTFCA Life Member: YES
MTFCI Number: 137

Re: Mystery Front Axle Bits

Post by Jsteele » Sat Feb 08, 2020 7:02 pm

Hi Don, sent you an email. I would love to purchase those. I have NOS shocks but not the axle mounting hardware.

User avatar

Topic author
RustyFords
Posts: 986
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Mystery Front Axle Bits

Post by RustyFords » Sat Feb 08, 2020 10:45 pm

Hi John

Haven’t seen your email yet. If you text...text me at two81-seven87-8418.

No need to purchase them...I’ll just send them to you.
1924 Touring


Altair
Posts: 144
Joined: Thu Jan 17, 2019 11:52 am
First Name: David
Last Name: Menzies
Location: British Columbia
MTFCA Number: 27825
Board Member Since: 2012

Re: Mystery Front Axle Bits

Post by Altair » Sun Feb 09, 2020 2:34 am

My grandson has those snubber straps on his Ford Ranger to control the suspension in rough terrain, they are aftermarket but still used today.

User avatar

ABoer
Posts: 58
Joined: Mon Jan 07, 2019 2:41 pm
First Name: Anthonie
Last Name: Boer
Location: Klaaswaal NL
MTFCA Number: 19790

Re: Mystery Front Axle Bits

Post by ABoer » Mon Feb 10, 2020 5:07 am

Don A.

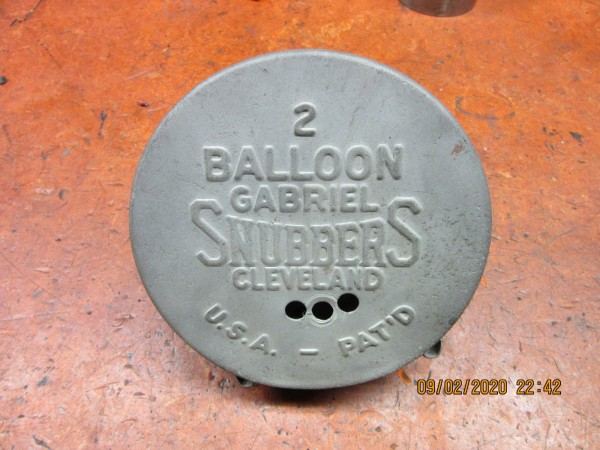

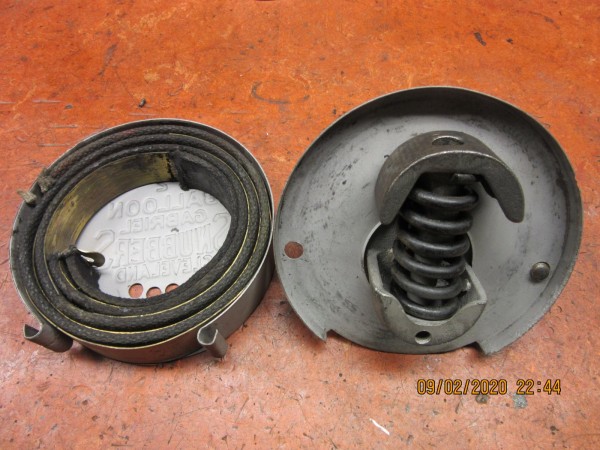

I have one [Snubbers] ,but I think there some parts missing .
Toon
Attachments

User avatar

Topic author
RustyFords
Posts: 986
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Mystery Front Axle Bits

Post by RustyFords » Sat Feb 15, 2020 8:48 pm

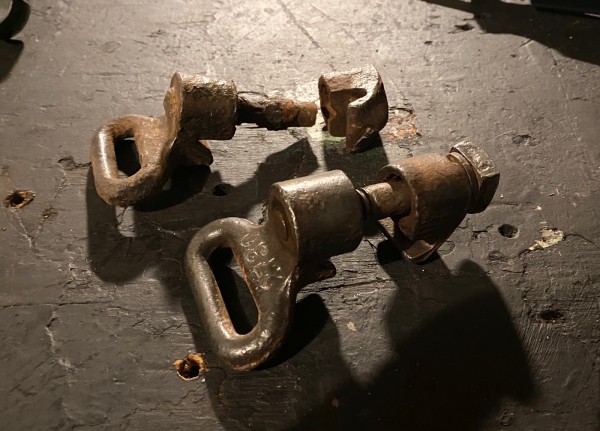

John...I removed the “gizmos” and started cleaning them up.

One of them looks almost new after some time with the wire wheel. The other one fought me more coming off and I broke the bolt. So you’ll have to find another square headed shoulder bolt to match.

I’m gonna try to extract the broken bolt and finish cleaning up the second one.
Attachments
1924 Touring
