Are front cross members all the same?

Post by Dennis Prince » Mon Feb 17, 2020 3:03 pm

Need to replace the front cross member on a 27 pick up and I have some older frames that I could get a donor cross member out of if they are the same. Thanks, Dennis
Top

pete eastwood
Posts: 198
Joined: Sun Jan 13, 2019 6:17 pm
First Name: Pete
Last Name: Eastwood
Location: Southern Califiornia

Re: Are front cross members all the same?

Post by pete eastwood » Mon Feb 17, 2020 5:03 pm

TT's are different from cars. All car front crossmembers should interchange.
Top
User avatar

Topic author
Dennis Prince
Posts: 397
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Dennis
Last Name: Prince
* REQUIRED* Type and Year of Model Ts owned: 1)24 touring 2)25 TT's 1)26 roadster 2)26 tourings 1) 26coupe 1)27 funster 1)28 A pick up
Location: Madras Oregon
Board Member Since: 1999

Re: Are front cross members all the same?

Post by Dennis Prince » Mon Feb 17, 2020 5:56 pm

Thanks Pete, I thought that they look the same but I knew two sisters that looked the same but they weren't.
Top

John kuehn
Posts: 4434
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Are front cross members all the same?

Post by John kuehn » Mon Feb 17, 2020 6:07 pm

Don’t know if the later frames had the Ford script on the front crossmember but the earlier ones did. I didn’t realize the script was on it until I started to clean mine up on my 21. I don’t think it’s stamped anywhere on the frame but on the front. Maybe I just didn’t look close enough.
Top

tdump
Posts: 1404
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
* REQUIRED* Type and Year of Model Ts owned: TT. T express pickup,speedster project.
Location: North Carolina

Re: Are front cross members all the same?

Post by tdump » Mon Feb 17, 2020 8:14 pm

My 26 chassis has Ford on the front crossmember.
If you can't help em, don't hinder em'
Top
User avatar

Steve Jelf
Posts: 7238
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Are front cross members all the same?

Post by Steve Jelf » Mon Feb 17, 2020 10:26 pm

From the encyclopedia:

Beginning about March 19, 1919, the “Ford” logo began to be imprinted on the front cross member.

Beginning in June 1920 the front cross-member was made of heavier steel.

I used the later 1919+ cross member on my 1915 because it was NOS. I suppose I would fill in the Ford logo if it was a show car, but it's not. :)
The inevitable often happens.
1915 Runabout
1923 Touring
Top

ModelTWoods
Posts: 1419
Joined: Tue Jan 08, 2019 10:53 am
First Name: Terry
Last Name: Woods
* REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
Location: Cibolo (San Antonio), TX

Re: Are front cross members all the same?

Post by ModelTWoods » Mon Feb 17, 2020 11:58 pm

26-27 rear crossmembers are supposed to be different because of the lower arched spring. So all fronts from 1919 were the same. I learned something new.
Top

Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Are front cross members all the same?

Post by Original Smith » Tue Feb 18, 2020 10:52 am

The low eight leaf spring came out in mid 1925, and has nothing to do the front crossmember. It dropped the height of the front of the car one inch, and at the same time added one leaf.
Top

old_charley
Posts: 209
Joined: Mon Jan 07, 2019 11:36 pm
First Name: Bryan
Last Name: Ostergren
* REQUIRED* Type and Year of Model Ts owned: 1914 cut-off touring/pickup: 1922 Touring car: 1921 TT Dump Truck
Location: Prescott, AZ

Re: Are front cross members all the same?

Post by old_charley » Tue Feb 18, 2020 11:53 am

Dennis, The front cross member on the '26 and '27 Ts are different from the '25 and earlier frames. They are made to accommodate the '26-'27 front fender irons. I don't have a picture to show you. But, if you take a close look at the one on your '27 and compare with an earlier one you'll see the obvious difference.
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Are front cross members all the same?

Post by DanTreace » Tue Feb 18, 2020 3:36 pm

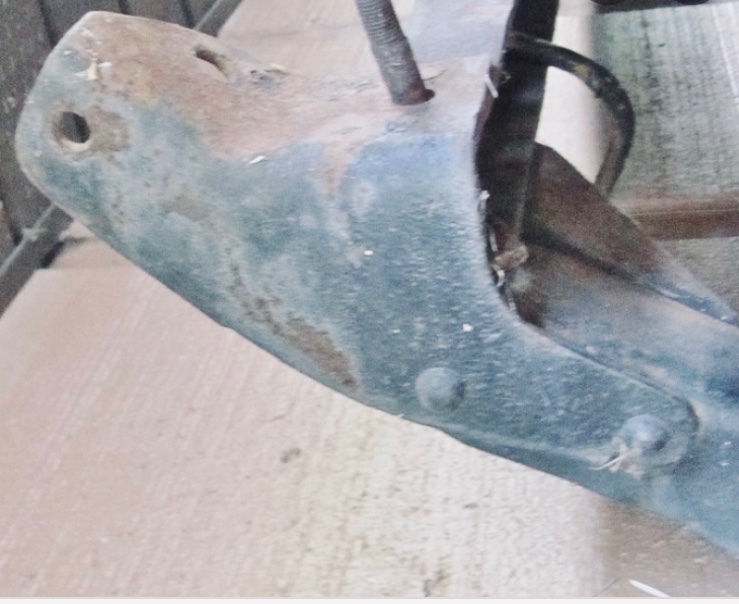

You could use an earlier pre-‘26 front cross member, but would need the left and right fender bracket extensions, and with some modifications re-drill holes in the earlier crossmember and rivet both back in correct place.

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top
User avatar

Topic author
Dennis Prince
Posts: 397
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Dennis
Last Name: Prince
* REQUIRED* Type and Year of Model Ts owned: 1)24 touring 2)25 TT's 1)26 roadster 2)26 tourings 1) 26coupe 1)27 funster 1)28 A pick up
Location: Madras Oregon
Board Member Since: 1999

Re: Are front cross members all the same?

Post by Dennis Prince » Wed Feb 19, 2020 11:47 am

Thank you all, It looks like with a little work I can make it work.
