steering arm question

Post by John Illinois » Wed Mar 04, 2020 11:24 am

Does the steering/pitman arm fit on a tapered shaft or straight shaft. How much force does it take to tap it off the steering shaft.Thanks.

John


Norman Kling
Posts: 807
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: steering arm question

Post by Norman Kling » Wed Mar 04, 2020 11:35 am

On the cars I have worked on the steering shaft is tapered and has a woodruff key in it. I have used a puller to remove it. If it is loose enough to tap off, it is too loose.
Norm

User avatar

Steve Jelf
Posts: 2559
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: steering arm question

Post by Steve Jelf » Wed Mar 04, 2020 12:31 pm

The parts book shows the same arm for all years, so they are all tapered. I don't have a puller that fits, so I bash them off with a brass drift and a BFH. Sometimes they come off easy, and sometimes they don't.
The inevitable often happens.
1915 Runabout
1923 Touring


Topic author
John Illinois
Posts: 94
Joined: Mon Jul 29, 2019 1:49 pm
First Name: John
Last Name: Burgett
Location: Camargo Illinois
MTFCA Number: 29590

Re: steering arm question

Post by John Illinois » Wed Mar 04, 2020 2:00 pm

The manual says tap it. off. I Suspected it might be a little more than that.

Thanks,John


FATMAN
Posts: 734
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL
MTFCA Number: 1575

Re: steering arm question

Post by FATMAN » Wed Mar 04, 2020 2:02 pm

Heat it up with pen. oil, let cool tap off, seems to work better this way, Bob

User avatar

TonyB
Posts: 426
Joined: Fri Jan 04, 2019 11:15 am
First Name: Tony
Last Name: Bowker
Location: Ramona, CA
MTFCA Number: 32
MTFCA Life Member: YES
Board Member Since: 2005

Re: steering arm question

Post by TonyB » Sun Mar 08, 2020 4:13 pm

While I agree all steering arms appear to have a taper, they are not all the same. I believe the very early Ts with a short steering column use a different angle than later models. I suspect the 1912 torpedo used yet a different design and I suppose the Improved cars yet another.

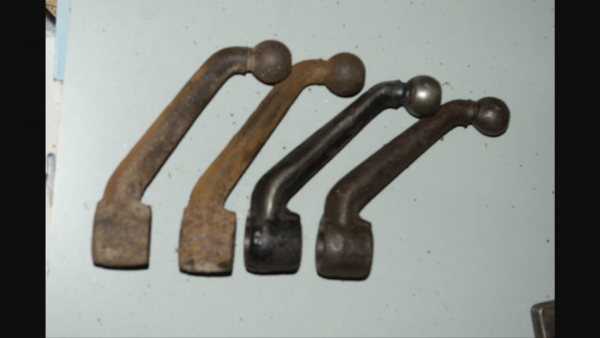

Four different steering arms.
Four different steering arms.
I didn’t take this picture but two years ago I was very interested in such items and saved a picture from an earlier thread.
Tony Bowker
Ramona, California
1909 Touring, 1914 Touring, 1915 Speedster, 1924 Coupe.

User avatar

perry kete
Posts: 639
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
Location: Jefferson Ohio

Re: steering arm question

Post by perry kete » Sun Mar 08, 2020 5:02 pm

Tony,
I guess in one way or the other you took the picture! :lol:
