Gasket display board

Post by Model t tommy » Mon Feb 04, 2019 10:05 pm

here's a gasket display board from about 1926 to 1927 let's see some pictures of gasket boards you may have

User avatar

dobro1956
Posts: 318
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
Location: Hills of Arkansas

Re: Gasket display board

Post by dobro1956 » Mon Feb 04, 2019 10:25 pm

Heres mine, not a real good photo but all I had for now...
Attachments
zzzzzzzzzzzzzzzzzzzzz (2).JPG

User avatar

RajoRacer
Posts: 864
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Gasket display board

Post by RajoRacer » Tue Feb 05, 2019 1:04 am

Here's a couple of mine - I also have the original Ford board - it's on another wall & my NACO is on another !
Attachments
gasket boards.JPG


cranejon
Posts: 25
Joined: Sun Jan 06, 2019 10:55 am
First Name: jon
Last Name: crane
Location: rochester mich

Re: Gasket display board

Post by cranejon » Tue Feb 05, 2019 1:05 am

Why don't the gasket display boards ever have a head gasket? Any ideas?

User avatar

Charlie B in N.J.
Posts: 229
Joined: Mon Jan 07, 2019 7:40 am
First Name: CHARLIE
Last Name: BRANCA
Location: Brick N.J.
MTFCA Number: 28967
Board Member Since: 2010

Re: Gasket display board

Post by Charlie B in N.J. » Tue Feb 05, 2019 6:33 am

Vellumoid. Never knew how that was spelled. It was a common use word for gasket material when I was a kid.
Forget everything you thought you knew.


Rich Bingham
Posts: 751
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Gasket display board

Post by Rich Bingham » Tue Feb 05, 2019 10:20 am

Vellumoid, Inc., is alive and well in Worcester, Ma. according to the interweb. Offering hundreds of materials for gasket applications.
"Get a horse !"


Original Smith
Posts: 938
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Gasket display board

Post by Original Smith » Tue Feb 05, 2019 11:12 am

I have a real genuine Ford gasket board. As I recall without going to the garage, there is no place for a 4 dip pan gasket.

User avatar

Etudes10
Posts: 4
Joined: Sun Jan 06, 2019 11:55 am
First Name: Greg
Last Name: Cosner
Location: Upland

Re: Gasket display board

Post by Etudes10 » Tue Feb 05, 2019 1:16 pm

Here is my gasket board. Comes in handy.
Attachments


Gary Gregory
Posts: 71
Joined: Sun Jan 06, 2019 1:28 pm
First Name: Gary
Last Name: Gregory
Location: Maryville Tn

Re: Gasket display board

Post by Gary Gregory » Tue Feb 05, 2019 6:35 pm

Pretty ruff...but steal cool !
Attachments

User avatar

RajoRacer
Posts: 864
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Gasket display board

Post by RajoRacer » Tue Feb 05, 2019 7:22 pm

I hunted for many years (30 +) to locate an original Ford board !

The NACO is real nice also - so is the McCord.
Attachments
McCord board.JPG
Ford board.JPG
NACO board.JPG

User avatar

ewdysar
Posts: 85
Joined: Wed Jan 09, 2019 6:48 pm
First Name: Eric
Last Name: Dysart
Location: SoCal

Re: Gasket display board

Post by ewdysar » Tue Feb 05, 2019 7:26 pm

Hi John,

You can see in the first post and the 9th post that the genuine Ford gasket boards had the head gaskets along the bottom edge.

Keep crankin'
Eric


Dom Denio
Posts: 71
Joined: Sun Jan 06, 2019 4:36 pm
First Name: Dom
Last Name: Denio
Location: Tennessee
MTFCA Number: 27167
MTFCI Number: 20405

Re: Gasket display board

Post by Dom Denio » Tue Feb 05, 2019 8:12 pm

Here is a gasket board I made that is 27 in wide and 48 in long utilizing Lang's poster as the base. I will donate an exact copy of this board without gaskets for the charity auction at the Winter Tour in St. Augustine, FL later this month. The space at the bottom right is for a container to hold felt gaskets when I find one that fits the 4 in by 5 in area.
Attachments
T GASKET BOARD.JPG

User avatar

RajoRacer
Posts: 864
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Gasket display board

Post by RajoRacer » Tue Feb 05, 2019 9:08 pm

Nice job, Dom !


sweet23
Posts: 94
Joined: Sun Jan 06, 2019 1:19 pm
First Name: Darryl
Last Name: Bobzin
Location: Kannapolis,NC
MTFCA Number: 27211
Board Member Since: 2016

Re: Gasket display board

Post by sweet23 » Tue Feb 05, 2019 10:48 pm

All very nice,,,,,,,,,something else to add to the wish list. Thanks for posting these.


Jim, Sr.
Posts: 89
Joined: Sun Jan 06, 2019 11:13 pm
First Name: Jim, Sr.
Last Name: Rodell
Location: Wisconsin
MTFCA Number: 2406
MTFCI Number: 22213

Re: Gasket display board

Post by Jim, Sr. » Wed Feb 06, 2019 11:12 pm

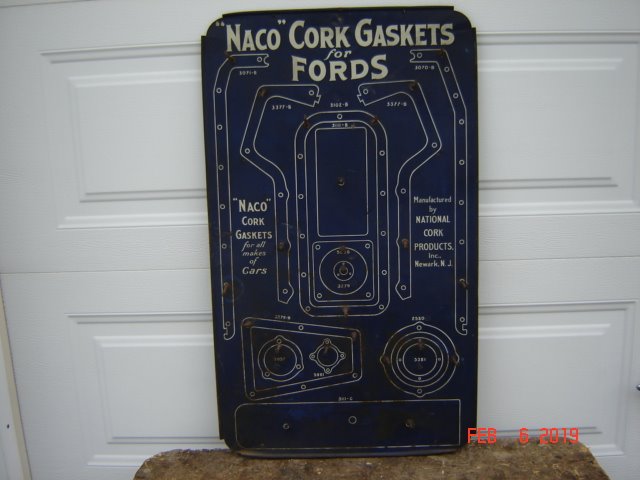

This is my NACO gasket board without any gaskets on it. It is made later than Steve's, as it has a space near the bottom for the long valve cover gasket.
Attachments
1922 Coupe , 1926 Touring


ericmac
Posts: 109
Joined: Tue Jan 08, 2019 11:11 pm
First Name: Eric
Last Name: Macleod
Location: Battle Creek, Michigan
MTFCA Number: 50125
MTFCI Number: 19464
Board Member Since: 2016

Re: Gasket display board

Post by ericmac » Thu Feb 07, 2019 6:24 am

Thanks a lot guys. Now there is one more thing I have to add to my "gotta have it" list. I am Ford blue with envy!
1913 Touring
1926 Fordor
1926 Touring
1962 Lincoln Convertible
Nash, Franklin and Buick owner emeritus
