Scat stroker rod inside diameter?

Post by Les Schubert » Tue Mar 17, 2020 7:52 pm

I want to use a set of Scat stroker rod shells. They fit a 1.5” crank pin. I’m trying to find out what is the correct rod big end inside diameter?
Doing some careful measurements, I’m guessing that it is 1.610”. But I REALLY hate guessing at something like this!!
Does anyone have a set of these rods not installed and could tell me the answer?
I suppose I can phone Scat and hopefully they will tell me. The shell manufacturers website is not helpful

User avatar

Henry K. Lee
Posts: 2997
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Scat stroker rod inside diameter?

Post by Henry K. Lee » Tue Mar 17, 2020 9:49 pm

Skat will grind to your specs on the rod journals and mains for a small fee. They did a couple of odd balls for me.

Hank


tman1913
Posts: 20
Joined: Sun Jan 06, 2019 12:30 pm
First Name: Mike
Last Name: Bender
Location: Tulsa OK
MTFCA Number: 21160

Re: Scat stroker rod inside diameter?

Post by tman1913 » Wed Mar 18, 2020 2:00 pm

Less
I get 1.625” bore on a stroker Scat rod for inserts.

Still maybe be best to call Scat or King bearings


Topic author
Les Schubert
Posts: 534
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Scat stroker rod inside diameter?

Post by Les Schubert » Wed Mar 18, 2020 2:09 pm

Mike
Thank you for the information. I have emailed Scat for the information, so far nothing.


Adam
Posts: 613
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
Location: Wisconsin
MTFCA Number: 23809
MTFCI Number: 1
Board Member Since: 2000

Re: Scat stroker rod inside diameter?

Post by Adam » Wed Mar 18, 2020 2:47 pm

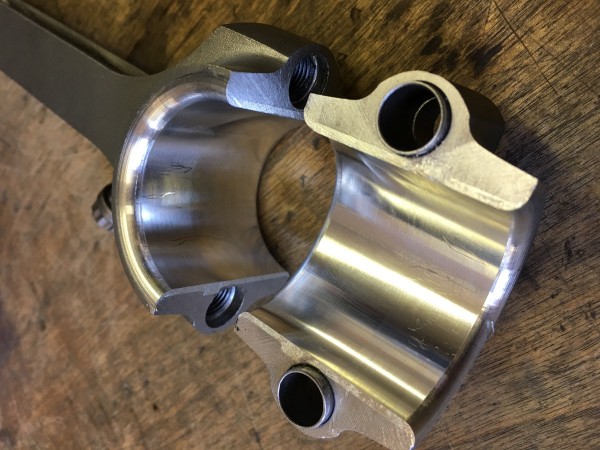

You can babbitt them too. I babbitted these for a customer last year. They are now in a OHC Fronty.



Topic author
Les Schubert
Posts: 534
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Scat stroker rod inside diameter?

Post by Les Schubert » Wed Mar 18, 2020 4:27 pm

Guys
Thank you for your input. I just got off the phone with Austin at Scat and there specified size is 1.6249”!! So the 1.625 is pretty darn correct!! We will be honing these on a rod resizing machine so now have a great target size!
I am installing this in a set of Townsend aluminum rods on a crank with 1.5” crank pins that is stock T stroke. So using Scat or A rods is not a good option (need the 7” C-C).
I appreciate your input
