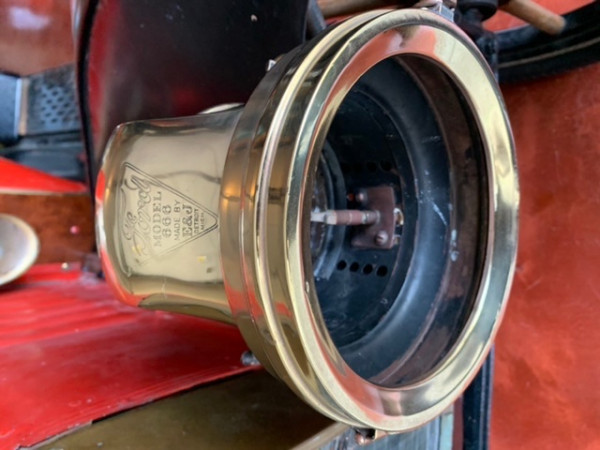

13T - E&J Model 666

Post by Darin Hull » Fri May 01, 2020 7:53 pm

Gentlemen,

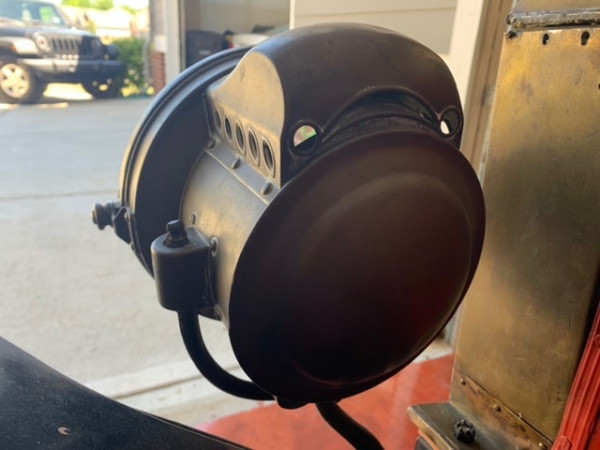

Reading previous forum discussions, is it reasonable to believe these E&J Model 666 were not original on the 13T, 251,xxx? What year would they be if that is the case?

On black and brass E&Js, I’m guessing the black areas were steel versus brass being painted black?

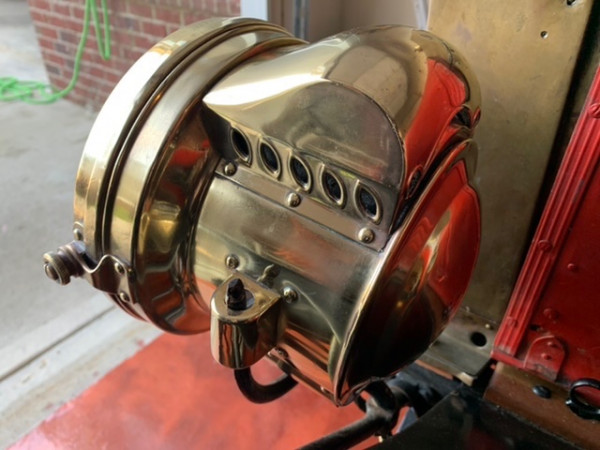

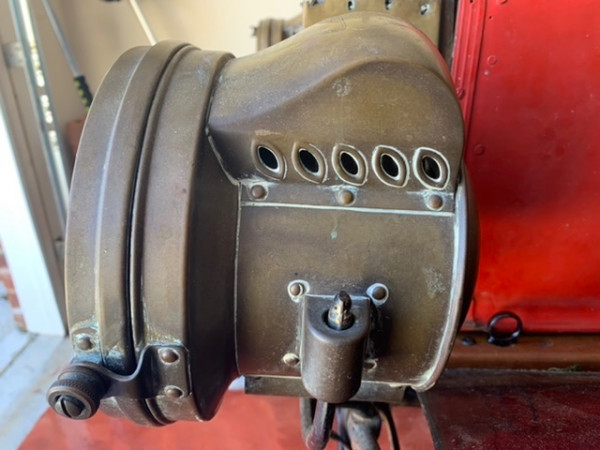

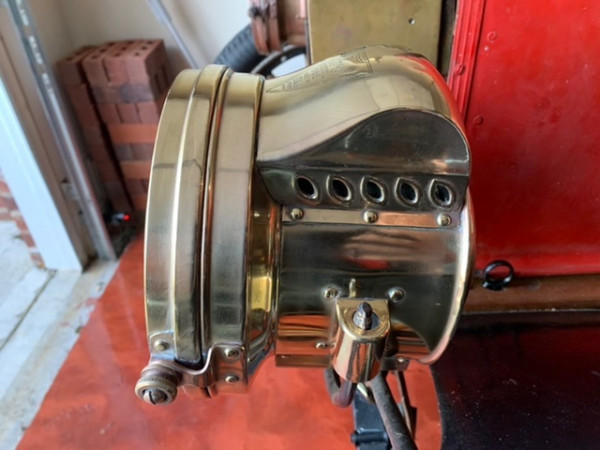

I spent a few hours today doing a vinegar soak and then polish with Mother’s Mag & Aluminum. Still not done but heading in the right direction. Since I had plenty time to let the mind wander, had a question about the horn. I’ve observed pictures of 13Ts with a black and brass horn, I currently have an all brass horn. We’re the horns different than the headlamps? Do they have brass painted black versus being partially made of steel?

I’ve included some pics.

Thank you for your time,
Darin
Attachments

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Fri May 01, 2020 8:00 pm

Not an expert, but the judging guidelines do call for the 13's horn to be Black and brass. Mine also was all brass, and believe me
it killed me to have to paint it mostly black to fall in line with the guidelines. But having it judged at an International Annual tour, (it got the "gold"), it was worth it. And now that it's been that way for several years, I've grown to like it. Make sure you have it
mounted that it looks like it's "upside down"! Another common mistake that is made not doing it that way.

Too bad you need to pant the body of those beautiful lamps black also!!


Topic author
Darin Hull
Posts: 47
Joined: Fri Apr 17, 2020 2:15 pm
First Name: Darin
Last Name: Hull
Location: Cartersville, GA
MTFCA Number: 29699
MTFCI Number: 25147
Board Member Since: 2010

Re: 13T - E&J Model 666

Post by Darin Hull » Fri May 01, 2020 8:38 pm

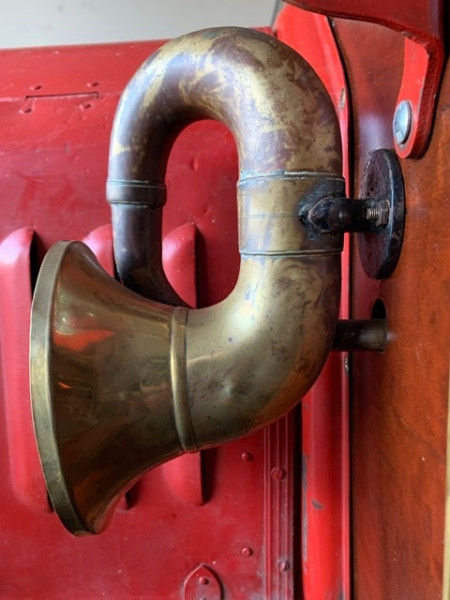

The rough horn
Attachments


Scott Rosenthal
Posts: 137
Joined: Sun Jan 13, 2019 11:29 am
First Name: Scott
Last Name: Rosenthal
Location: Cincinnati OH

Re: 13T - E&J Model 666

Post by Scott Rosenthal » Sat May 02, 2020 8:28 am

Hello Darin:
Some have proposed that Ford may have introduced the Black and Brass standards as early as mid 1912. I do not at all doubt this having seen seeming original Brown #100 and #105 oil lamps that have remnants of what appears to be early black finish, where in some cases, these entire lamps are not painted. Some have a polished brass chimney cap, some have brass frames for the glass. Bruce McCalley stated that some single twist horns (1912-?) were polished brass, but no quantified data that I am aware of says what the drop off date(s) for this may have been. Curiously, the Brown #19 head lamps were used for 1912, however I have never seen a seemingly original #19 that appears to have black finish. The 1913 Brochure photo of the Town Car shows these lamps with Black finish, however this an illustration as opposed to a photograph, so accuracy here may be questioned.

I believe your horn is correct for early 1913 and is correctly attached with a machine screw and nut, where I presume the similar oval base horn attached with wood screws. I'm curious whether the machine screw and nut arrangement would include either a lock washer or possibly a cotter pin? Much appreciation for any thoughts here.
Regards,
Scott

User avatar

Wkndead
Posts: 22
Joined: Sun Jan 06, 2019 1:20 pm
First Name: Richard
Last Name: Mercier
Location: New Hampshire
MTFCA Number: 50815
Board Member Since: 2017

Re: 13T - E&J Model 666

Post by Wkndead » Sat May 02, 2020 9:50 am

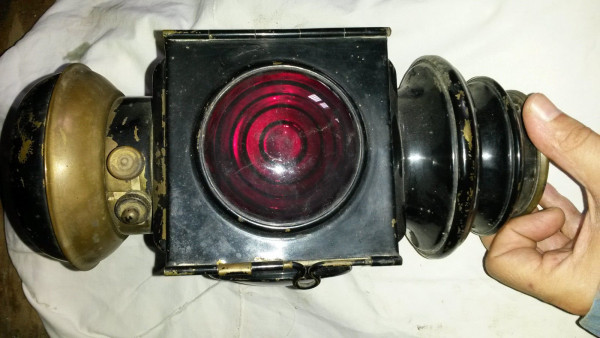

Here is an original Brown 105 with original black paint. Is it for a late 12 or 13?
Attachments
105 2.jpg

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Sat May 02, 2020 10:01 am

Scott is correct, that is a correct '13 horn, and thankfully mounted correctly also!! (Used to be a thorn in Royce Peterson's side!)
However, I really believe that the machine screws were not "factory". Maybe Larry Smith knows better, as he's probably got more
'13 knowledge than anyone around. The Judging Guide doesn't specify unfortunately, and all the pics in Bruce's Encyclopedia are indistinguishable. On my '13, naturally with a repro firewall, the horn is screwed in place. These screws are a b--ch to put in, so I suspect yours was installed with what would be only slightly easier to handle bolt/nuts. I find it hard to believe someone would
go from the "easier route" on mine and use those God Forsaken screws!!
Another thing to look at on your '13 would be the front fender irons. I'd be willing to bet most of todays '13s now have the wrong, earlier fender irons that have the so-called "Vee" shape at the underside of it next to the mounting bracket holes. These are wrong. Those started in '14. '13s should have the rounded extrusion at the bottom bracket area. Just saying.

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Sat May 02, 2020 10:05 am

Richard, I would say yes, probably for a late '12, definitely for a '13. It looks all brass, with the body painted black.
My early '12 had an E & J taillight which was about the same other than the font securing handles, and was all brass. It was gorgeous.


Colin Mavins
Posts: 180
Joined: Sun Jan 06, 2019 1:36 pm
First Name: Colin
Last Name: Mavins
Location: Winnipeg Canada
MTFCA Number: 1853

Re: 13T - E&J Model 666

Post by Colin Mavins » Sat May 02, 2020 12:47 pm

I know of at least 10 1913 Ts that are all brass like the 12 are including the windshields and are original cars so your car may be correct, As for judging I would not be concerned just have fun .


Allan
Posts: 1223
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: 13T - E&J Model 666

Post by Allan » Sun May 03, 2020 12:36 am

So, when did the same brass tops but with the the offset 66, come into the picture? Were any of these fitted to all brass lights?

Allan form down under.

User avatar

Corey Walker
Posts: 199
Joined: Sun Jan 06, 2019 11:46 am
First Name: Corey
Last Name: Walker
Location: Brownsboro, TX

Re: 13T - E&J Model 666

Post by Corey Walker » Sun May 03, 2020 10:11 am

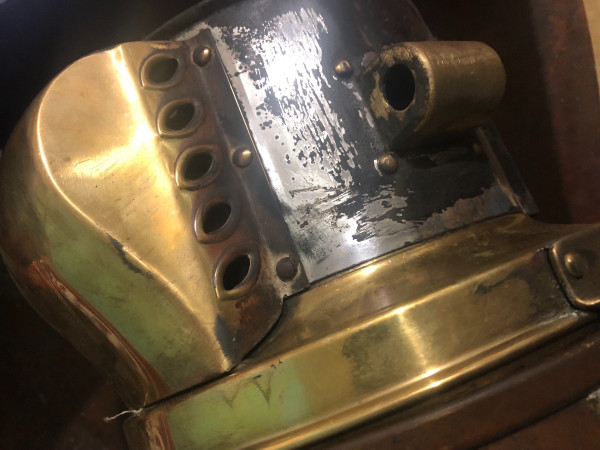

I’ve got an E&J 66 lamp that has a nickel plated body under the black paint.
Attachments
Corey Walker, Brownsboro, Texas


Allan
Posts: 1223
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: 13T - E&J Model 666

Post by Allan » Sun May 03, 2020 8:43 pm

Corey, is the nickel plated body brass or steel?
I asked this question originally, as I have a pair of all brass E and J headlights, in pieces, and these have 66 tops. I have no idea of the history of the lamps/kit I have.

Allan from down under.

User avatar

Corey Walker
Posts: 199
Joined: Sun Jan 06, 2019 11:46 am
First Name: Corey
Last Name: Walker
Location: Brownsboro, TX

Re: 13T - E&J Model 666

Post by Corey Walker » Sun May 03, 2020 8:48 pm

Nickel plated steel.
Corey Walker, Brownsboro, Texas


Topic author
Darin Hull
Posts: 47
Joined: Fri Apr 17, 2020 2:15 pm
First Name: Darin
Last Name: Hull
Location: Cartersville, GA
MTFCA Number: 29699
MTFCI Number: 25147
Board Member Since: 2010

Re: 13T - E&J Model 666

Post by Darin Hull » Mon May 04, 2020 5:44 am

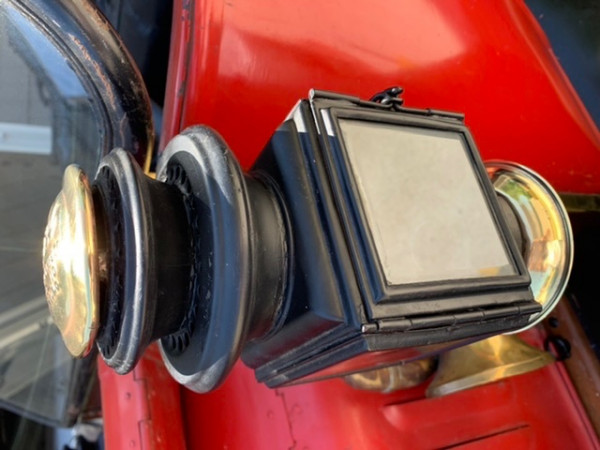

The oil lamp lights on the 13T are black and brass. I worked on polishing them up today.

On the horn, was that typically all brass with everything but the bell painted black? Or was it a brass and steel combo?

Darin
Attachments

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Mon May 04, 2020 9:27 am

Darin, the "argument" if you will about the horn is almost like the argument about oil. Yes, plenty of cars, probably very early '13s had all brass horns, I suspect they were leftover from late '12s. But in the spirit of "correctness", it is generally assumed to follow the Judging Guidelines, not just for judging, but basically used as a supplementary guide to the all important Encyclopedia put out by the venerable Bruce McCalley, RIP. And that guideline specifically states the horn is "black and brass", the brass being only the screen and rim around it. Now, whether or not later into '13 & '14 the body was steel, I don't know. I do know as I mentioned earlier, mine was also all brass, but I reluctantly painted the body black so as to "fall in line" with the majority. Hope this helps.

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Mon May 04, 2020 9:30 am

Forgot something about your nice looking sidelamp...the bracket. Does this lamp slide onto a separate bracket, or is the bracket "integral" to the lamp? Cause '13s lamps slide/clamp onto the bracket. The lamps with the so-called built-in bracket are '14. A few '13s are seen with them, probably due to replacement over the years.

User avatar

billgall
Posts: 4
Joined: Fri Apr 19, 2019 1:15 pm
First Name: Bill
Last Name: Gall
Location: Indiana
MTFCA Number: 30362
MTFCI Number: 23284
Board Member Since: 2005

Re: 13T - E&J Model 666

Post by billgall » Mon May 04, 2020 3:06 pm

For a 13, the correct E&J headlights are model 66. The bonnet (top part with the holes along the sides) is marked the same as the all brass 666 lights, but the left-most 6 is missing, so the resulting 66 is offset to the right.

Corey Walker, is your nickel plated lamp a 666 or a 66? A 66 will attract a magnet to the body (where the nickel plating is), but a 666 will not as it's brass.

I have a 66 that was copper plated instead of nickel. Darin Hull, you might be able to do some horse trading and end up with two 66 headlights correct for your car. I'd consider a trade if you're interested, but you ought to be sure that you can end up with a pair of true 66's and not a mismatched 666 and 66.
Bill Gall
Greenwood, IN
1912 Torpedo
1915 Touring
MTFCI Gold Card Judge


Topic author
Darin Hull
Posts: 47
Joined: Fri Apr 17, 2020 2:15 pm
First Name: Darin
Last Name: Hull
Location: Cartersville, GA
MTFCA Number: 29699
MTFCI Number: 25147
Board Member Since: 2010

Re: 13T - E&J Model 666

Post by Darin Hull » Mon May 04, 2020 3:30 pm

These side lamps slide and clamp onto a separate bracket.

Darin

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Mon May 04, 2020 3:58 pm

According to the encyclopedia the 666 were also used on the '13s, along with a few Victors, Browns and Corcorans.
His triple-6 (I hate the actual number) should be considered okay.

User avatar

critterpainter
Posts: 53
Joined: Sun Jan 06, 2019 8:43 pm
First Name: Bill
Last Name: Dodd
Location: Adelaida Calif
MTFCA Number: 27186

Re: 13T - E&J Model 666

Post by critterpainter » Tue May 05, 2020 11:40 pm

This has been an interesting topic for me to read. Although my headlights and sidelights are currently packed away, my 14 does have have a few features being described. My horn IS held to the firewall by two miserable brass screws. Original? I do not know but they are not fun. My sidelights are packed away, but they DO slide into brackets on the firewall. My car has an engine # 361466 with an Oct 26 13 casting date.
14 Touring

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Wed May 06, 2020 10:01 am

Bill, your sidelights would be correct for your engine number. Your '14 is a very early one. About mid-point to even late '14 the so-called "built in" bracket lights showed up.

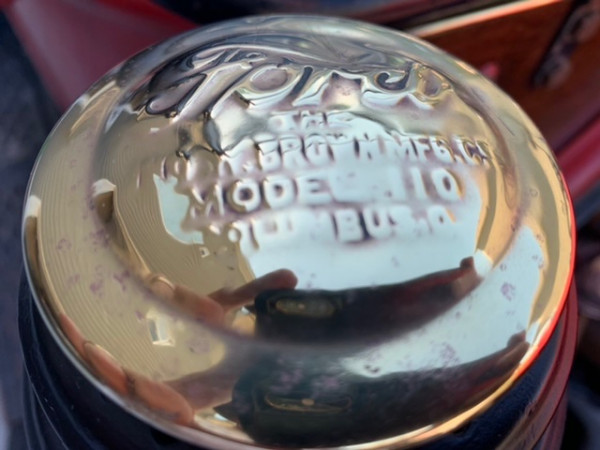

Re your horn..I believe yours should be the oval mount, but since your '14 is an early one, it too may have the round mounting bracket common to the '13. And yes, those screws are absolutely horrible. I do believe they're original. Maybe Larry Smith will
chime in, he's pretty knowledgeable about these '13s, and I'm sure the bracket mounting hardware was the same for both years.

User avatar

critterpainter
Posts: 53
Joined: Sun Jan 06, 2019 8:43 pm
First Name: Bill
Last Name: Dodd
Location: Adelaida Calif
MTFCA Number: 27186

Re: 13T - E&J Model 666

Post by critterpainter » Thu May 07, 2020 11:25 pm

I checked my horn bracket and it is round, so its an early horn.
When my Uncle acquired the car in 1950, it apparently had earlier brass lights on it, but the "experts" of the late 50's and early 60's told him that they were wrong for 1914 so they were changed for a black and brass pair. Oh well...

Bill
14 Touring

User avatar

TWrenn
Posts: 543
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 13T - E&J Model 666

Post by TWrenn » Fri May 08, 2020 10:02 am

Well Bill, at least they knew what they were saying.
Too bad the '13s & '14s didn't keep the "all brass" look going,
but I know for money reasons it had to be.
