1923-1927 Model TT Rear Axle Differential Assembly

Post by VowellArt » Mon Feb 11, 2019 7:11 am

I need a part number if anybody knows it. I can't find it, looked through everything I have and that I could find on the internet and still can't find a part number for that bloody ball bearing. Would also like the Factory Number for it as well as the Factory Number for the differential gear axle retainer (the vendor number is shown). Also would like the factory number for the differential gear housing nuts too.

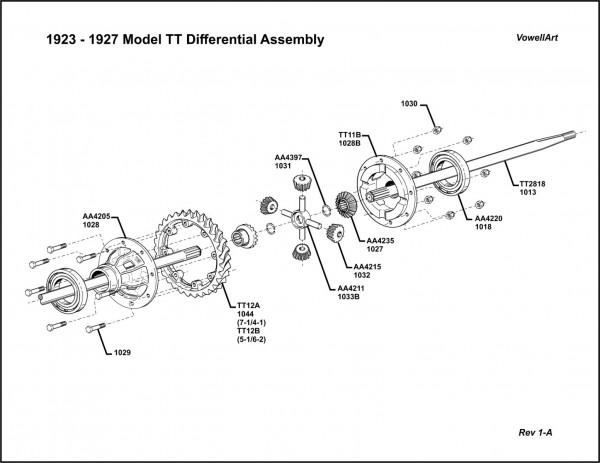

If any of you guys with TT's knows these numbers, I'd appreciate it if you could tell me, so I can add them to the drawing. This drawing is just the differential, the 1923-1927 Model TT Rear Axle Assembly adds this assembly to the housing and it's seals.
Fun never quits!
Top
User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by A Whiteman » Mon Feb 11, 2019 9:01 am

I believe it is number 1018.
TT Ruckstell004.jpg
Top
User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by A Whiteman » Mon Feb 11, 2019 9:34 am

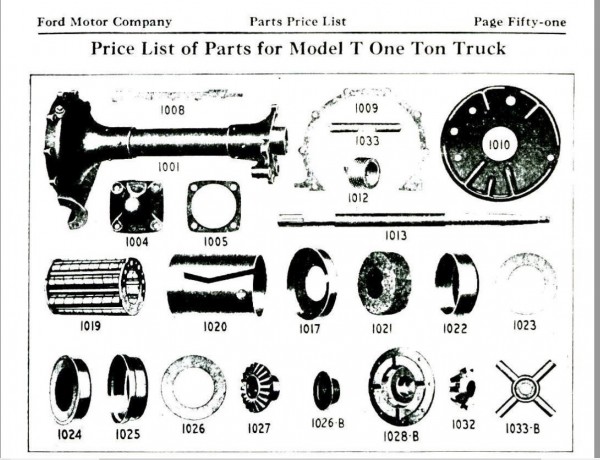

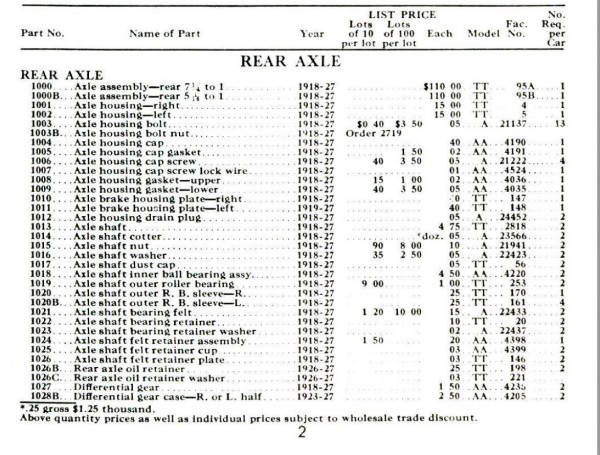

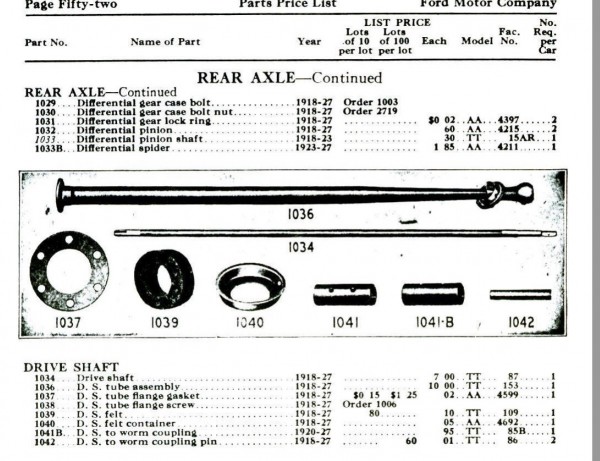

These extracts may be useful too:
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by Mark Gregush » Mon Feb 11, 2019 1:24 pm

I would guess by the fact that some of the numbers are A and AA that this is from the 1928 parts book. The early AA worm drive had some parts in common with the TT.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top

HPetrino
Posts: 490
Joined: Sun Jan 06, 2019 11:14 am
First Name: Henry
Last Name: Petrino
* REQUIRED* Type and Year of Model Ts owned: 1918 TT
Location: Modesto, CA

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by HPetrino » Mon Feb 11, 2019 1:41 pm

Mark,

I have a book (re-print I believe) that has the same pages as those Adrian posted. On the cover it reads, "Model T One Ton Truck" but it also is dated "Effective March 15, 1927", so I'm thinking you're correct. It has the TT stuff, but some early AA is in there too.
Top
User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:
Contact VowellArt

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by VowellArt » Mon Feb 11, 2019 1:49 pm

Adrian...seems a lot of the of differential parts have AA numbers on them.

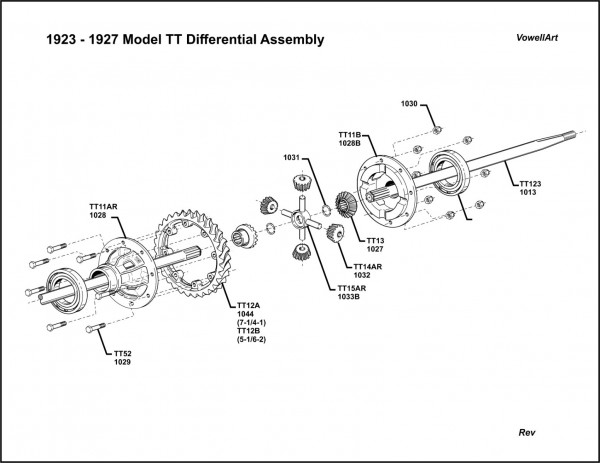

Made the changes.
Fun never quits!
Top
User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by A Whiteman » Mon Feb 11, 2019 2:44 pm

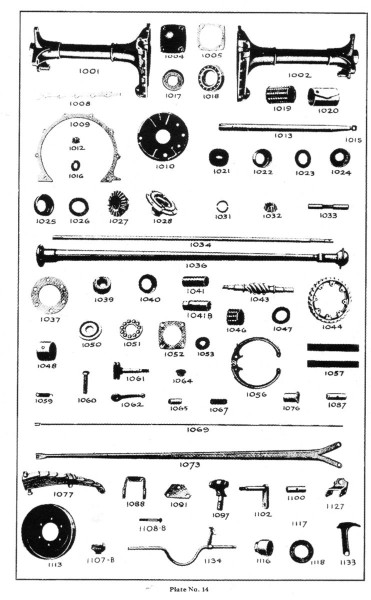

Hi Martyn, I believe that the top picture I posted is an early parts book, but I don't have the pages with the descriptions.
I think the late date of the latter pictures must include the AA truck, which essentially used a TT rear axle for the first year or two before going to a crown wheel assembly (please correct that those in the know :-) )
Top
User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:
Contact VowellArt

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by VowellArt » Mon Feb 11, 2019 4:03 pm

Are those pages out of McCalley's "Parts Book"? I'll have to go back and look through it again and see what else I can find. According to all those AA numbers, the end production date posted is 1927. Sooo, these are probably good for 23-27, but won't be any good for 18-22 model years. Going to have to find numbers for that one and then I can post it too.
Fun never quits!
Top

HPetrino
Posts: 490
Joined: Sun Jan 06, 2019 11:14 am
First Name: Henry
Last Name: Petrino
* REQUIRED* Type and Year of Model Ts owned: 1918 TT
Location: Modesto, CA

Re: 1923-1927 Model TT Rear Axle Differential Assembly

Post by HPetrino » Mon Feb 11, 2019 4:27 pm

Those pages are from:

Ford
The Universal Car
Price List
Chassis and Body Parts
Model T One Ton Truck
Effective March 15, 1927
Ford Motot Company
Detroit, Mich., U.S.A.
TT1
Top
