Steering gear case play
What is the best way to cure play in the steering gear case to steering column. I have replaced the rivets but that didn't improve things much. I suspect the holes are worn. Are oversize rivets/bolts the answer? By the way it's a 27 if it make a difference.
-
- Posts: 140
- Joined: Sat May 30, 2020 9:54 pm
- First Name: Jim
- Last Name: Forbes
- * REQUIRED* Type and Year of Model Ts owned: 1927 Coupe
- Location: Sierra Vista AZ
- Board Member Since: 2020
Re: Steering gear case play
I just had my 27 column apart, it was a tight fit of that brass housing in the metal tube. Also, the replacement rivets are smaller than the hole, and the originals appear to have been squeezed pretty tightly to fill the hole.
I'd start by asking what process you used to set the rivets?
I'd start by asking what process you used to set the rivets?
-
- Posts: 1708
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian built coupe, 1924 TT C-cab, survivor 1924 roadster
- Location: Charlevoix, Mi
- MTFCA Number: 28034
- Board Member Since: 2006
Re: Steering gear case play
Larger rivets.
-
Topic author - Posts: 190
- Joined: Wed Jan 16, 2019 6:29 pm
- First Name: David
- Last Name: Wilson
- * REQUIRED* Type and Year of Model Ts owned: 1927 Canadian Touring
- Location: Saint John, NB, Canada
- MTFCA Number: 51596
- Board Member Since: 1999
Re: Steering gear case play
Thanks guys. "squirrel", I didn't use anything sophisticated to set the rivets, just a hammer and a steel block. Column was in the car at the time so difficult to do anything else. Maybe I will try larger rivets as suggested by humble j. Any idea of the correct size to order? What's the best way to set them without removing the column from the car?
-
- Posts: 140
- Joined: Sat May 30, 2020 9:54 pm
- First Name: Jim
- Last Name: Forbes
- * REQUIRED* Type and Year of Model Ts owned: 1927 Coupe
- Location: Sierra Vista AZ
- Board Member Since: 2020
Re: Steering gear case play
Removing the column from the car isn't too difficult. Removing the control rods can be a bit difficult.
The holes in a spare brass housing I have are about 0.166" or so. Might consider getting rivets that are slightly larger than this, then measuring them and drilling the holes so the new rivets are a close fit.
If the housing is a loose fit in the tube, I don't know how long even well fitting rivets will last. The fit of the whole assembly might need to be better, for it to stay tight. Perhaps another column might be needed.
The holes in a spare brass housing I have are about 0.166" or so. Might consider getting rivets that are slightly larger than this, then measuring them and drilling the holes so the new rivets are a close fit.
If the housing is a loose fit in the tube, I don't know how long even well fitting rivets will last. The fit of the whole assembly might need to be better, for it to stay tight. Perhaps another column might be needed.
-
- Posts: 4095
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Steering gear case play
I put a shim between the brass steering box and the housing. Be sure the housing is not cracked. A crack will sometimes happen especially if it has been loose for a while. Put in a shim then rivet and seems to hold, at least mine has for many years. Works fine on the diamond shape box. Perhaps other help if you have a round box.
Norm
Norm
-
- Posts: 4967
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1920 Dodge touring, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- MTFCA Number: 52564
- Board Member Since: 1999
Re: Steering gear case play
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup
1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup
-
- Posts: 3327
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: '23 cutoff, '25 touring, '27 touring
- Location: North Central FL
- MTFCA Number: 4838
- MTFCI Number: 115
- Board Member Since: 2000
- Contact:
Re: Steering gear case play
Sometimes that upper end of the barrel of the column is cracked or split, that will cause a wiggle that can't be fixed without repair to the column.
If the rivet holes are enlarged, then bigger diameter rivets are good, but be sure to rivet with good technique. On the bench is best repair. Have used a twist drill to clear the holes in the brass case, the column, and the quadrant to be sure the rivet fits snug. Same dia. drill bit as the rivet.
Have read about using taper pins to do this job, but the Ford factory way IMO lasts.
Have used the air rivet gun, with proper tool to set the rivets, keeps the rivet head looking factory-like.
If the rivet holes are enlarged, then bigger diameter rivets are good, but be sure to rivet with good technique. On the bench is best repair. Have used a twist drill to clear the holes in the brass case, the column, and the quadrant to be sure the rivet fits snug. Same dia. drill bit as the rivet.
Have read about using taper pins to do this job, but the Ford factory way IMO lasts.
Have used the air rivet gun, with proper tool to set the rivets, keeps the rivet head looking factory-like.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Topic author - Posts: 190
- Joined: Wed Jan 16, 2019 6:29 pm
- First Name: David
- Last Name: Wilson
- * REQUIRED* Type and Year of Model Ts owned: 1927 Canadian Touring
- Location: Saint John, NB, Canada
- MTFCA Number: 51596
- Board Member Since: 1999
Re: Steering gear case play
Thanks to everyone for all the great info and advice. Looks like the original rivets for the 27 are .155" steel which Big Flats lists as 5/32" so I assume I should get some 3/16" rivets and drill the original holes to fit. I will also remove the column to do the job so the riveting can be done properly. Unless anyone sees any reason not to do it this way, I will proceed in a few days after my eye recovers from cataract removal the other day. What a neat procedure, wonder if it is adaptable to Model T repair?
-
- Posts: 239
- Joined: Mon Jan 07, 2019 8:00 pm
- First Name: Mark
- Last Name: Eyre
- * REQUIRED* Type and Year of Model Ts owned: 1913 Touring 1914 Touring and Roadster 1915 Touring 1926 Roadster
- Location: Battle Creek Michigan
Re: Steering gear case play

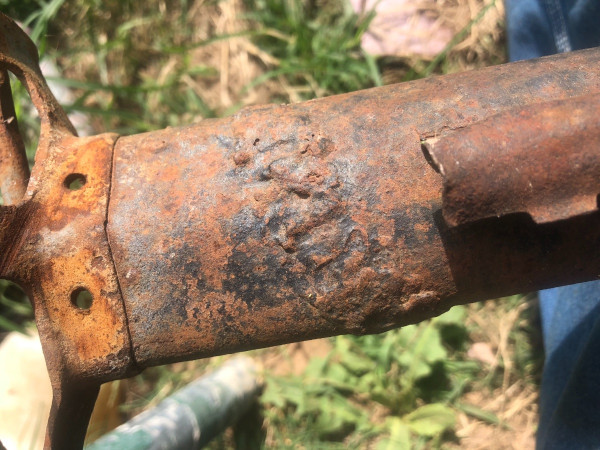

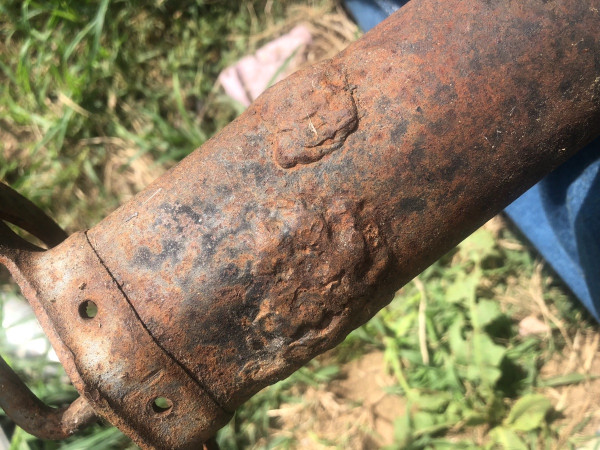

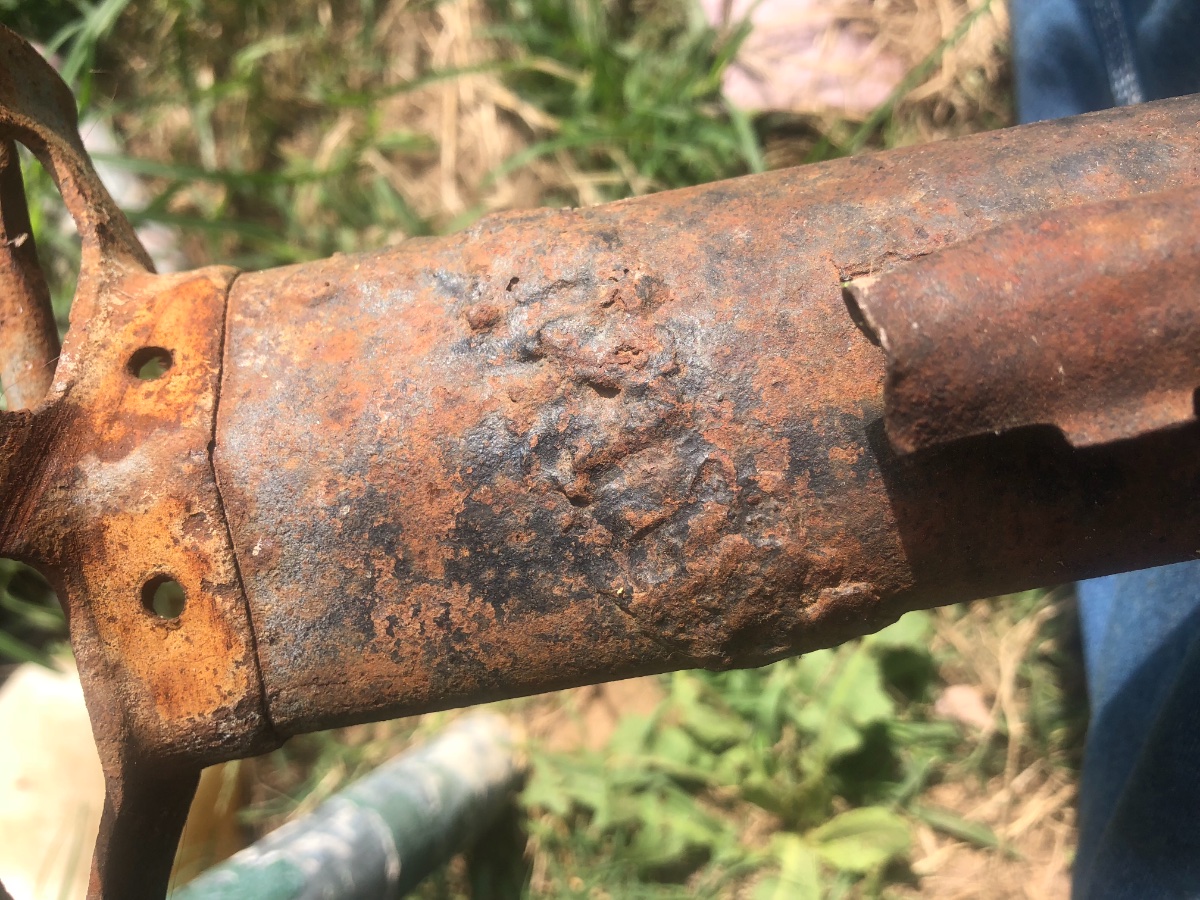

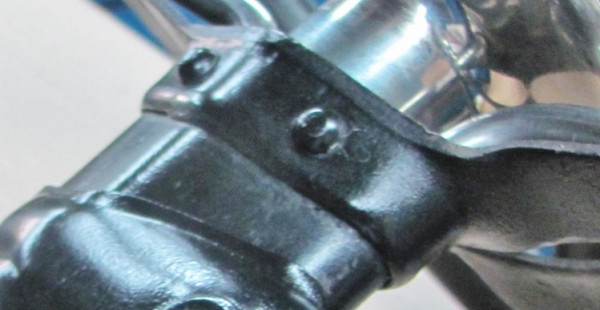

Oversized rivets didn’t take care of mine I took the cut off wheel and made one cut in the tube on the side about 3 inches long. Then tapped it together with a body hammer wire welded it and ground it flushed. Then reinstalled the quadrant, case and then reriveted it. Little bit of bodywork and done. Mine was probably an extreme case as the car was very used. Results may vary. Good luck with your project.
-
- Posts: 5259
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Steering gear case play
In my youth I went a different route, and it worked a treat! The steering box was way loose in the column tube, and it had been for quite some time. To buy some time until I could do a proper repair, I ground a taper across an all-hard hacksaw blade until it was a tight fit between the case and the tube. That was then driven between the two and broken off when I could drive it no further. I repeated the procedure on the other side. Those wedges never did move, perhaps due to the remnants of the teeth on the blade, and I never had to do any more. Unless you looked really closely, it could not be seen. The beauty of this is that a proper repair could be made any time later, with no damage to work around.
Allan from down under.
Allan from down under.
-
- Posts: 1518
- Joined: Sun Jan 06, 2019 12:28 pm
- First Name: Duane
- Last Name: Cooley
- * REQUIRED* Type and Year of Model Ts owned: 18 Runabout, 24 Runabout for 20yrs, 25 TT, late Center Door project, open express pickup
- Location: central MN
- MTFCA Number: 32488
- Board Member Since: 2015
Re: Steering gear case play
There have been folks that use tapered pins to tighten it all back together if all is well. Worked for them.
My '18 is the same way David. Locally sourced rivets are too small...
Wishing for even more info.
My '18 is the same way David. Locally sourced rivets are too small...
Wishing for even more info.
Since I lost my mind mind, I feel more liberated
-
- Posts: 592
- Joined: Sun Jan 06, 2019 11:46 am
- First Name: Corey
- Last Name: Walker
- * REQUIRED* Type and Year of Model Ts owned: 1914 runabout, 1921 homemade truck, 1921 Speedster
- Location: Brownsboro, TX
- MTFCA Number: 51502
- Board Member Since: 2007
Re: Steering gear case play

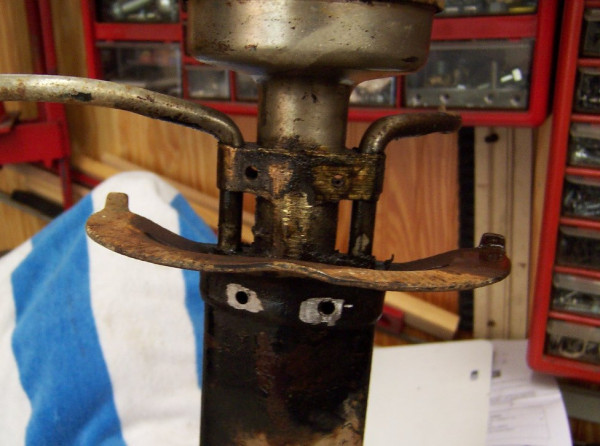

Somebody did some dirt dauber welding almost all the way around this one.
Corey Walker, Brownsboro, Texas
-
Topic author - Posts: 190
- Joined: Wed Jan 16, 2019 6:29 pm
- First Name: David
- Last Name: Wilson
- * REQUIRED* Type and Year of Model Ts owned: 1927 Canadian Touring
- Location: Saint John, NB, Canada
- MTFCA Number: 51596
- Board Member Since: 1999
Re: Steering gear case play
Thanks everyone for the information and suggestions. Allan, I tried the hacksaw approach as a temporary? fix and was able to drive in one piece of blade and that seemed to eliminate all the play. No room left for a piece of blade on the other side. Anyway, I'll see how it lasts and if I have any more problems, I'll remove the column and do a more permanent repair. I also re-discovered that I had an accessory type ball cap on the drag link and was able to tighten the adjusting screw on that. It is not an Apco type and just has a small set screw for adjustment with no apparent locking mechanism like the cotter pin on the Apco. Again, I'll see how it works. It almost felt like the screw was "clicking" as I tightened it. Maybe there are detents or something inside the cap to lock it. Next time I go at it, I will remove the cap to investigate and lube it if everything looks ok. Thanks again everyone!
-
- Posts: 302
- Joined: Sun Jan 06, 2019 2:24 pm
- First Name: Bill
- Last Name: Robinson
- * REQUIRED* Type and Year of Model Ts owned: '21 Depot Hack, '25 Touring Car, '26 Roadster Pickup, '27 Tudor, & another '27 Tudor
- Location: Salty Bottom, ALABAMA AL
- MTFCA Number: 22487
- MTFCI Number: 17887
- Board Member Since: 1999
- Contact:
Re: Steering gear case play

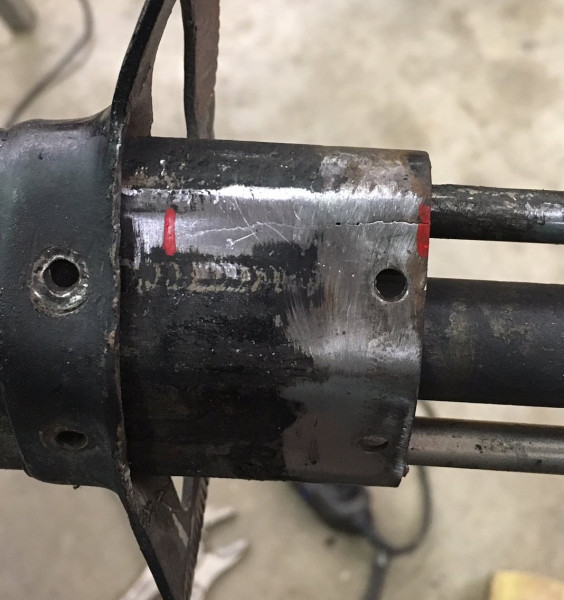

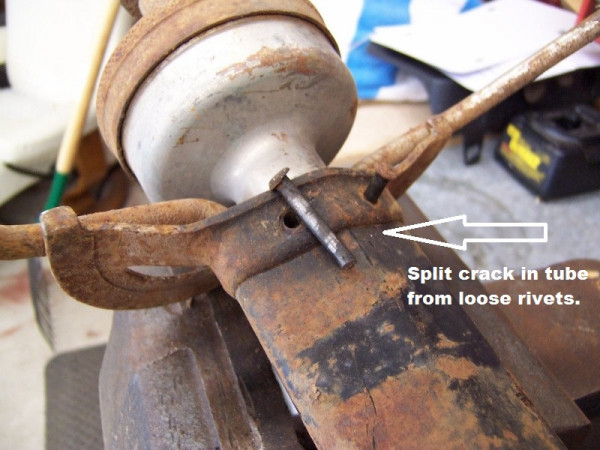

Found the crack. Welded and dressed a bit. Tightly installed new rivets. Good as new now.
