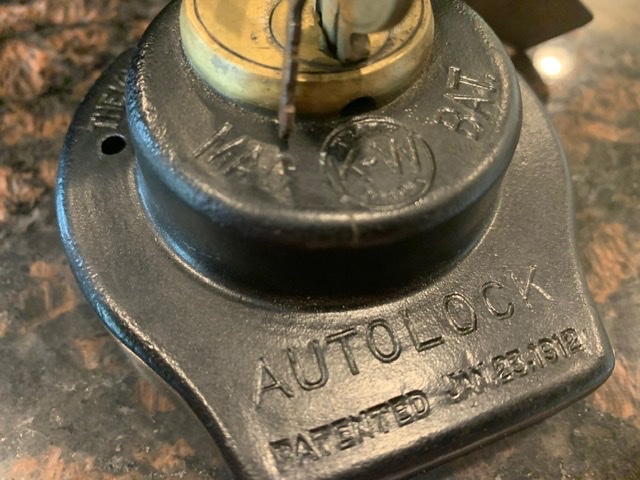

I’m rebuilding the coil box and had a question about the ignition switch. This KW switch I haven’t been able to find a lot on... was this an accessory item?
Thank you,
Darin
13T - KW Coil Box Switch
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Darin Hull
Topic author - Posts: 253
- Joined: Fri Apr 17, 2020 2:15 pm
- First Name: Darin
- Last Name: Hull
- * REQUIRED* Type and Year of Model Ts owned: 1913 Model T & 1926 Model T project
- Location: Cartersville, GA
- Board Member Since: 2010
- Contact:
13T - KW Coil Box Switch
- Attachments
-
-
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: 13T - KW Coil Box Switch

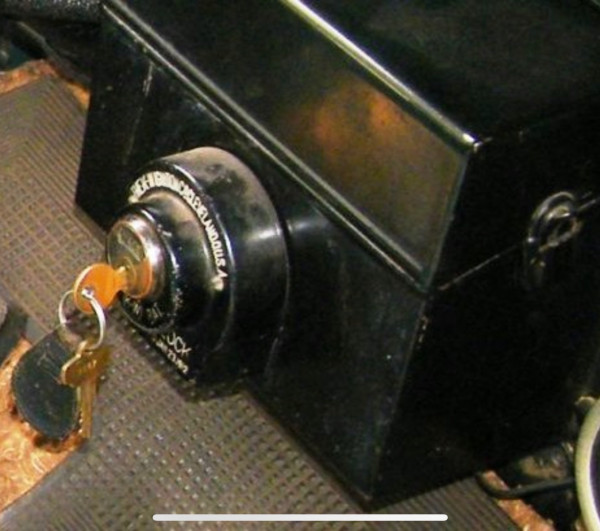

Yes, it was an early "anti-theft" device - I have/had a NOS one that is now on our '14 Touring. I'll attempt to find a photo.
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: 13T - KW Coil Box Switch
Is that far right contact "spring" kinda small compared to the others? Or is it just an optical illusion in the picture?
-
Darin Hull
Topic author - Posts: 253
- Joined: Fri Apr 17, 2020 2:15 pm
- First Name: Darin
- Last Name: Hull
- * REQUIRED* Type and Year of Model Ts owned: 1913 Model T & 1926 Model T project
- Location: Cartersville, GA
- Board Member Since: 2010
- Contact:
Re: 13T - KW Coil Box Switch

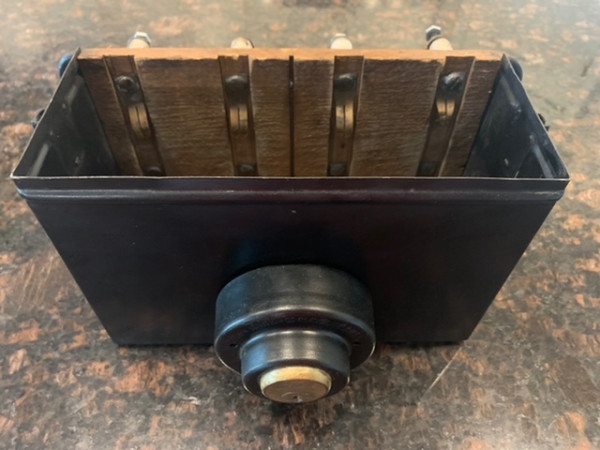

Not an optical illusion... part of the reason I’m rebuilding the coil box. Broken prong on the bottom copper, too.
Darin
Darin
-
Darin Hull
Topic author - Posts: 253
- Joined: Fri Apr 17, 2020 2:15 pm
- First Name: Darin
- Last Name: Hull
- * REQUIRED* Type and Year of Model Ts owned: 1913 Model T & 1926 Model T project
- Location: Cartersville, GA
- Board Member Since: 2010
- Contact:
Re: 13T - KW Coil Box Switch
Steve,
A picture would be great. I’ve found one pic online which appears to show the letters are white... I want to ensure that’s right because I plan on having the wife paint the letters if that’s the way it is supposed to be.
Darin
A picture would be great. I’ve found one pic online which appears to show the letters are white... I want to ensure that’s right because I plan on having the wife paint the letters if that’s the way it is supposed to be.
Darin
-
Darin Hull
Topic author - Posts: 253
- Joined: Fri Apr 17, 2020 2:15 pm
- First Name: Darin
- Last Name: Hull
- * REQUIRED* Type and Year of Model Ts owned: 1913 Model T & 1926 Model T project
- Location: Cartersville, GA
- Board Member Since: 2010
- Contact:
-
Rich Bingham
- Posts: 1942
- Joined: Sun Jan 06, 2019 11:23 am
- First Name: Rich
- Last Name: Bingham
- * REQUIRED* Type and Year of Model Ts owned: 1913 runabout
- Location: Blackfoot, Idaho
Re: 13T - KW Coil Box Switch

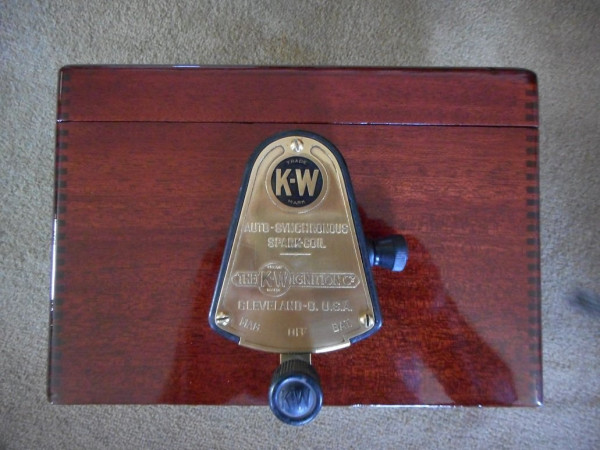

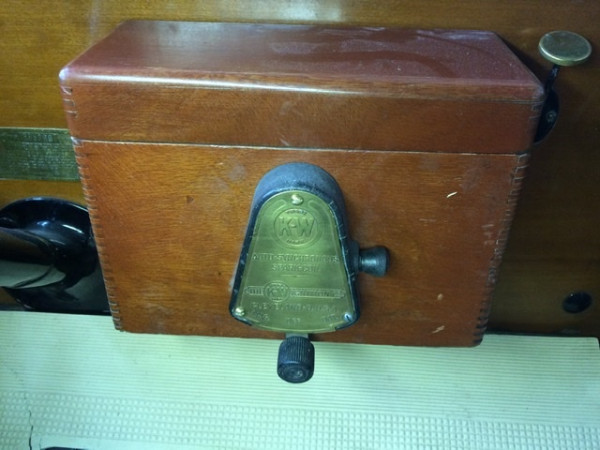

This is the coil box and switch on my ‘13. The knob in the right of the switch body is the “key”. It’s a brass shaft that makes it “impossible” to throw the switch when it’s removed. I think the switch plate is supposed to be black, with the inscription in relief unpainted.
Good a time as any to review when the metal coil boxes appeared. (?). I love those locking devices for the coil box switch. Wonder how many different makes there were ?
Good a time as any to review when the metal coil boxes appeared. (?). I love those locking devices for the coil box switch. Wonder how many different makes there were ?
- Attachments
-
"Get a horse !"
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: 13T - KW Coil Box Switch
The switch plate you have pictured only had the circle with KW in it painted black.
- Attachments
-
-
Rich Bingham
- Posts: 1942
- Joined: Sun Jan 06, 2019 11:23 am
- First Name: Rich
- Last Name: Bingham
- * REQUIRED* Type and Year of Model Ts owned: 1913 runabout
- Location: Blackfoot, Idaho
-
Drkbp
- Posts: 277
- Joined: Sun Jan 06, 2019 11:28 am
- First Name: Kenneth
- Last Name: Parker
- * REQUIRED* Type and Year of Model Ts owned: 1914, 1925
- Location: Houston, Texas
Re: 13T - KW Coil Box Switch

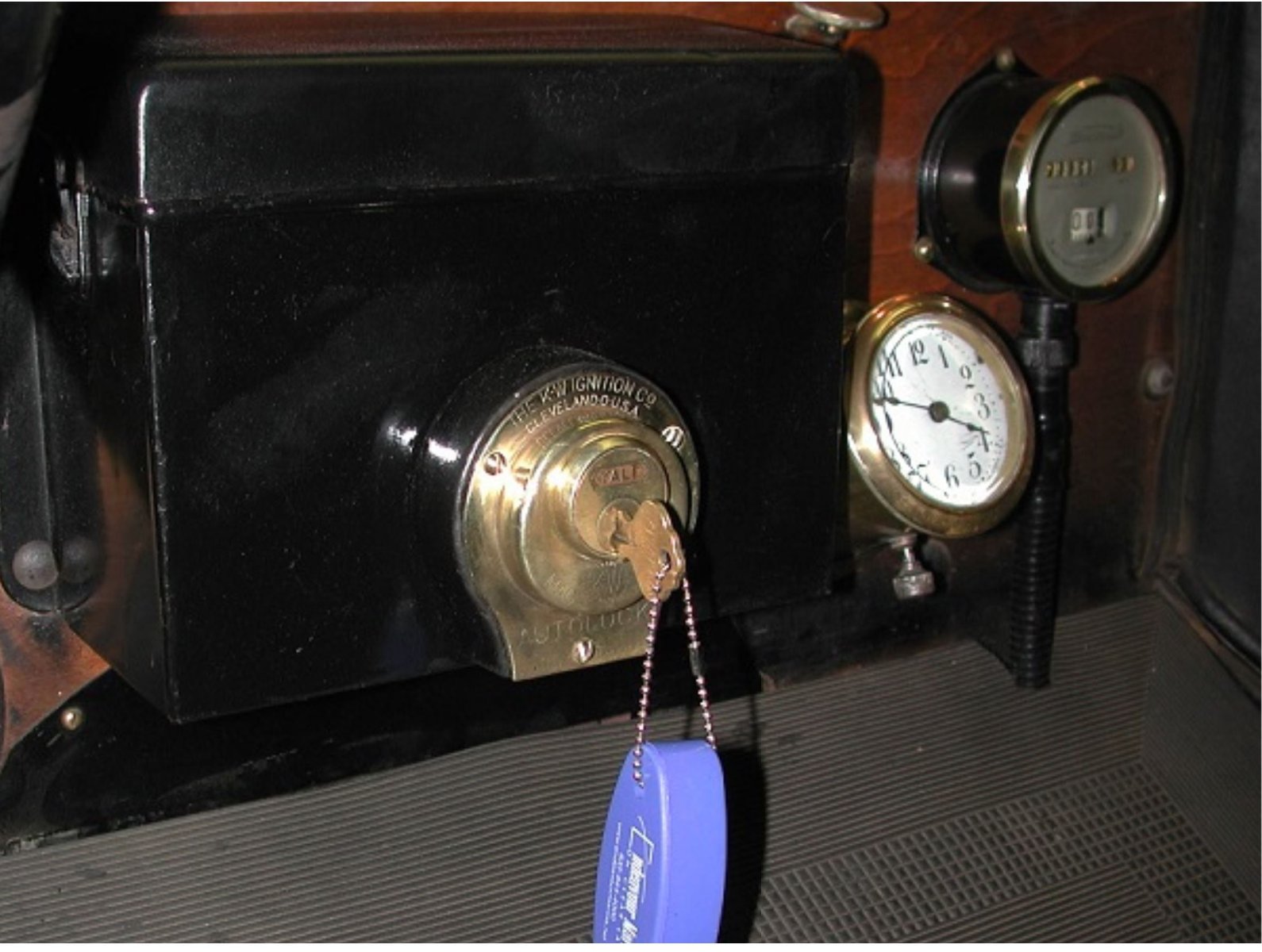

Here is a little earlier K-W "AUTOLOCK" with a brass cover I have on my car.

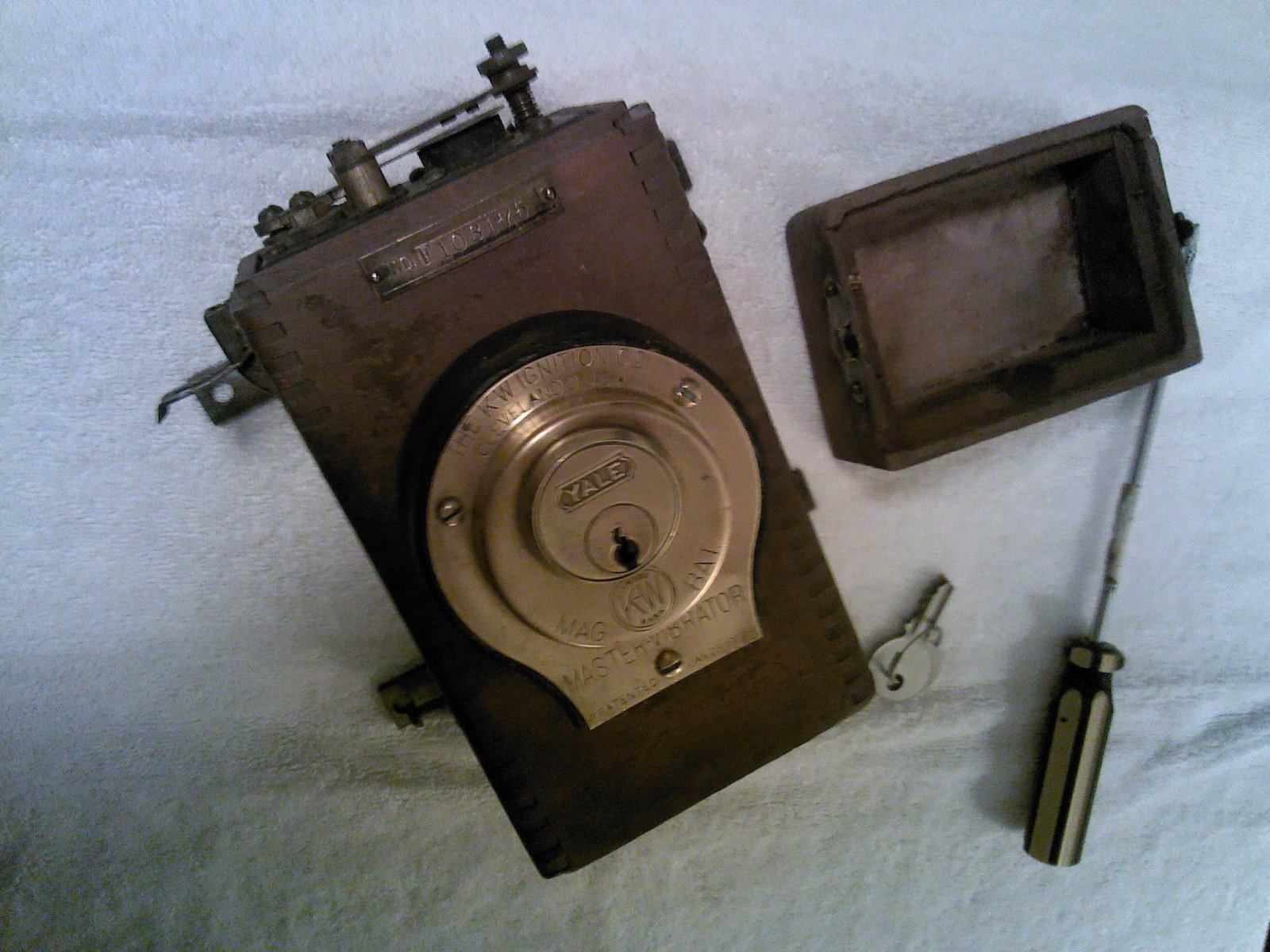

K-W also made a Master Vibrator with the same switch but the cover is stamped "MASTER VIBRATOR".
The base of both of these look like a regular '13/'14 Model T metal coil box switch but the inside is different.
Patent date is January 23, 1912, same as Darin's.
K-W also made a Master Vibrator with the same switch but the cover is stamped "MASTER VIBRATOR".
The base of both of these look like a regular '13/'14 Model T metal coil box switch but the inside is different.
Patent date is January 23, 1912, same as Darin's.
