Ever seen one of these broken

Post by Cambin » Fri Feb 15, 2019 10:30 pm

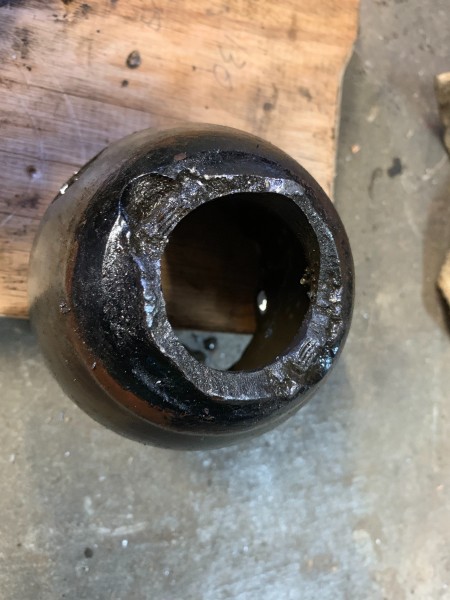

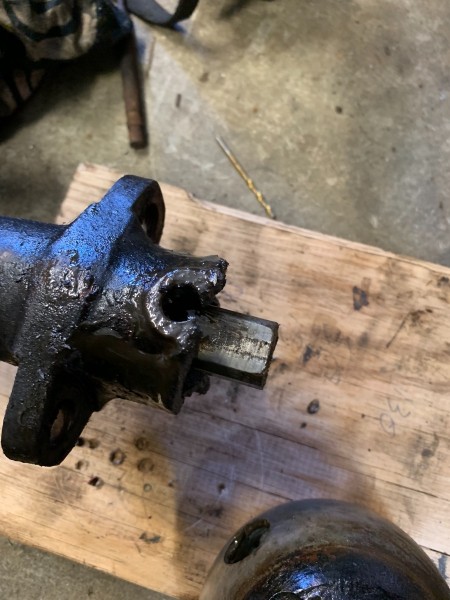

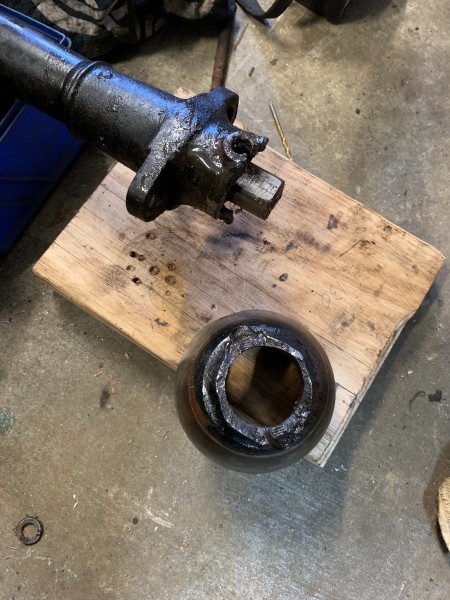

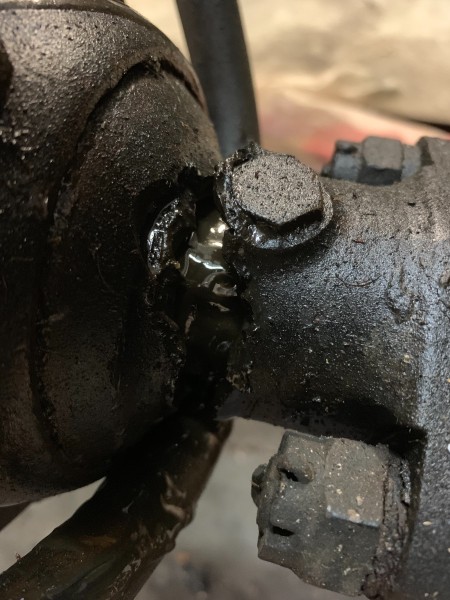

[image][image][/image][/image]has anyone come across this type of breakage and if so what are the causes?
The pin was solid so it wasn’t a loose pin
Attachments


Don Conklin
Posts: 8
Joined: Sun Jan 06, 2019 1:14 pm
First Name: Donald
Last Name: Conklin
Location: 4696 Edgewood Ter., Eden, NY, 14057
MTFCI Number: 10087

Re: Ever seen one of these broken

Post by Don Conklin » Fri Feb 15, 2019 10:55 pm

Torque tube not modified to accomodate a ball bearing 4th main

User avatar

Mark Gregush
Posts: 2319
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Ever seen one of these broken

Post by Mark Gregush » Fri Feb 15, 2019 10:58 pm

No but I have had one with the T-tube broke inside the casting at the other end. The radius rods kept it in place locked at the rivets where it had sheared.
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup

User avatar

Topic author
Cambin
Posts: 45
Joined: Sun Jan 13, 2019 12:36 pm
First Name: Cameron
Last Name: Smythe
Location: Warragul Victoria AU

Re: Ever seen one of these broken

Post by Cambin » Sat Feb 16, 2019 1:04 am

No mods all original
No pin gouge
And radius rods look good

User avatar

kmatt
Posts: 132
Joined: Sun Jan 06, 2019 6:30 pm
First Name: Kevin
Last Name: Matthiesen
Location: Madera California
MTFCA Number: 11598

Re: Ever seen one of these broken

Post by kmatt » Sat Feb 16, 2019 1:27 am

If the rear spring center bolt head broke or slipped out of the rear cross member and the rear axle, spring and all, shifted slightly it could have stressed the torque tube over time. Because the torque tube ball is held fast by the motor even a slight and unnoticed misalignment could stress the torque tube in the area that broke.

User avatar

CudaMan
Posts: 829
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667
Board Member Since: 2013

Re: Ever seen one of these broken

Post by CudaMan » Sat Feb 16, 2019 8:22 am

Too many burnouts! :o
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)

User avatar

Oldav8tor
Posts: 707
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
Location: Thumb of Michigan
MTFCA Number: 50297
MTFCI Number: 24810

Re: Ever seen one of these broken

Post by Oldav8tor » Sat Feb 16, 2019 10:41 am

I didn't see any grease cups.....
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep
1953 Ford Jubilee Tractor


Howard Tomlinson
Posts: 22
Joined: Sun Jan 06, 2019 7:23 pm
First Name: Howard
Last Name: Tomlinson
Location: Orange VA

Re: Ever seen one of these broken

Post by Howard Tomlinson » Sat Feb 16, 2019 11:26 am

I haven't seen one broken, but I did take one housing apart where the universal pin evidently had backed out and scored the inside of the housing. Being that that area is already pretty thin a similar break could have happened.


Altair
Posts: 209
Joined: Thu Jan 17, 2019 11:52 am
First Name: David
Last Name: Menzies
Location: British Columbia
MTFCA Number: 27825
Board Member Since: 2012

Re: Ever seen one of these broken

Post by Altair » Sun Feb 17, 2019 12:03 am

Just throwing out a thought, the break in that location would be developed by engine torque, the bolts that sandwich the rear part of the torque tube to the diff housing are 3/8" + 1/32 or 13/32" they are referred to as special bolts, if they were ever replaced with incorrect 3/8" bolts this could allow unwanted movement, just a thought.

User avatar

Jem
Posts: 116
Joined: Sun Jan 06, 2019 5:37 pm
First Name: Jem
Last Name: Bowkett
Location: Spalding United Kingdom
Board Member Since: 1999

Re: Ever seen one of these broken

Post by Jem » Sun Feb 17, 2019 2:31 am

The nose of the torque tube is free to move around in the ball cap to accommodate suspension movement. If that cap is dry or seized for some other reason, something has got to give.


Jerry VanOoteghem
Posts: 370
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: VanOoteghem
Location: S.E. Michigan

Re: Ever seen one of these broken

Post by Jerry VanOoteghem » Sun Feb 17, 2019 3:26 pm

Were you using a shim to take up for wear in the ball/retaining ring? Too much shim can lock up the ball joint and may cause this.
