I got the entire drive line of my '27 re-built, and I noticed when I put the rear wheels back on, that the cotter pin holes to lock the castle nuts on the tapered end of the new (2505HS) axles were in the wrong place. The old axles had the holes about 3/8" from the end of the thread,l and the new ones have a hole at about 3/4". The nuts cover up the holes. This is something that's hard to notice early on.
Can I drill new holes for cotter pins? Thanks,
New Axles with cotter pin hole in wrong place
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Rosenfelder
Topic author - Posts: 77
- Joined: Sun Apr 14, 2019 8:47 am
- First Name: John
- Last Name: Rosenfelder
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T touring
- Location: Southern New Hampshire
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: New Axles with cotter pin hole in wrong place
Make sure your hub is fully seated too. Might be hung on the axle key or something .
One fix is to grind the face of the axle nut to align cotter hole.

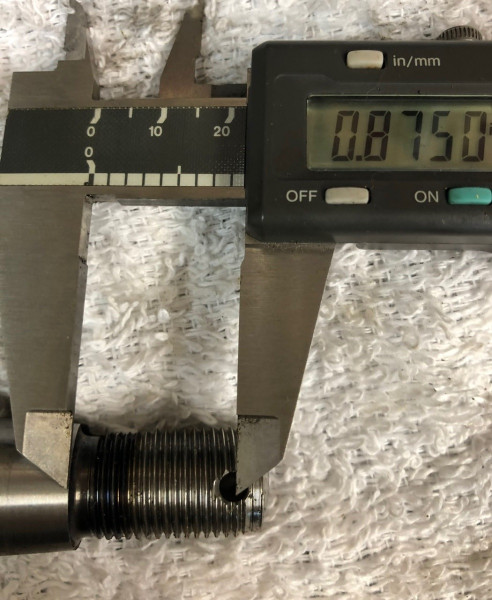

Am now putting new axles in rear end, these are new mfg. GN brand. The cotter hole location is to Ford print. .875” from end of taper. Puts centerline of cotter hole .234” from axle end as per Ford print.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Rosenfelder
Topic author - Posts: 77
- Joined: Sun Apr 14, 2019 8:47 am
- First Name: John
- Last Name: Rosenfelder
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T touring
- Location: Southern New Hampshire
Re: New Axles with cotter pin hole in wrong place
It turns out that I am wrong. there is a hole in the correct place. I think that there are two holes for some reason. All is well. J.R.
