Bench Top Rear Axle Holder

Post by dang.1922 » Sun Jul 26, 2020 12:58 pm

I am getting ready to start disassembly on the rear end in our 1921 T. I would like to know the size of the hole in the bench top axle holder as I am going to make one. Thank You for any help. ----Dan Greger
Top
User avatar

CudaMan
Posts: 2531
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
* REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
Location: Hillsboro, MO
Board Member Since: 2013

Re: Bench Top Rear Axle Holder

Post by CudaMan » Sun Jul 26, 2020 1:33 pm

The hole in mine is 6 1/4 inches in diameter. I made mine out of a scrap 2x10 I had laying around. :)
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Bench Top Rear Axle Holder

Post by DanTreace » Sun Jul 26, 2020 2:32 pm

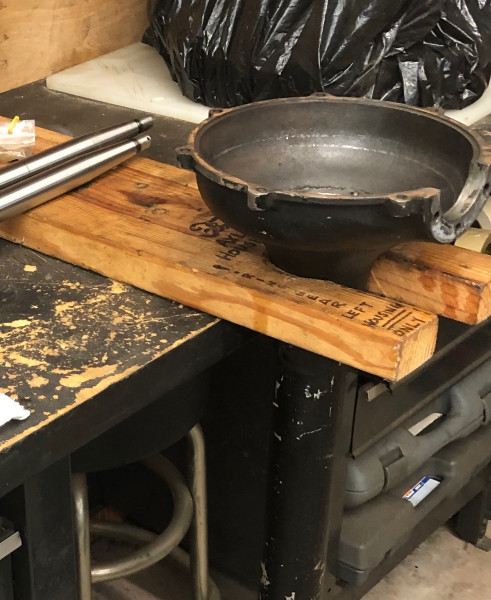

Bevel that hole some, fits snug that way. Put a reminder note on mine :?

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Bench Top Rear Axle Holder

Post by TRDxB2 » Sun Jul 26, 2020 6:17 pm

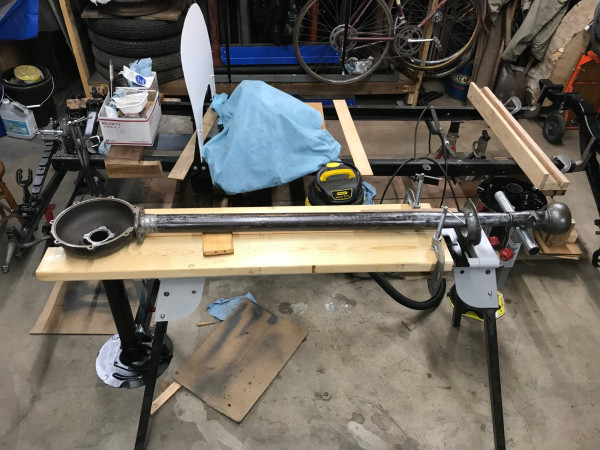

I set mine up on my power miter box stand. That way I could move take it down and store it when done.

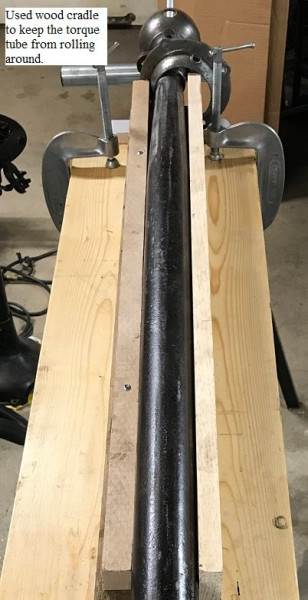

Made a cradle to keep the torque tube from moving around
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Topic author
dang.1922
Posts: 56
Joined: Sun May 19, 2019 9:20 pm
First Name: Dan
Last Name: Greger
Location: Dayton

Re: Bench Top Rear Axle Holder

Post by dang.1922 » Mon Jul 27, 2020 6:28 am

Thank You all for the reply's, this helps a lot. Now it is time for the interesting part to just see how bad it is inside, when I sucked some oil out of the fill hole it had a lot of Babbitt in it. ---Dan
Top

StanHowe
Posts: 979
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
* REQUIRED* Type and Year of Model Ts owned: 2
Location: Helena, MT
Board Member Since: 1999

Re: Bench Top Rear Axle Holder

Post by StanHowe » Mon Jul 27, 2020 10:35 am

While you're at it, take an old ring gear and bolt it down with the teeth up.

I cut a hole in my bench top but you can also just bolt it over the edge of your bench.

Handy as a pocket in a shirt for holding the assembly, removing ring bolts etc, tightening them etc etc.
