Handbrake cross shaft

Post by Will_Vanderburg » Tue Sep 15, 2020 6:06 pm

The cross shaft will not rotate in the mounting brackets. How do you loosen them so it will? RUST
William L Vanderburg

1925 Touring
1922 Center Door Sedan


Stephen_heatherly
Posts: 195
Joined: Wed Jan 09, 2019 6:03 pm
First Name: Stephen
Last Name: Heatherly
Location: St. Louis MO

Re: Handbrake cross shaft

Post by Stephen_heatherly » Tue Sep 15, 2020 6:14 pm

50/50 mix of acetone and transmission fluid works pretty well.

Stephen

User avatar

Topic author
Will_Vanderburg
Posts: 292
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
Location: Jackson, NJ
MTFCA Number: 28382

Re: Handbrake cross shaft

Post by Will_Vanderburg » Tue Sep 15, 2020 6:18 pm

That will break up the rust that currently keeps it from moving?
William L Vanderburg

1925 Touring
1922 Center Door Sedan


Humblej
Posts: 514
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Handbrake cross shaft

Post by Humblej » Tue Sep 15, 2020 7:01 pm

Yes, liquid wrench or a blue wrench to disolve the rust.

User avatar

RajoRacer
Posts: 1634
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Handbrake cross shaft

Post by RajoRacer » Tue Sep 15, 2020 7:28 pm

If it's not bolted into a frame, hit it with your torch, let cool and it will most likely be free or a little "bang-bang" with a small hammer will do it.


Stephen_heatherly
Posts: 195
Joined: Wed Jan 09, 2019 6:03 pm
First Name: Stephen
Last Name: Heatherly
Location: St. Louis MO

Re: Handbrake cross shaft

Post by Stephen_heatherly » Tue Sep 15, 2020 8:16 pm

Will_Vanderburg wrote:
Tue Sep 15, 2020 6:18 pm
That will break up the rust that currently keeps it from moving?
Yep. Might have to wiggle and tap on it until it comes free again.

Stephen

User avatar

DanTreace
Posts: 1487
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Handbrake cross shaft

Post by DanTreace » Tue Sep 15, 2020 8:36 pm

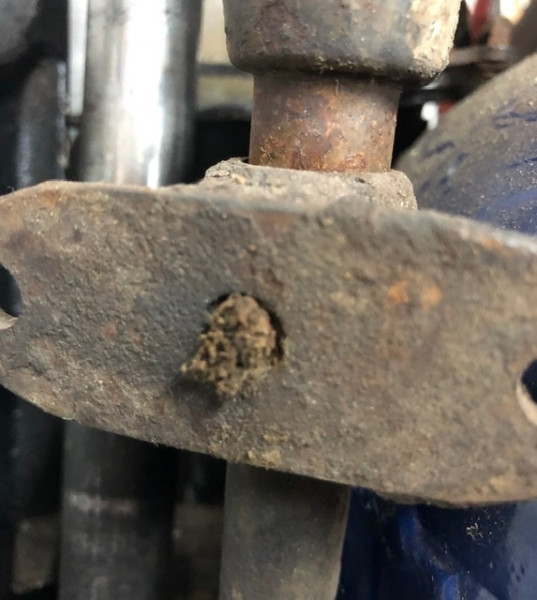

After you free the bracket up, be sure to pick out the old felt in the recess of the bracket which rests against the frame.

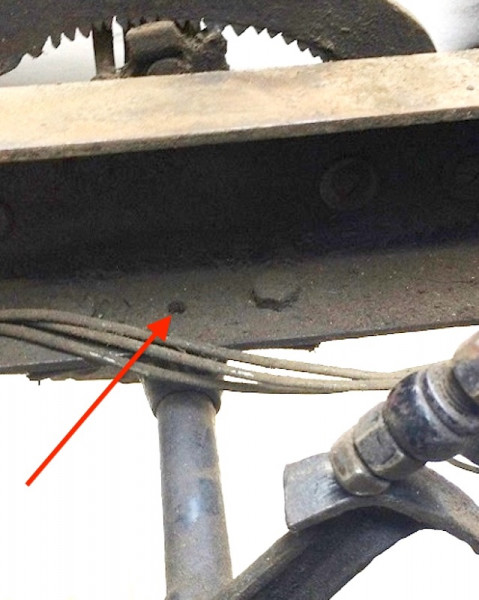

Put in a fresh small piece of felt and oil it, then from time to time, put a couple of drops of oil in the hole in the frame rail to keep those bracket bearings from rusting. Lots of water splash can cause it to stick again. ;)


cross shaft oil hole.jpg
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Stephen_heatherly
Posts: 195
Joined: Wed Jan 09, 2019 6:03 pm
First Name: Stephen
Last Name: Heatherly
Location: St. Louis MO

Re: Handbrake cross shaft

Post by Stephen_heatherly » Tue Sep 15, 2020 9:50 pm

Also, make sure your pawl and quadrant are good before you mount the lever back in the car.

Stephen


Allan
Posts: 1579
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Handbrake cross shaft

Post by Allan » Tue Sep 15, 2020 10:29 pm

The earlier brackets had a squarish body between the shaft and the frame, and these had a felt in them to retain the oil. The later ones just had a round drilled hole. I believe that hole had no felt.You just filled it with oil and let it run free. I could be wrong again.

Allan from down under.

User avatar

DanTreace
Posts: 1487
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Handbrake cross shaft

Post by DanTreace » Wed Sep 16, 2020 8:28 am

Allan

Correct in earlier cross shaft brackets with square like recess for felt plug.
The later ones with round hole. But that hole also used a cylinder of felt too for oil wick.

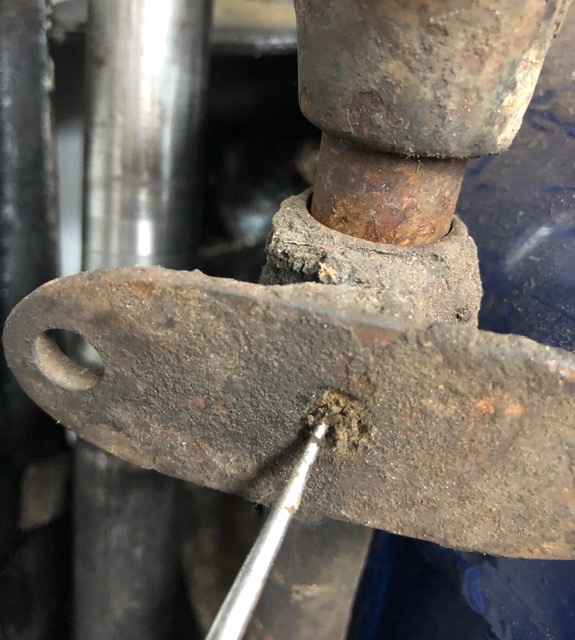

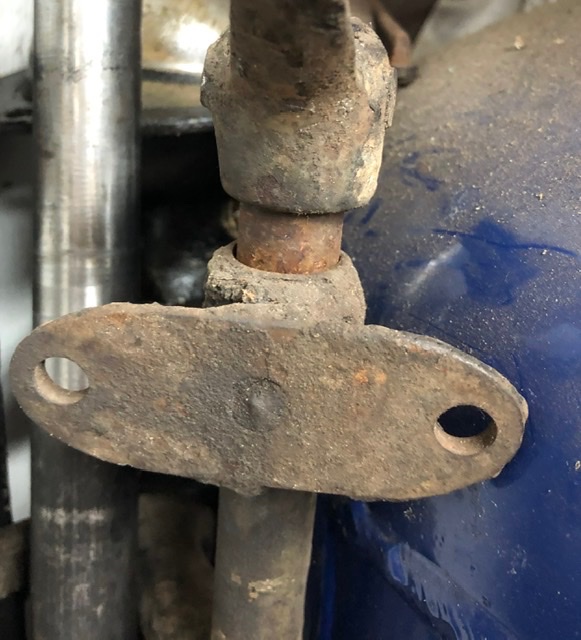

Here is original, used a pick to pull away the old dry felt!

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Allan
Posts: 1579
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Handbrake cross shaft

Post by Allan » Wed Sep 16, 2020 5:55 pm

Dan, I had presumed that to be rusty accumulated crud in any I have pulled. I'll have to be more observant next time.
Thanks, Allan from down under.


D Stroud
Posts: 925
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO 64470
Board Member Since: 2011

Re: Handbrake cross shaft

Post by D Stroud » Sun Sep 20, 2020 12:52 am

Dan is correct. I read somewhere, maybe a parts book(?) a long time ago about those holes. My (Dallas's) '23TT and my '25 coupe have the round holes. I made new ones with a cheap hole punch and some leftover felt from some project. ( Really quite a technical project!) :roll: Dave
1925 mostly original coupe.

User avatar

Topic author
Will_Vanderburg
Posts: 292
Joined: Sun Jan 06, 2019 3:59 pm
First Name: William
Last Name: Vanderburg
Location: Jackson, NJ
MTFCA Number: 28382

Re: Handbrake cross shaft

Post by Will_Vanderburg » Sun Sep 20, 2020 8:06 pm

The Hand Brake is installed and works. I heated the offending mounting brackets with MAPP Gas and doused them with a garden hose. Bingo!
William L Vanderburg

1925 Touring
1922 Center Door Sedan

User avatar

ivaldes1
Posts: 403
Joined: Mon Jan 07, 2019 1:32 am
First Name: Ignacio
Last Name: Valdes
Location: Houston, Tx
MTFCA Number: 50406
Board Member Since: 2016

Re: Handbrake cross shaft

Post by ivaldes1 » Sun Sep 20, 2020 11:30 pm

What does the felt do? I see those holes in my 26-27 frame and wondered if I should put a zerk fitting and a grease gun. Thanks for the clarification.

User avatar

Duey_C
Posts: 1042
Joined: Sun Jan 06, 2019 12:28 pm
First Name: Duane
Last Name: Cooley
Location: central MN
MTFCA Number: 32488
Board Member Since: 2015

Re: Handbrake cross shaft

Post by Duey_C » Mon Sep 21, 2020 2:10 am

Felt keeps the dirt out whilst being oily for the moving parts. Unless fully yucked-up with dirt-rust.
I broke a shaft mount because it was rusted securely.
Welded it back together and went on.
Hmmm, I have felt and scissors.
Why the heck haven't I re-felted those holes?
Cotton waste would work too. Lightly stuffed down in the hole so the oil will get there also.
Notes from the peanut gallery. :)
Since I lost my mind mind, I feel more liberated


Original Smith
Posts: 1579
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Handbrake cross shaft

Post by Original Smith » Wed Sep 23, 2020 10:55 am

This subject has been addressed before. Dan did a good job of clarifying things. Something some folks don't know is around 1921-2 Ford decided to drop the holes in the frame and brackets. It didn't work out, so they started doing it again. I guess only the record of changes would give the exact dates.


John kuehn
Posts: 1281
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Handbrake cross shaft

Post by John kuehn » Wed Sep 23, 2020 4:05 pm

Learned something on this post about those felt wicks being in the holes in the handbrake. Didn’t realize they were originally there for lubrication and oiling. The ones I have looked at over the years were stopped up with crud or so I thought! If the shaft was rusted tight I don’t think I would force it and break it but that’s just me. I found more than a few that were stuck though!

After several years I’ll bet those wicks were forgotten about and owners would use light oil in the holes and forget about it as long as the handbrake would move. Lots of details on T’s were eventually overlooked and this surely is one of them!


Tim Hales
Posts: 1
Joined: Sun Jan 06, 2019 7:43 pm
First Name: Tim
Last Name: Hales
Location: Saginaw,Mi

Re: Handbrake cross shaft

Post by Tim Hales » Wed Sep 23, 2020 8:59 pm

Verry interesting. Thank you I cleaned my crud out and oiled both sides. Never had a clue felt was in there. probably first time in a hundred and five years oiled nice and smooth now
