4 hole quadrant on a 2 hole frame?

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
User avatar

Topic author
ivaldes1
Posts: 403
Joined: Mon Jan 07, 2019 1:32 am
First Name: Ignacio
Last Name: Valdes
Location: Houston, Tx
MTFCA Number: 50406
Board Member Since: 2016

4 hole quadrant on a 2 hole frame?

Post by ivaldes1 » Wed Sep 16, 2020 11:57 pm

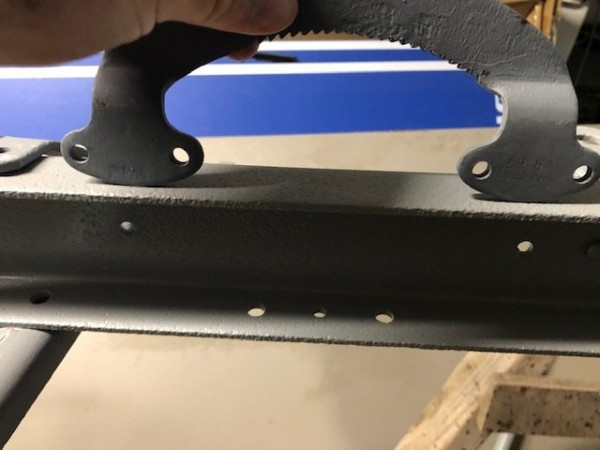

See picture I have a 4 hole quadrant for a 2 hole frame. Possibilities:

1) Only put 2 rivets in (the outside holes line up with the frame holes) high five myself and call it a day.
2) Drill 2 more holes and put all 4 rivets in.
3) Get a 2 rivet quadrant which I don't have.

Thoughts? Will a 4 hole quadrant work on a 2 hole frame?
Attachments


kmatt2
Posts: 70
Joined: Wed Jun 17, 2020 1:41 pm
First Name: Kevin
Last Name: Matthiesen
Location: Madera CA

Re: 4 hole quadrant on a 2 hole frame?

Post by kmatt2 » Thu Sep 17, 2020 1:20 am

The only reason Ford went to the two hole hand break bracket is to save the cost of the two extra rivits and drilling the extra holes. The outside holes of you bracket should line up with two holes in your frame, you can go with two if you want to use that bracket. In the picture it looks like the teeth on your bracket are quite warn. You want good teeth on that bracket to hold when pulled back. If you can't clean up the teeth with a file I would get a new two hole bracket.

User avatar

Mark Gregush
Posts: 2457
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: 4 hole quadrant on a 2 hole frame?

Post by Mark Gregush » Thu Sep 17, 2020 8:54 am

I just worked on on that had a new 4 hole one installed in place of the 2 hole type, so yes they will work without extra holes.
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup

User avatar

Steve Jelf
Posts: 2904
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: 4 hole quadrant on a 2 hole frame?

Post by Steve Jelf » Thu Sep 17, 2020 12:27 pm

I would go by whatever year the car purports to be. Four hole through 1924, two hole 25-27. If four I would go ahead and put in four rivets. And yes, you want those teeth sharp enough to hold the ratchet.
The inevitable often happens.
1915 Runabout
1923 Touring


D Stroud
Posts: 925
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO 64470
Board Member Since: 2011

Re: 4 hole quadrant on a 2 hole frame?

Post by D Stroud » Sun Sep 20, 2020 12:42 am

Make sure your pawl is nice and "pointy" :) too. Dave
1925 mostly original coupe.

User avatar

Steve Jelf
Posts: 2904
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: 4 hole quadrant on a 2 hole frame?

Post by Steve Jelf » Sun Sep 20, 2020 1:24 am

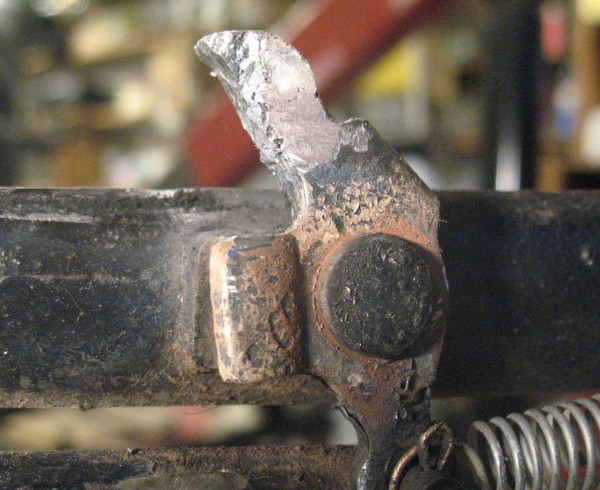

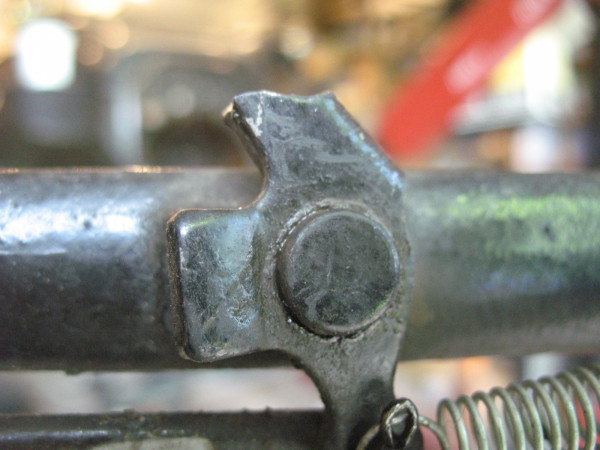

What Dave said. You may have to build it up.

IMG_2854 copy.JPG
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Mark Gregush
Posts: 2457
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: 4 hole quadrant on a 2 hole frame?

Post by Mark Gregush » Sun Sep 20, 2020 1:39 am

Steve Jelf wrote:
Thu Sep 17, 2020 12:27 pm
I would go by whatever year the car purports to be. Four hole through 1924, two hole 25-27. If four I would go ahead and put in four rivets. And yes, you want those teeth sharp enough to hold the ratchet.
I agree but in the my case the new one was installed and there was no reason to replace it or drill the unneeded extra two holes.
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup


D Stroud
Posts: 925
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO 64470
Board Member Since: 2011

Re: 4 hole quadrant on a 2 hole frame?

Post by D Stroud » Sun Sep 20, 2020 1:44 am

Also, you may already know this, but some others may not, ALWAYS squeeze the handle when applying the brake, just like you do when releasing it. DON'T let the pawl "ratchet" on the quadrant, that's what wears them out. They will last MUCH longer if you do that. Dave
1925 mostly original coupe.


John kuehn
Posts: 1280
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: 4 hole quadrant on a 2 hole frame?

Post by John kuehn » Sun Sep 20, 2020 8:48 am

Dave S has a good point.
The constant ‘clicking’ over years of use is what causes the teeth to wear out. Besides the quadrant the ratchet wears also.
Over the years picking up old frames I could see the difference in what drivers did to them and could see how different drivers were clickers and others not so much!


Dropacent
Posts: 1363
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: 4 hole quadrant on a 2 hole frame?

Post by Dropacent » Sun Sep 20, 2020 5:29 pm

I had a 2 hole bracket on a very original 4 hole frame. They likely ran out of old brackets before frames, and didn’t give a whif. Same frame had two sets of holes for when the firewall brkt changed, from wood to steel.


Original Smith
Posts: 1579
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 4 hole quadrant on a 2 hole frame?

Post by Original Smith » Wed Sep 23, 2020 11:17 am

It is true that Ford went to the two hole quadrant in 1925, however, there are many frames around that didn't use the inner two holes during the transition period in 1925. When I was building my late 1925, I had to drive to Elko, Nevada to get a correct frame.
