Advice needed: how to moutn 26 27 subframe and body

Post by Matt_A_1926 » Thu Sep 24, 2020 12:39 pm

Hey guys. I'm looking to do a preliminary mounting of my 27 27 Touring pickup body and sub frame to my frame. Just looking to see if you guys have instructions/prints for what goes where and how to mount everything.
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Advice needed: how to moutn 26 27 subframe and body

Post by DanTreace » Thu Sep 24, 2020 5:22 pm

The process is straight forward, locate all the body mount brackets on your '26-'27 frame.

Then place the body with its subframe over the brackets, it first helps to place the wood body block mounts, with holes for the bolts to slip thru the frame brackets.


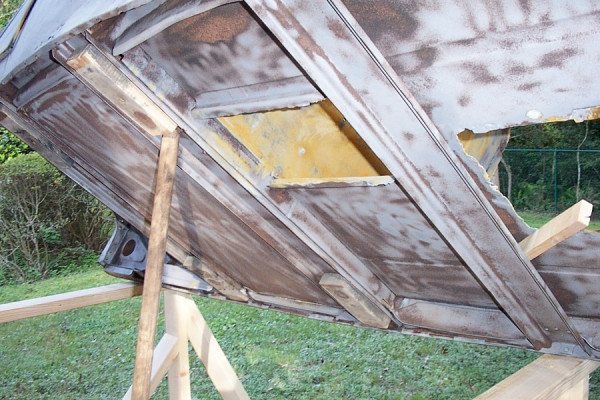

Note body wood block, mounted.

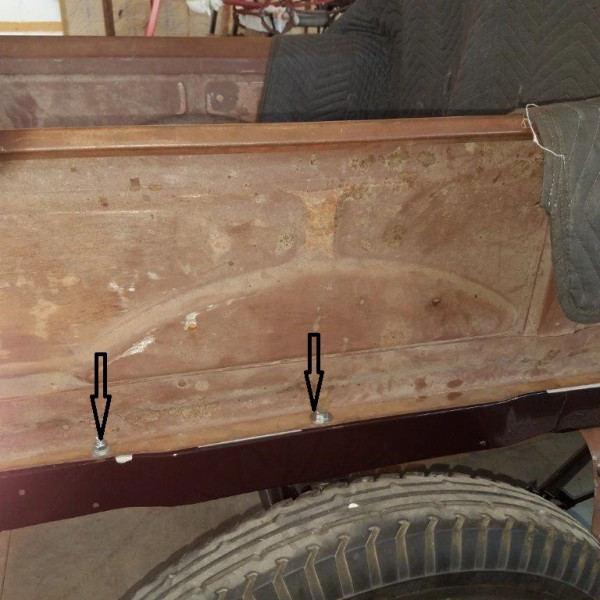

The bed will mount to the top member of the subframe with long bolts thru the bed flange and the subframe, nuts mount below.
002 (2).jpg

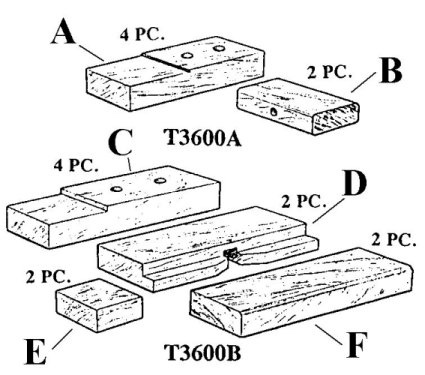

Body blocks used on '26-'27s
