1913/14 Firewall - measurements for holes needed.

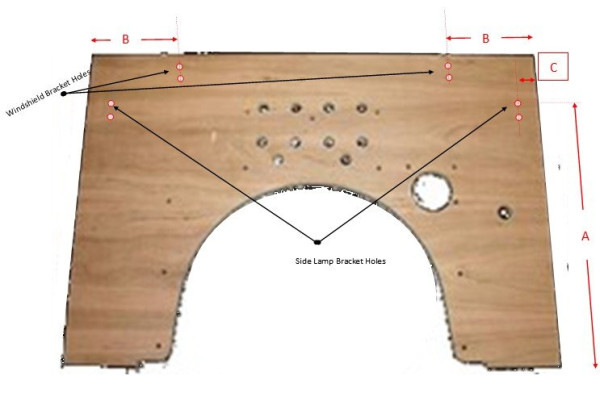

I am needing the factory location of the holes for the side lamp brackets (-both the 'A' measurement and the 'C' measurement), ...and the location the windshield clips are mounted inboard (-the B measurement) from the edge. Can anyone help me with this??
Thanks!!
Thanks!!
-
Dan Hatch
- Posts: 5009
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: 1913/14 Firewall - measurements for holes needed.
I think J Regan posted that on here some years ago. He was making dash’s for a while. Had all the info from the Henry Ford.
But I have hanging on my shop wall a NOS 13/14 firewall and those holes are not drilled in it. Guess the dealer was on his own with those holes. I think I have a used dash in another building and will look when I get a chance. Dan
But I have hanging on my shop wall a NOS 13/14 firewall and those holes are not drilled in it. Guess the dealer was on his own with those holes. I think I have a used dash in another building and will look when I get a chance. Dan
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: 1913/14 Firewall - measurements for holes needed.
By John F. Regan on Monday, November 05, 2007 - 03:18 pm:
"The lamp bracket hole locations and size were the same as earlier T's until about July of 1914 when the lamps had the bracket as part of the lamp and those brackets necessitated a different hole location. The earlier 14 dash with the separate brackets had those bracket holes located at an angle to the sides and lower. The lamps that had the built in bracket used holes that were parallel to the dash sides and above the other holes. The location for those type lamp/brackets would be such that the top hole of the slanted mounting holes would be just above and inboard of the lower hole of the 2 hole pattern that the later lamps/bracket used. The early 1914 bracket used separately with the early 1914 lamps was a bracket that was different than the shape of the 1910-late 1913 bracket in that the bracket did not have the USUAL OFFSET bent LEDGE for the lamp to sit on. Instead the early 1914 bracket was simply wider at the ledge location."
This talks about it.
http://www.mtfca.com/discus/messages/29/38806.html
and this shows the location for 1912.
http://www.mtfca.com/discus/messages/80 ... 1235585602
I can't help more than that.
Rich
"The lamp bracket hole locations and size were the same as earlier T's until about July of 1914 when the lamps had the bracket as part of the lamp and those brackets necessitated a different hole location. The earlier 14 dash with the separate brackets had those bracket holes located at an angle to the sides and lower. The lamps that had the built in bracket used holes that were parallel to the dash sides and above the other holes. The location for those type lamp/brackets would be such that the top hole of the slanted mounting holes would be just above and inboard of the lower hole of the 2 hole pattern that the later lamps/bracket used. The early 1914 bracket used separately with the early 1914 lamps was a bracket that was different than the shape of the 1910-late 1913 bracket in that the bracket did not have the USUAL OFFSET bent LEDGE for the lamp to sit on. Instead the early 1914 bracket was simply wider at the ledge location."
This talks about it.
http://www.mtfca.com/discus/messages/29/38806.html
and this shows the location for 1912.
http://www.mtfca.com/discus/messages/80 ... 1235585602
I can't help more than that.
Rich
When did I do that?
-
EricMac
- Posts: 342
- Joined: Tue Jan 08, 2019 11:11 pm
- First Name: Eric
- Last Name: Macleod
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 26 Touring (2006 Stynoski), 27 Fordor, 27 Fordor, '92 Stynoski, 'owner emeritus
- Location: Battle Creek, Michigan
- Board Member Since: 2016
Re: 1913/14 Firewall - measurements for holes needed.
On mine measurement A is 16"
B is 4 1/8"
C is 2" at the top hole and 1 3/8 at the bottom hole, but my brackets had offset holes.
Hope that helps.
B is 4 1/8"
C is 2" at the top hole and 1 3/8 at the bottom hole, but my brackets had offset holes.
Hope that helps.

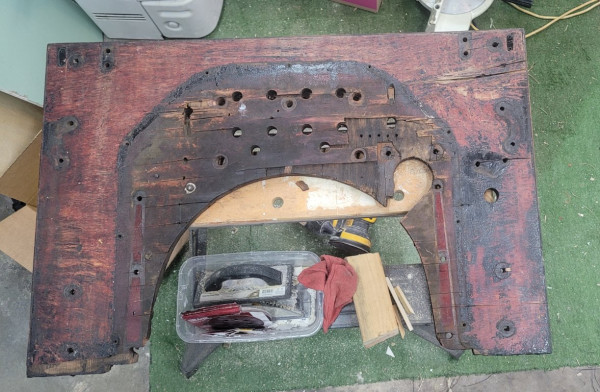

- 13 dash
1913 Touring
1925 Touring
1926 Touring (2006 Stynoski)
1927 Fordor (2)
1927 Touring
Stynoski 1992, Nash, Franklin, Lincoln, Cadillac and Buick owner emeritus
1925 Touring
1926 Touring (2006 Stynoski)
1927 Fordor (2)
1927 Touring
Stynoski 1992, Nash, Franklin, Lincoln, Cadillac and Buick owner emeritus
-
Dropacent
- Posts: 3384
- Joined: Sun Jan 06, 2019 11:39 am
- First Name: Tim
- Last Name: Morsher
- * REQUIRED* Type and Year of Model Ts owned: 1925TT, 1926 Martin-Parry bodied wagon, 1927 mercury bodied speedster
- Location: Norwalk Ohio
Re: 1913/14 Firewall - measurements for holes needed.
Be careful taking measurements off an original artifact. Even plywood shrinks significantly over this many years. jMHO
-
John Haynes
- Posts: 150
- Joined: Tue Jan 08, 2019 11:56 am
- First Name: John
- Last Name: Haynes
- * REQUIRED* Type and Year of Model Ts owned: 1910,1911,1912,1913.1914
- Location: Chadron, NE 69337
Re: 1913/14 Firewall - measurements for holes needed.
Hello Brent,
The measurements I have are from an old set of wood plans for a 1914 Roadster. The windshield frame brackets are 4 inches from the outside edge and 3/4 of and inch and 1 3/4 inch from the top of the firewall. The top hole for the side lamps (for jno Brown) are 5 1/2 from the top and 1/3/4 from the edge. If you have E & J lamps use 8 inches from the top and 2 inches from the edge. It is recommended that you drill the top hole and position the bracket with lamp and adjust straight then drill the bottom hole. I hope this helps!
The measurements I have are from an old set of wood plans for a 1914 Roadster. The windshield frame brackets are 4 inches from the outside edge and 3/4 of and inch and 1 3/4 inch from the top of the firewall. The top hole for the side lamps (for jno Brown) are 5 1/2 from the top and 1/3/4 from the edge. If you have E & J lamps use 8 inches from the top and 2 inches from the edge. It is recommended that you drill the top hole and position the bracket with lamp and adjust straight then drill the bottom hole. I hope this helps!
