Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Henry K. Lee » Sun Dec 06, 2020 6:36 pm

One of our members had a special request in modifying a radiator shell for a special project he has been building. He said for me to get the apprentice involved, like I do not have him jumping hoops already. But all a side of life a perfect opportunity to show how to cut without distorting a compound pressed piece. These do not like to shrink back well so our tools are our friends but getting in a hurry can make a mess. This all took about 2 1/2 hours.

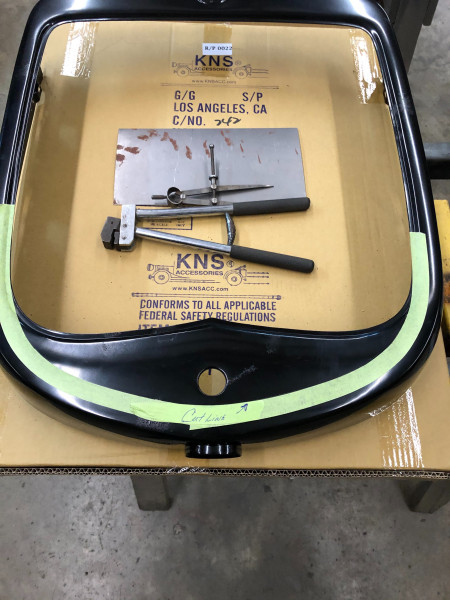

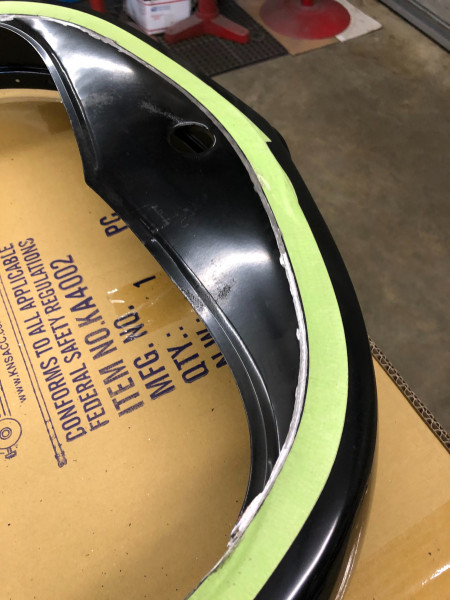

Lay out with tape as it is a better sliding surface and contrasting color for us old folks.

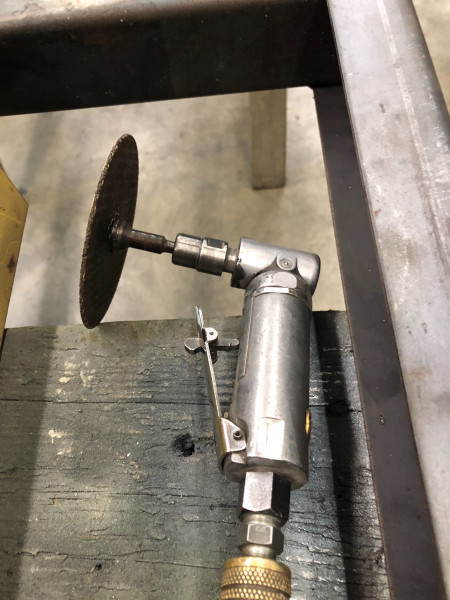

Air cut off tool as it is more controllable and not so heavy. Key to success here.., multiple passes, not just one but do not cut all the way through. Heat build up, not good for tin work. About four total.

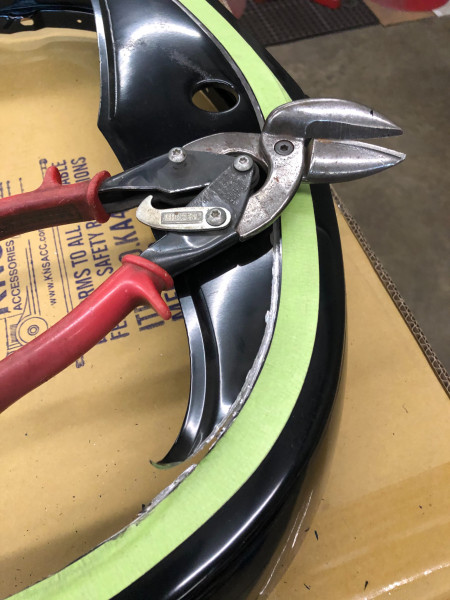

Good sharp right hand tin snips.
Attachments
Last edited by Henry K. Lee on Sun Dec 06, 2020 8:21 pm, edited 1 time in total.

User avatar

Topic author
Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Henry K. Lee » Sun Dec 06, 2020 6:46 pm

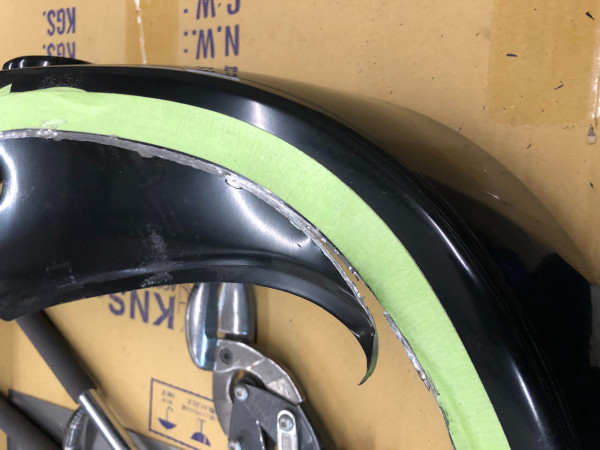

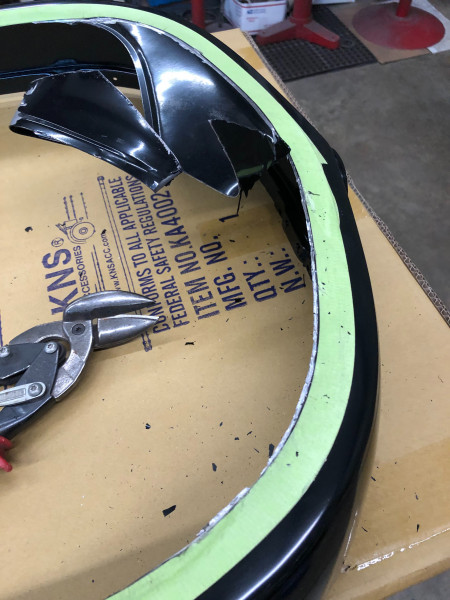

Cutting away excess metal, not to distort the good piece.

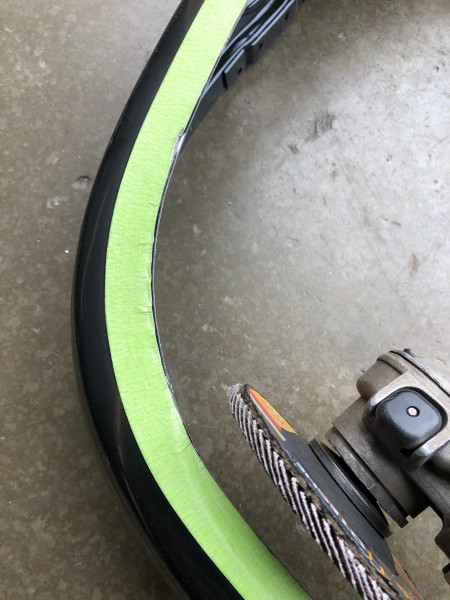

Sanding with a paddle wheel to the tape line.

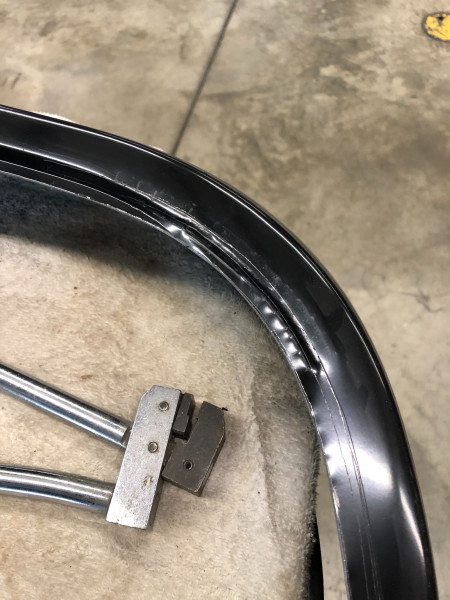

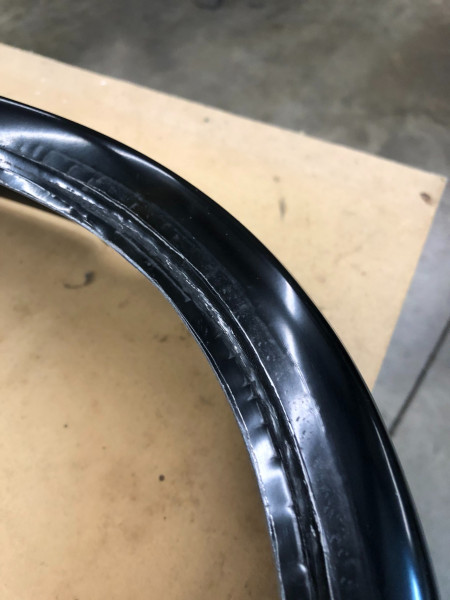

This just worked out right. My hand step lap forming crimpers were the same size. Sometimes you have to make your own from square keyway stock etc and weld to vise grips.
Multiple passes overlapping as you go will make them smooth.

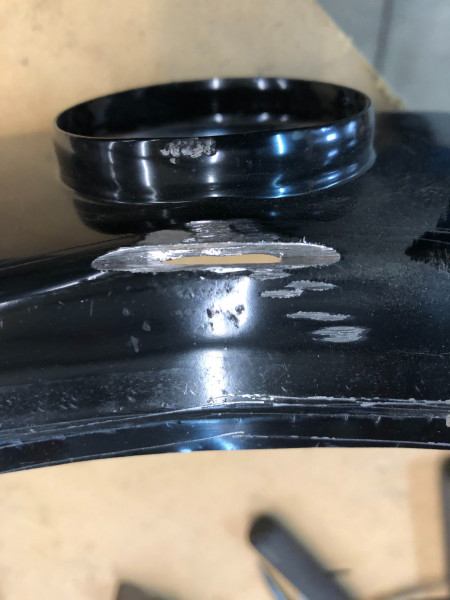

Cutting a relief to remove the center pointed apex. Hammer down and weld as required.

User avatar

Topic author
Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Henry K. Lee » Sun Dec 06, 2020 6:52 pm

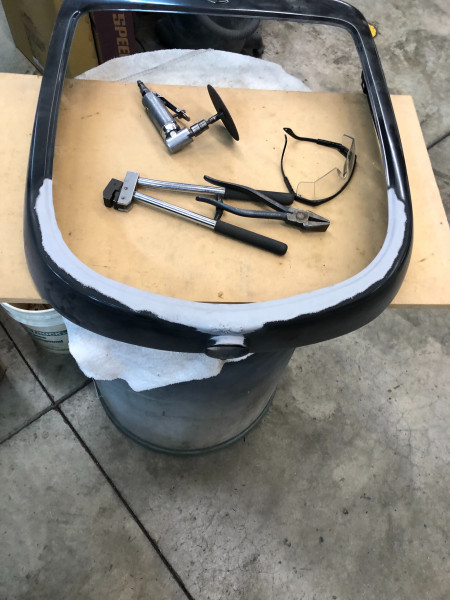

I normally sand blast the area to find minor imperfections when I do high speed sanding that comes next. Really smooths out tool marks.

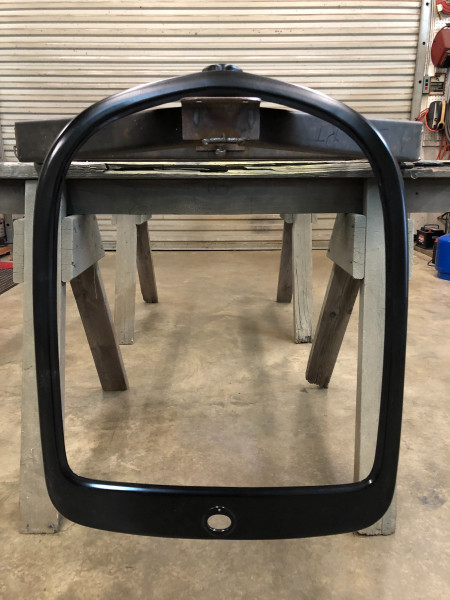

After it meets standards, re-coat with satin black as it arrived and inspect. Meets standards.

Take your time.., all will meet your expectations and put a smile on your face.

All the Best to All,

Hank


Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Les Schubert » Sun Dec 06, 2020 7:28 pm

Very nice!


Harry Lillo
Posts: 327
Joined: Fri Jan 04, 2019 10:18 pm
First Name: Harry
Last Name: Lillo
* REQUIRED* Type and Year of Model Ts owned: Speedsters, racers, depot hack, coupe
Location: Calgary

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Harry Lillo » Sun Dec 06, 2020 7:44 pm

What is the thickness of your cutting disc?
Harry

User avatar

Topic author
Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Henry K. Lee » Sun Dec 06, 2020 7:51 pm

1/8" Harry!!!!!!!


Harry Lillo
Posts: 327
Joined: Fri Jan 04, 2019 10:18 pm
First Name: Harry
Last Name: Lillo
* REQUIRED* Type and Year of Model Ts owned: Speedsters, racers, depot hack, coupe
Location: Calgary

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by Harry Lillo » Sun Dec 06, 2020 8:53 pm

Would a 1/16 disc not generate less heat buildup?
Perhaps you were looking for a wider cut with the 1/8th disc to better accommodate your hand shearing.
Well done.
Harry


BillyBobsSpeedShop
Posts: 59
Joined: Fri Jan 18, 2019 11:29 pm
First Name: Bill
Last Name: Webb
* REQUIRED* Type and Year of Model Ts owned: 1926 Roadster, 1927 Roadster
Location: Nc

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by BillyBobsSpeedShop » Sun Dec 06, 2020 9:10 pm

Turned out great Hank, if you get any pictures of the shell installed and finished please share.


OilyBill
Posts: 641
Joined: Sat Apr 25, 2020 3:51 pm
First Name: William
Last Name: May
* REQUIRED* Type and Year of Model Ts owned: 1914 Runabout
Location: Tucson, Arizona

Re: Helping a Friend in Need, Modifying a Model A Radiator Shell

Post by OilyBill » Mon Dec 07, 2020 12:17 am

Very nice work!
