Building a Foot Throttle from Scratch

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
User avatar

Topic author
Henry K. Lee
Posts: 2799
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Building a Foot Throttle from Scratch

Post by Henry K. Lee » Sun Mar 03, 2019 2:31 pm

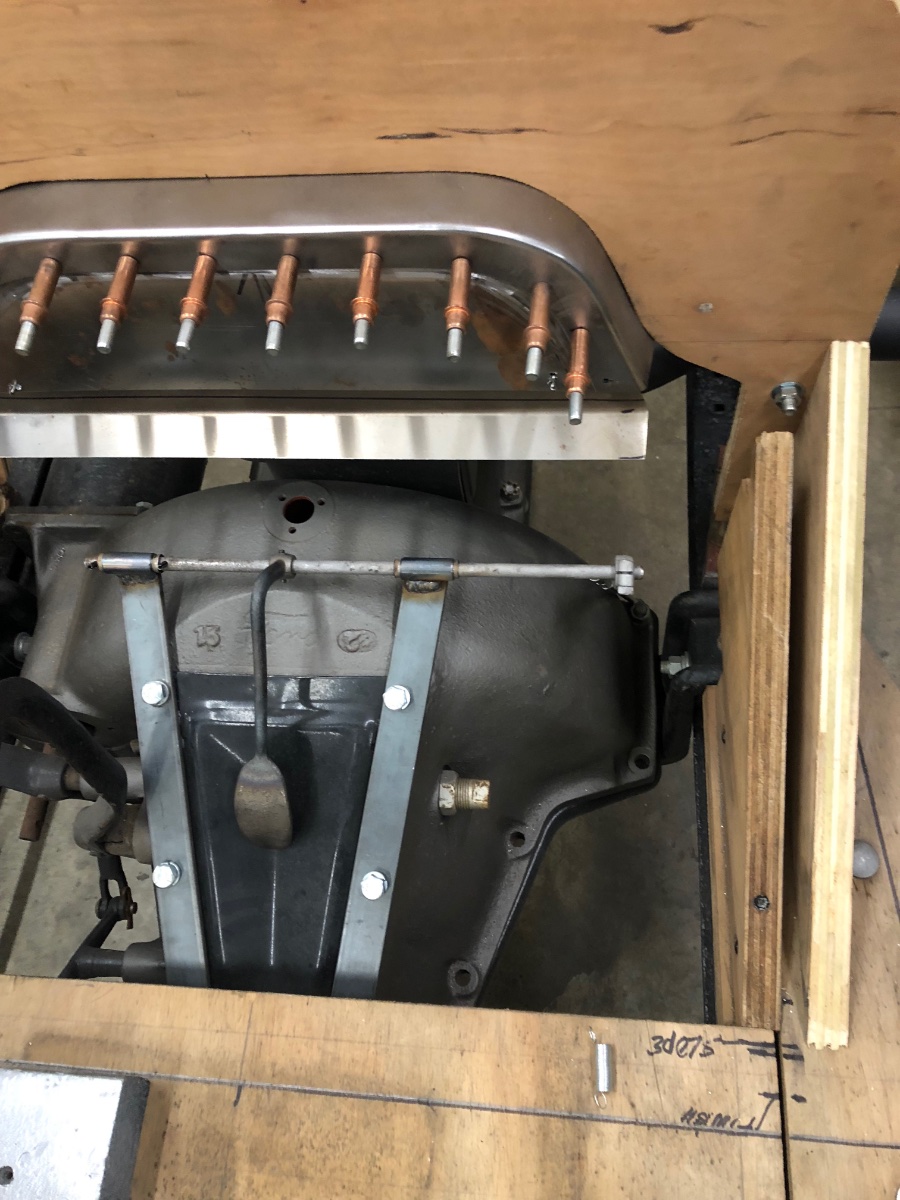

A little time is all it takes with minimal supplies. My Dad and I came up with this system years back, you can even make up a chain and bell crank to still use a hand throttle in conjunction with it.

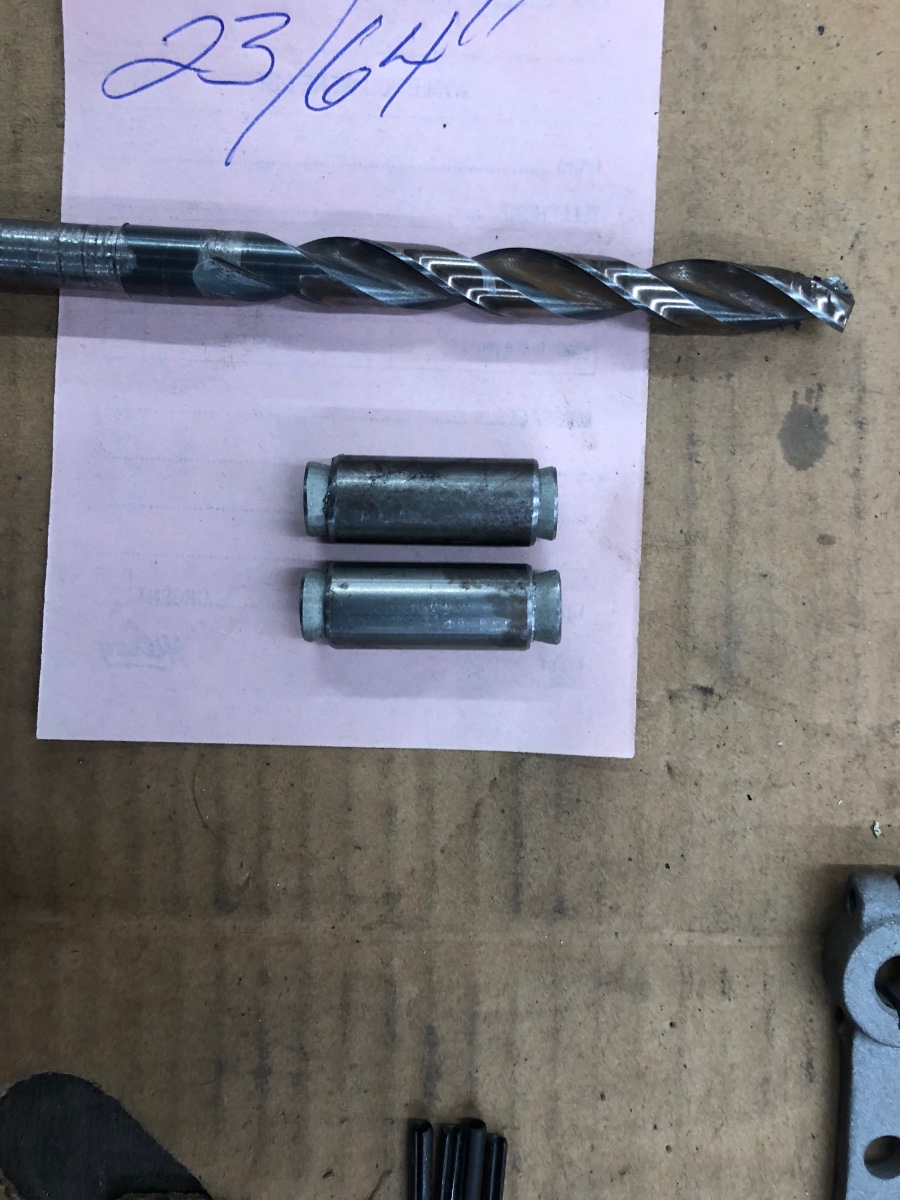

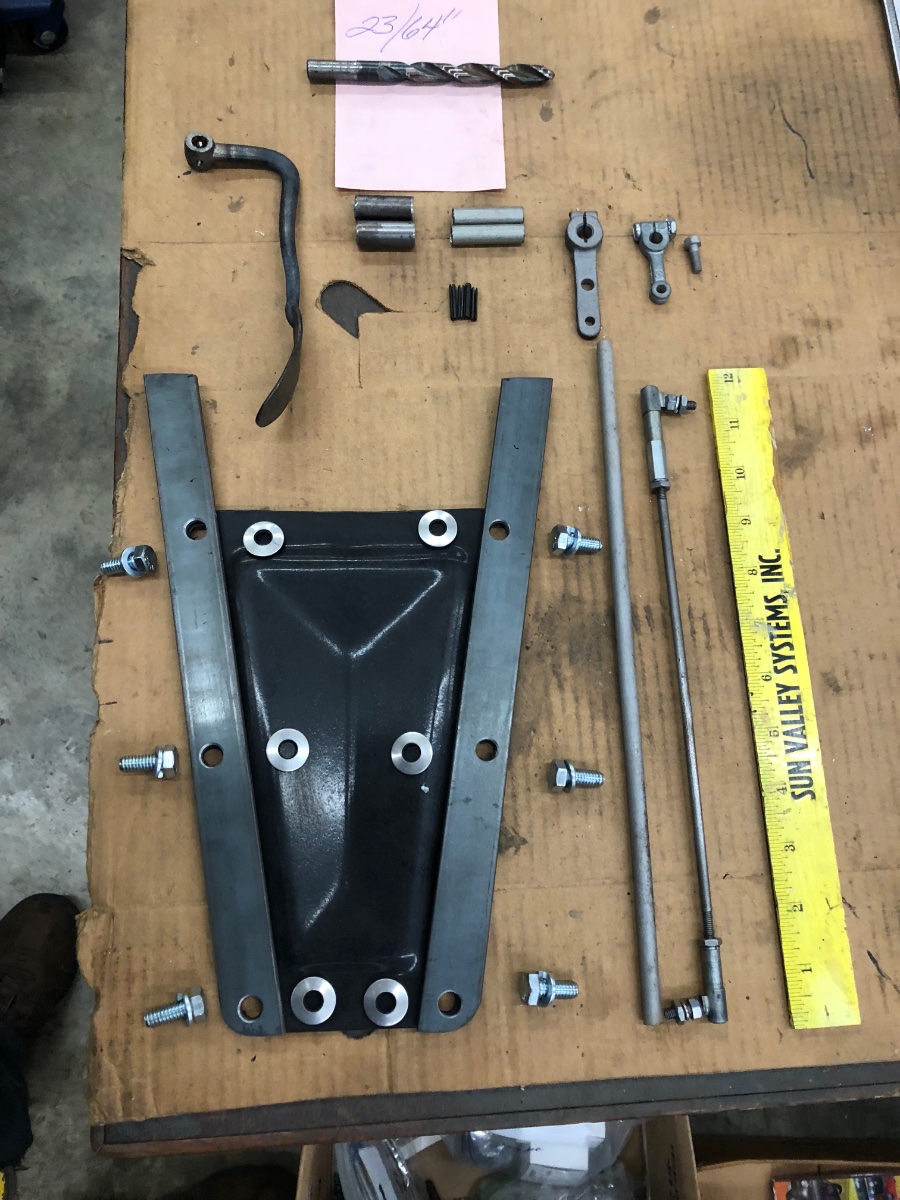

Simple list of materials from your local hardware stores; 2 feet 1/8" X 1" flat steel (cut in half) , 2 each 3/8" ID steel tubing 1 1/8" long, 13" X 5/16" round stock, 2 each 3/8" OD steel fuel tubing 1 1/2" long, 1 each old spoon gas pedal (1930's Fords, etc.) 3 each 1/8" tension/split pins 3/4" long, 1 each 12" X 3/16" round stock, some light tension pull springs. I like using self sealing washers under the mounting plate to the transmission inspection plate. Really stops any leaks. The fuel tubing is installed into the heavier tubing to act as a secondary bushing and helps in any misalignment issues and you simply just flare the ends. You will also need two ends for the hook up at carb and pedal rod, the pedal rod downward arm can be purchased from multiple vendors.

All the Best,

Hank in Tin-A-See

User avatar

Topic author
Henry K. Lee
Posts: 2799
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Building a Foot Throttle from Scratch

Post by Henry K. Lee » Sun Mar 03, 2019 2:37 pm

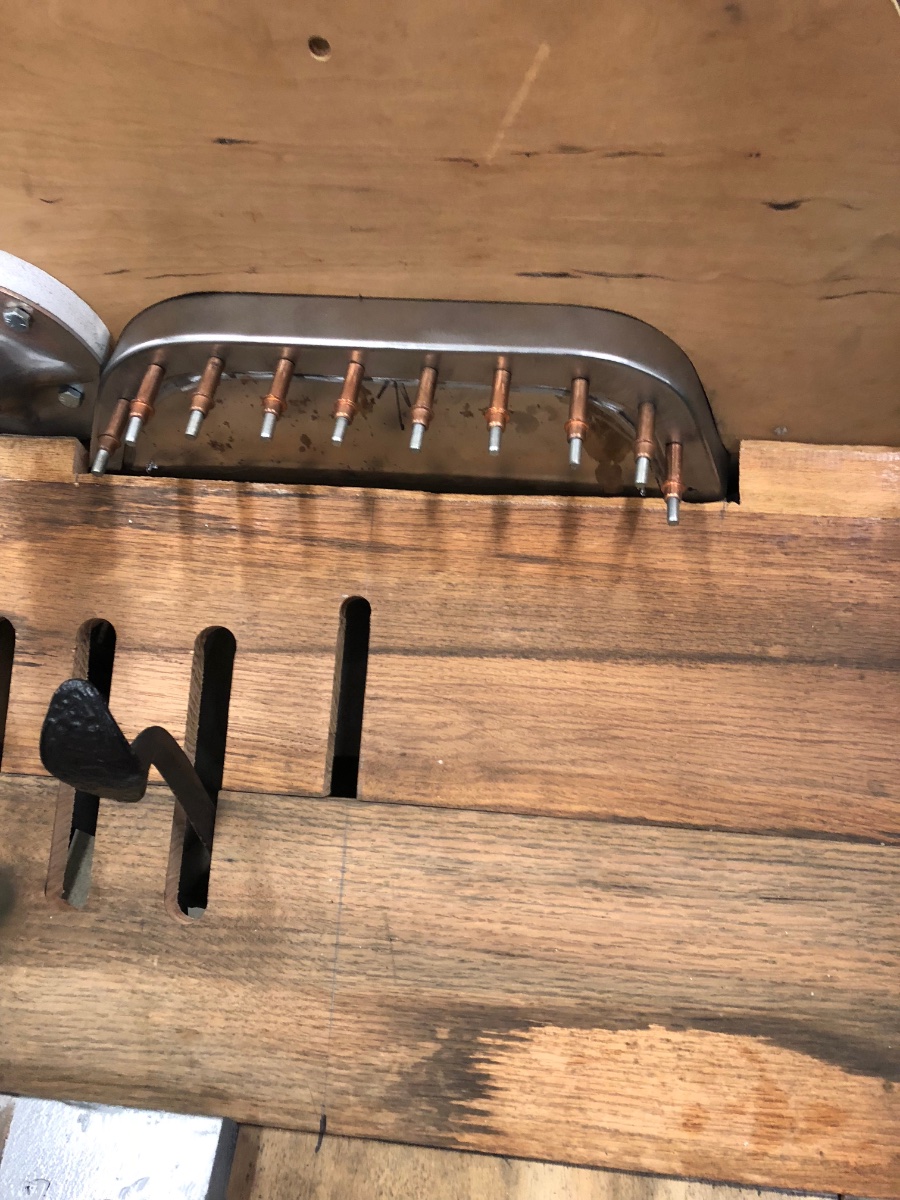

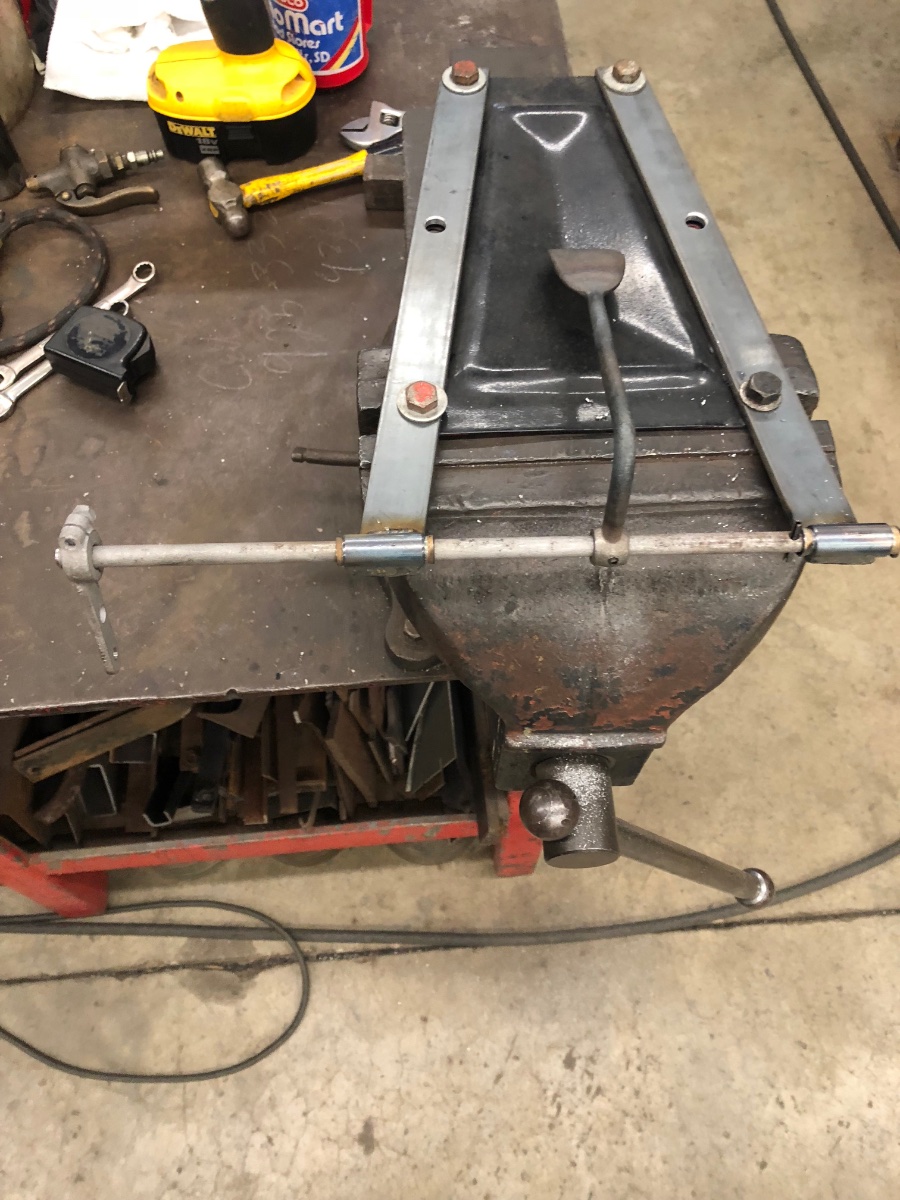

More Photos!
Attachments


Randall strickland
Posts: 75
Joined: Sun Jan 06, 2019 5:50 pm
First Name: Randall
Last Name: Strickland
Location: lambsburg va

Re: Building a Foot Throttle from Scratch

Post by Randall strickland » Sun Mar 03, 2019 7:46 pm

made mine simple
Attachments
cap grinder,foot throtle 004.JPG
cap grinder,foot throtle 004.JPG (47.86 KiB) Viewed 1573 times
cap grinder,foot throtle 009.JPG
cap grinder,foot throtle 009.JPG (59.89 KiB) Viewed 1573 times

User avatar

havnfun
Posts: 103
Joined: Sun Jan 06, 2019 11:27 am
First Name: Joe
Last Name: Kowalczyk
Location: - Nampa
MTFCA Number: 49558
MTFCI Number: 24878
Board Member Since: 2017

Re: Building a Foot Throttle from Scratch

Post by havnfun » Sun Mar 03, 2019 9:59 pm

Nice job Hank, nice simple approach and thnx for the components list, I'm sure if anyone plans on building one, your list and pictures will save time.

Joe
Regards,
Joe Kowalczyk - 1923 Touring, 1913 Speedster, 1913 Runabout
Email: havnfun@cableone.net

(208) 870-3099


Tom Hicks
Posts: 761
Joined: Sun Jan 06, 2019 12:07 pm
First Name: Thomas
Last Name: Hicks
Location: Chesterfield, VA
MTFCA Number: 32518

Re: Building a Foot Throttle from Scratch

Post by Tom Hicks » Sun Mar 03, 2019 10:08 pm

Thanks for sharing. My TT needs one and I think I can build it by following your plans.
Technology, the solution to all of our problems... and the cause of most of them.


Allan
Posts: 1221
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Building a Foot Throttle from Scratch

Post by Allan » Sun Mar 03, 2019 11:18 pm

This is one time when our correct hand drive cars makes the task easy. Pedal on the right, straight rod for ward to the carb just like Hank shows. Somebody here in Australia made a bolt on fitting which allows the foot throttle to over-ride the hand throttle but leaves it still connected and opperable if required.
Allan from down under.


PEAyres
Posts: 3
Joined: Fri Jan 18, 2019 11:58 am
First Name: Paul
Last Name: Ayres
Location: Farmington Hills, MI
MTFCA Number: 49475
MTFCI Number: 24545
Board Member Since: 2017

Re: Building a Foot Throttle from Scratch

Post by PEAyres » Mon Mar 04, 2019 3:10 pm

I have an old TTP foot throttle or parts thereof. Does anyone have the installation instructions or diagram for it? It has a bellcrank, but it is not obvious how it is installed. Paul

User avatar

varmint
Posts: 102
Joined: Mon Jan 07, 2019 2:02 pm
First Name: Vernon
Last Name: Worley
Location: New Orleans, LA
MTFCA Number: 49462
Contact:

Re: Building a Foot Throttle from Scratch

Post by varmint » Mon Mar 04, 2019 6:58 pm

Kewl idea and looks authentic.
This is not rough on the spring return and no additional one needed?
Vern (Vieux Carre)
