Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 8:36 pm

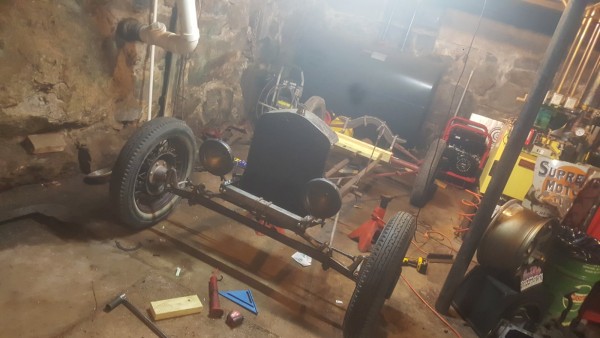

Late last year I bought a frame and running gear to begin building my own speedster. The chassis had been modified in a very hokey way and I went through and undid/ modified what had been done. This thread will be very photo heavy as it's easier to explain visually.
Originally the frame was lowered with angle it on and a modified rear cross member. I cut all that off and came up with something else.
This ended up being a bad idea because the frame and spring interfered. That was a week or two down the drain.

The rear lowering did however work out. I bought the cast lowering brackets and a lowering cross member for a combined 7" drop. This car will be about as low as I can make it and still be drivable.

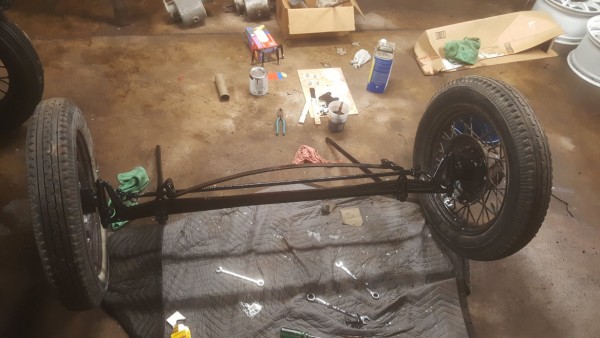

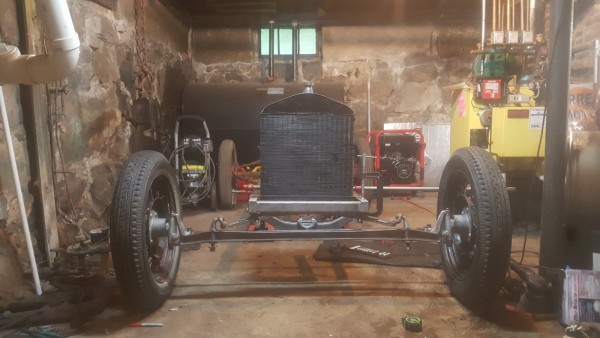

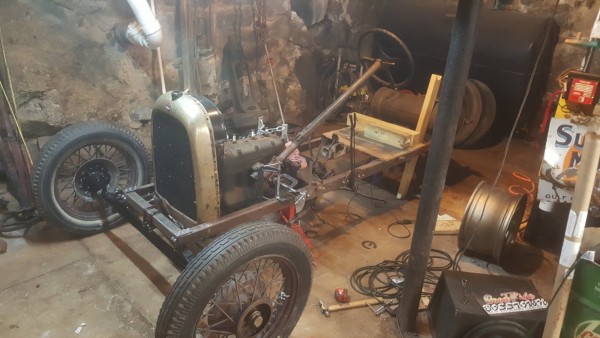

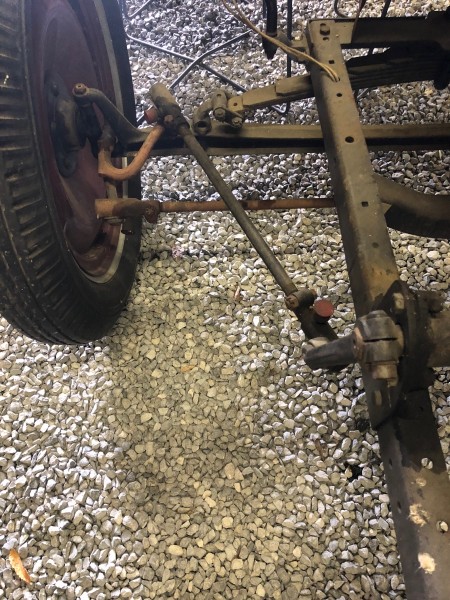

I stripped, blasted, and painted the front axle, as well as chopped up the front wishbone to be mounted to the frame.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Tue Mar 05, 2019 8:39 pm

Looking Good Shane, keep us posted!

All the Best,

Hank in Tin-A-See


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 8:48 pm

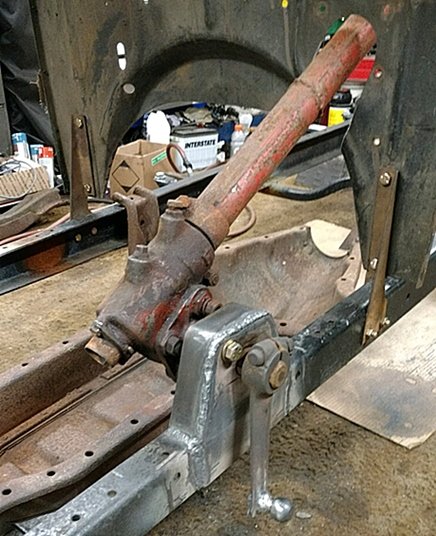

Here's the beginning of the split wishbone and mount. I'm using bolts temporarily for mock up. I will be using rivets later on for final assembly.
I cut the wishbone then inserted a good chunk of model a tie rod inside, then plug welded, welded the seam of the wishbone, and the end. I am going to install spring perches and welding another pipe to make them into a hairpin design for more strength. I made a 3/16 inch plate with a model a steering ball swedged and welded. I'll be modifying the mounts for a bit more strength in the future.

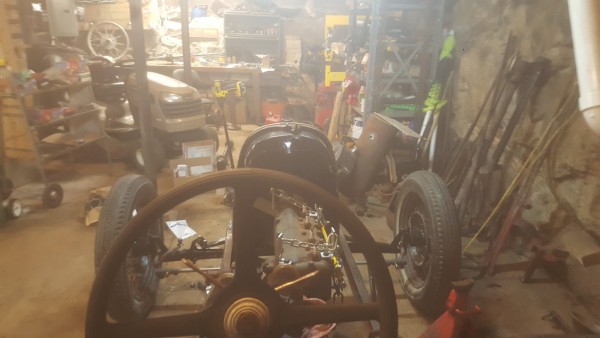

I picked up an old 2 tooth model a steering box and started mocking it up to figure out where it was going to sit and work. I want a real low steering column angle and tried to get it as close to the pedals while still being able to push them. Also, I am mounting the box as far inboard as possible. I really enjoy the early Sprint cars, but wanted a speedster to drive more casually as well. So this will be my iteration of a street able racer.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:00 pm

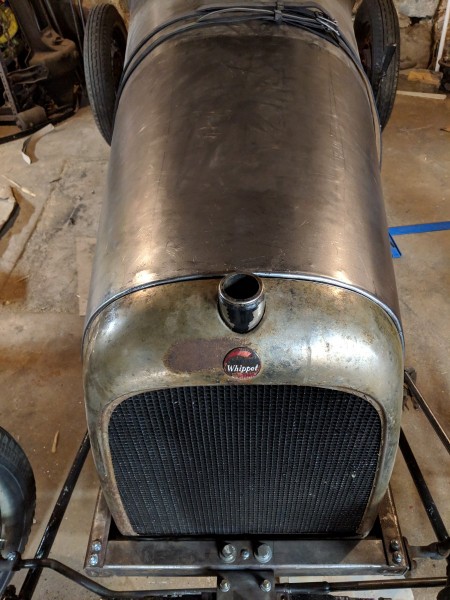

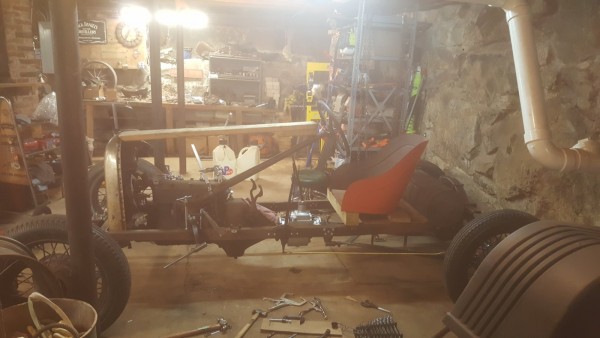

This is about when I met my friend Rob Weitzel. I had been posting here and there searching for a Whippet radiator. He mentioned that he had one. I bugged him about selling me one of his and he gladly did to help me keep my project rolling. Rob has been a key factor to this project and has been a ton of help.

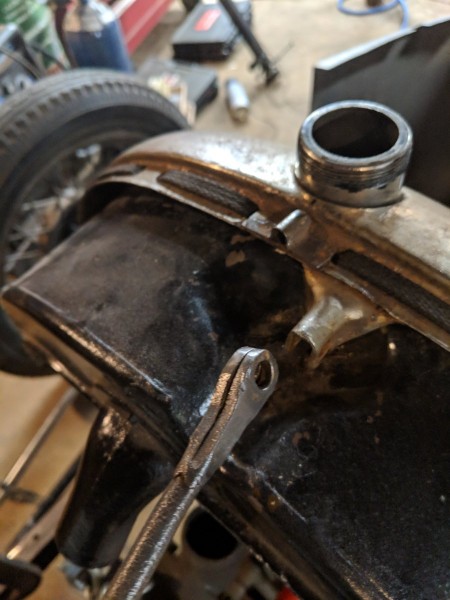

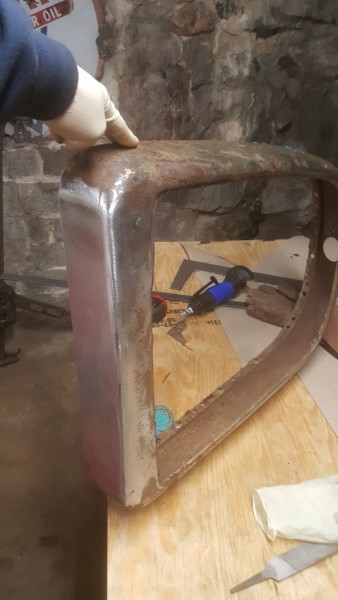

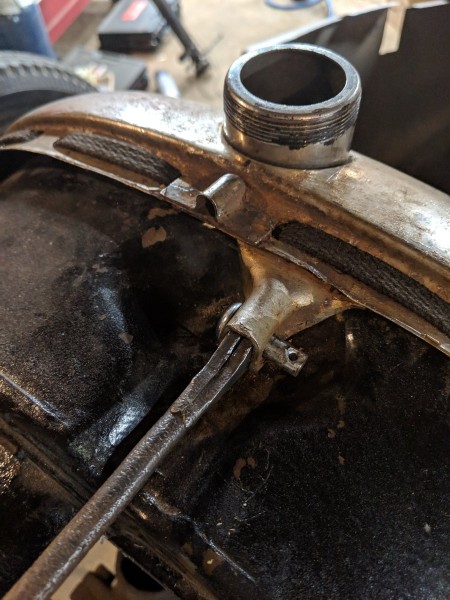

The shell of the Whippet radiator he sold me was crusty on the bottom. I cut it out, shaped a patch, and welded it up. I had just bought my first welder a week before so this was the first little welding project for me.

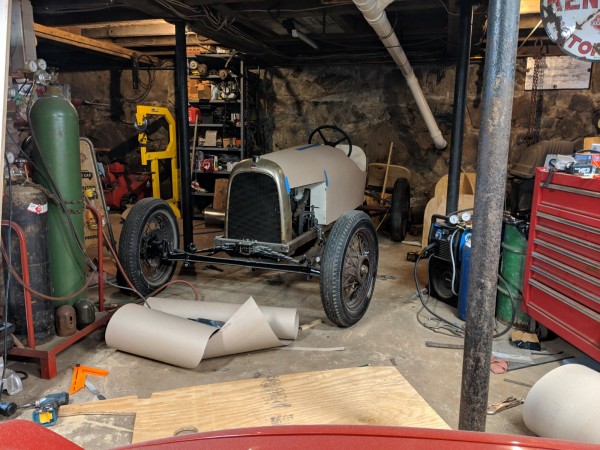

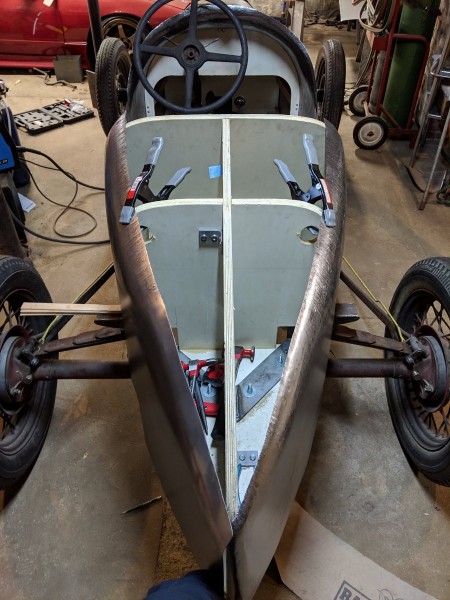

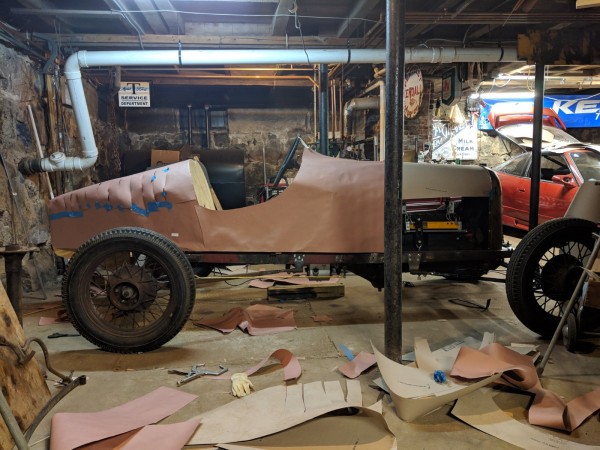

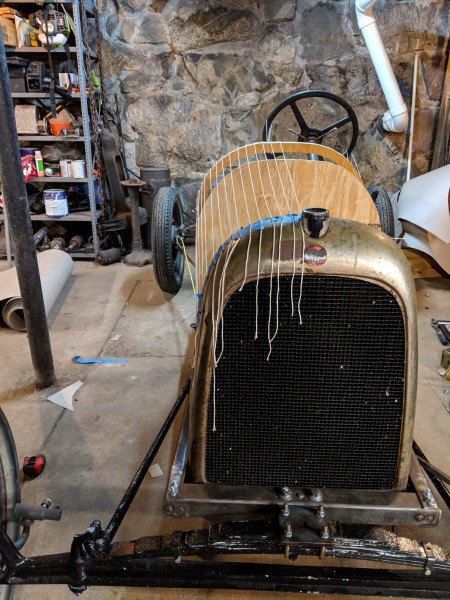

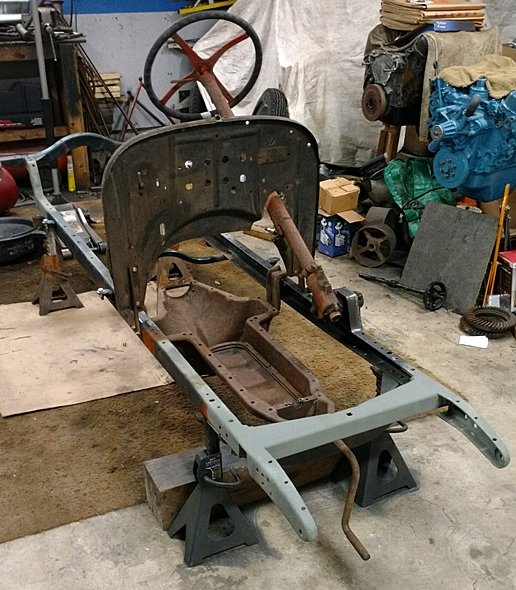

Here's a couple more column mock ups and the beginning of the body.
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:09 pm

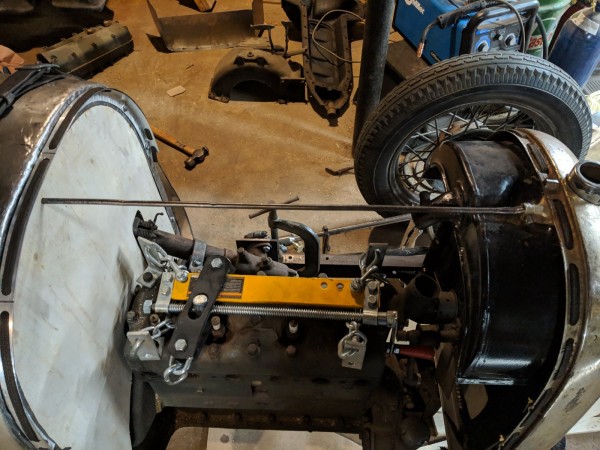

I will be running the 2 tooth box, model a drag link in a modified length, and model a steering arms in model T spindles. The arms bolt right in.
So there was a lot of measuring, cutting, swearing, creating fire wood, etc. Here's some photos of the prototyping.

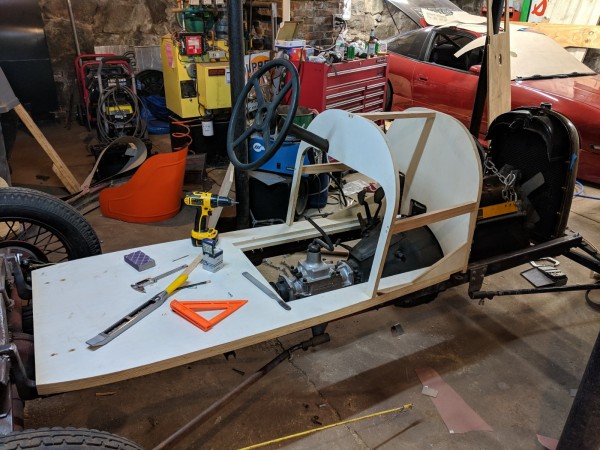

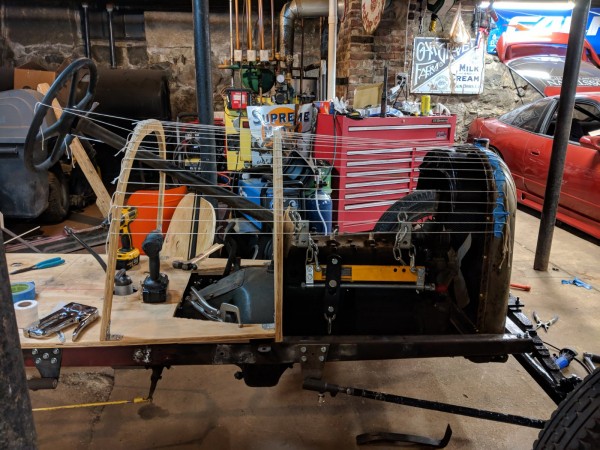

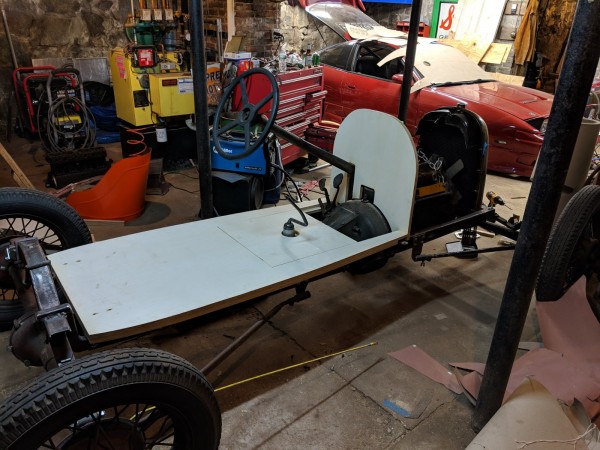

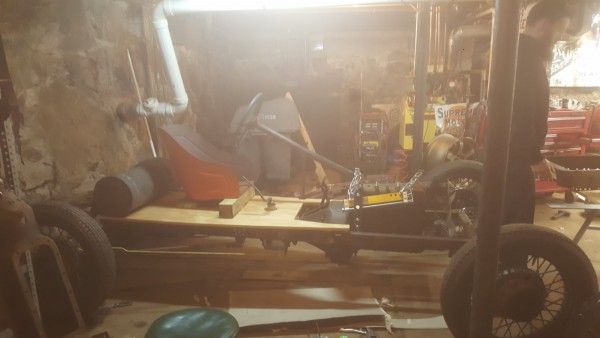

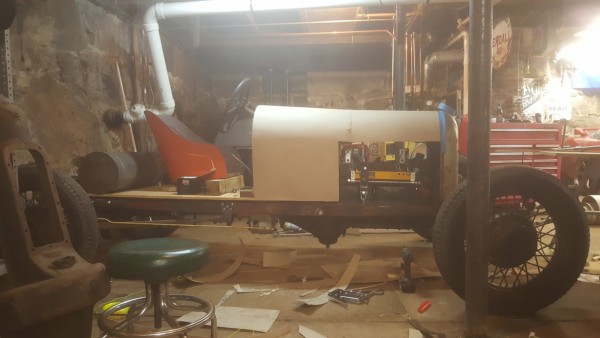

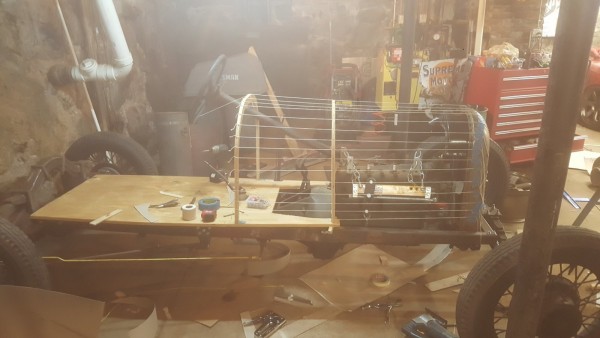

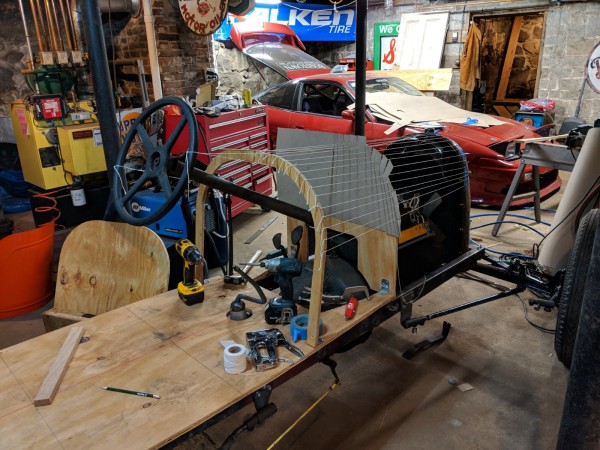

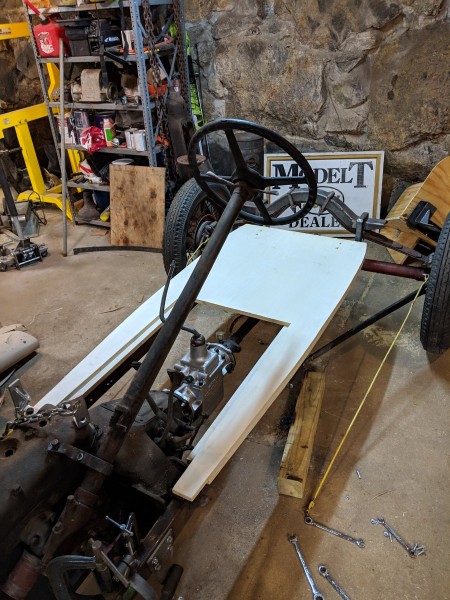

I created a dash, then mounted up a rough firewall. I ran strings from the dash to the radiator. I stapled a piece of cardboard to the rough fire wall then slit the cardboard until the string ran straight through while taught. Once I did this about 50 times I got a good half profile of the firewall shape I wanted after trimming the cardboard at each slit to flow well from radiator to dash.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:13 pm



Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:17 pm

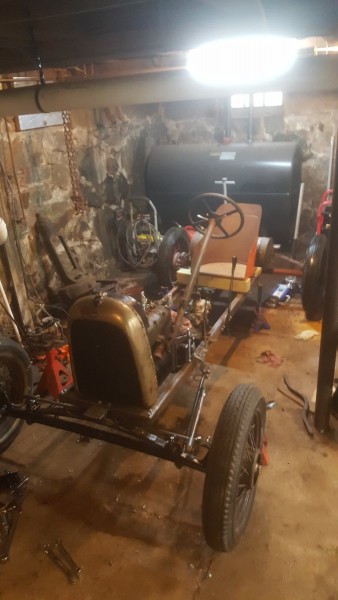

Here's where I got a new phone with a better camera.

This is a clearer view on how I got my firewall shape. I ended up doing this multiple times because I didn't like the body shape. I spent a month playing with cardboard I think.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:21 pm

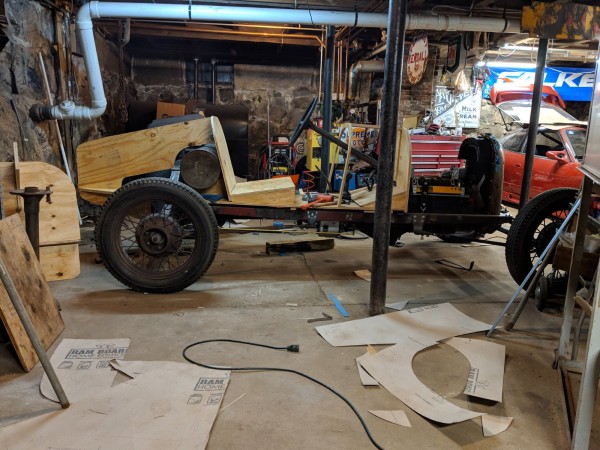

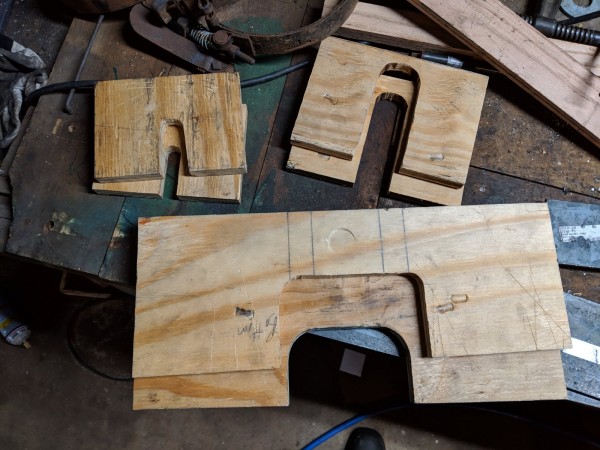

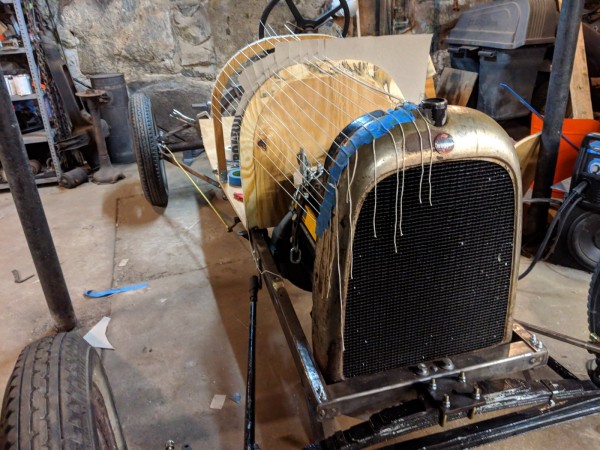

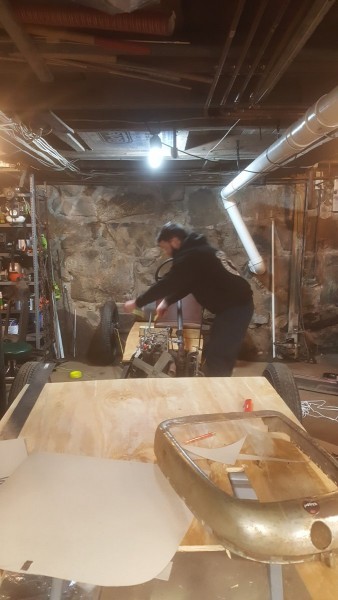

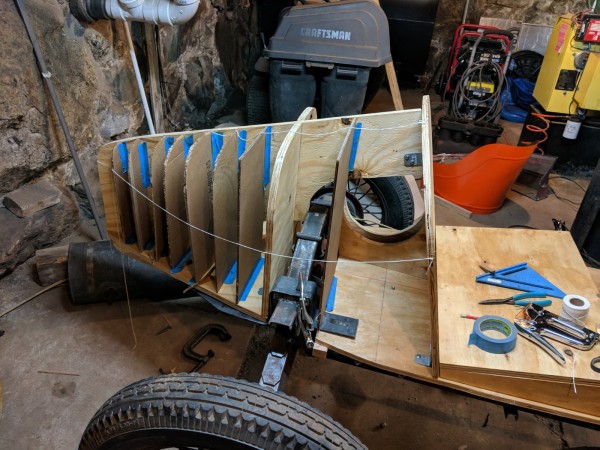

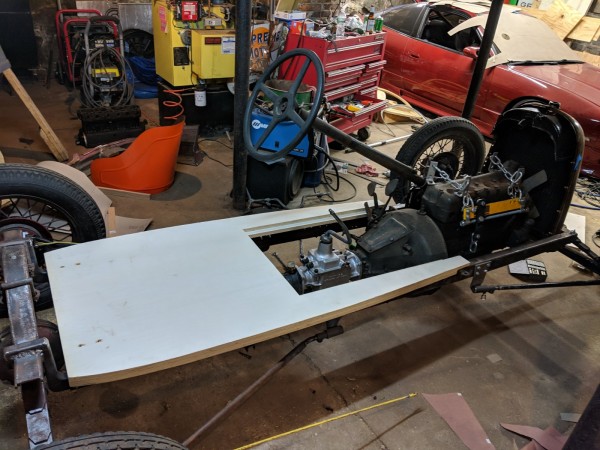

I spent a lot of time playing with cheaper plywood as well as card board and more string as I didn't want to waste good materials while I was still processing ideas.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:28 pm

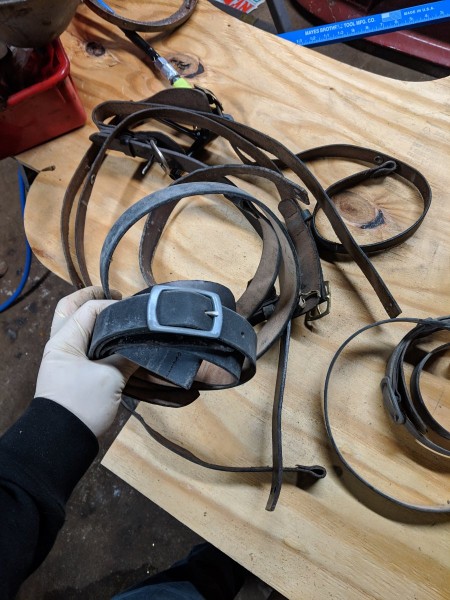

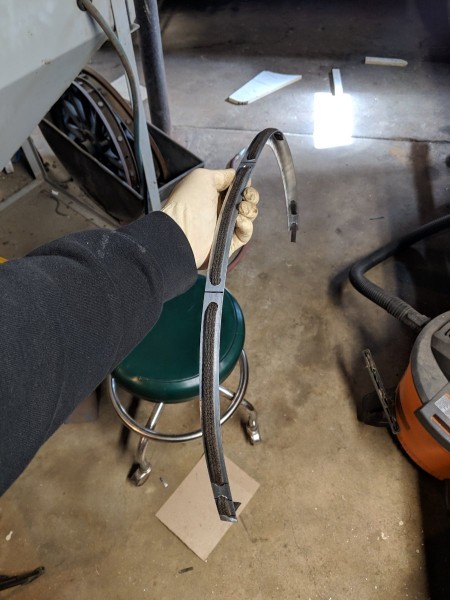

Found some sweet old hood straps for future use.

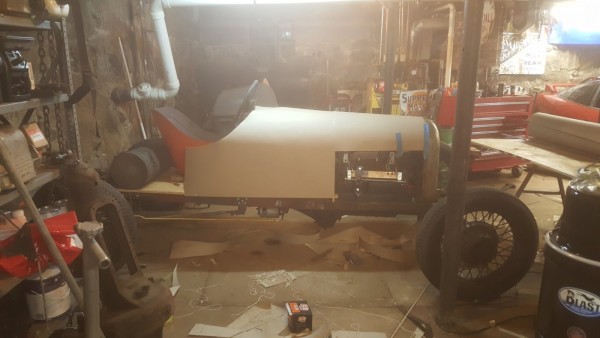

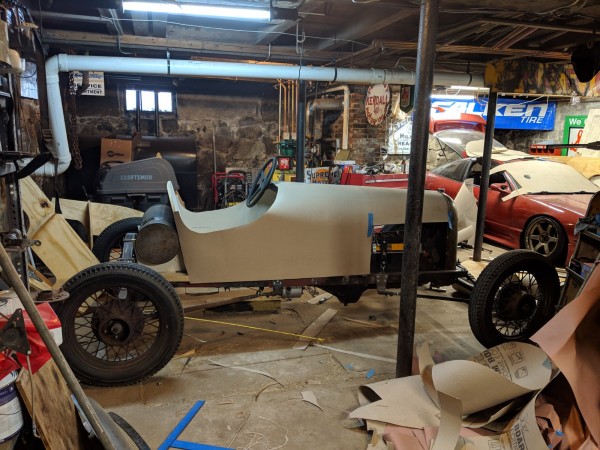

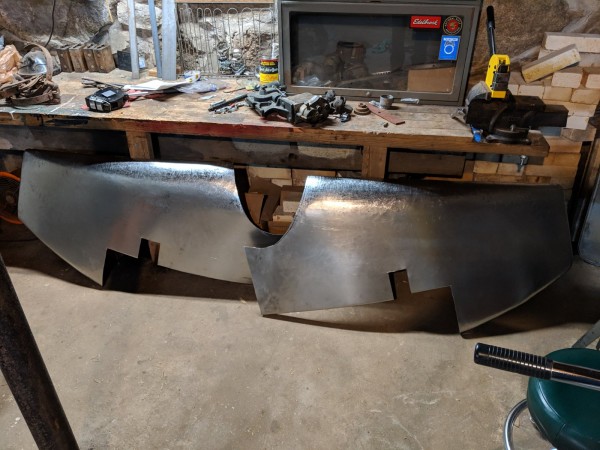

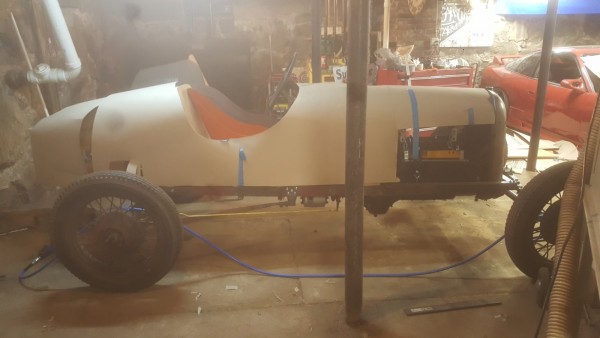

After a lot of modifying I ran a paper template I was happy with.
Because the rear cross member sat above the frame line, I had to come up with a bracket that supported the tail. Weld project number 2.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:30 pm

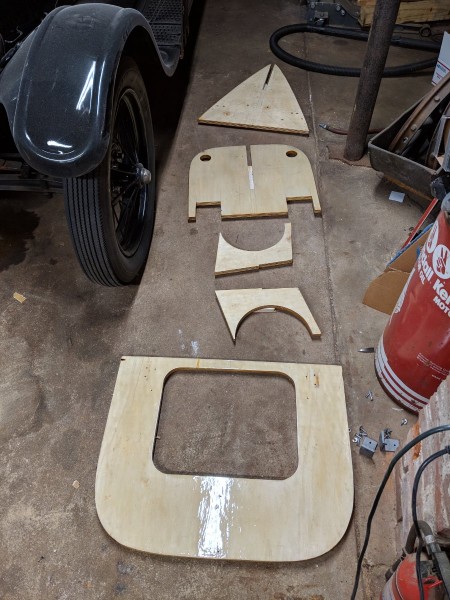

I then took my cheap plywood panels and transferred them to nicer materials.
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:35 pm

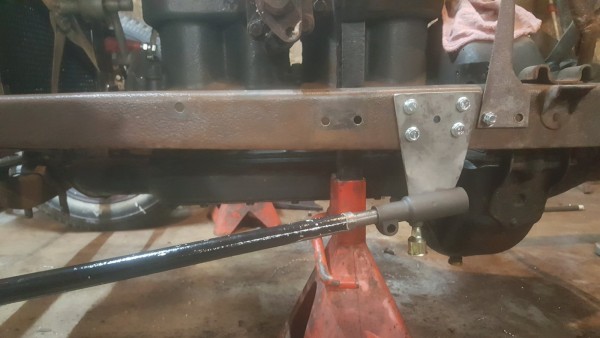

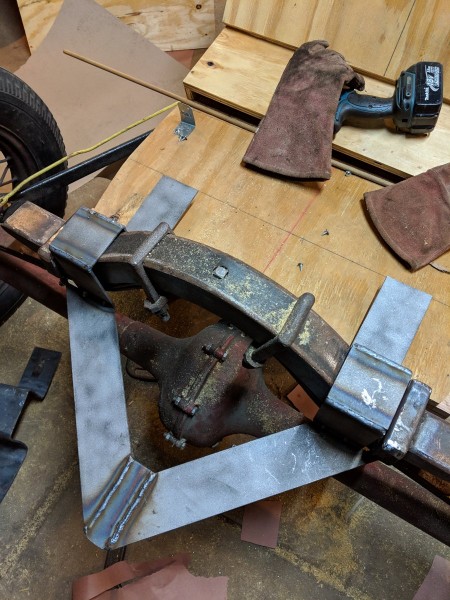

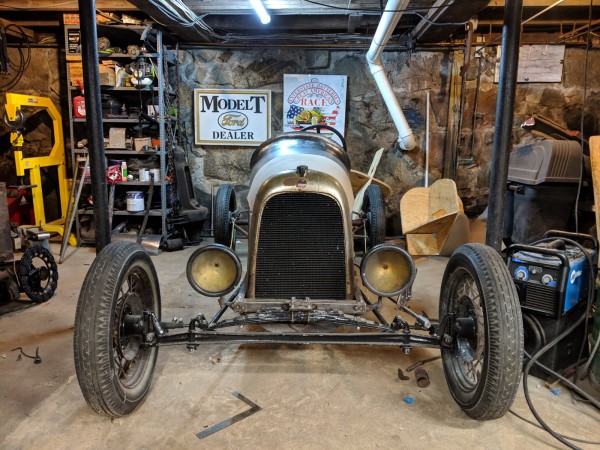

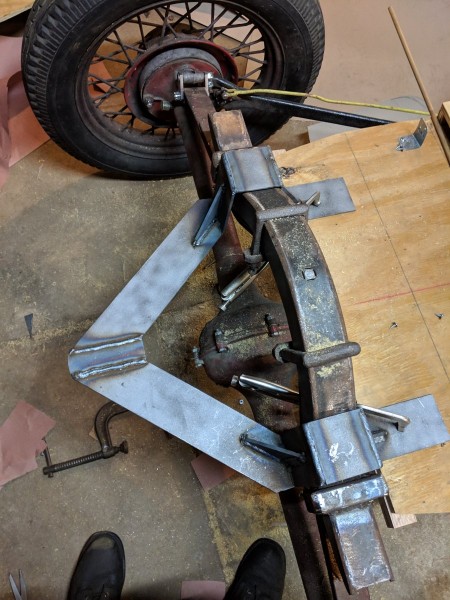

This shows the updated front lowering design. I did a Z bracket from the first cross member I made. The model T cross member has been set back 6" in the frame for a better balance and the raked out look of the old racers.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:41 pm

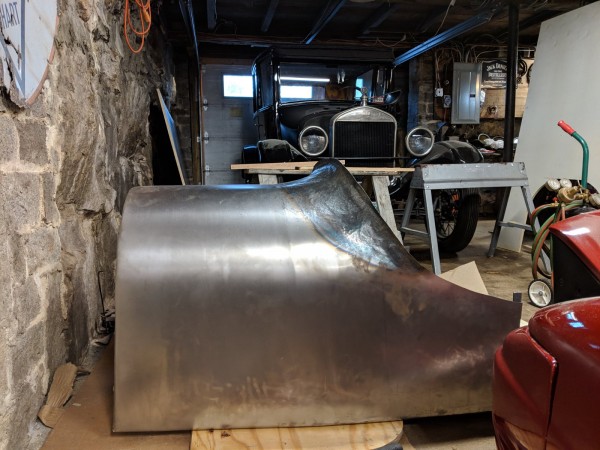

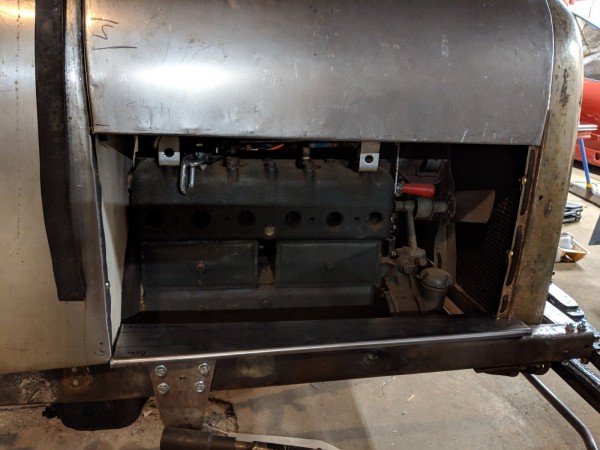

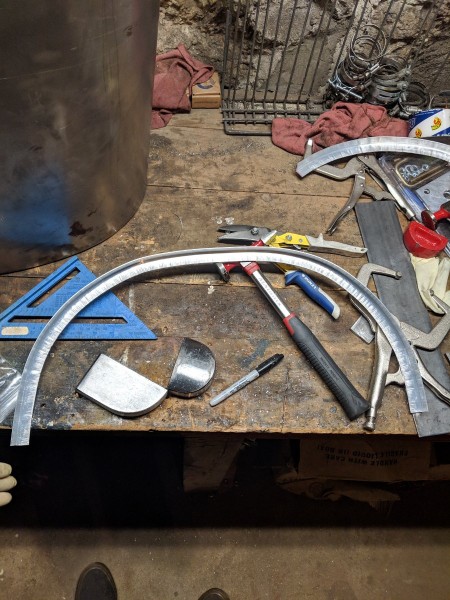

I then bought some sheet metal!

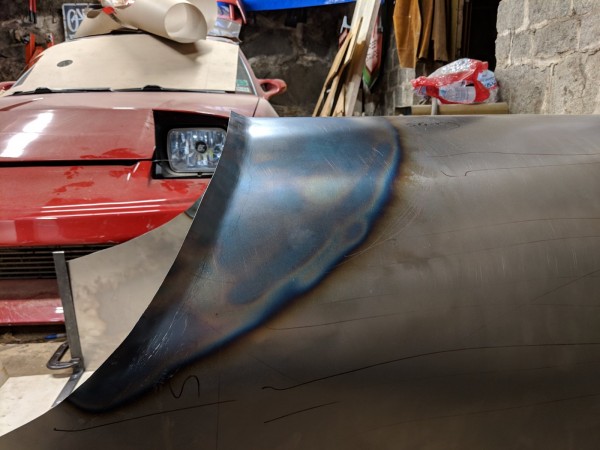

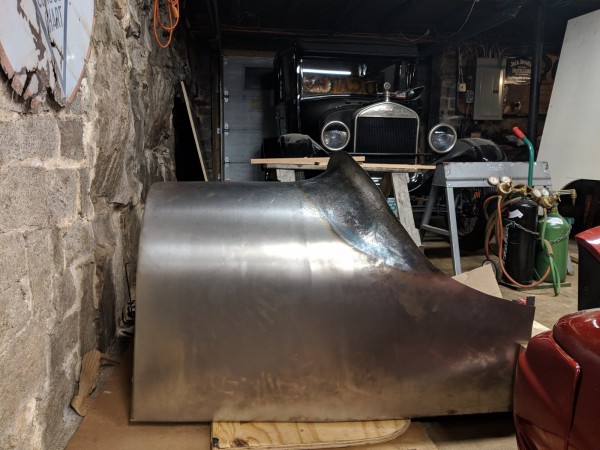

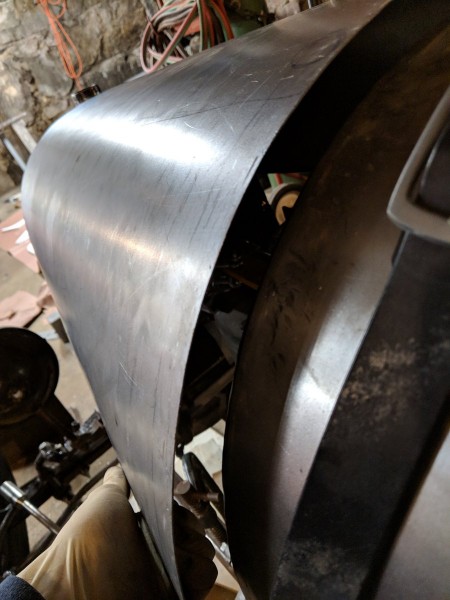

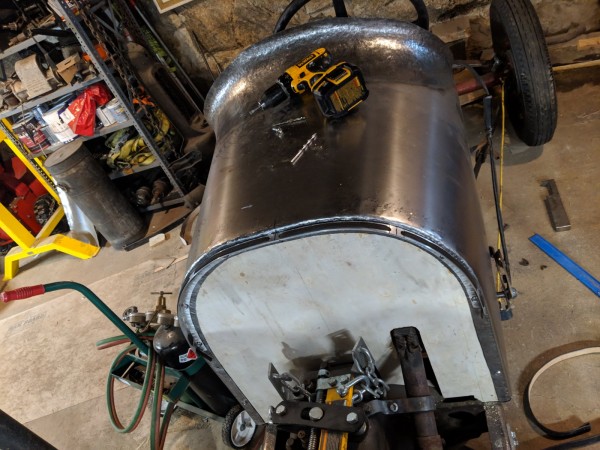

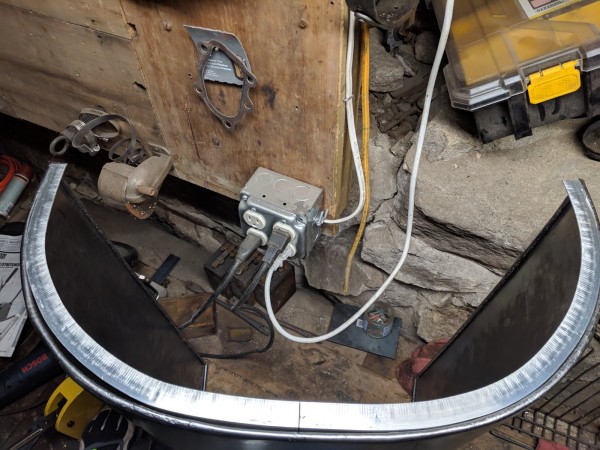

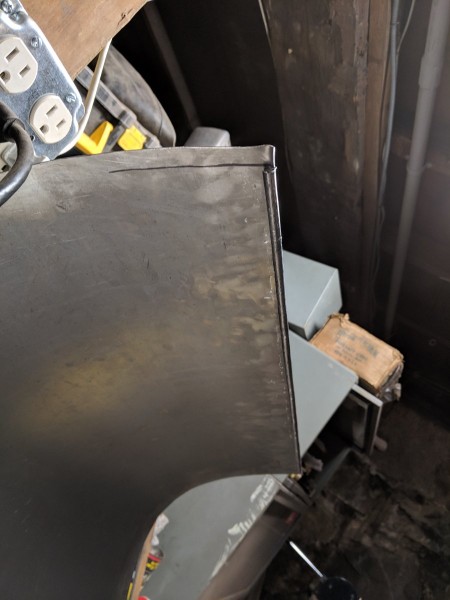

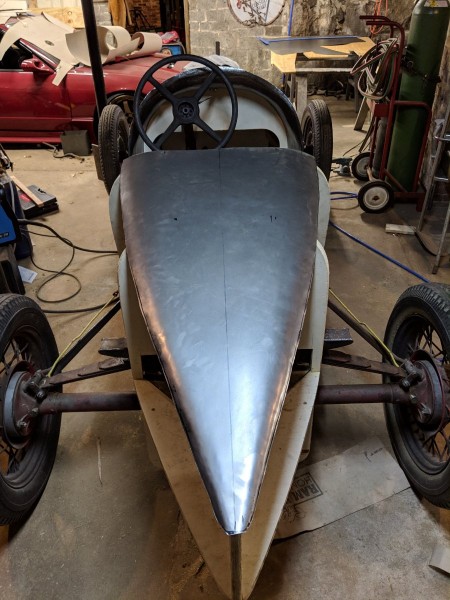

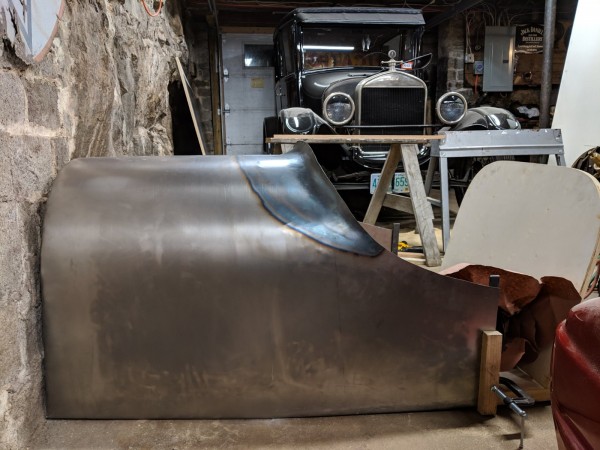

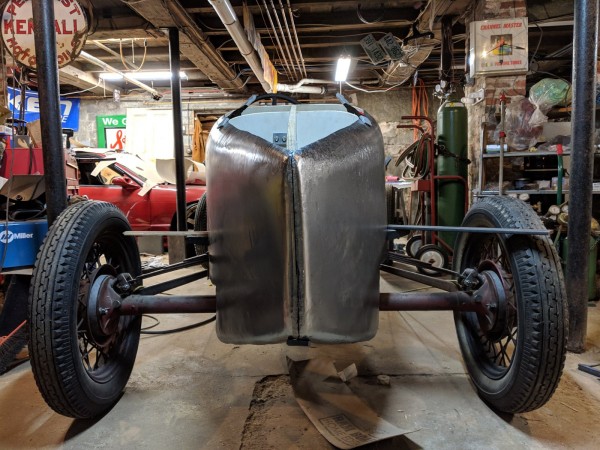

Began flaring the cowl. Do not use heat. That was a huge mistake.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:43 pm

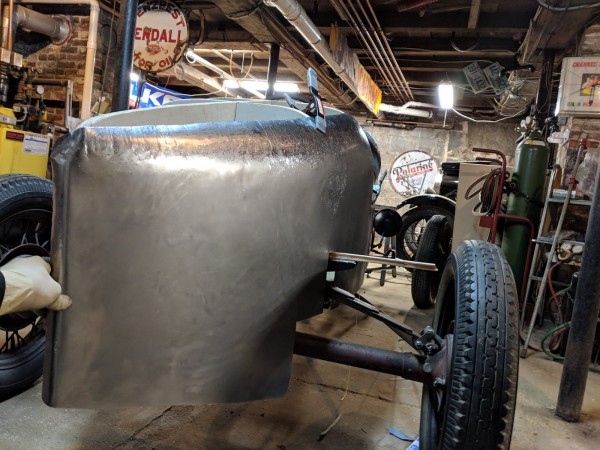

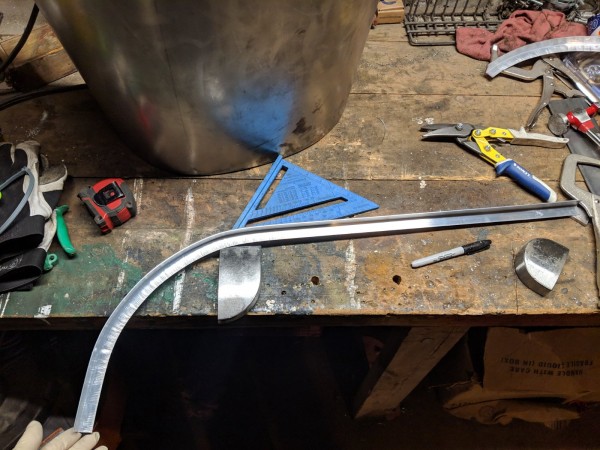

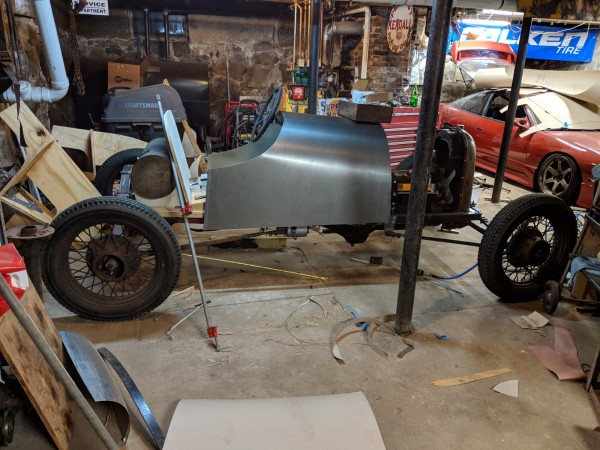

More flaring. All hammer and dolly. I don't own any nice fancy tools.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:48 pm

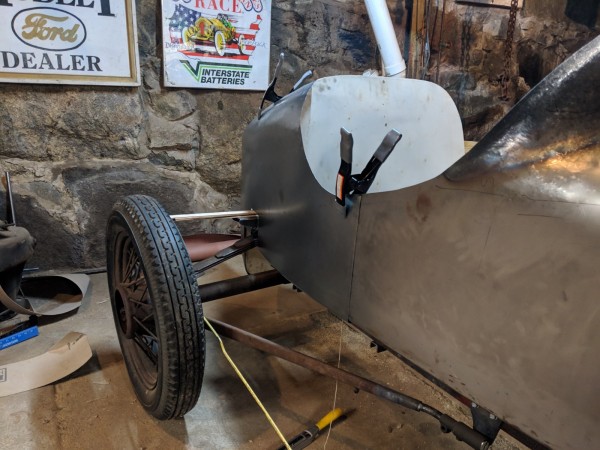

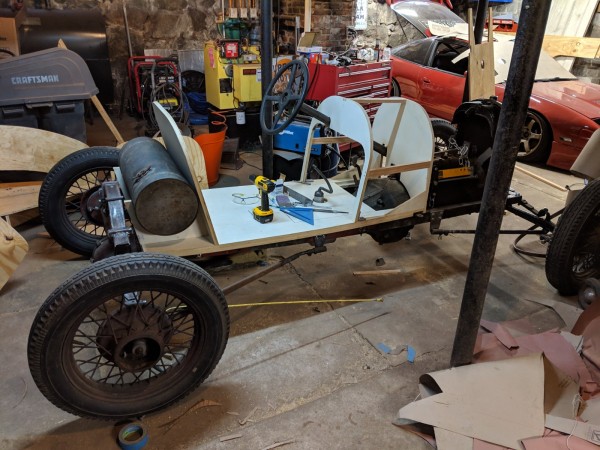

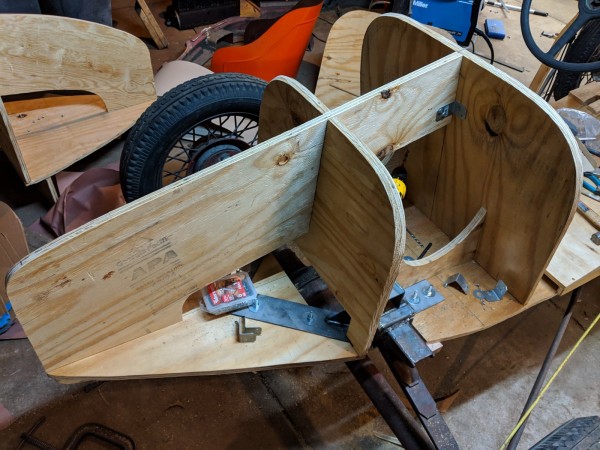

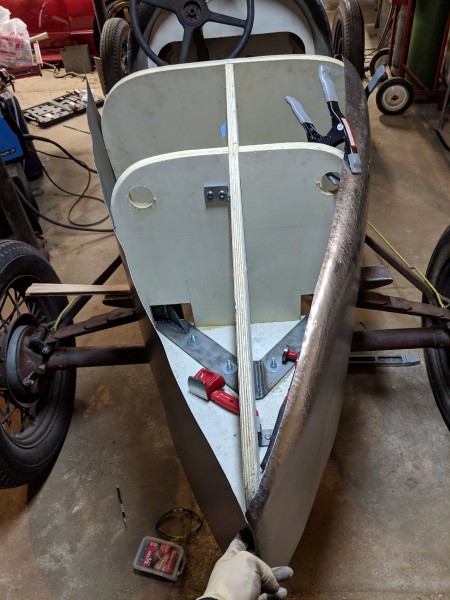

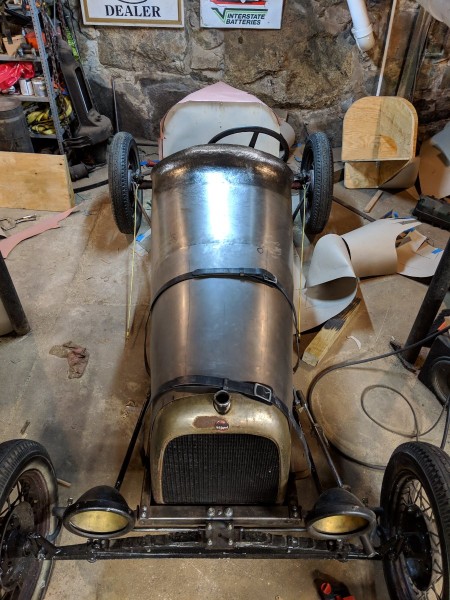

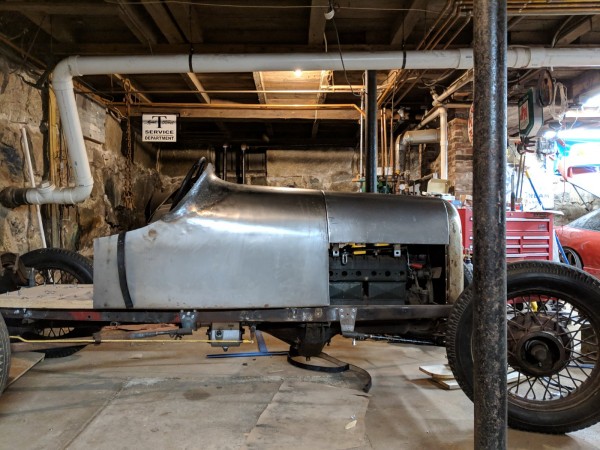

I whipped up a quick hood to lay on and had to throw the straps on obviously.

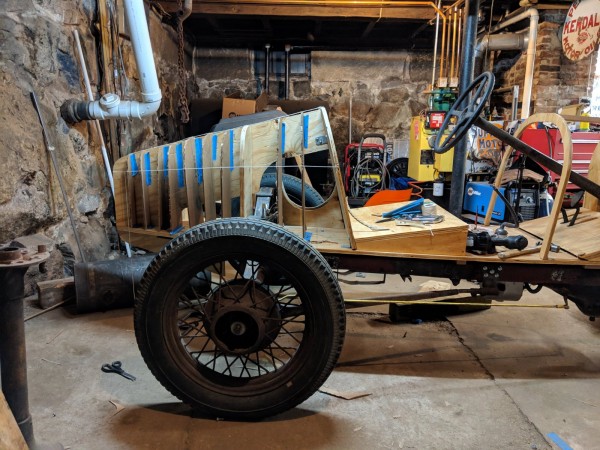

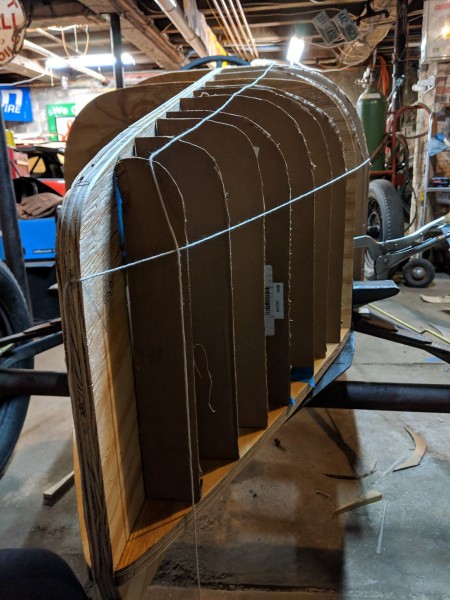

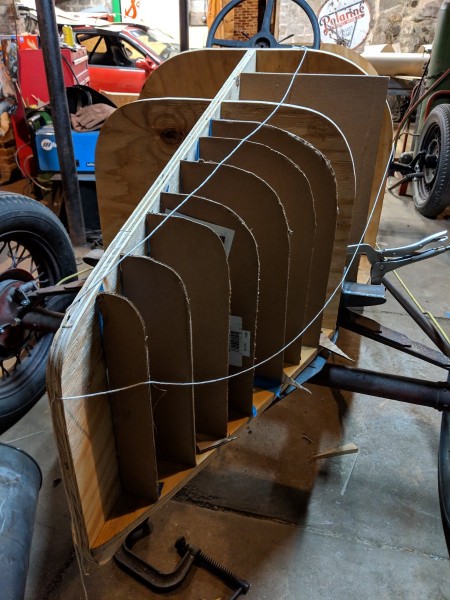

Then moved back to the tail skeleton/buck.

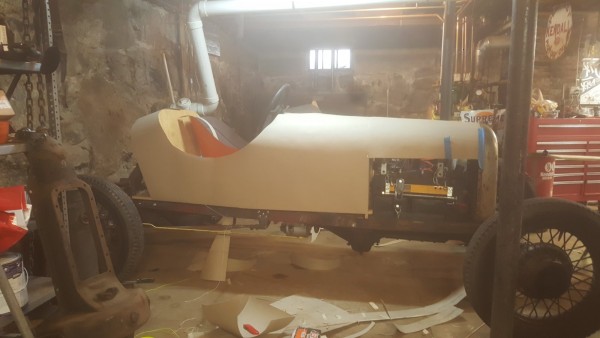

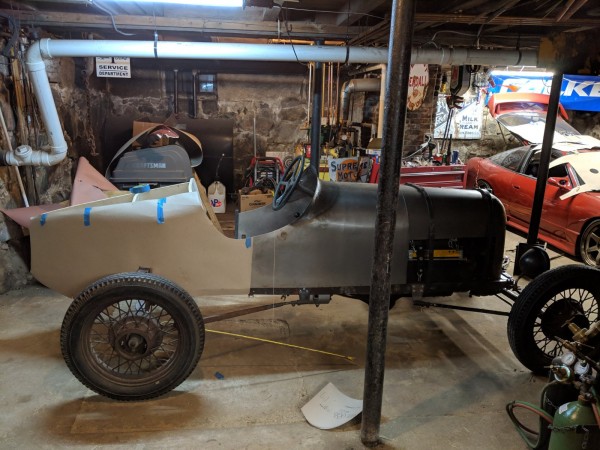

More paper and templates!
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:50 pm

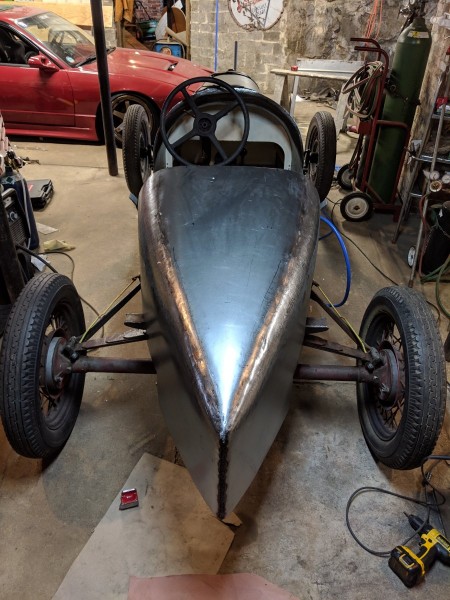

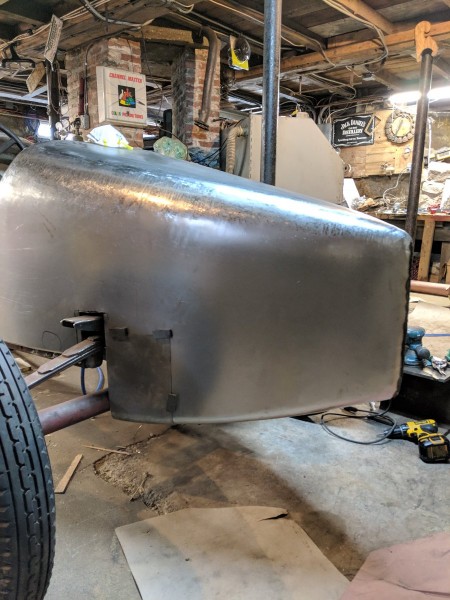

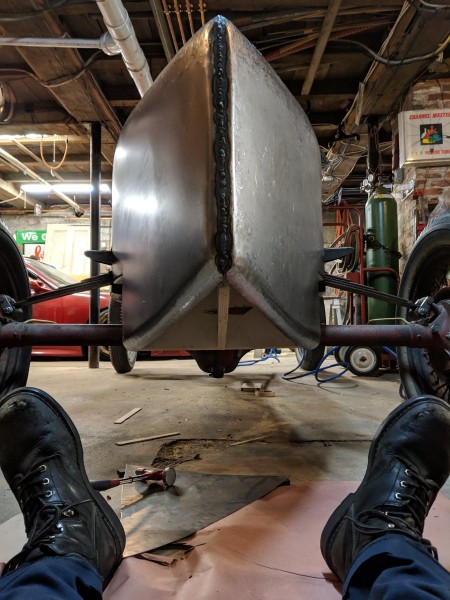

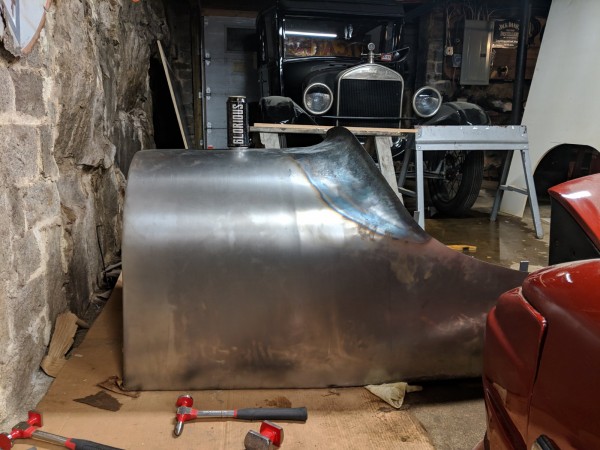

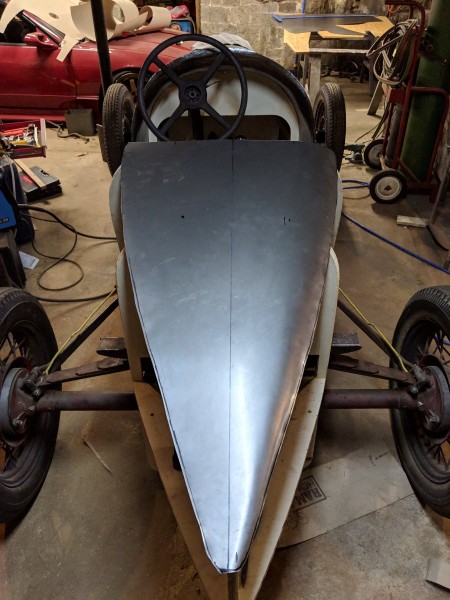

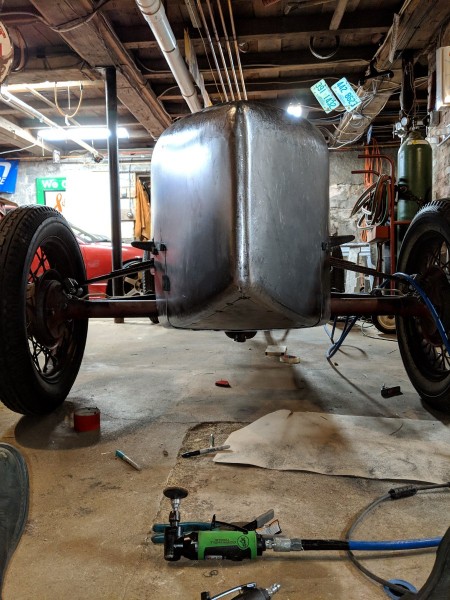

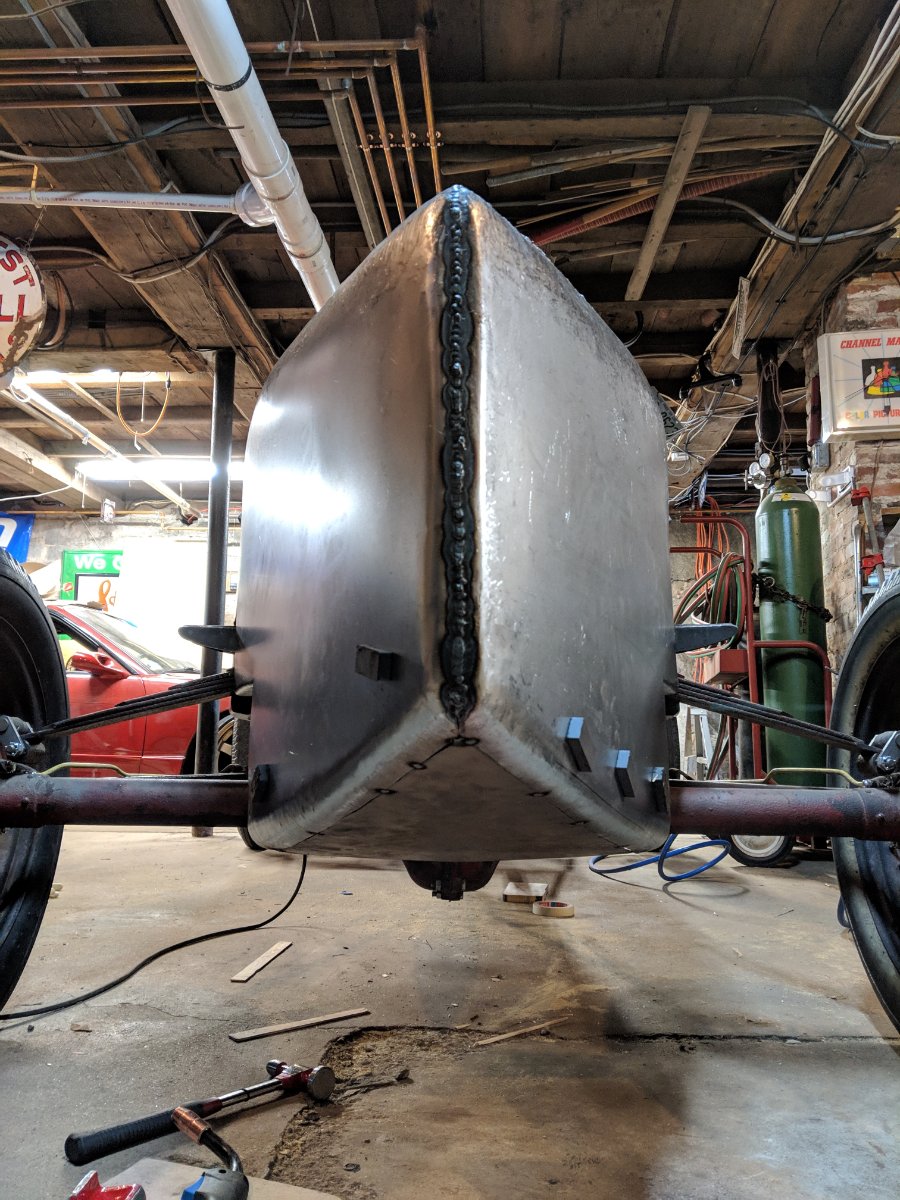

Performing some shaping and tuck shrinking
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:52 pm

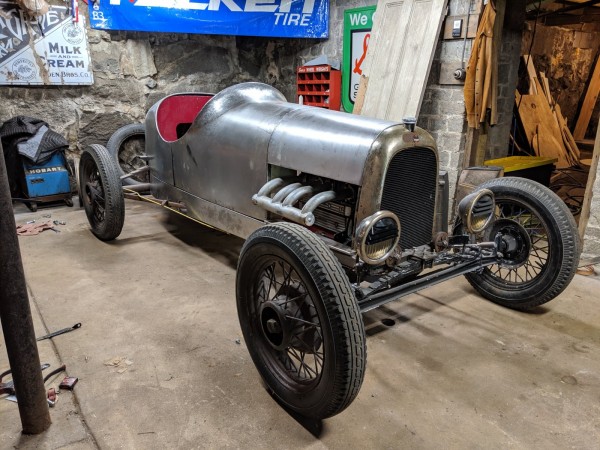

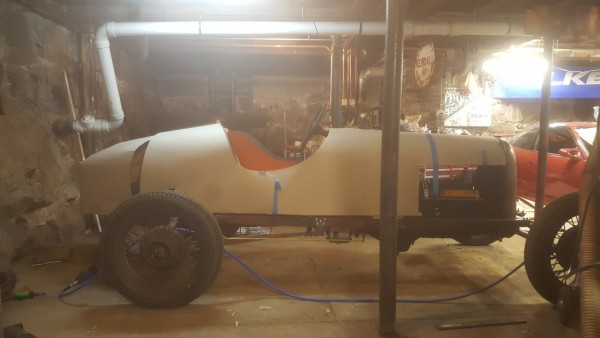

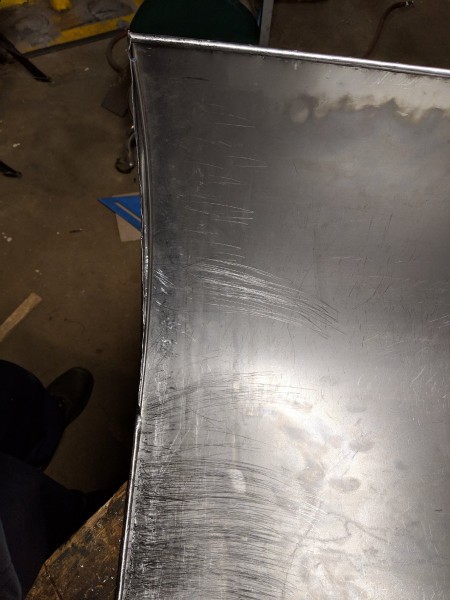

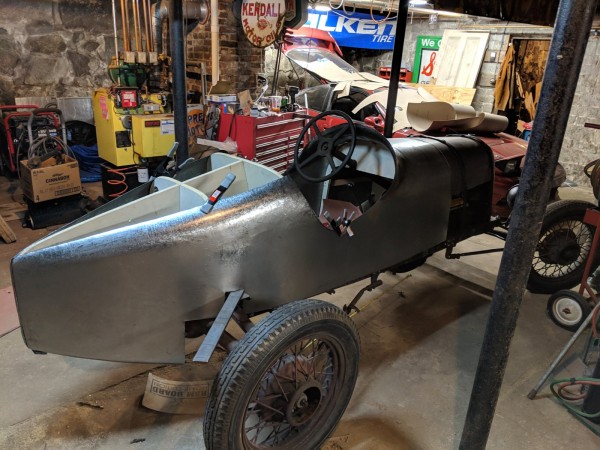

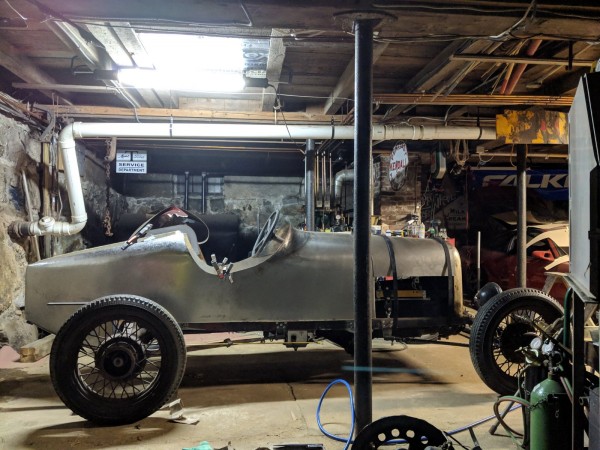

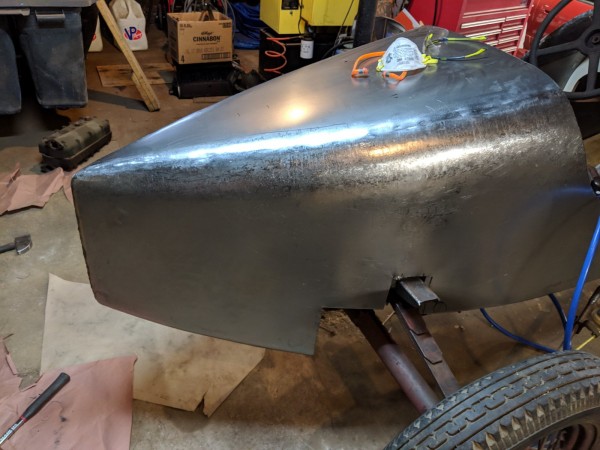

Not too shabby I guess for no sheet metal skill


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:53 pm

Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:54 pm

Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:56 pm

Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:57 pm

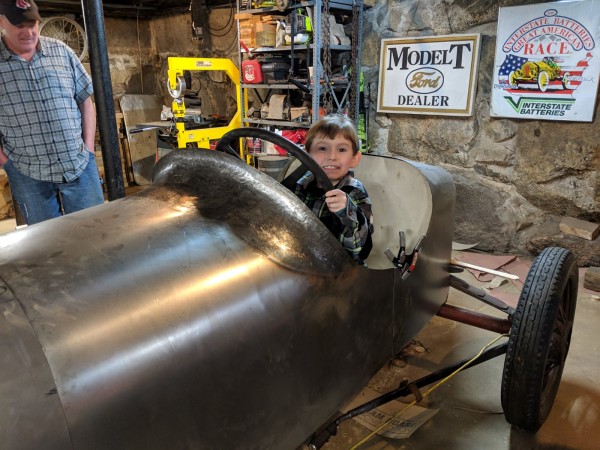

Little brother totally approves.
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 9:59 pm

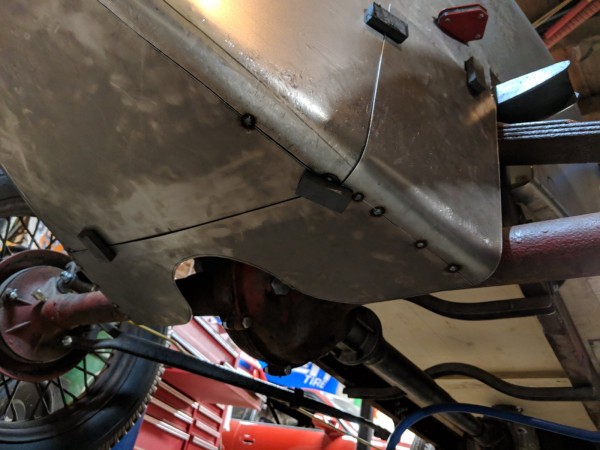

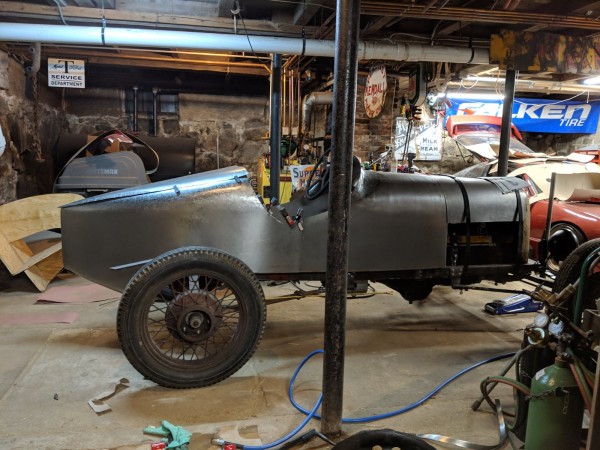

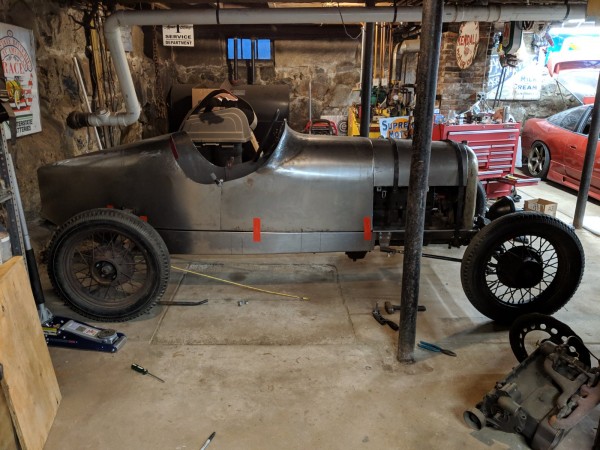

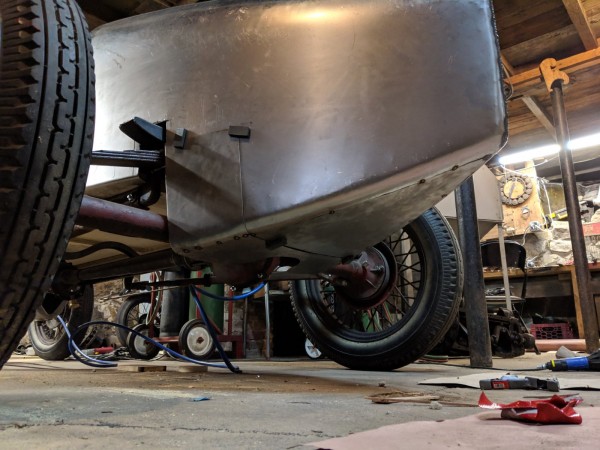

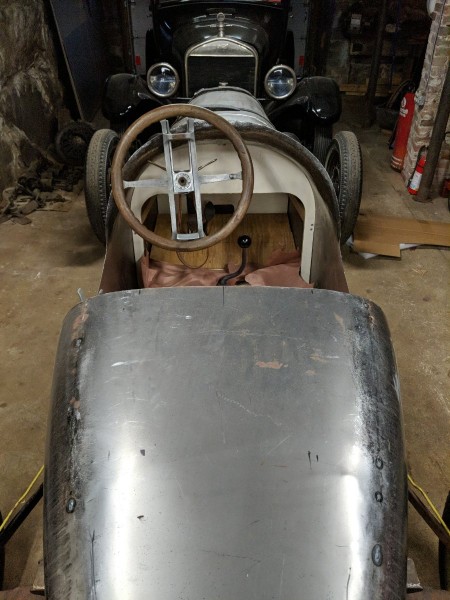

Modified the bottom of the tail for less downward sweep. The car will eventually have skirts and I'd like them to flow with the tail.
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 10:01 pm



Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 10:02 pm

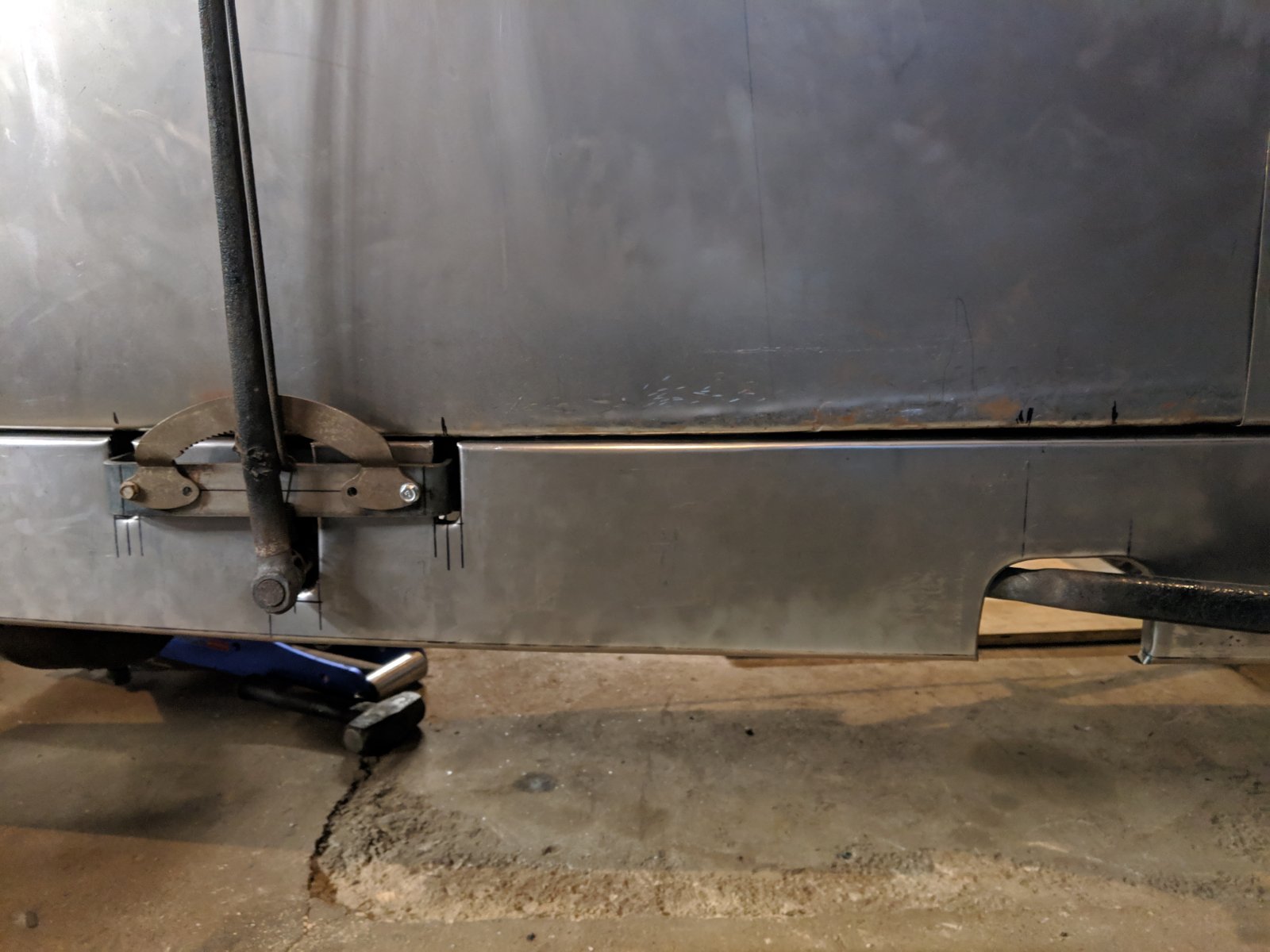

Making a tail finisher panel
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 10:03 pm

Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 10:05 pm

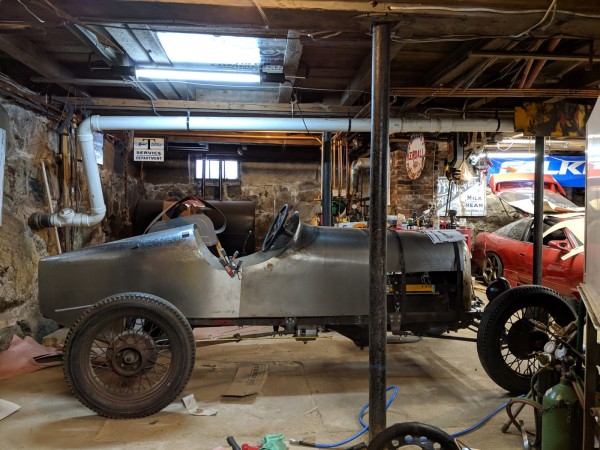

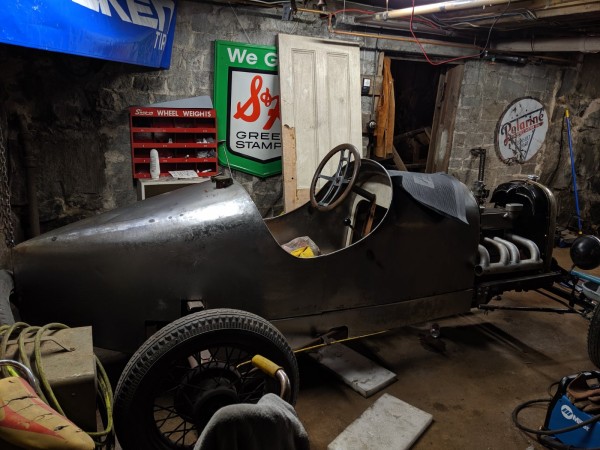

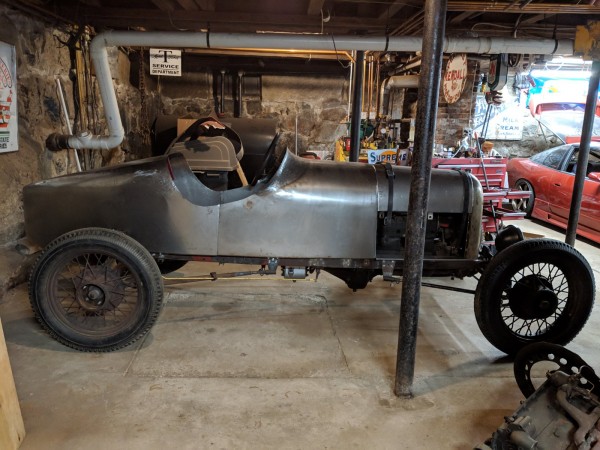

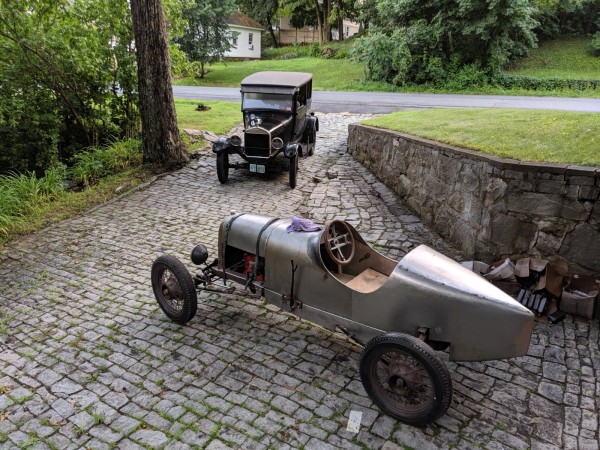

So yeah. That's about 6 months condensed into 2 hours of staring at my phone posting photos. That's about it for now. I hope to keep progress rolling along as well as it has been. Sorry I got less detailed as I posted progress.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Tue Mar 05, 2019 10:22 pm

Shane, Big Kudo’s!

For a guy who coached himself, EXCELLENT!

Be proud young man!

All the Best,

Hank in Tin-A-See


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Mar 05, 2019 10:24 pm

Thanks Hank! It's been a lot of learning along the way with some guidance from others. Tons of trial and even more error lol.


Dennis Prince
Posts: 72
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Dennis
Last Name: Prince
Location: Madras Oregon
MTFCA Number: 22802
Board Member Since: 1999

Re: Model T Special build.

Post by Dennis Prince » Tue Mar 05, 2019 10:25 pm

Very nice, great workmanship. I am impressed. Keep us updated on progress.

User avatar

Rob
Posts: 363
Joined: Fri Jan 04, 2019 1:53 pm
First Name: Rob
Last Name: Heyen
Location: Eastern Nebraska

Re: Model T Special build.

Post by Rob » Tue Mar 05, 2019 10:29 pm

That's great! I envy your skill and perseverance. It's going to be a great runner. Thank you again for posting.

User avatar

Ruxstel24
Posts: 1578
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Model T Special build.

Post by Ruxstel24 » Tue Mar 05, 2019 10:30 pm

EXCELLENT !! Great work !!
Looks like a fuselage design, are you putting wings on next ? :D

User avatar

Chris Instness
Posts: 38
Joined: Sun Jan 06, 2019 6:49 pm
First Name: Christopher
Last Name: Instness
Location: Roseville, Ca

Re: Model T Special build.

Post by Chris Instness » Tue Mar 05, 2019 10:55 pm

Very nice design and workmanship! Thanks for sharing.

User avatar

AndyClary
Posts: 75
Joined: Sun Jan 06, 2019 11:15 am
First Name: Andrew
Last Name: Clary
Location: Usa

Re: Model T Special build.

Post by AndyClary » Tue Mar 05, 2019 11:06 pm

Good job Shane. It's not really how you get it done, just getting it done is an accomplishment. Sometimes the fancy machines just fill the scrap pile faster.

Andy


46woodduck
Posts: 134
Joined: Mon Jan 07, 2019 1:53 am
First Name: Thomas
Last Name: Petry
Location: Southern California

Re: Model T Special build.

Post by 46woodduck » Wed Mar 06, 2019 2:17 am

One word pretty well sums it up Shane...WOW!! I'm really looking forward to following your progress on this build.
Life is good on the lunatic fringe. Tom


Mindless Automaton
Posts: 125
Joined: Mon Jan 07, 2019 1:47 am
First Name: Kep
Last Name: Kerensky
Location: Northland
Board Member Since: 2011
Contact:

Re: Model T Special build.

Post by Mindless Automaton » Wed Mar 06, 2019 2:58 am

If that's no skill then i have negative skill. Thought it came out well.

User avatar

John Warren
Posts: 487
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Model T Special build.

Post by John Warren » Wed Mar 06, 2019 8:11 am

Very Nice, you are talented. Great coverage of the project. Thanks so much for taking us along
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 06, 2019 9:22 am

Thanks guys.
Ruxstel24 wrote:
Tue Mar 05, 2019 10:30 pm
EXCELLENT !! Great work !!
Looks like a fuselage design, are you putting wings on next ? :D
I really like the streamline design of the old sprint cars, but didn't want to do a single seat center steer setup with this one. Down the road I would like to build an all out sprint car. Wings are still on the drawing board :lol:
Mindless Automaton wrote:
Wed Mar 06, 2019 2:58 am
If that's no skill then i have negative skill. Thought it came out well.
Thanks!. Before this project, I had not done any sheet metal fab or welding. I find a lot of things to be intimidating at first but the more I apply myself the easier its come. That and youtube how-tos hahahah. I still get intimidated with every step I take but once I get the juices flowing it seems to come easy.


Scott_Conger
Posts: 1635
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Model T Special build.

Post by Scott_Conger » Wed Mar 06, 2019 10:09 am

Outstanding!
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Rich Eagle
Posts: 1550
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Model T Special build.

Post by Rich Eagle » Wed Mar 06, 2019 10:20 am

It is so much fun to look at someone else's project. What a great workman you are.
Thanks for posting it.
Rich
When did I do that?


George Andreasen
Posts: 197
Joined: Sun Jan 06, 2019 6:21 pm
First Name: George
Last Name: Andreasen
Location: Alturas, California

Re: Model T Special build.

Post by George Andreasen » Wed Mar 06, 2019 10:57 am

THAT is the way a speedster should be built! I have a question though......you weren't clear as to whether using heat on the sheet metal was a mistake or not. Seems to me that heat would definitely be necessary in order to form the panels without distortion. Or did I read that wrong? (probably)


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 06, 2019 11:21 am

George Andreasen wrote:
Wed Mar 06, 2019 10:57 am
THAT is the way a speedster should be built! I have a question though......you weren't clear as to whether using heat on the sheet metal was a mistake or not. Seems to me that heat would definitely be necessary in order to form the panels without distortion. Or did I read that wrong? (probably)
Heat was a big mistake for steel. My initial thought was to anneal but that really only works with aluminum (so I learned afterwards). Being a steel body, all I caused with the heat was a bunch of shrinking, buckling, and warping. Cold forming works much better.

User avatar

Mark Nunn
Posts: 172
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: Model T Special build.

Post by Mark Nunn » Wed Mar 06, 2019 2:20 pm

Shane Lach wrote:
Wed Mar 06, 2019 11:21 am
My initial thought was to anneal but that really only works with aluminum...
Heat age-hardens aluminum.


Randall strickland
Posts: 46
Joined: Sun Jan 06, 2019 5:50 pm
First Name: Randall
Last Name: Strickland
Location: lambsburg va

Re: Model T Special build.

Post by Randall strickland » Wed Mar 06, 2019 2:36 pm

Nicely done!


Alan Pfau - Michigan
Posts: 10
Joined: Sun Jan 06, 2019 9:36 pm
First Name: Alan
Last Name: Pfau
Location: Howell, MI

Re: Model T Special build.

Post by Alan Pfau - Michigan » Wed Mar 06, 2019 3:04 pm

Great work Shane. You're an inspiration for all of us! Keep up the good work and keep us posted.

User avatar

dobro1956
Posts: 321
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
Location: Hills of Arkansas

Re: Model T Special build.

Post by dobro1956 » Wed Mar 06, 2019 5:54 pm

Very nicely done. I agree with the just start on it and then do it approach. That's how my speedster project is being built .... Keep us posted, its nice to see someone else's project as it is progressing ........


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Wed Mar 06, 2019 6:04 pm

This is what the Hobby Doctor ordered, interaction! We need to assist, coach, mentor each other in order for this and all hobbies to survive!

Shared ideas make not only for a great hobby but it fosters the human spirit and builds confidence. Shane you being younger than most of us, I applaud you beyond words. I question a lot of what is wrong with a younger generation and getting involved. Shane, Thank You for lifting me up!

Call me if you need my assistance, you have my number!

All the Best and keep it UP!

Hank in Tin-A-See

User avatar

Michael Peternell
Posts: 59
Joined: Sun Jan 06, 2019 11:00 am
First Name: Michael
Last Name: Peternell
Location: Avon mn

Re: Model T Special build.

Post by Michael Peternell » Wed Mar 06, 2019 7:23 pm

Your build is awesome!!! Very cool field stone basement garage?!! Just asking.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 06, 2019 7:32 pm

Henry K. Lee wrote:
Wed Mar 06, 2019 6:04 pm
This is what the Hobby Doctor ordered, interaction! We need to assist, coach, mentor each other in order for this and all hobbies to survive!

Shared ideas make not only for a great hobby but it fosters the human spirit and builds confidence. Shane you being younger than most of us, I applaud you beyond words. I question a lot of what is wrong with a younger generation and getting involved. Shane, Thank You for lifting me up!

Call me if you need my assistance, you have my number!

All the Best and keep it UP!

Hank in Tin-A-See
I appreciate the kind words. I always wish there were more build threads, and then realize I'm guilty myself of not sharing my work much as well. I'm going to try to keep up with posting here.

I wish there were more younger guys into stuff like this as well but a lot would rather watch others do things on Instagram and YouTube. I'll keep in touch!


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 06, 2019 7:36 pm

Michael Peternell wrote:
Wed Mar 06, 2019 7:23 pm
Your build is awesome!!! Very cool field stone basement garage?!! Just asking.

You got it! The house was built in 1880. I was told it was an old school which was disassembled and relocated here in Milford, NH. I bought it 3 years ago and love it. It has its quirks and takes maintenance but it's a labor of love.

User avatar

Michael Peternell
Posts: 59
Joined: Sun Jan 06, 2019 11:00 am
First Name: Michael
Last Name: Peternell
Location: Avon mn

Re: Model T Special build.

Post by Michael Peternell » Wed Mar 06, 2019 8:25 pm

A picture of the garage from the outside would be appreciated if you could. Guessing it will only add to your build thread.
Just saying. :D


spadpilot
Posts: 39
Joined: Mon Jan 14, 2019 12:43 pm
First Name: David
Last Name: Carnahan
Location: Northern California
MTFCA Number: 49550

Re: Model T Special build.

Post by spadpilot » Wed Mar 06, 2019 8:49 pm

Shane.....that is outrageous workmanship. You're on your way to creating a masterpiece. Do keep in touch with Hank Lee, he has a wealth of knowledge tucked away that he is always willing to share. He has been the savior of my speedster project! Looking forward to seeing the grand finale.
Best
Dave
...some people are like Slinkies....they're generally useless but fun to watch when you push them down the stairs.

User avatar

dobro1956
Posts: 321
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
Location: Hills of Arkansas

Re: Model T Special build.

Post by dobro1956 » Wed Mar 06, 2019 9:01 pm

I going to go out on a limb and guess.... I think that there is no garage. That is probably the basement of his house .... I also love the field stone walls. ... As to the amount of new "young guns" They are out there.... Im hoping the proportion of young car guys is at least the same as years ago.. When I was in high school 1972-1975 there were two guys in my whole school that could be considered "gear heads" me and a guy named Steve ... (not that Steve :) ). And there were maybe a half dozen car guys that liked old cars, hot rods, street machines, ect. But they did very little work on the cars themselves.... That was for me and Steve to do and be considered the "car gods" of Leslie Arkansas . :) :) .. So there was really not that many of the gear heads back then as often though. So it really makes me feel good when someone like Shane is out there carrying on the hobby ...... keep us posted on any progress ....

User avatar

Barth_Tool_Co
Posts: 96
Joined: Sun Jan 06, 2019 8:10 pm
First Name: Jason
Last Name: Alvord
Location: Saginaw, MI.

Re: Model T Special build.

Post by Barth_Tool_Co » Wed Mar 06, 2019 9:23 pm

My kinda basement! I think my wife is glad my shop is an outbuilding... don't think she's fond of the smells and noises that come out of the garage during peak working hours, let alone have it under the house :lol:

Great work on the body, keep it up!
... and my number is Beechwood 4-5789
1926 Touring - "Corrina"


Tom Hicks
Posts: 761
Joined: Sun Jan 06, 2019 12:07 pm
First Name: Thomas
Last Name: Hicks
Location: Chesterfield, VA
MTFCA Number: 32518

Re: Model T Special build.

Post by Tom Hicks » Thu Mar 07, 2019 6:50 am

That is a beautiful car, you are really skilled to both design AND build. Thanks for taking the time to stop and take pictures along the way, and for posting them.
Technology, the solution to all of our problems... and the cause of most of them.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Thu Mar 07, 2019 8:32 am

Barth_Tool_Co wrote:
Wed Mar 06, 2019 9:23 pm
My kinda basement! I think my wife is glad my shop is an outbuilding... don't think she's fond of the smells and noises that come out of the garage during peak working hours, let alone have it under the house :lol:

Great work on the body, keep it up!
Speaking of smells, the past few days I have been applying resin to seal the wood of the tail. She wasn't quite the happiest :lol:


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Thu Mar 07, 2019 8:38 am

dobro1956 wrote:
Wed Mar 06, 2019 9:01 pm
I going to go out on a limb and guess.... I think that there is no garage. That is probably the basement of his house .... I also love the field stone walls. ... As to the amount of new "young guns" They are out there.... Im hoping the proportion of young car guys is at least the same as years ago.. When I was in high school 1972-1975 there were two guys in my whole school that could be considered "gear heads" me and a guy named Steve ... (not that Steve :) ). And there were maybe a half dozen car guys that liked old cars, hot rods, street machines, ect. But they did very little work on the cars themselves.... That was for me and Steve to do and be considered the "car gods" of Leslie Arkansas . :) :) .. So there was really not that many of the gear heads back then as often though. So it really makes me feel good when someone like Shane is out there carrying on the hobby ...... keep us posted on any progress ....
I don't have many photos of the house on this phone due to getting it this winter but yes. The garage is under the main portion of the house. I do have a photo of when I was doing some tree removal as everything was overgrown and growing against the house.

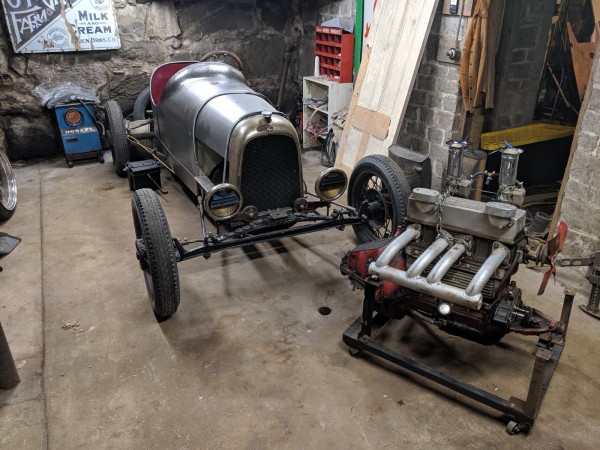

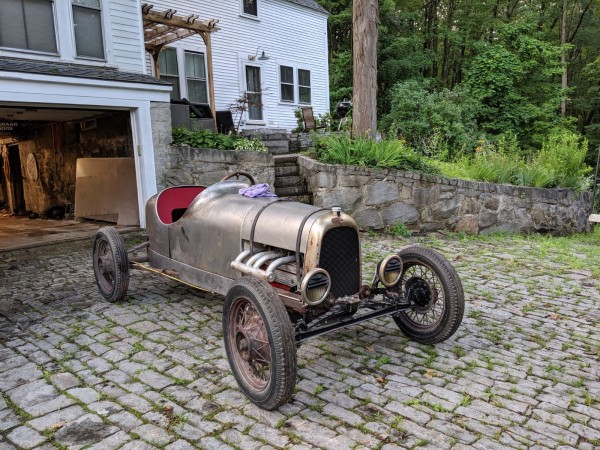

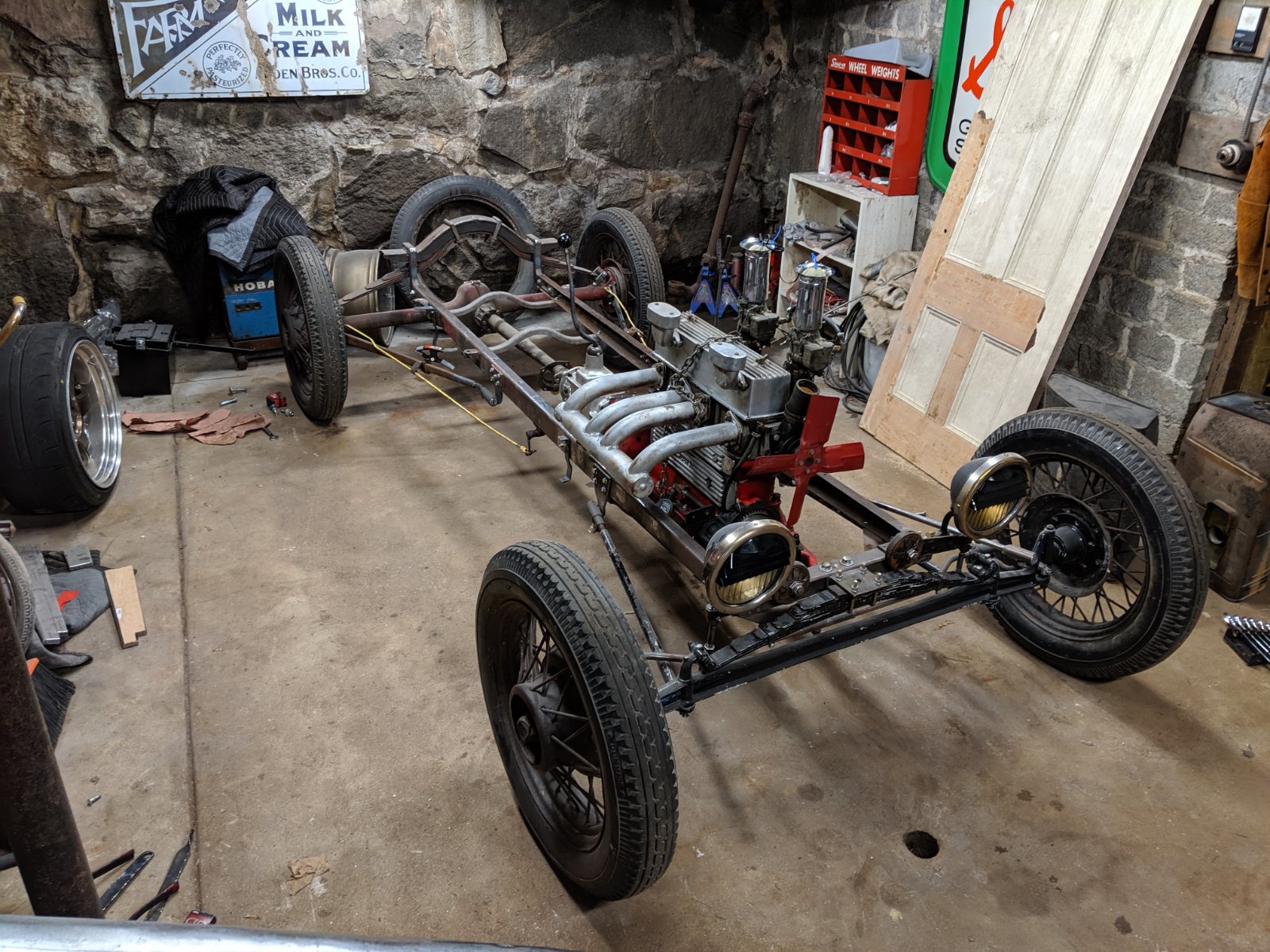

Here's the garage on the other side of the house and my 27 Tudor I went through last year.


Tbz4u
Posts: 135
Joined: Tue Jan 08, 2019 12:26 am
First Name: Robert
Last Name: Weitzel
Location: Newcastle california
MTFCA Number: 22631
Board Member Since: 2015

Re: Model T Special build.

Post by Tbz4u » Thu Mar 07, 2019 9:31 am

Great job I to was coached and inspired by Erik Barrett. I've made great friends here. I always try to help the younger generation. if I get a deal I pass it on and hope they are not gonna do s and are will do. Great job my friend


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Thu Mar 07, 2019 11:26 am

Tbz4u wrote:
Thu Mar 07, 2019 9:31 am
Great job I to was coached and inspired by Erik Barrett. I've made great friends here. I always try to help the younger generation. if I get a deal I pass it on and hope they are not gonna do s and are will do. Great job my friend
I appreciate all the help and advise to no end. I't's made this project progress much faster than I expected and to a higher build quality. I hope one day I can assist others in my position as you have.


Art McTevia
Posts: 15
Joined: Sat Jan 12, 2019 11:49 am
First Name: Art
Last Name: McTevia
Location: Medford, OR
Board Member Since: 2017

Re: Model T Special build.

Post by Art McTevia » Thu Mar 07, 2019 12:32 pm

AND I complain when I have to change my oil in my T.That is AMAZING!!!!!!!

User avatar

Angmar
Posts: 91
Joined: Sun Jan 06, 2019 7:11 pm
First Name: Mark
Last Name: Bailey
Location: Colorado
Board Member Since: 2016

Re: Model T Special build.

Post by Angmar » Thu Mar 07, 2019 3:01 pm

Wow, fantastic craftsmanship for sure. Very much enjoying this thread.
Still crankin old iron

User avatar

dobro1956
Posts: 321
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
Location: Hills of Arkansas

Re: Model T Special build.

Post by dobro1956 » Thu Mar 07, 2019 3:19 pm

dobro1956 wrote:
Wed Mar 06, 2019 9:01 pm
I'm going to go out on a limb and guess.... I think that there is no garage. That is probably the basement of his house .... I also love the field stone walls. ... As to the amount of new "young guns" They are out there.... Im hoping the proportion of young car guys is at least the same as years ago.. When I was in high school 1972-1975 there were two guys in my whole school that could be considered "gear heads" me and a guy named Steve ... (not that Steve :) ). And there were maybe a half dozen car guys that liked old cars, hot rods, street machines, ect. But they did very little work on the cars themselves.... That was for me and Steve to do and be considered the "car gods" of Leslie Arkansas . :) :) .. So there was really not that many of the gear heads back then as often though. So it really makes me feel good when someone like Shane is out there carrying on the hobby ...... keep us posted on any progress ....


Dallas Landers
Posts: 1005
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: Model T Special build.

Post by Dallas Landers » Thu Mar 07, 2019 8:57 pm

Working metal like that is not easy, at least for me. Minimal tools and experience does not show in your work. You are very talented.
That is a fine looking ride your building. Keep us posted as I cant wait to see more.


BHarper
Posts: 67
Joined: Sun Jan 06, 2019 11:15 am
First Name: Bill
Last Name: Harper
Location: Keene, New Hampshire
MTFCA Number: 5414
MTFCA Life Member: YES

Re: Model T Special build.

Post by BHarper » Thu Mar 07, 2019 10:49 pm

Hi Shane,

WOW!

You have talent and moxie.

Thank you for taking the time to photograph all of your work and then painstakingly create this photo essay of your work. Most impressive.

I enjoyed meeting you last summer at one of the Epping flea markets.You described you speedster project to me and it sounded quite ambitious. You are doing great work and I wish you continued success with your project. Bill


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 13, 2019 9:23 pm

BHarper wrote:
Thu Mar 07, 2019 10:49 pm
Hi Shane,

WOW!

You have talent and moxie.

Thank you for taking the time to photograph all of your work and then painstakingly create this photo essay of your work. Most impressive.

I enjoyed meeting you last summer at one of the Epping flea markets.You described you speedster project to me and it sounded quite ambitious. You are doing great work and I wish you continued success with your project. Bill
Hey Bill! Thank you! I probably sounded like I was biting off more than I could chew lol. Hopefully I'll see you up there this season. Sorry I didn't make it back around once you unpacked.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 13, 2019 9:31 pm

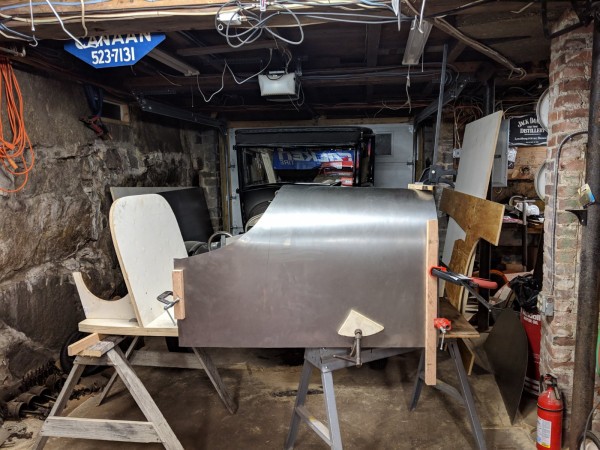

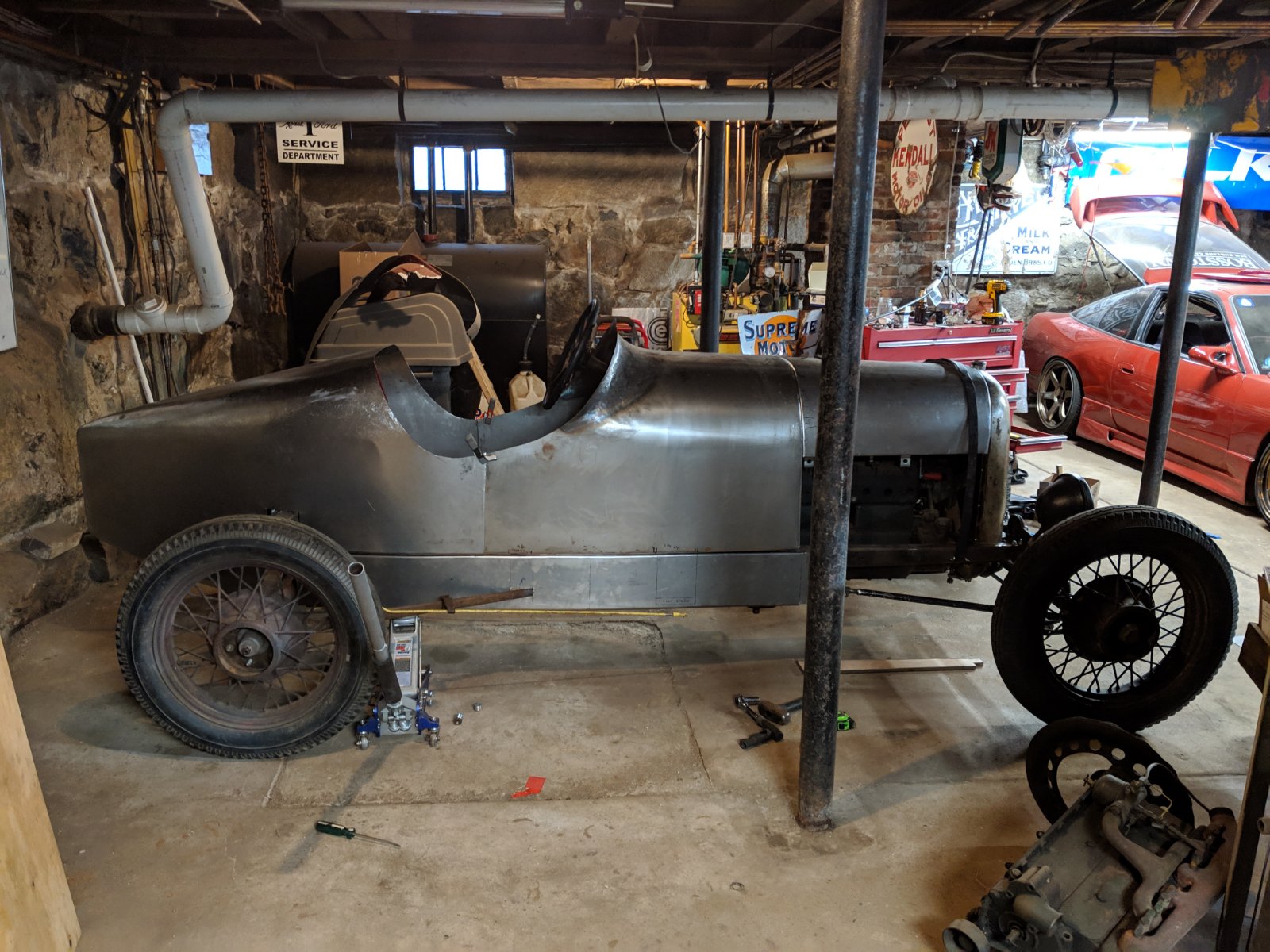

So lately I have taken the tail apart for sealing and paint on the wood, and doing some finishing work on the hood. I am sealing the wood with fiberglass resin. The wood seems to soak the first coat up, then the second coat adds a nice protective layer.

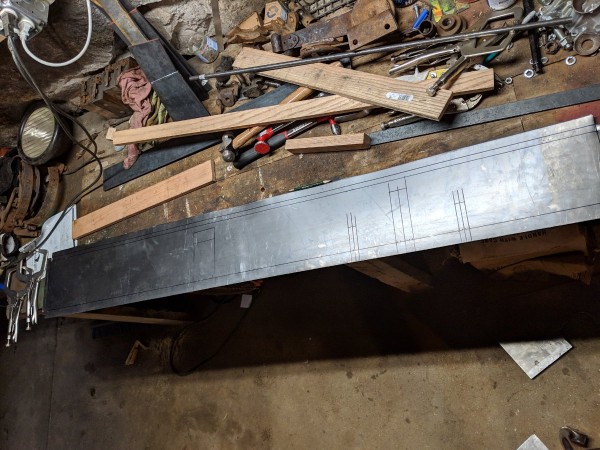

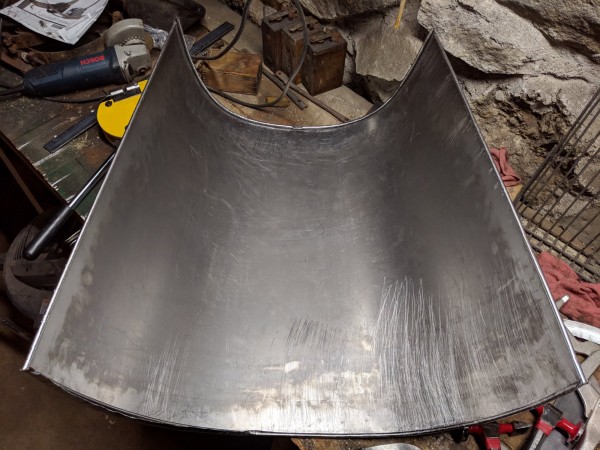

Here is most of the panels while drying. They're currently drying after being primed. I used Rust-Oleum boat primer for fiberglass.

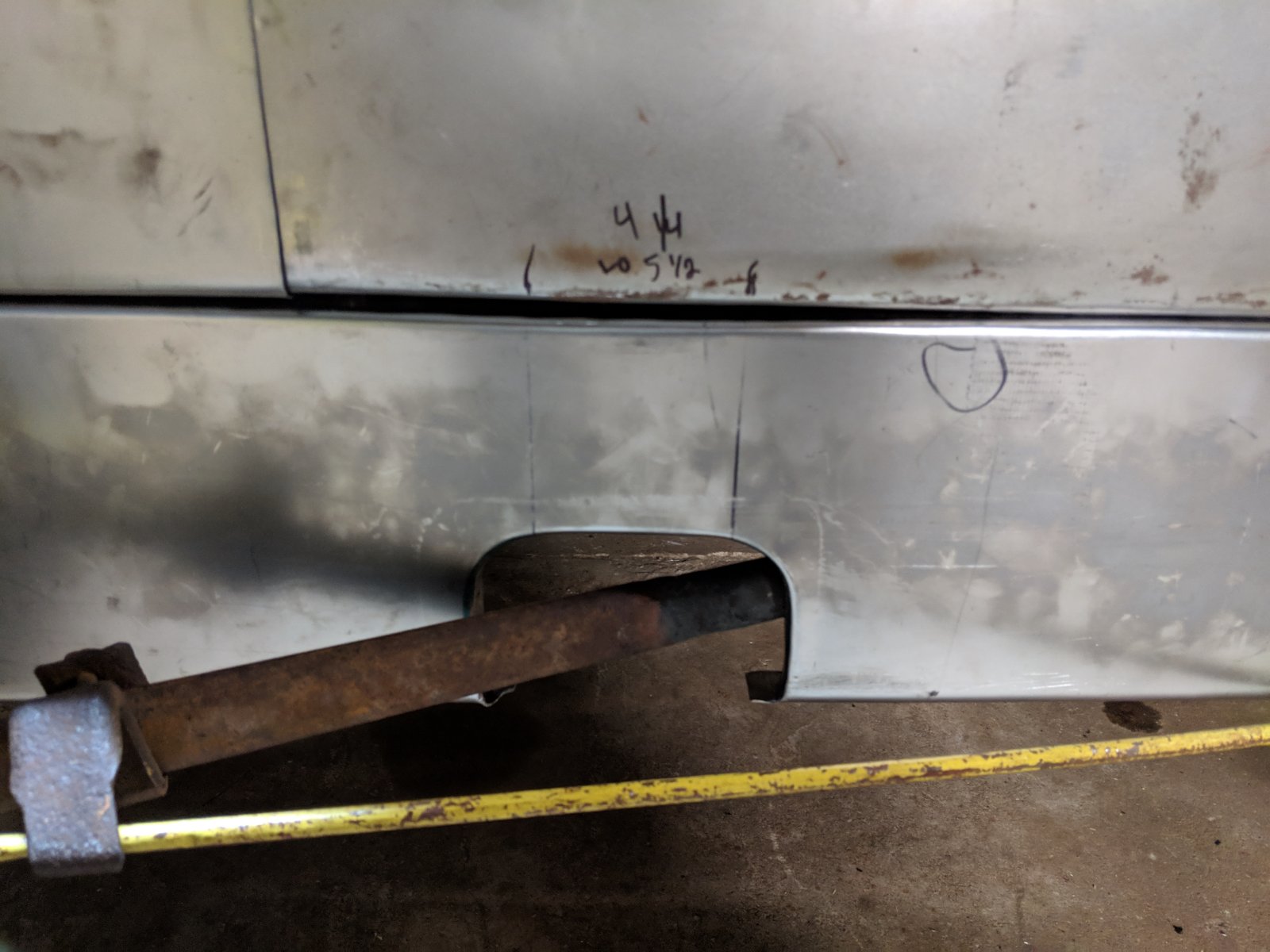

Here's the rear edge of the hood to give you an example of how it was before. I've been wire rolling the edges of the hood with 3/16 rod. I've been using a hammer and dolly to bend the edge to 90*, then using my shrinker to get the shape right. I then use a piece of thick flat stock backed by a dolly against the 90* to make it 180*. I then clamp the round bar in after pre shaping it to the panel. Just tap the 180 all the way around the bar a little at a time to get a nice rolled edge.
Partly rolled.
Front edge fit up to the shell sitting decent.
Rear edge rolled and fit nicely. This is just sitting against the firewall. I need to shape up a hood shelf and lace it. A project for another day right?
Last edited by Shane Lach on Wed Mar 13, 2019 9:48 pm, edited 1 time in total.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 13, 2019 9:32 pm

This shows the whole panel. Eventually all sides of the panel we're completely wire rolled. It added a lot of strength and is nicer to grab onto when removing than just sharp unfinished edges.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Wed Mar 13, 2019 9:58 pm

Shane, BRAVO!

Very Proud of You! For a novice, you are becoming a professional very fast. Glad to see you are using techniques of various styles. This makes you a better fabricator as it teaches you what works best for the situation, life and experience becomes the teacher.

Love your progress, now I have to go and burn some midnight oil to catch up with you!

All the Best Shane,

Hank

User avatar

John Warren
Posts: 487
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Model T Special build.

Post by John Warren » Thu Mar 14, 2019 9:28 am

Shane, It looks GREAT!! I love design and all the metal work. I think that rolled edge is over the top. I have never tried something like that, but who knows.... after seeing this I may try. Do you think you can bring it to Lincoln for the speedster reunion? It is June 20-22. It only happens every other year, so the next time may be in 2021. Hank, how bout you?
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Thu Mar 14, 2019 11:19 am

John Warren wrote:
Thu Mar 14, 2019 9:28 am
Shane, It looks GREAT!! I love design and all the metal work. I think that rolled edge is over the top. I have never tried something like that, but who knows.... after seeing this I may try. Do you think you can bring it to Lincoln for the speedster reunion? It is June 20-22. It only happens every other year, so the next time may be in 2021. Hank, how bout you?
Hey John! Let me know if you need any more details about doing it. It's fairly easy once you got the 90* and shape right. The rest is cake. So about Lincoln. I will be there but not with the car. The goal is to get the car as close to done by then as possible. I will be meeting my friend Rob from California there to buy a special powerplant for this thing. It should rip! :D :D


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Thu Mar 14, 2019 7:04 pm

Shane be careful of Rob, he's a dead horse trader! LOL! Anyway your project is looking GREAT young man. Here is you a photo of what not to do. If you run into this, the car will under steer like no tomorrow. running in straight plains from ball to ball is of most importance. You can find longer links and forge them to an inverted candy cane shape like they did on the early Franklin cars. Just trying to help.

I think it is time for part 2 of this thread brother! My eyes get a aching!

All the Best,

Hank


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Sun Mar 17, 2019 4:51 pm

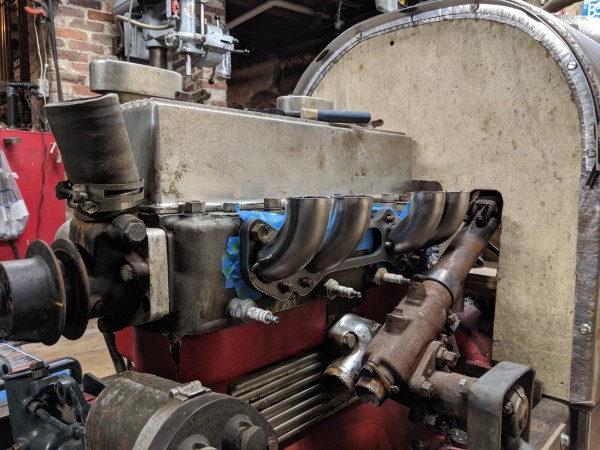

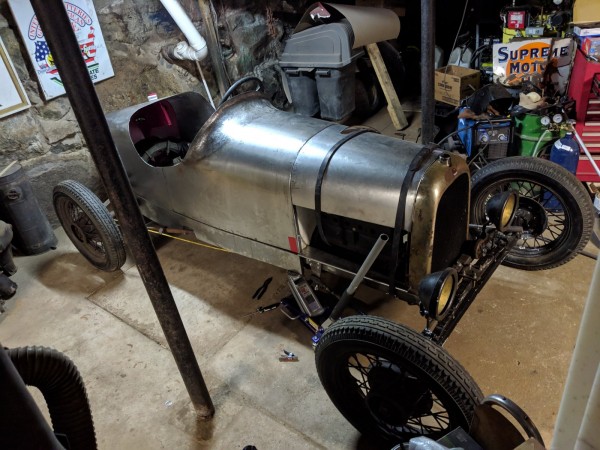

This weekend I worked on making a hood former for the firewall and fitting the hood nicely. I made it out of angle aluminum in the shrinker very little at a time. I found the stretcher tears the aluminum. That sucked when I ruined my first one.
I shaped it then drilled some holes to lace it up like a radiator shell.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Sun Mar 17, 2019 4:51 pm

Here she is all test fit.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Sun Mar 17, 2019 8:31 pm

Shane,

Words can not express how PROUD of you I am in your adventure! Excellent work young man.

All the Best,

Hank in Tin-A-See


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Sun Mar 17, 2019 9:02 pm

Thanks again Hank. I can't wait to hear it run one day and see it outside this dungeon. I hope I can inspire some of the other younger guys to get out there and enjoy/ build these things.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Mon Mar 18, 2019 7:45 pm

Not much but I was sitting on the couch contemplating going to the hardware store to buy steel rod for a radiator support. I decided to go downstairs and see what I had already. I found an old brake rod and thought it might work. After smashing it flat and a little grinding it fit into the Whippet shell perfectly. I just have to thread it and add nuts and washers.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 20, 2019 6:42 pm

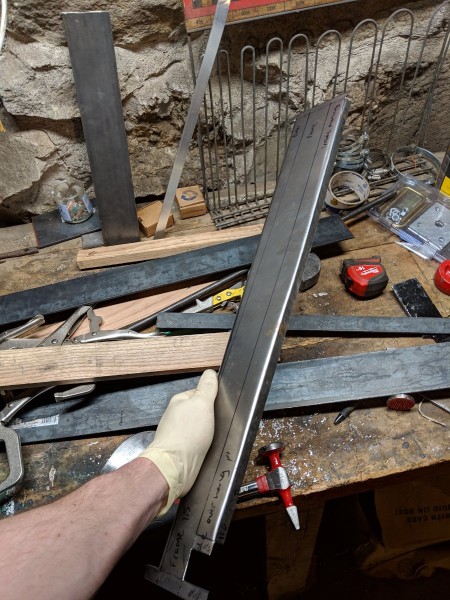

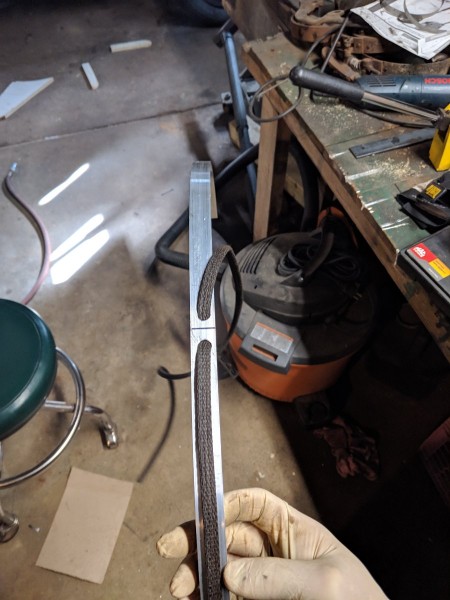

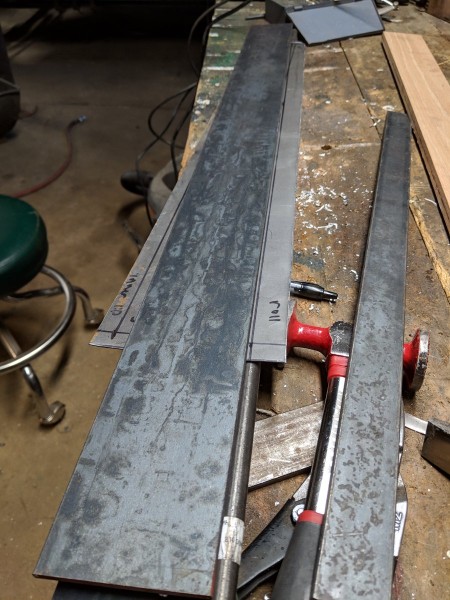

Today I made a hood shelf! Well I made one yesterday but it was an inch too short :roll: .


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Mar 20, 2019 6:43 pm



Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Sun Mar 31, 2019 7:26 pm

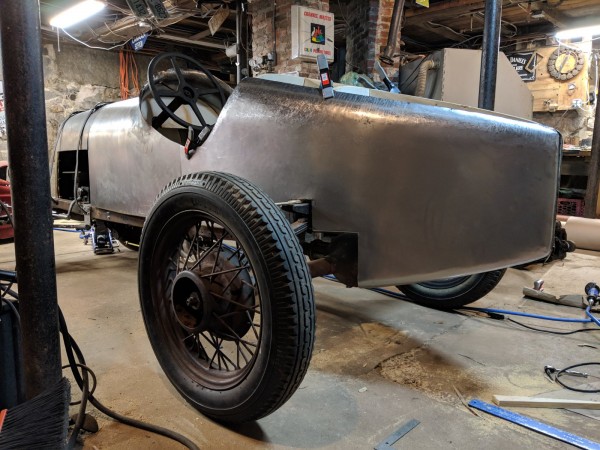

This week I dug into the side skirts. I built a couple, didn't like the first design, and really enjoy the second.

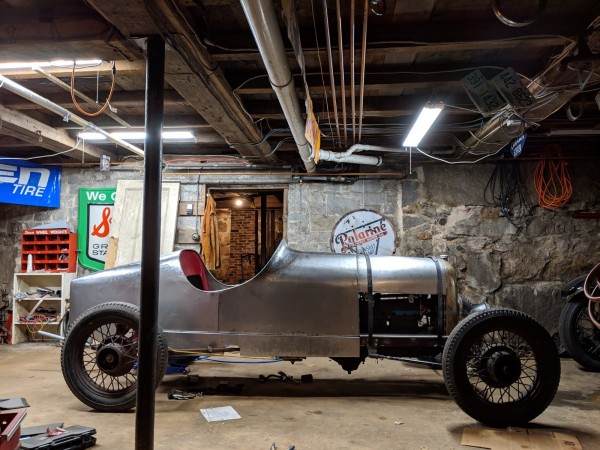

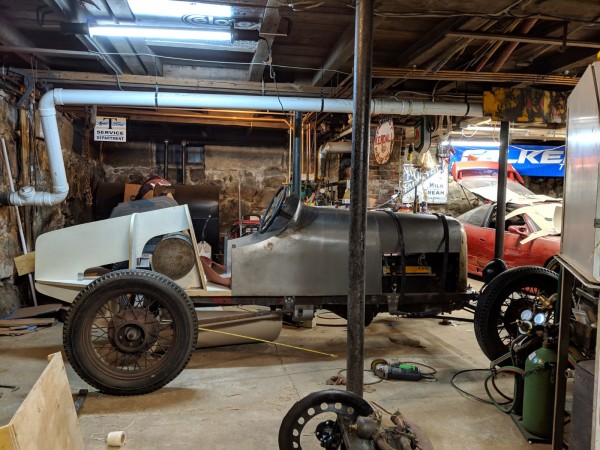

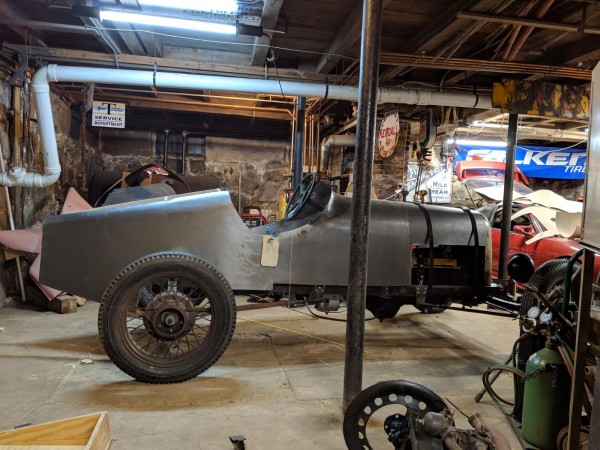

Here she is with no side skirting.
Round one ended up too blocky for my liking. They didn't flow well with the natural taper off the car. They also sat lower at the front due to the rake.

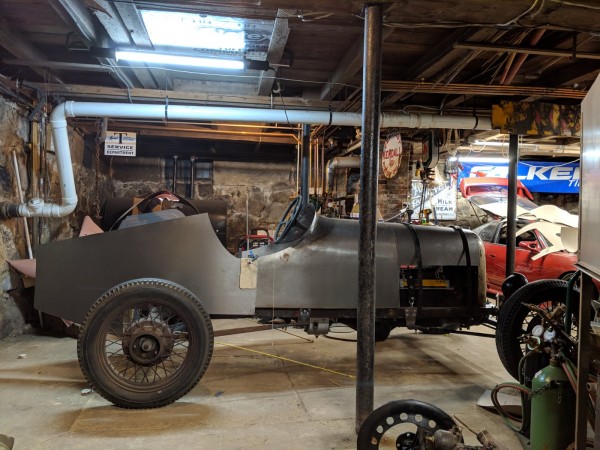

This one I'm much happier with. The 1.5" taper rear to front really fits the body much better.

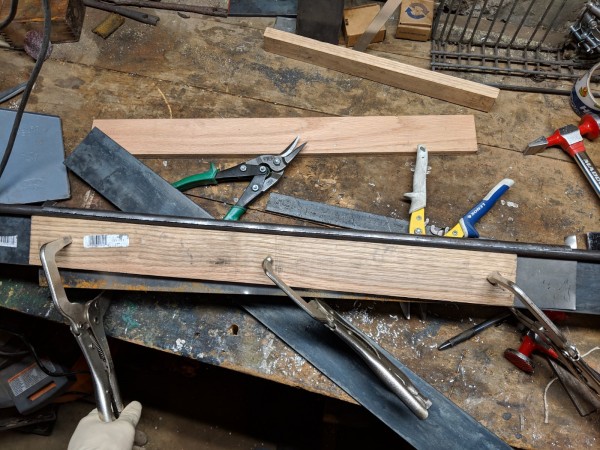

I made some measurements and cut out a couple pieces of wood. I then set the skirt between them and left the metal 1/2" proud. Next I shaped the metal to the wood form. I'll take a couple photos of that process on the next side.

User avatar

John Warren
Posts: 487
Joined: Sun Jan 06, 2019 12:18 pm
First Name: John
Last Name: Warren
Location: Henderson, Nevada

Re: Model T Special build.

Post by John Warren » Mon Apr 01, 2019 8:40 am

Lookin great! That is going to be a beautiful car. Keep the posts coming!
24-28 TA race car, 26 Canadian touring, 25 Roadster pickup, 14 Roadster, and 11AB Maxwell runabout
Keep it simple and keep a good junk pile if you want to invent something :P


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Apr 03, 2019 6:45 pm

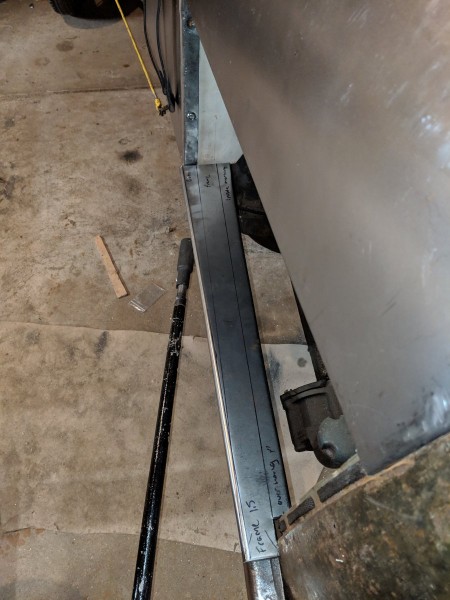

Moving on to the other side, I faced new challenges. I had moved the parking brake handle outboard and had to work the skirt around it. I did so by making some wooden templates to form the metal around. I'm pretty close to done making panels and it's almost time to move on to the fine tuning of them. It's exciting to see a car where once there was a pile of scrap parts I pulled out of someone's yard.

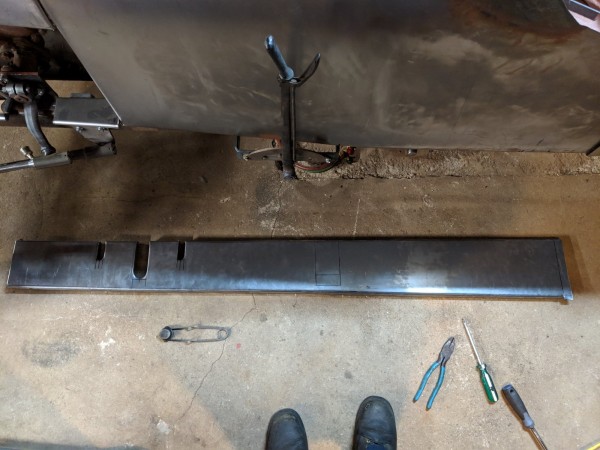

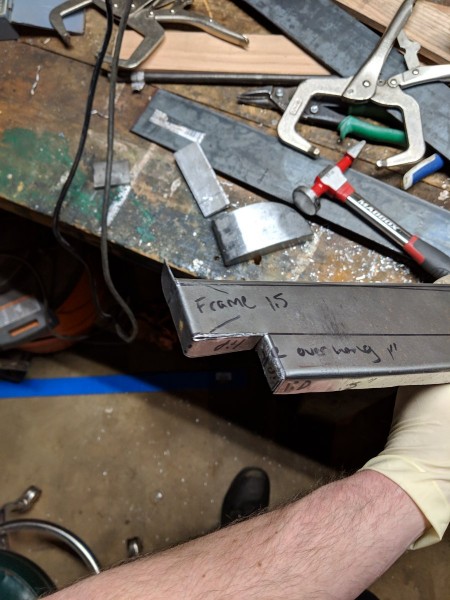

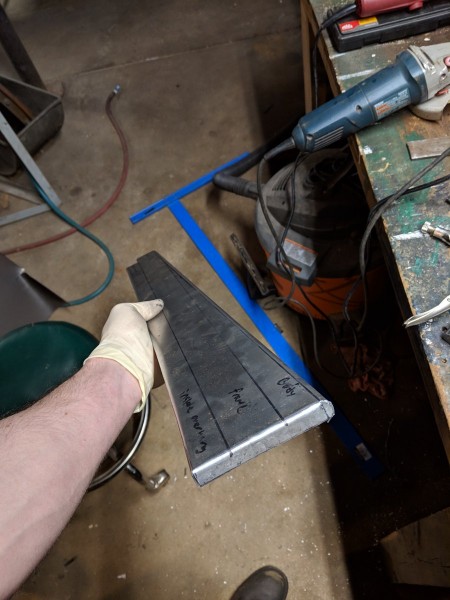

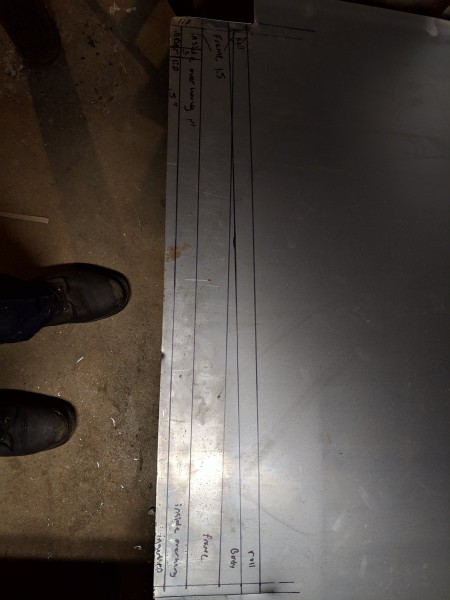

Skirt cut out and all measurements mapped out.

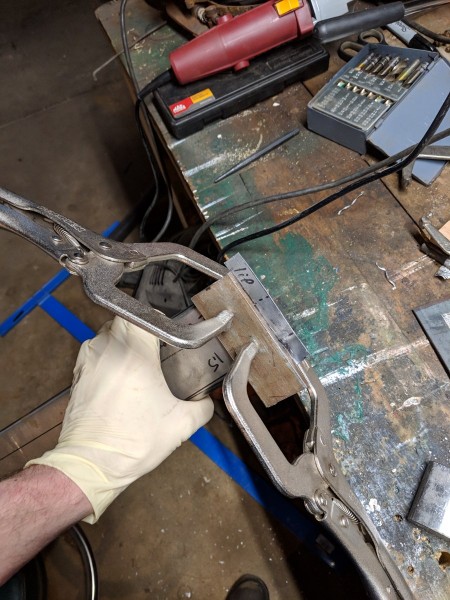

Folded the edges and began making the hand brake cut outs. I left the metal a half inch proud and folded it around these forms


George Andreasen
Posts: 197
Joined: Sun Jan 06, 2019 6:21 pm
First Name: George
Last Name: Andreasen
Location: Alturas, California

Re: Model T Special build.

Post by George Andreasen » Wed Apr 03, 2019 7:35 pm

Shane, I've been following your project with great interest. I have a question though. In your first pictures you show what appears to be a piece of box tubing used as a cross member. You mentioned there was some interference though, so you decided against that method. Where was the interference? At the ends....spring hitting the closed off box? Or was the spring rubbing against the inside of the box? Both?

I'm asking because I had the same idea and would like to know exactly what headaches you ran into. In the meantime, keep the photos coming!! :D


Chad_Marcheese
Posts: 77
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
Board Member Since: 2005

Re: Model T Special build.

Post by Chad_Marcheese » Wed Apr 03, 2019 9:42 pm

Shane, I haven't been on here much lately, but GREAT JOB!

I had to chuckle at a couple of things you did, because the are in similar fashion to what I am doing:

Modified T frame, Model A steering, a happy accident that it came up through the same hole in the firewall. My column will be shortened though. I am also using an A front axle complete, but used Model T spring and perches. Some mods will follow as I may add front brakes. I have the parts to do a '28 Chevy overhead on a T block.

Speedster Project 25.1.jpg
Speedster Project 25.1.jpg (91.32 KiB) Viewed 7024 times
Speedster Project 27.1.jpg
Speedster Project 27.1.jpg (70.06 KiB) Viewed 7024 times
Last edited by Chad_Marcheese on Wed Apr 03, 2019 10:38 pm, edited 1 time in total.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Apr 03, 2019 9:56 pm

George Andreasen wrote:
Wed Apr 03, 2019 7:35 pm
Shane, I've been following your project with great interest. I have a question though. In your first pictures you show what appears to be a piece of box tubing used as a cross member. You mentioned there was some interference though, so you decided against that method. Where was the interference? At the ends....spring hitting the closed off box? Or was the spring rubbing against the inside of the box? Both?

I'm asking because I had the same idea and would like to know exactly what headaches you ran into. In the meantime, keep the photos coming!! :D

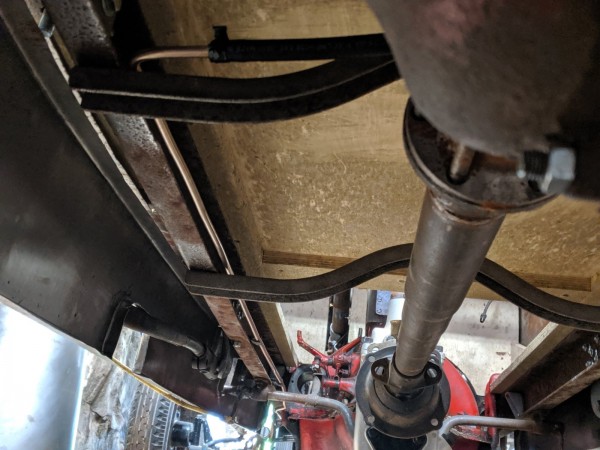

The spring contacted the frame like you described. You can weld a channel on the front of the frame so the ends are open, but I didn't like the look as much. Since I already shifted the engine cross member back and the square one was made, I went with the lowering bracket I made off of that. It gives it a cool rake out front and functions well so far. My rigorous r&d only consists of me jumping up and down on the front end lol.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Apr 03, 2019 9:59 pm

Chad_Marcheese wrote:
Wed Apr 03, 2019 9:42 pm
Shane, I haven't been on here much lately, but GREAT JOB!

I had to chuckle at a couple of things you did, because the are in similar fashion to what I am doing:

Modified T frame, Model A steering, a happy accident that it came up through the same hole in the firewall. My column will be shortened though. I am also using an A front axle complete, but used Model T spring and perches. Some mods will follow as I may add front brakes. I have the parts to do a '28 Chevy overhead on a T block.


Speedster Project 25.1.jpg

Speedster Project 25.1.jpg
Looks like a solid start! Funny how some things fall together like that. I moved the seat way back so I'll be leaving the column full length. I will eventually be swapping to a model a rear axle.


d stroud
Posts: 635
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO. 64470
Board Member Since: 2011

Re: Model T Special build.

Post by d stroud » Thu Apr 04, 2019 1:24 am

Chad, you may want to keep an eye on your steering mount where you welded it to the frame. that will be a prime place for cracks to develope from the frame twisting. Myself, I would have bolted it on. Nice job on building it though. JMHO Dave
1925 mostly original coupe.


Chad_Marcheese
Posts: 77
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
Board Member Since: 2005

Re: Model T Special build.

Post by Chad_Marcheese » Thu Apr 04, 2019 5:59 am

d stroud wrote:
Thu Apr 04, 2019 1:24 am
Chad, you may want to keep an eye on your steering mount where you welded it to the frame. that will be a prime place for cracks to develope from the frame twisting. Myself, I would have bolted it on. Nice job on building it though. JMHO Dave
Yes, I may even (probably will) box that part of the frame to help that issue. I had the front half of a A frame I was considering splicing in at one point, but those rails were riddled with cracks on both rails--especially all in front of the steering box mount. I choose not to bolt it in because these cars have enough steering slop everywhere else, and I wanted to raise it some to try and gain back some geometry lost during the lowering of the front axle....hopefully it all steers ok in the end. I also chose to flip and further bend the pitman arm to try and correct some of the steering rod angle, as well as shorten it 1" like the aftermarket ones that are offered--again, mostly to gain back some geometry lost in the front end lowering. The mount itself is 3/16 plate that goes right to the bottom of the frame rail and fully welded in every possible spot front and back. And if I remember right, the steering box to front axle distance is only 2" shorter than a stock A, but the T frame is a little narrower.

Sorry for the Hi-jack of your post Shane.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Thu Apr 04, 2019 6:16 am

Chad,

David is correct on your welding there. Not getting in anyone’s business, just concerned about safety (yours and others). You could install a piece of channel under the frame by means of bolting. Just trying to help. And your project is looking Great!

Shane,

Sorry for my highjack too. Just trying too assist you younger fellas!

All the Best,

Hank


d stroud
Posts: 635
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO. 64470
Board Member Since: 2011

Re: Model T Special build.

Post by d stroud » Thu Apr 04, 2019 7:45 am

NO, NO, NO, Chad, DO NOT box the frame!!! I have posted this many times on here. When the frame is boxed in a short section as you mentioned, that makes it into a rectangular tubing basically which will not flex as the original frame will when in a twist. That will cause cracks to develope at the ends of the boxed area, I've seen it happen many, many times in the last 40 years or so. It is a common misconception that a frame needs to be boxed when spliced, all that is needed is to put a channel (frame channel, not channel iron) inside as Henry said. Make it a snug fit and a few inches longer on each end so the stress is spread out over a wide area and definately bolt it in. Anything that is mounted on frame rails should be bolted or riveted, that allows for some "give". It's a bit late now, but you would have been better off bolting the bracket to the frame. Not trying to rain on your parade, just trying to point out possible(probable) problems down the road. Dave
1925 mostly original coupe.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Thu Apr 04, 2019 7:49 am

Well put Dave!

Chad with total respect, we have walk down the paths of failure and do not wish this on anyone.

All the Best,

Hank


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Jul 10, 2019 9:36 am

Alright guys. It's been a while but I'm back on track. With spring hitting I had a lot of household chores to focus on, as well as my wife is pregnant so a lot of my time has been consumed with other priorities. I've been making it a point to put in an hour or two a day again.

A while back I purchased a wallowed out Neville steering wheel. I needed an adapter made to fit my model a steering column and reached out to Hank. He explained that he was proud of the work I was putting forth and this was my reward. He managed to mill the hub face and create a collar to insert in the wheel. I appreciate all the help he has given me.

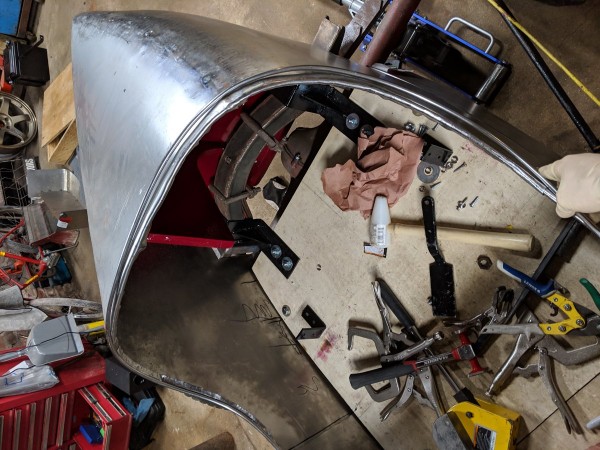

After this, I began working on wire edging the circumference of the cockpit. I used 5/16" steel rod. I welded a piece of rod to the end of vise grips, and a plate to the other jaw. I gradually clamped and rolled the edge until I formed a 180* pocket. Then I formed the rod to sit in the pocket, clamped it, and hammer/dollied the sheet metal over the rod.
Last month I traveled from New Hampshire to Nebraska for the speedster reunion to execute a long planned transaction with my friend Rob. We had been talking and worked out a deal on a special engine he had and wanted to sell me. He drove from California and we met in the middle of the country.
Here's a photo of the gang. Rob, his father, Bob Middleton, my wife and I. These guys were great and it was cool to meet after months of phone calls and mentoring.

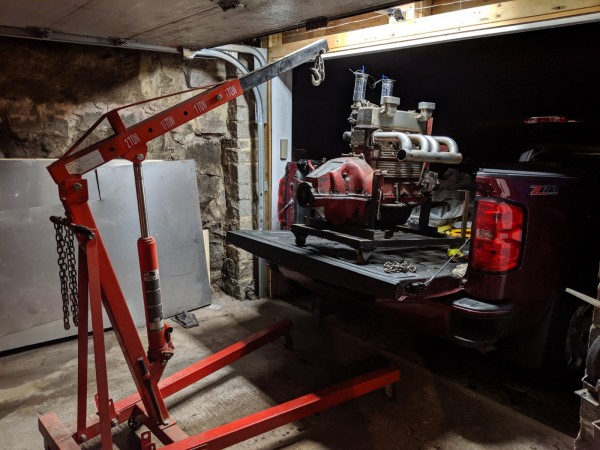

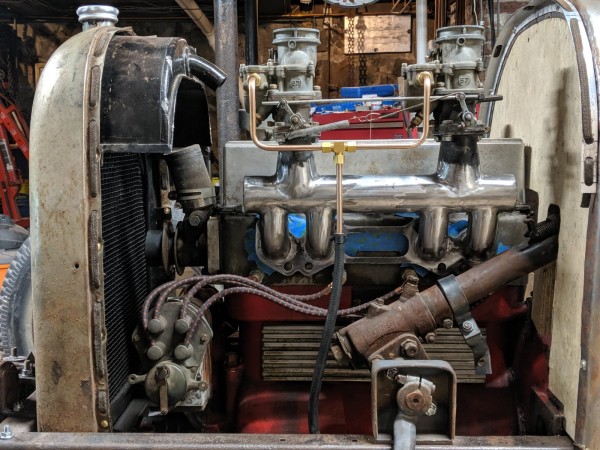

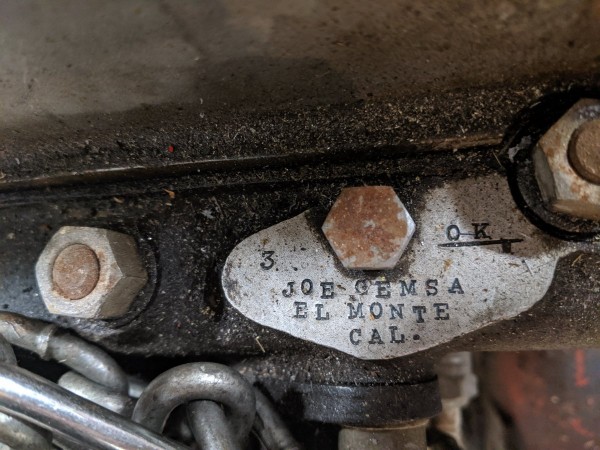

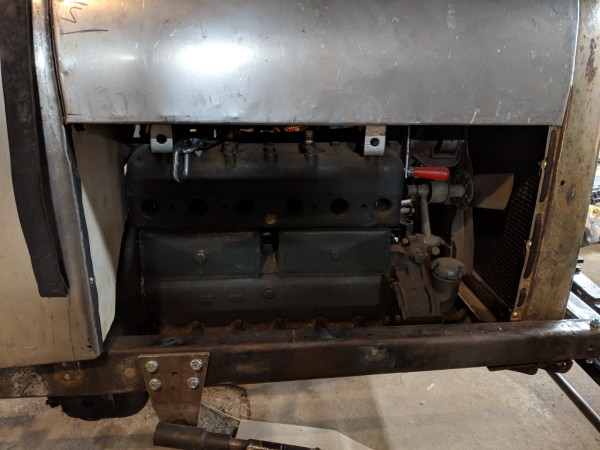

Here she is. This is Rob and I after we dragged the powerplant to my truck bed after a combined 3,000 miles of driving. I'm honored to own this piece of automotive history and happy to give it a new home.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Wed Jul 10, 2019 10:01 am

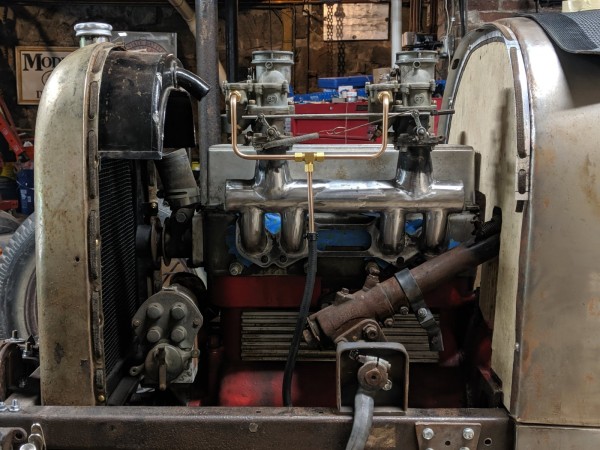

Onto the details. The engine is a model t block, Gemsa 9:1 cross flow head, model a crankshaft, pressure fed oil system, dual downdraft strombergs, etc. I'll change a couple things here and there but the goal is to get it fit and running mocked up. I will be installing a splitdorf crossdrive mag setup on the front as well.
I found some sweet old louvers for model t headlights you can see above also. Couldn't pass those up.


Dollisdad
Posts: 67
Joined: Wed Jan 16, 2019 10:13 pm
First Name: Tom
Last Name: Rootlieb
Location: Ohio
MTFCA Number: 440

Re: Model T Special build.

Post by Dollisdad » Wed Jul 10, 2019 11:39 am

It’s great to see a young man use his talents and vision to create. I am impressed with the design and execution of this project and the solutions to problems that present themselves as is always the case with building something where nothing existed before. You should be very proud of what you have accomplished. It’s guys like you who give old guys like so many of us the belief that the love and passion of these cars will be carried forward. My hat is off to you sir.

User avatar

Rich Eagle
Posts: 1550
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: Model T Special build.

Post by Rich Eagle » Wed Jul 10, 2019 2:35 pm

Thanks for showing us all these pictures. Your craftsmanship is superb and the fabrication is so beautiful. Unfinished steel and that stone wall of your building are very intriguing together.
Thanks
Rich
When did I do that?


Dallas Landers
Posts: 1005
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: Model T Special build.

Post by Dallas Landers » Wed Jul 10, 2019 2:48 pm

Ooooh what a slick looking ride. Very nice work and a cool engine to. Im with Rich and Tom that cut stone should be inspiration to create something from nothing.


Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Wed Jul 10, 2019 3:15 pm

Keep up the good work Shane!!!!

Proud of you!

Hank in dim dar hills

User avatar

TRDxB2
Posts: 394
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Model T Special build.

Post by TRDxB2 » Wed Jul 10, 2019 8:54 pm

Looking good - I'm still on square 1. Too bad we couldn't get together on your way to or from NE. Frank


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Sep 10, 2019 5:32 pm

So as of recently, progress has dialed back a bit due to my wife and I having our first baby! But I've been sneaking in some work here and there. I'll share some photos.

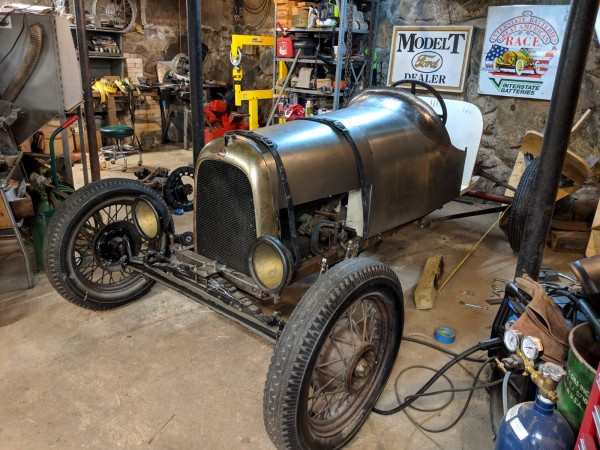

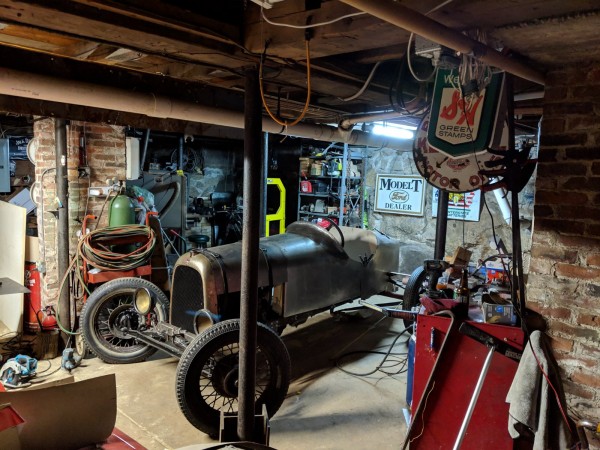

I rolled the car outside for the first time ever a month or so ago to get the juices flowing again.

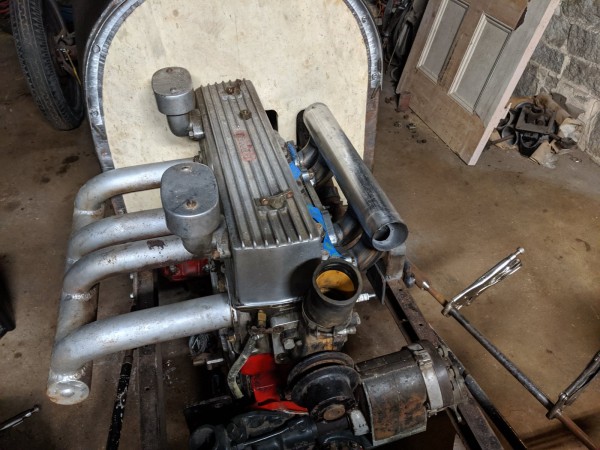

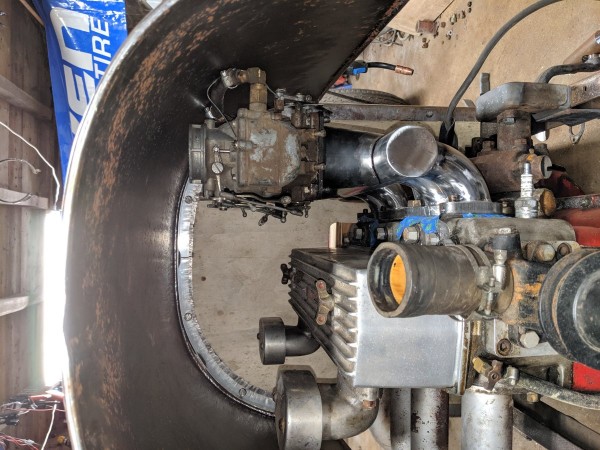

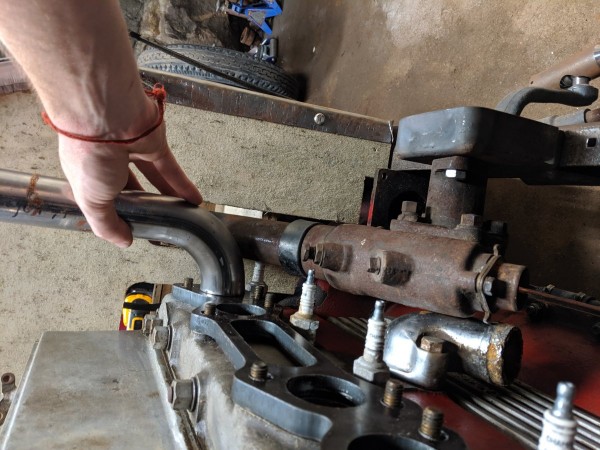

So back to the engine. The intake manifold that came with the engine came straight out of the head and contacted the steering column. Therefore I had make one which entered the head at 90*. I purchased a flange from Rob and got to work.


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Sep 10, 2019 5:34 pm



Henry K. Lee
Posts: 1559
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Model T Special build.

Post by Henry K. Lee » Tue Sep 10, 2019 6:27 pm

Looking Good Shane!!!!

I want to see the permission slip from the wife proving you could go out and play!! LOL

All the Best,

Hank


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Sep 10, 2019 6:28 pm

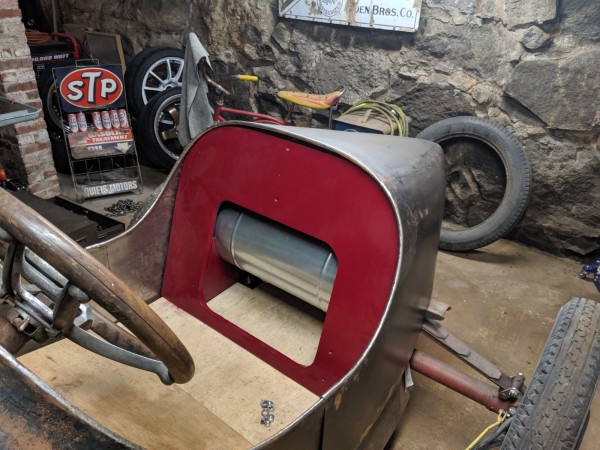

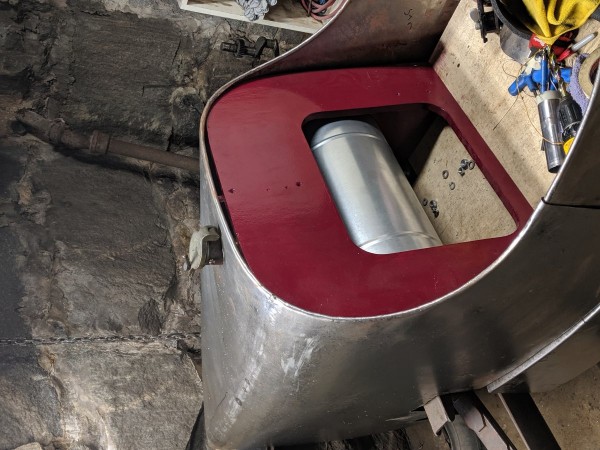

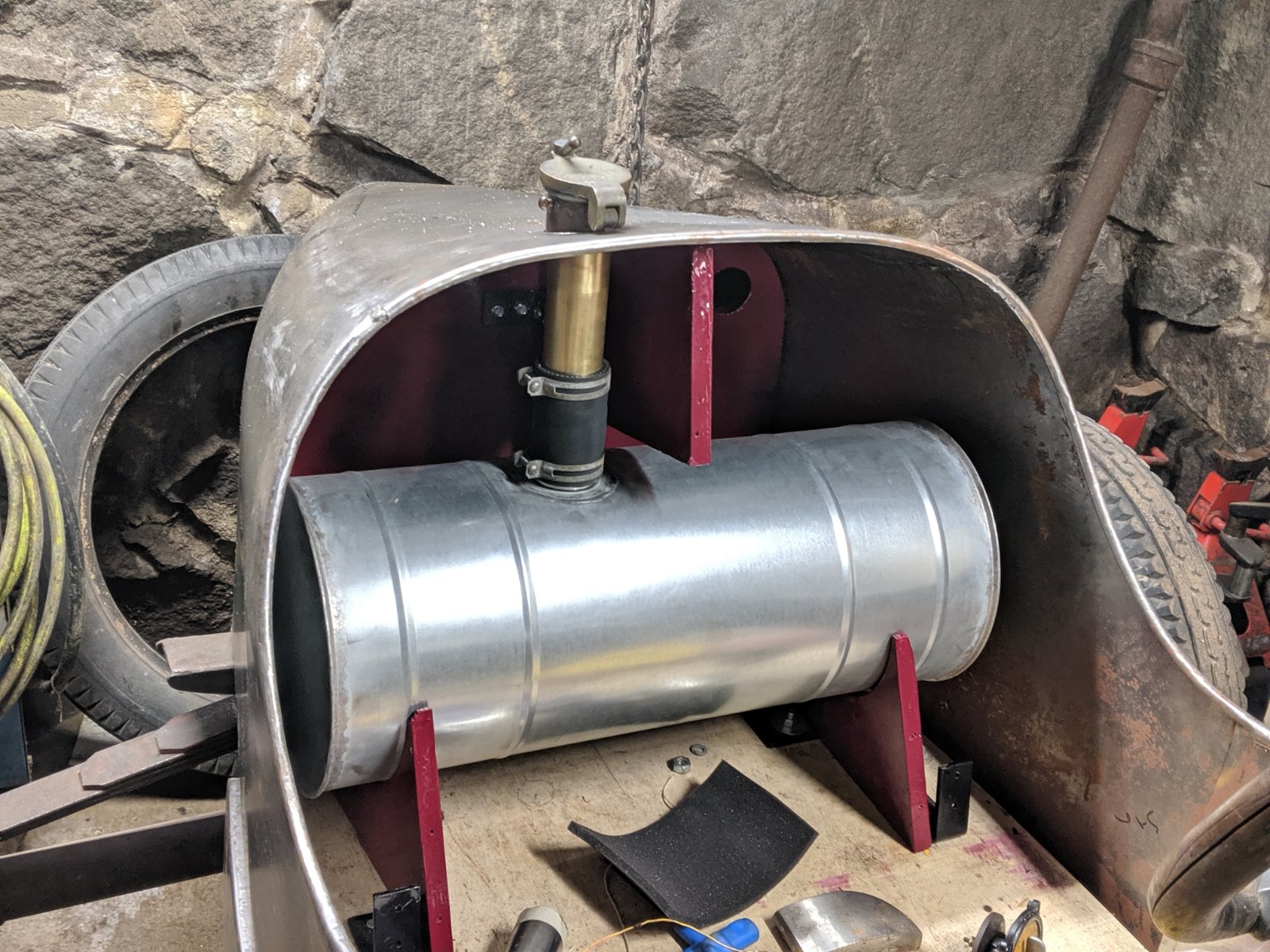

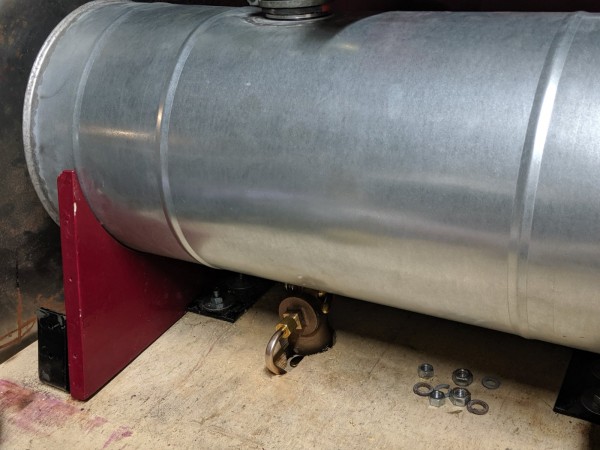

I then began working on the fuel system. The gentleman who builds the reproduction T tanks made me a custom one which is 3" narrower and sits behind the seat nicely. I then got a fuel fill adapter which threads into the tank, a fuel coupling, some t radiator hose clamps, a brass pipe, and a cool old brass flip top filler and created the filler neck. I used a harbor freight hydraulic knock out punch to put a perfectly round hole in the body. I also soldered the filler cap on because the tank will be pressurized.

[attachment=4]IMG_20190814_164531.jpg[/attachment]

[attachment=3]00000PORTRAIT_00000_BURST20190902151226754.jpg[/attachment]

[attachment=2]00000PORTRAIT_00000_BURST20190902151904705.jpg[/attachment]

[attachment=1]IMG_20190902_151627.jpg[/attachment]

I then began running fuel line from front to back. I purchased a repop sediment bulb and installed that. I modified it by drilling it to accept a 5/16 fuel hardline to supply the dual downdraft carbs. The line material I used is Cunifer which is a copper nickel hybrid material. It had the old look but is more resistant to cracking/hardening. There is a short length of rubber fuel line between the tank and frame, frame and engine. That should relieve strain on any hardlines.

[attachment=0]00000PORTRAIT_00000_BURST20190908153306682.jpg[/attachment]
Attachments


Topic author
Shane Lach
Posts: 128
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Model T Special build.

Post by Shane Lach » Tue Sep 10, 2019 6:34 pm

Here's the fuel line photos.

I also found time to make some plug wires for my high tension magneto!

I have to send this out and have it serviced/rebuilt but I'm out of cash for a while. Next up is running an air line from the dash mounted fuel pressure pump to the filler neck. That way I can push the fuel to the carbs. Once these things are complete, I should be able to start this thing. Much thanks to Hank for the starter and generator which will be added in my next post.
Attachments

Post Reply Previous topicNext topic
