Hello!
I plan to refresh the threads on the cast iron section of my Vaporizor where the bowl mounts. What are the sizes of the thread taps I need to do all the threads?
Vaporizor Threads
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Lorentz - Norway
Topic author - Posts: 4
- Joined: Sat Feb 20, 2021 5:20 am
- First Name: Lorentz
- Last Name: Lorentzen
- Location: Arendal Norway
Vaporizor Threads
- Attachments
-

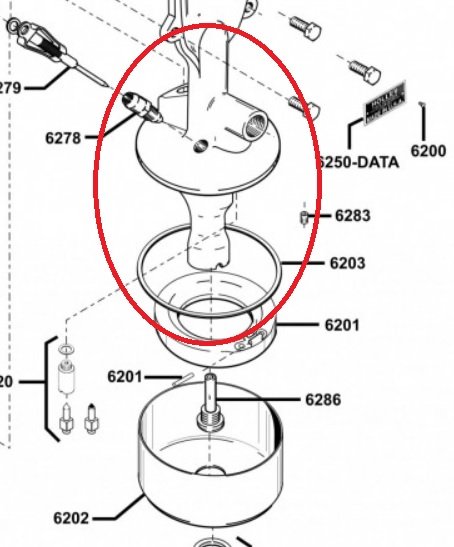

- Vaporizer.jpg (39.12 KiB) Viewed 1445 times
-
jab35
- Posts: 1001
- Joined: Sun Jan 06, 2019 12:28 pm
- First Name: James
- Last Name: Bartsch
- * REQUIRED* Type and Year of Model Ts owned: '26 Coupe
- Location: Dryden, NY 13053
- MTFCA Life Member: YES
Re: Vaporizor Threads
Lorentz:
Here are a few answers taken from some notes I made in 2012. These are us standard thread in inches and number of threads per inch. Before you purchase these taps, I would confirm correct specifications.
Part 6278 1/8" standard taper pipe thread (NPT)
part 6286 3/8"-24 threads per inch
part 6220 float needle seat 1/4"-32
6219-91 bottom bowl nut 9'16-24
6283 needle seat - I do not know thread specifications
good luck with your restoration, jb
Here are a few answers taken from some notes I made in 2012. These are us standard thread in inches and number of threads per inch. Before you purchase these taps, I would confirm correct specifications.
Part 6278 1/8" standard taper pipe thread (NPT)
part 6286 3/8"-24 threads per inch
part 6220 float needle seat 1/4"-32
6219-91 bottom bowl nut 9'16-24
6283 needle seat - I do not know thread specifications
good luck with your restoration, jb
-
Lorentz - Norway
Topic author - Posts: 4
- Joined: Sat Feb 20, 2021 5:20 am
- First Name: Lorentz
- Last Name: Lorentzen
- Location: Arendal Norway
Re: Vaporizor Threads
Hey!
Thanks for quick reply. Would like to know the last one also, anyone?
Best regards Lorentz
Thanks for quick reply. Would like to know the last one also, anyone?
Best regards Lorentz
-
OilyBill
- Posts: 641
- Joined: Sat Apr 25, 2020 3:51 pm
- First Name: William
- Last Name: May
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout
- Location: Tucson, Arizona
Re: Vaporizor Threads
Needle Seat thread is 10-32.
-
Lorentz - Norway
Topic author - Posts: 4
- Joined: Sat Feb 20, 2021 5:20 am
- First Name: Lorentz
- Last Name: Lorentzen
- Location: Arendal Norway
Re: Vaporizor Threads
Thanks for your help!
Lorentz
Lorentz
