Model T in 1914-Old Photo
Notice the headlights.
-
Benji
- Posts: 370
- Joined: Tue Jun 04, 2019 8:37 pm
- First Name: Benjamin
- Last Name: Eckstein
- * REQUIRED* Type and Year of Model Ts owned: 24 Roadster Pickup, 13 Runabout, 13 Touring, 14 Light Delivery, 15 Speedster
- Location: Metamora, IN
- Board Member Since: 2012
Re: Model T in 1914-Old Photo
Looks like a 1913
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Model T in 1914-Old Photo
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: Model T in 1914-Old Photo
Looks to me like reflector and globe.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Model T in 1914-Old Photo
The forward folding top windscreen is usually associated with 1913 models. The headlights look like Brown lights, fitted with full reflectors and globes.
But the cation does not lie. The car has 1914 tags.
Allan from down under.
But the cation does not lie. The car has 1914 tags.
Allan from down under.
-
BHarper
- Posts: 237
- Joined: Sun Jan 06, 2019 11:15 am
- First Name: Bill
- Last Name: Harper
- * REQUIRED* Type and Year of Model Ts owned: '14 Touring, '20 TT Farm Truck, '24 TT Depot Hack, '24 Coupe, and a 1914 Metz Model 22 Torpedo Runabout
- Location: Keene, New Hampshire
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Model T in 1914-Old Photo
Hi Steve and Kerry. I think that both of you are right.
If we look carefully at the headlamps, the top of the smoke bonnet can just barely be seen behind the headlamp rim/ headlamp door. These ARE gas lamps.
There is no gas burner to be seen and no Mangin mirror either as they have been replaced with one of the aftermarket kits available at that time.

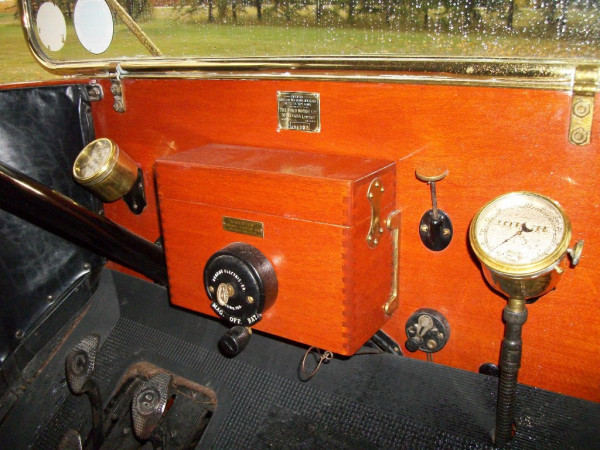

These kits provided you with silvered reflectors, bulbs, wire, and a switch to convert your lamps from gas to electricity. Also note the position of the lad standing on the running board at the driver's side. He is standing just about where the gas generator would be mounted, suggesting that it has been removed as it is no longer needed by the now electrically powered lamps.

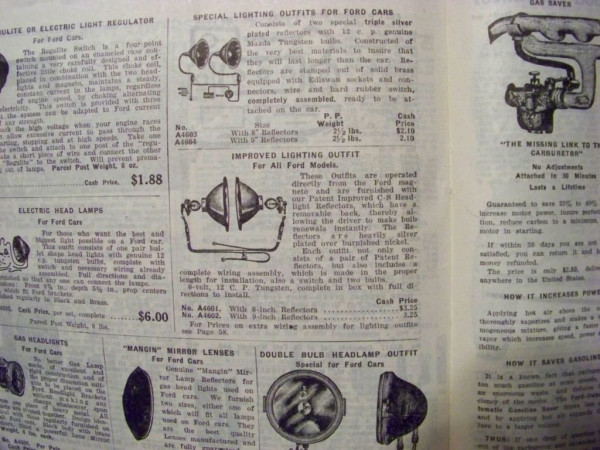

The advertisement for the "Improved Lighting Outfit" shows the kit which is my '14 touring and was likely installed by the original owner of the car, along with a few other period accessories to make touring more pleasurable.

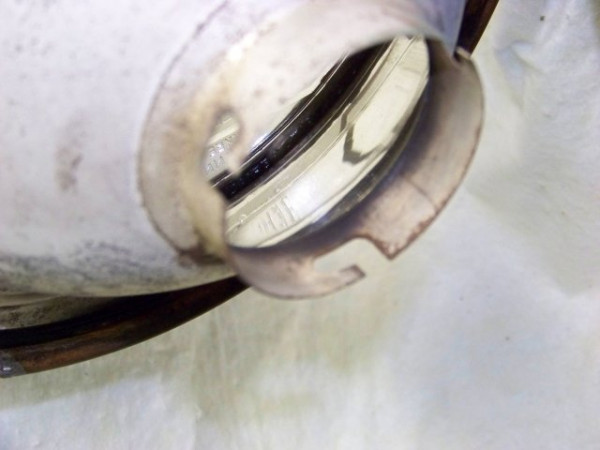

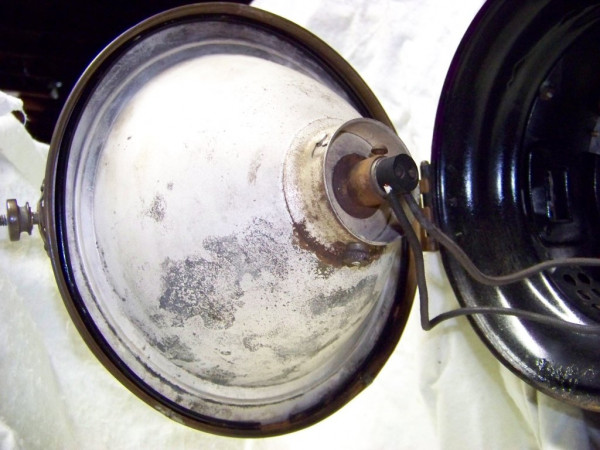

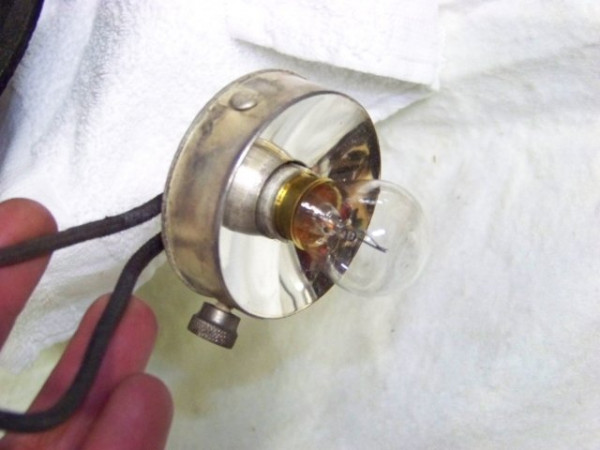

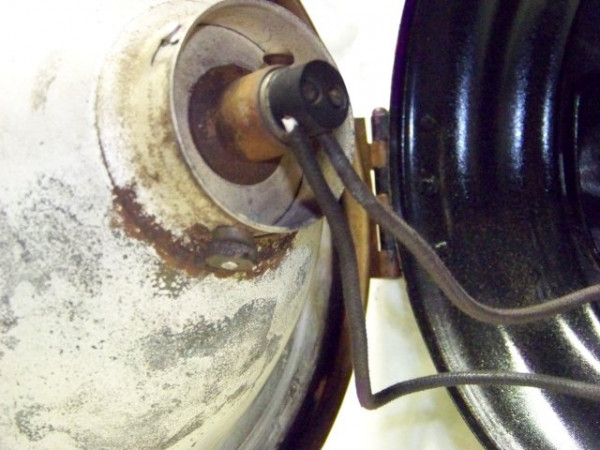

The Improved kit permits the bulb to be accessed from the rear of the reflector, for replacement when necessary. The lower cost units require that the reflector be removed from the headlamp door/rim to access the bulb from the front, which is inconvenient at best and risks dropping and breaking the lens.
If we look carefully at the headlamps, the top of the smoke bonnet can just barely be seen behind the headlamp rim/ headlamp door. These ARE gas lamps.
There is no gas burner to be seen and no Mangin mirror either as they have been replaced with one of the aftermarket kits available at that time.
These kits provided you with silvered reflectors, bulbs, wire, and a switch to convert your lamps from gas to electricity. Also note the position of the lad standing on the running board at the driver's side. He is standing just about where the gas generator would be mounted, suggesting that it has been removed as it is no longer needed by the now electrically powered lamps.
The advertisement for the "Improved Lighting Outfit" shows the kit which is my '14 touring and was likely installed by the original owner of the car, along with a few other period accessories to make touring more pleasurable.
The Improved kit permits the bulb to be accessed from the rear of the reflector, for replacement when necessary. The lower cost units require that the reflector be removed from the headlamp door/rim to access the bulb from the front, which is inconvenient at best and risks dropping and breaking the lens.
Bill Harper
Keene, New Hampshire
Keene, New Hampshire
-
RichJ
- Posts: 365
- Joined: Sun Jan 13, 2019 7:53 am
- First Name: Rich
- Last Name: Jesteadt
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1913 Touring project w. "A" crank shaft
- Location: SE Florida
Re: Model T in 1914-Old Photo
Is there by any slim chance any one has any of these up grade headlamps in there colection
I would be a buyer !!!! Rich J 561 262 0393 or the modern teckey ways
I would be a buyer !!!! Rich J 561 262 0393 or the modern teckey ways
-
Colin Mavins
- Posts: 367
- Joined: Sun Jan 06, 2019 1:36 pm
- First Name: Colin
- Last Name: Mavins
- Location: Winnipeg Canada
Re: Model T in 1914-Old Photo

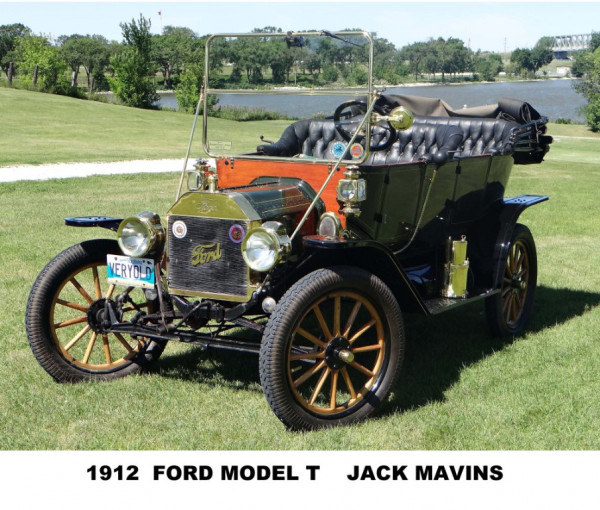

My 1912 has had Mag lights since 1915 installed by Dr Bond at a cost of $3.25 . The reflector clips into the original lamp rim,the burner is removed to allow clearance.
