My original pan was unuseable so I bought another one. It has straight side rails and good threads and is in good shape.
It does not fit the rear bearing.
Murray Fahnestock says to straighten the pan by attaching to the block and using wood block and large hammer.
My concern is will that damage the block. I need to move it a little over 1/16”
Crankcase fit on 4th main
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
John Illinois
Topic author - Posts: 171
- Joined: Mon Jul 29, 2019 1:49 pm
- First Name: John
- Last Name: Burgett
- * REQUIRED* Type and Year of Model Ts owned: 1924 Touring
- Location: Camargo Illinois

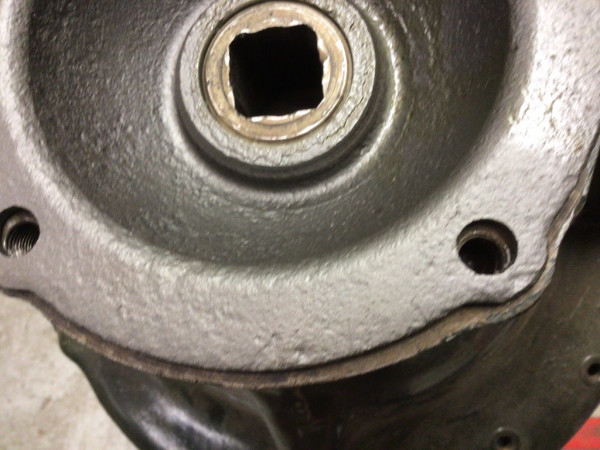

Crankcase fit on 4th main
- Attachments
-
-
Dan Hatch
- Posts: 5018
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: Crankcase fit on 4th main
You need to find someone with a pan jig. Dan
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Crankcase fit on 4th main
how i do it. mount pan to block in the VERTICAL position before gaskets. Place 4th main down watching for uneven contact . if not perfect, i bolt a 4th main core upside down & persuede the back of the pan in the proper direction with a #4 dead blow hammer. The extra 4th main is to protect the pans shape. recheck between adjustments with your new 4th main. 1/16 is easy.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Crankcase fit on 4th main
I have rarely needed a pan jig. In fact a local guy that has a pan jig has never for me produced a straight enough pan. So even if you have a pan straigtened."trust but verify"
-
Jack Putnam, in Ohio
- Posts: 457
- Joined: Sun Jan 06, 2019 7:19 pm
- First Name: Jack
- Last Name: Putnam
- Location: Bluffton, Ohio
Re: Crankcase fit on 4th main
You need a pan jig and somebody that knows what they are doing.!
-
ABoer
- Posts: 229
- Joined: Mon Jan 07, 2019 2:41 pm
- First Name: Anthonie
- Last Name: Boer
- * REQUIRED* Type and Year of Model Ts owned: 1912 touring 1923 roadster 1925 pickup
- Location: Klaaswaal NL
Re: Crankcase fit on 4th main

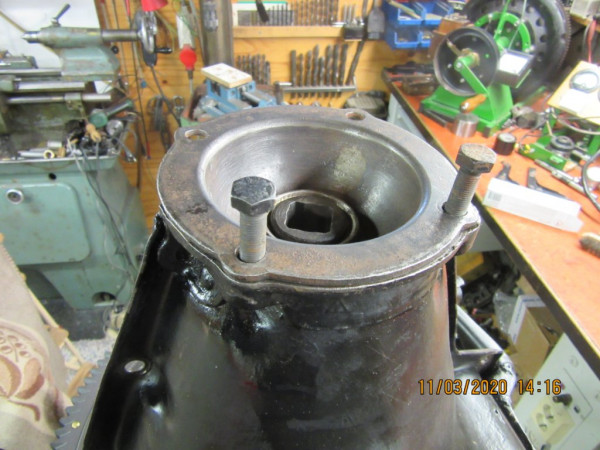

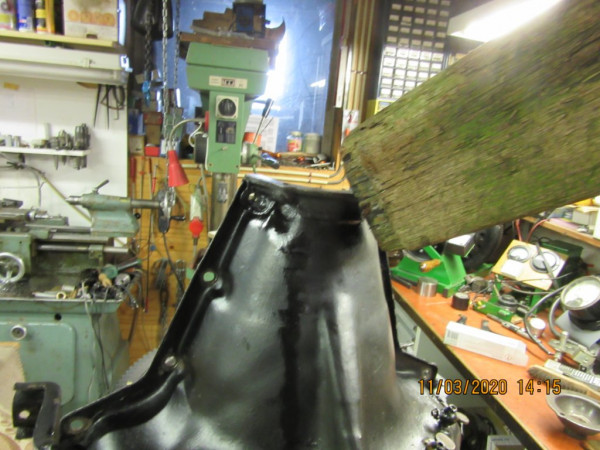

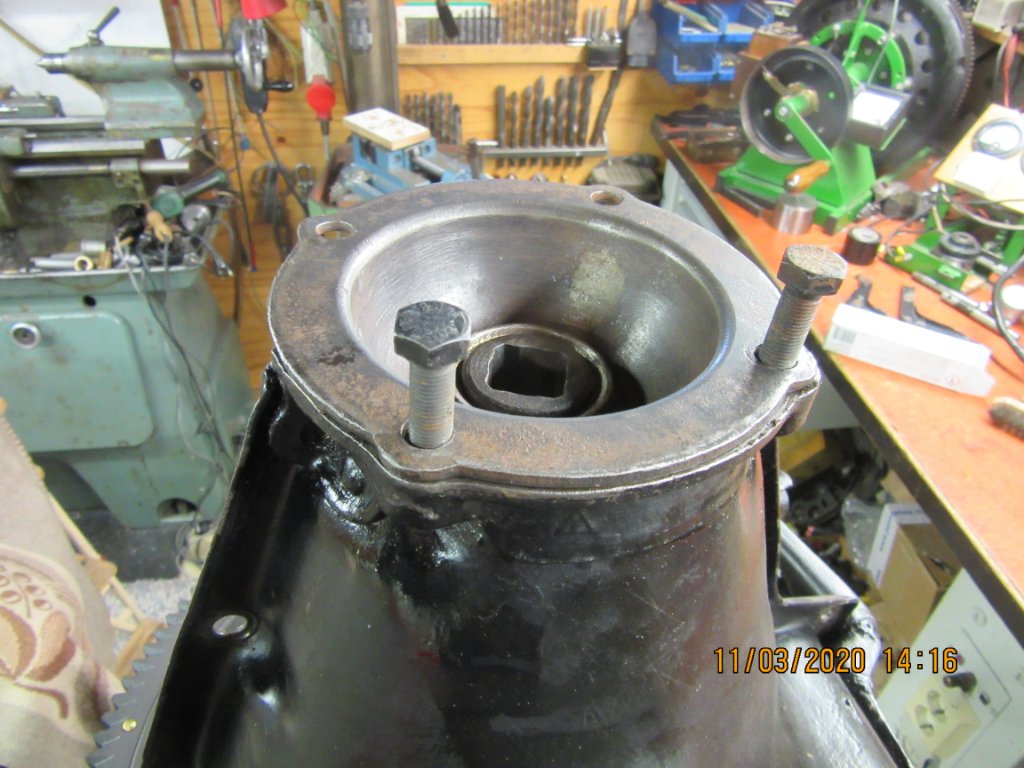

Yes ; I have a Pan Jig , but the lasts mack I give with a HEAVY wood block .
Toon
Toon
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Crankcase fit on 4th main
When I took my engine apart, the 4th dropped in and out just fine and holes lined up. While the pan was sitting waiting for the babbitt it kinda relaxed. Except for the head and hogs head the engine was assembled when I found out it was off a little. I put a block of wood on top of the block and sat a jack on that, then ran a chain over the top front to rear and pulled the rear back up the small amount it had dropped. I did bring if up a little more then needed and when done, the 4th dropped right in.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Crankcase fit on 4th main
I resorted to a similar process to Mark. On my 1915 pan, which I first set up on a pan jig to check for straighteners, it was perfect when I had finished with it. On assembly, the fourth.main was 1/16+" out. Before tearing it off and having another try, I let it sit for a day or two while I considered the problem, and came to the conclusion there was nothing I would do differently. So I used a jack and chains to persuade it to fit. The early pans without the rolled edges are prone to easy flexing. I Checked again with the motor vertical on the stand Before I was happy.
Allan from down under.
