Front Fender Wrinkle Removal?

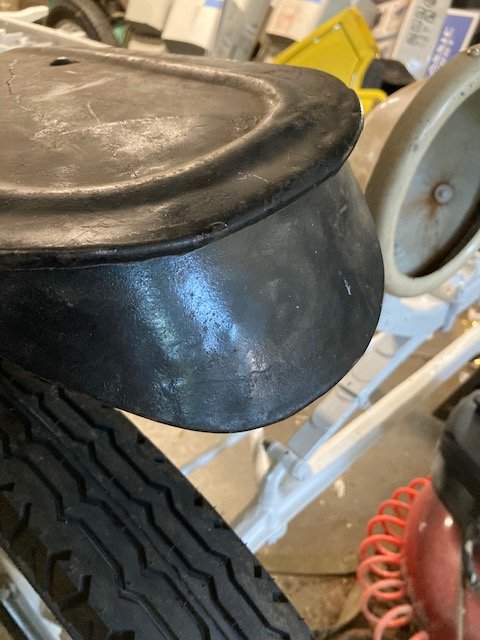

Hi, so my front fenders have wrinkles in the bill pictured. There is more wrinkles than meet the eye in the picture. I have a hammer and dolly and more or less know how to use it but I am wondering if there is a better way to return it to smooth? My previous experience on other cars with hammer and dolly resulted in improvement but still needing body filler at least to skim it. So I thought I would ask before I go down the usual road with a less than good result.
-
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Front Fender Wrinkle Removal?
Different strokes for different folks but what you did previously is what I did on my fenders that had the dimples and wrinkles that weren’t real bad but needed attention. I used very little filler but they did turn out pretty good. To each their own on how to do it without a lot of hammer and dolly work.
Some people think it’s a mortal sin if you use body filler. That’s a whole other subject but it works well and it did for me. It usually depends on who’s doing it.
Some people think it’s a mortal sin if you use body filler. That’s a whole other subject but it works well and it did for me. It usually depends on who’s doing it.
-
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Front Fender Wrinkle Removal?
That is the worst spot to get to also. The under side of the front lip needs to be supported as well as the underside of the bead. Then you can push the hump down. Easier said than done. I have made curved bars to form fenders before.
The wrinkle behind the bead could be straightened with two plates and a big C-clamp.
Best of luck.
Rich
The wrinkle behind the bead could be straightened with two plates and a big C-clamp.
Best of luck.
Rich
When did I do that?
-
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Front Fender Wrinkle Removal?
You need a well-fitting dolly and will probably have to make one. Use with a slapping file or slapping spoon and you will be shocked at the improvement.
Search YouTube for videos on using a slapping file or slapping spoon and you'll see what you need to do. They will not stretch the metal like a hammer will and you will not get into serious trouble with stretched metal in this area like a hammer will do.
Search YouTube for videos on using a slapping file or slapping spoon and you'll see what you need to do. They will not stretch the metal like a hammer will and you will not get into serious trouble with stretched metal in this area like a hammer will do.
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Front Fender Wrinkle Removal?
There are several YouTube videos suggesting different methods. You need to shrink the metal bumps
This video shows a really bad area with many issues and how it was approached https://www.youtube.com/watch?v=rt07pLebQwQ
This is just an step by step explanation (no video) https://www.classiczcars.com/forums/top ... t-bumping/
This video shows a really bad area with many issues and how it was approached https://www.youtube.com/watch?v=rt07pLebQwQ
This is just an step by step explanation (no video) https://www.classiczcars.com/forums/top ... t-bumping/
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Front Fender Wrinkle Removal?
Ignacio
the old book, The Key to Metal Bumping, is an industrial arts degree in a book (which can be read in an evening). You will be amazed at what can be done (and what often isn't done right at a body shop) with very simple hand tools after analyzing the job. Not all bumps are stretched metal. Make haste slowly!
https://www.ebay.com/itm/363319342328?c ... 1&mkcid=28
the old book, The Key to Metal Bumping, is an industrial arts degree in a book (which can be read in an evening). You will be amazed at what can be done (and what often isn't done right at a body shop) with very simple hand tools after analyzing the job. Not all bumps are stretched metal. Make haste slowly!
https://www.ebay.com/itm/363319342328?c ... 1&mkcid=28
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
- Posts: 2246
- Joined: Sun Jan 06, 2019 11:39 am
- First Name: Tim
- Last Name: Juhl
- * REQUIRED* Type and Year of Model Ts owned: 1917 Touring
- Location: Thumb of Michigan
- Board Member Since: 2018
Re: Front Fender Wrinkle Removal?
When I was preparing to install my new interior I hired one of those "Paintless dent removal" guys. He took out a bunch of dings and removed a crease in my hood. I can't tell they were ever there.
