I need to re-line the AC auxiliary brakes on my '20 speedster, so I must remove the 1919 or so Hays wire wheels. The passenger side was removed without an issue, but the wheel on the driver's side won't budge.
What can I do to remove the hub? Is there a hub puller made specifically for these early wires?
Thanks, David
'19 Hays Wire Wheel Stuck on Car
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Dropacent
- Posts: 3384
- Joined: Sun Jan 06, 2019 11:39 am
- First Name: Tim
- Last Name: Morsher
- * REQUIRED* Type and Year of Model Ts owned: 1925TT, 1926 Martin-Parry bodied wagon, 1927 mercury bodied speedster
- Location: Norwalk Ohio
Re: '19 Hays Wire Wheel Stuck on Car
Having owned and used those, they are bear to get off. If not confident using an axle knocker nut,( that’s the easiest and best way ). back the nut off a couple threads and drive around just a short bit. They usually will come unglued. Don’t overdo the driving. I always truly enjoyed installing cotter pins in my Hayes. I invented a couple new words until I got the hang of making curved cotter keys,
-
Buckelew
Topic author - Posts: 4
- Joined: Wed Jan 16, 2019 5:07 pm
- First Name: David
- Last Name: Walker
- * REQUIRED* Type and Year of Model Ts owned: 1920 speedster, 1925 v8 roadster
- Location: Ardmore, AL/TN
- Board Member Since: 2009
Re: '19 Hays Wire Wheel Stuck on Car
Thanks, will try it. The other side has always loosened itself, and the driver's side has always been a bear but never this bad.
-
Dan Hatch
- Posts: 5018
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: '19 Hays Wire Wheel Stuck on Car
Hayes made a special puller for the rear. Screws in like hub cap and pulls wheels. Dan
-
ThreePedalTapDancer
- Posts: 1631
- Joined: Sun Nov 24, 2019 2:29 pm
- First Name: Ed
- Last Name: Martin
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
- Location: Idaho
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: '19 Hays Wire Wheel Stuck on Car

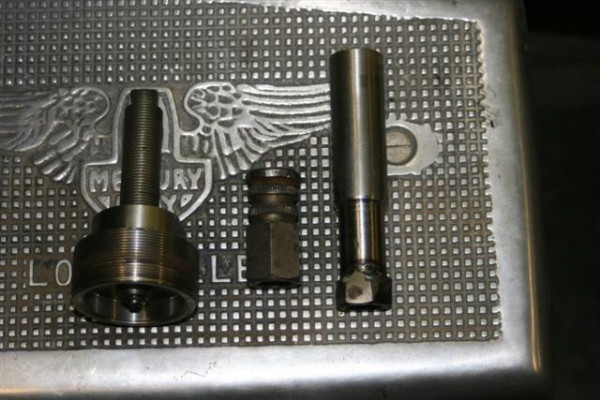

My son made me a puller. It is a simple thick steel disc with the hubcap thread machined on the outside. He heavily welded a large nut on the outside and this is used to screw the unit into the wheel. A bolt screws through the large nut to register on the axle to provide the 'push' to get the wheel free.
It works like a charm, and I have since found out that a factory Hayes puller works the same way, except that the hex to screw it into the wheel is part of the Machined disc.
Hope this helps,
Allan from down under.
It works like a charm, and I have since found out that a factory Hayes puller works the same way, except that the hex to screw it into the wheel is part of the Machined disc.
Hope this helps,
Allan from down under.
