by dykker5502 » Wed Aug 04, 2021 1:39 pm

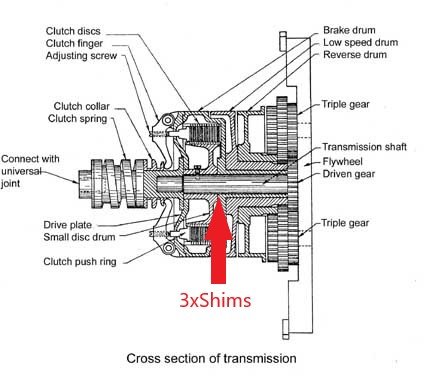

I am about to assemble my transmission for the pick-up. As I recall from the previous reassmble I did, there is 3 shims on the tramsmission shaft between the brakedrum and the clutch hub. See the figure below.
- Crosssectiontransmissionwithshims.jpg (31.02 KiB) Viewed 1560 times
The reason for my questiuon is that I have maybe 7 or 8 shims and I cant remember if they all came out of the transmission when I took it apart ½ year ago or more

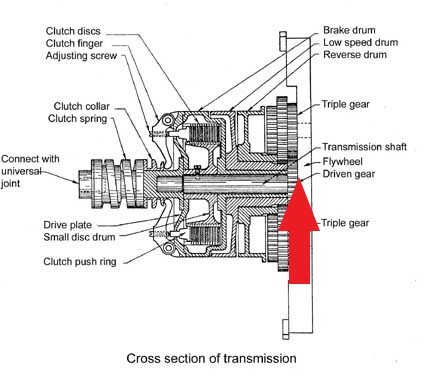

I'm wondering if ther is also say 3 shims on the transmission shaft before you put the gear assemble on the shaft? See drawing:
- Crosssectiontransmissionshimshere.jpg (29.98 KiB) Viewed 1560 times
Your wise advice are as always appriciated!
Ford Model T 1914 Touring
Ford Model T 1921 Roadster Pick-up
Ford Model T 1922 Fordor (danish build body)
ECCT, Strobospark, HCCT(Sold), Rebuilding coils
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Post
by speedytinc » Wed Aug 04, 2021 1:53 pm
No other washers anywhere else. Those washers are used to get a proper clearance. Around .022" ?
See your service manual for the dimensional range.
-
Topic author
dykker5502
- Posts: 467
- Joined: Mon Jan 07, 2019 7:01 pm
- First Name: Michael
- Last Name: Deichmann
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1921 Roadster P/U, 1922 Fordor (danish custom body)
- Location: Rågeleje, Denmark
- Board Member Since: 2007
Post
by dykker5502 » Wed Aug 04, 2021 5:05 pm
OK, thanks! That was what I thought. I must have got those three shims mixed up with some I had on the workbench from another gearbox.
