1910 Side lamp brackets position on firewall

Post by John Haynes » Mon Sep 06, 2021 4:07 pm

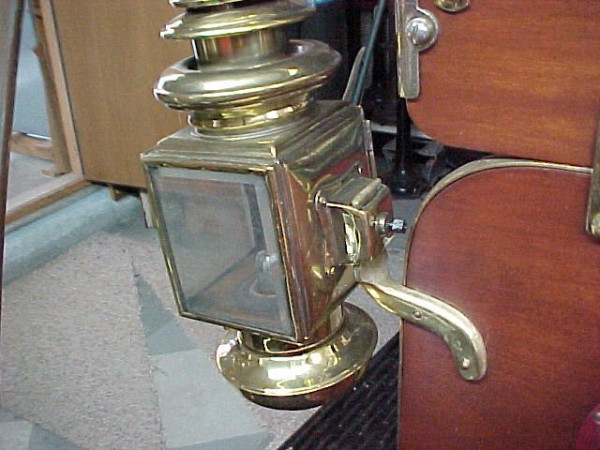

I am preparing to replace the firewall on my 19100. The car has an older restoration and the side lamp brackets used were not the correct ones. I now have the correct ones but the holes in the firewall do not match the correct brackets. Does anyone have the correct measurement of the placement of the side lamp brackets for a 1910? I have attached a photo of the incorrect bracket on the firewall. Thank you!
Attachments

User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: 1910 Side lamp brackets position on firewall

Post by Rich Eagle » Mon Sep 06, 2021 4:58 pm

I hope someone will have the dimensions you need. I looked at some photos and found that the placement seemed to be where the top of the square lamp body was near even with the top of the dash. You may wish to look at other old photos. When I tried to locate my '14 lamps it seemed there were differences in the height of 2" or more. Not all were mounted the same.
Best of luck in your search.
Rich
When did I do that?


R.V.Anderson
Posts: 680
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
* REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
Location: Kennedy, NY

Re: 1910 Side lamp brackets position on firewall

Post by R.V.Anderson » Mon Sep 06, 2021 6:16 pm

OK John; here ya go, from the Ford drawing: Both holes are 5/16" diameter. The center of the upper hole is located 14-1/4" from the centerline of the dash, and 5-3/8" down from the top edge (no molding). The center of the lower hole is 2-1/2" below the center of the upper hole, and 17/32" outboard of it. Hope this helps.

User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:

Re: 1910 Side lamp brackets position on firewall

Post by DanTreace » Mon Sep 06, 2021 6:49 pm

That's great R.V.!

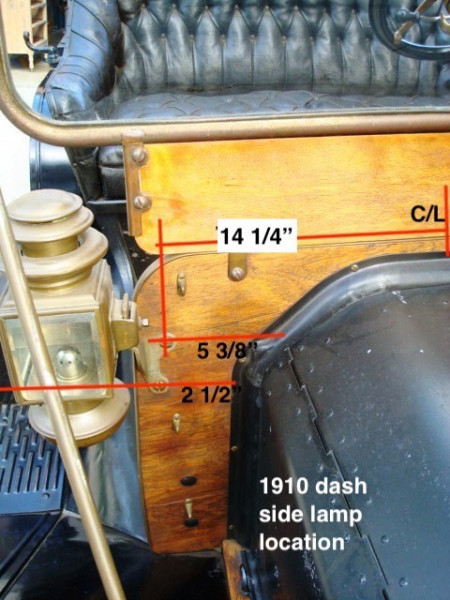

So added those key dimensions to photo of an original 1910 to show relationship of the bracket on the dash.


1910 side light location copy.jpg

Revised with 14 1/4" from center line.
Last edited by DanTreace on Tue Sep 07, 2021 10:20 am, edited 2 times in total.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Topic author
John Haynes
Posts: 150
Joined: Tue Jan 08, 2019 11:56 am
First Name: John
Last Name: Haynes
* REQUIRED* Type and Year of Model Ts owned: 1910,1911,1912,1913.1914
Location: Chadron, NE 69337

Re: 1910 Side lamp brackets position on firewall

Post by John Haynes » Mon Sep 06, 2021 6:56 pm

Thank you Gentlemen!! That is exactly what I needed.


R.V.Anderson
Posts: 680
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
* REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
Location: Kennedy, NY

Re: 1910 Side lamp brackets position on firewall

Post by R.V.Anderson » Mon Sep 06, 2021 7:42 pm

Nice photo Dan, but I think your 14-1/2" should be 14-1/4".


R.V.Anderson
Posts: 680
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
* REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
Location: Kennedy, NY

Re: 1910 Side lamp brackets position on firewall

Post by R.V.Anderson » Tue Sep 07, 2021 10:15 am

:D :D :D :D
