Is this Threshold Correct?

Post by SurveyKing » Sat Mar 23, 2019 8:28 am

Can someone post a photo of a correct threshold for a 23-25 Rear Touring Door? This photo is of my right rear threshold for my 1924, should the metal pieces be joined here or is this correct?

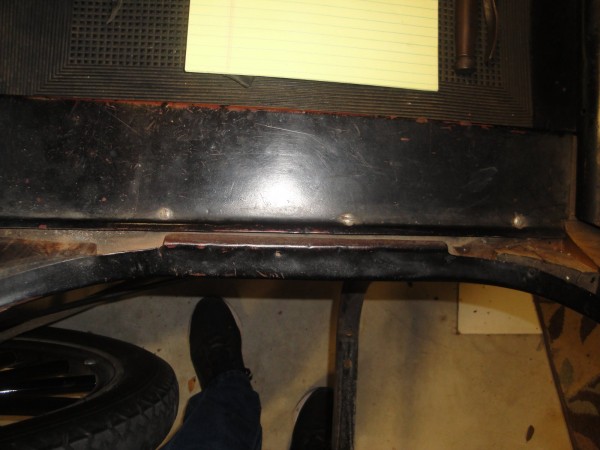

Looking down on the right rear threshold
Looking down on the right rear threshold
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Is this Threshold Correct?

Post by DanTreace » Sat Mar 23, 2019 8:40 am

Correct, except typical production the wood filler pieces above the sill are tapered up and a bit more flush with the edges of the metal threshold at each upper corner. The exposed wood painted with body pieces installed.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Is this Threshold Correct?

Post by DanTreace » Sat Mar 23, 2019 9:02 am

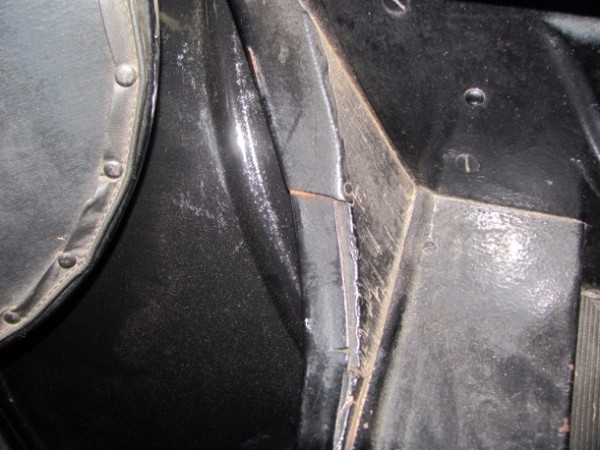

View at rear seat heel panel

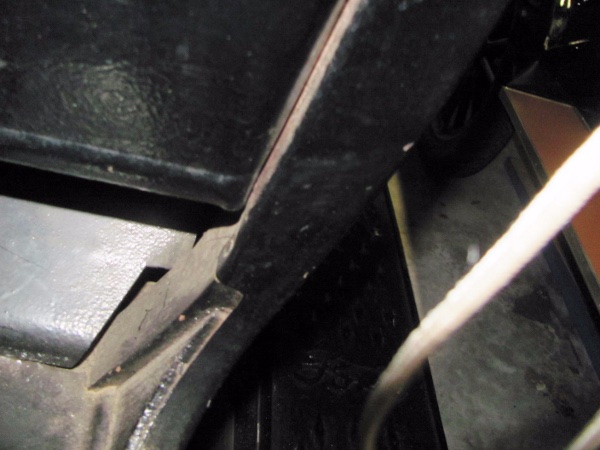

View at front seat backrest toe panel
IMG_3123 (600x450).jpg
IMG_3123 (600x450).jpg (92.62 KiB) Viewed 4435 times

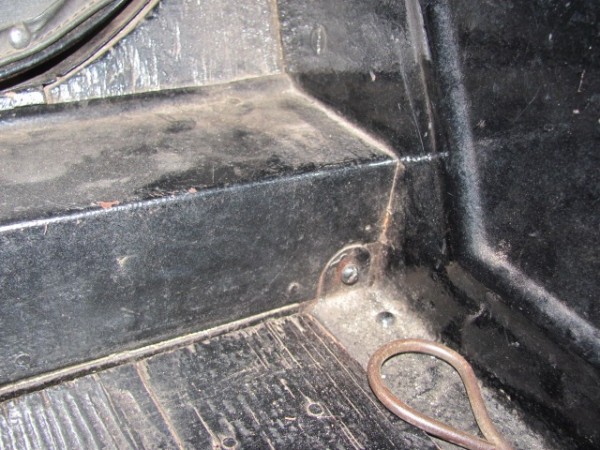

Another view rear seat toe panel
IMG_3122 (610x458).jpg
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Topic author
SurveyKing
Posts: 504
Joined: Thu Jan 10, 2019 8:36 am
First Name: Daniel
Last Name: Snell
* REQUIRED* Type and Year of Model Ts owned: 1909 Touring, 1924 Touring, 1925 Roadster Pickup, 1921 Touring
Location: Boerne, Texas
Board Member Since: 2014

Re: Is this Threshold Correct?

Post by SurveyKing » Sat Mar 23, 2019 10:14 am

Thanks Dan for posting those pics, a big help. Would you know what kind of wood those filler pieces are?
Top
User avatar

HornsRus
Posts: 425
Joined: Sun Jan 06, 2019 1:07 pm
First Name: Charley
Last Name: Shaver
* REQUIRED* Type and Year of Model Ts owned: 1913
Location: MO

Re: Is this Threshold Correct?

Post by HornsRus » Sat Mar 23, 2019 11:07 am

buy 23 wood was hard to get so most was pine. or any scrape on the floor.ha,ha. that's why they went to steel bodies. charley
Top

Topic author
SurveyKing
Posts: 504
Joined: Thu Jan 10, 2019 8:36 am
First Name: Daniel
Last Name: Snell
* REQUIRED* Type and Year of Model Ts owned: 1909 Touring, 1924 Touring, 1925 Roadster Pickup, 1921 Touring
Location: Boerne, Texas
Board Member Since: 2014

Re: Is this Threshold Correct?

Post by SurveyKing » Sat Mar 23, 2019 1:10 pm

Hi Charley, did you get my list of bolts, nuts that I need? Daniel Snell
Top

Topic author
SurveyKing
Posts: 504
Joined: Thu Jan 10, 2019 8:36 am
First Name: Daniel
Last Name: Snell
* REQUIRED* Type and Year of Model Ts owned: 1909 Touring, 1924 Touring, 1925 Roadster Pickup, 1921 Touring
Location: Boerne, Texas
Board Member Since: 2014

Re: Is this Threshold Correct?

Post by SurveyKing » Sat Mar 23, 2019 10:35 pm

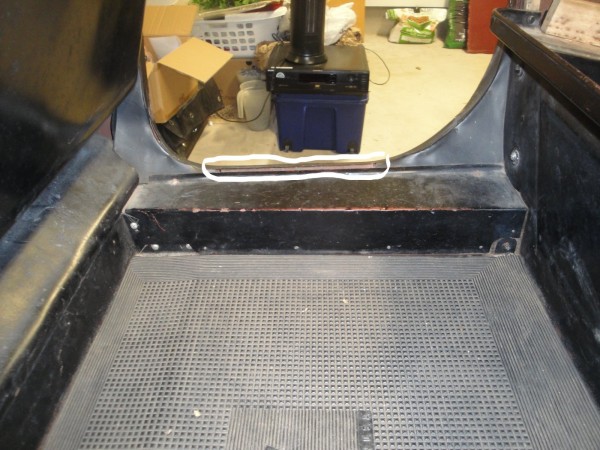

Dan Trace, On this photo I have circled a lip that is on the narrow threshold below the door. Is this lip supposed to go into a slot on the wood rail below? Mine is just resting on the wood rail and there is a space below it.
Lip on Threshold
Lip on Threshold
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Is this Threshold Correct?

Post by DanTreace » Sun Mar 24, 2019 5:02 am

Daniel. Isn’t a slot in the wood sill, that stamped metal threshold piece just folds over. Variations in assembly of parts will occur with our Model T’s!
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top
User avatar

HornsRus
Posts: 425
Joined: Sun Jan 06, 2019 1:07 pm
First Name: Charley
Last Name: Shaver
* REQUIRED* Type and Year of Model Ts owned: 1913
Location: MO

Re: Is this Threshold Correct?

Post by HornsRus » Sun Mar 24, 2019 9:52 am

yes i have your list! i will be working on it. charley
