No Volt Meter on Hand Crank Coil Tester….
I will be going through some spare coils this next week and my books on the subject are in another location. My HCCT has a ammeter but no volt meter. Do I remember correctly that cranking at kinda sorta 1 rps will give me 6 volts to work with? As I get older I wish I could adapt this unit to some sort of electric motor to spin the HCCT. Need to hire someone younger to crank! . Thanks….
. Thanks….-
AandTman
- Posts: 110
- Joined: Wed Jan 16, 2019 7:55 pm
- First Name: Donald
- Last Name: Vagasky
- * REQUIRED* Type and Year of Model Ts owned: 26 Roadster 26 Touring 25TT C Cab express 26 Ames Speedster
- Location: Tucson AZ
Re: No Volt Meter on Hand Crank Coil Tester….

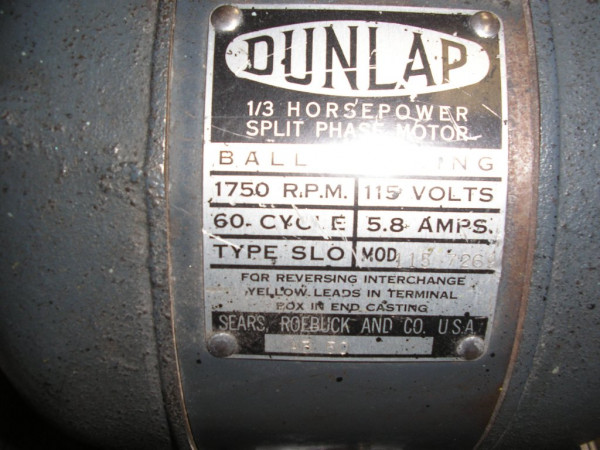

Here is what I did to mine. A small pulley on the motor and the belt around the flywheel.
- Attachments
-
-
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: No Volt Meter on Hand Crank Coil Tester….
From an previous discussion https://mtfca.com/phpBB3/posting.php?mo ... =2&t=24120
By Bob Cascisa - Poulsbo, Washington on Saturday, August 11, 2012 - 06:18 pm:
The voltage that the HCCT puts out is irrelevant. It is the current (1.3 Amps) that operates the coil regardless of the voltage. If the HCCT produces the necessary 1.3 Amps, then all is well. Some of the HCCTs have voltmeters but they really don't serve any real purpose.
By Ron Patterson-Nicholasville, Kentucky on Saturday, August 11, 2012 - 08:05 pm:
As Bob C. pointed out the Model T ignition coil is a current and not a voltage device.
That is to say when the current in the primary winding rises to the point where the coil points open the secondary winding will develop a voltage based on the applied voltage, ratio of the coils windings multiplied by the "Merit" of the coil.
Ron the Coilman
By Bob Cascisa - Poulsbo, Washington on Sunday, August 12, 2012 - 02:57 pm:
The voltmeter would tend to serve as an indicator of RPM. As RPM increases, the magneto voltage and frequency increases. As the frequency increases, the coil impedance (measured in Ohms) increases, thus the current (1.3 amps), remains the same regardless of voltage and frequency. The coil is a current operated device. It does not care if the 1.3 amps occurs at a low frequency and low voltage or at a high frequency and high voltage. The end result is the same.

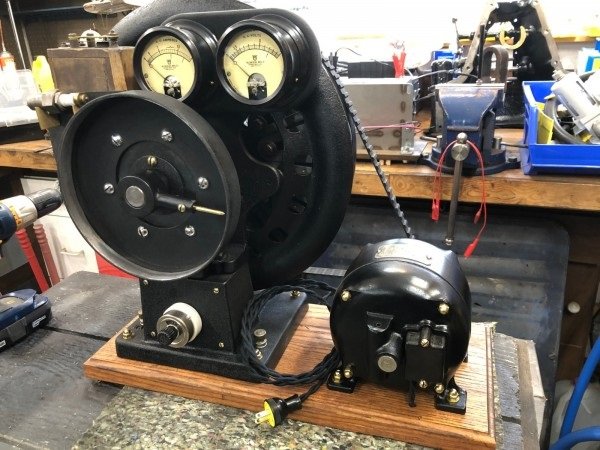

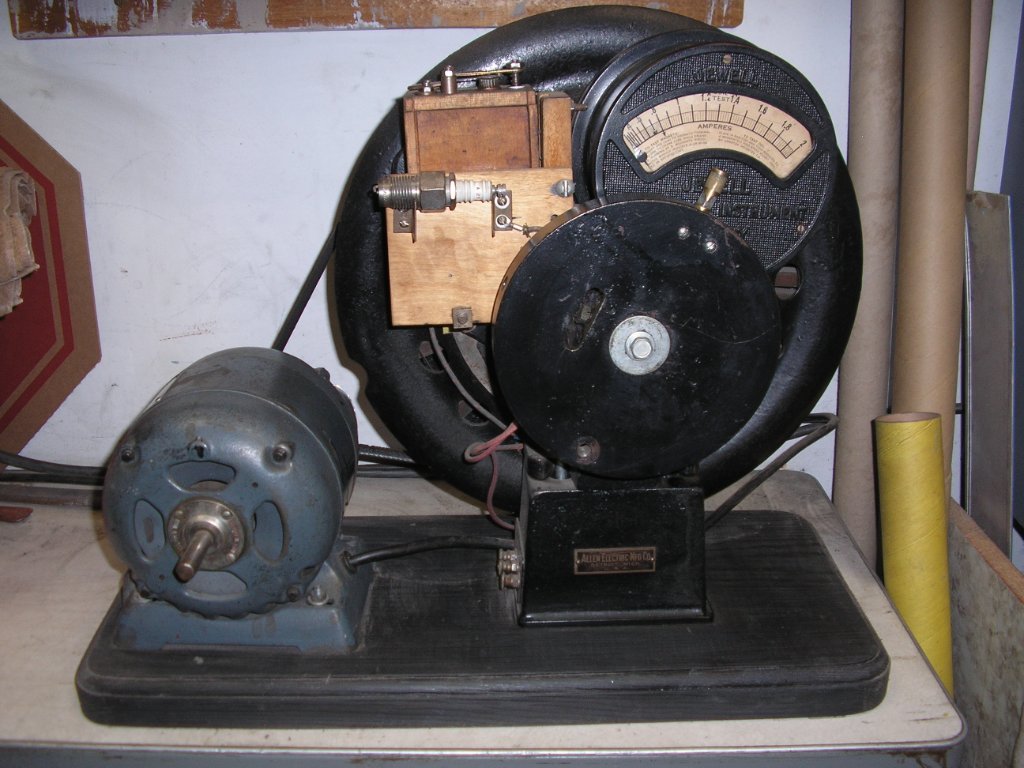

Motorized HCCT https://mtfca.com/phpBB3/viewtopic.php?t=11202
By Bob Cascisa - Poulsbo, Washington on Saturday, August 11, 2012 - 06:18 pm:
The voltage that the HCCT puts out is irrelevant. It is the current (1.3 Amps) that operates the coil regardless of the voltage. If the HCCT produces the necessary 1.3 Amps, then all is well. Some of the HCCTs have voltmeters but they really don't serve any real purpose.
By Ron Patterson-Nicholasville, Kentucky on Saturday, August 11, 2012 - 08:05 pm:
As Bob C. pointed out the Model T ignition coil is a current and not a voltage device.
That is to say when the current in the primary winding rises to the point where the coil points open the secondary winding will develop a voltage based on the applied voltage, ratio of the coils windings multiplied by the "Merit" of the coil.
Ron the Coilman
By Bob Cascisa - Poulsbo, Washington on Sunday, August 12, 2012 - 02:57 pm:
The voltmeter would tend to serve as an indicator of RPM. As RPM increases, the magneto voltage and frequency increases. As the frequency increases, the coil impedance (measured in Ohms) increases, thus the current (1.3 amps), remains the same regardless of voltage and frequency. The coil is a current operated device. It does not care if the 1.3 amps occurs at a low frequency and low voltage or at a high frequency and high voltage. The end result is the same.
Motorized HCCT https://mtfca.com/phpBB3/viewtopic.php?t=11202
- Attachments
-
- hcct.JPG (77.96 KiB) Viewed 1374 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
MichaelPawelek
Topic author - Posts: 712
- Joined: Sun Jan 06, 2019 2:01 pm
- First Name: Michael
- Last Name: Pawelek
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring, 1925 Coupe
- Location: Brookshire, Texas
- Board Member Since: 1999
Re: No Volt Meter on Hand Crank Coil Tester….
Great! Thanks for the replies and links…..
-
BE_ZERO_BE
- Posts: 628
- Joined: Sun Jan 06, 2019 12:27 pm
- First Name: BOB
- Last Name: CASCISA
- * REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
- Location: POULSBO, WA
Re: No Volt Meter on Hand Crank Coil Tester….
Michael,
Does it appear that the one meter configuration is original or has it been modified from a two meter configuration?
If this was originally a two meter coil tester, the second meter can be added.
Please post some more detailed photos of the meter and it's installation.
Does it appear that the one meter configuration is original or has it been modified from a two meter configuration?
If this was originally a two meter coil tester, the second meter can be added.
Please post some more detailed photos of the meter and it's installation.
Respectfully Submitted,
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
-
MichaelPawelek
Topic author - Posts: 712
- Joined: Sun Jan 06, 2019 2:01 pm
- First Name: Michael
- Last Name: Pawelek
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring, 1925 Coupe
- Location: Brookshire, Texas
- Board Member Since: 1999
Re: No Volt Meter on Hand Crank Coil Tester….
I bought the HCCT so long ago I don’t remember the details but it was cobbled up from different testers and rebuilt by a club member. All I vaguely remember is that he moved from up North to near Corpus Christi, Texas many years ago. Now that I know I can use it ok without the volt meter I am not too worried. Would really like one of the smaller ECCT units but it appears the Covid thing has shut the supplier down.
