Question on attaching 1920 roadster turtle deck

Post by signsup » Sun Dec 12, 2021 10:50 am

Just dry fitting what little parts I have on the 20 roadster so I know my future scope of work. Looks like I need some sort of thin wood bottom to my turtle deck, tack the side skins folded over to the bottom of the wood floor and attach as unit to rear metal skinned platform base. I've read about water concerns and using weather stipping on lid seal but mine is pretty straight and flat and has good lips on both, so, after replacing hinge pieces and getting decent latches, I should be OK. But, I'm not picturing the mating of the front of the open turtle deck to the seat skin. No turned down lip on the turtle deck front or front side. I'm feeling where some small screws might attach to side of platform, but feels like a pretty sizeable gap between deck and seat skin just laying open.
Any details on how these two parts attach so that they are tight?

And, I'm going through coffee cans this morning looking for the two lid latches. Not seeing them available from any of the vendors and going back to brass latches at almost $150 each is giving me heartburn. Any sources for 1920 flat or round lid latches?

I'll hang up and listen. Thanks in advance.

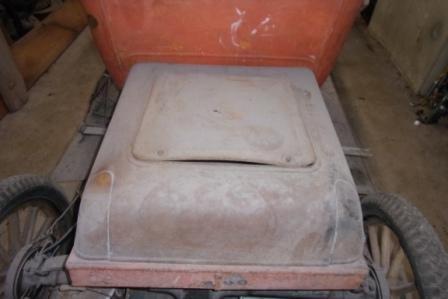

turtle deck 1.JPG
turtle deck 1.JPG (24.88 KiB) Viewed 1573 times

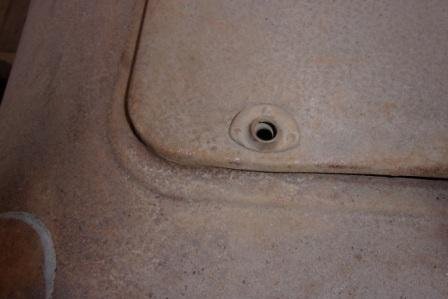

turtle deck 2.JPG
turtle deck 2.JPG (24.38 KiB) Viewed 1573 times
Why do we drive on parkways and park on driveways?

A bunch of old cars
Sometimes they run.
Sometimes, they don't.


Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Question on attaching 1920 roadster turtle deck

Post by Les Schubert » Sun Dec 12, 2021 11:54 am

I’m certainly going to follow this thread, as I have a identical project on the go.
All the best!


Topic author
signsup
Posts: 472
Joined: Thu Jan 10, 2019 12:56 pm
First Name: Robert
Last Name: Brough
* REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
Location: Winston, GA
Board Member Since: 2015

Re: Question on attaching 1920 roadster turtle deck

Post by signsup » Sun Dec 12, 2021 1:54 pm

Out feeling around the back platform this morning and I'm feeling two through holes in the platform base that line up with holes on the rear crossmember, so presume these are long body bolts that hold the rear deck to the frame. And I feel four other holes in the sheet metal platform base that do not go through, like they are short screw holes. But now I'm trying to imagine my wooden base turtle deck sitting on top of two bolt heads in the rear corners of the platform base. I'm thinking line up and drill so that the long bolts come through the turtle deck base, the sheetmetal platform top and bolt through to the rear crossmember. Then two additional bolts or screws in the base of the turtle deck at the front to connect to platform sheetmetal skin top. Or just the side mounted screws near the seat back?

Man, I gotta go down to the local Ford dealer and see if he has a roadster on the lot so I can put my hands on one and feel how this assembles. But, they are closed on Sundays.
Why do we drive on parkways and park on driveways?

A bunch of old cars
Sometimes they run.
Sometimes, they don't.


Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Question on attaching 1920 roadster turtle deck

Post by Scott_Conger » Sun Dec 12, 2021 2:03 pm

Something looks wrong the way the deck mates to the rear of the body...too low

this is how it should look, including the wood floor you seem to be lacking: a '17... http://www.mtfca.com/discus/messages/70 ... 1485580256 and a '21...http://www.mtfca.com/discus/messages/25 ... 1329427651

I'll check my '19 runabout to look, but I know that my '23 runabout deck bolts to the wood floor, screws to the wood semi-circular wood former, and bolts to the rear of the body up near the top of the deck on each side...perhaps the earlier ones are different...like I said, I'll look.
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured


kmatt2
Posts: 655
Joined: Wed Jun 17, 2020 1:41 pm
First Name: Kevin
Last Name: Matthiesen
* REQUIRED* Type and Year of Model Ts owned: 26 T Coupe, 16 T Open Express, 21 TT Flatbed. 15 T Roadster, 13 & 25 T Speedster’s,51 Mercury 4 door sport sedan, 67 Mercury Cougar
Location: Madera CA 93636

Re: Question on attaching 1920 roadster turtle deck

Post by kmatt2 » Sun Dec 12, 2021 2:35 pm

First of all there is a wood platform made from 1” x 4” ‘s that mount to 1” notches in the main body sills that go under the deck. The deck has a 1” x 4” wood frame at its bottom and the deck is nailed to that frame. The deck is attached to the body by bolting the deck wood frame to the wood body platform, the main body to frame mount bolts are not used for this, the deck has its own smaller mounting bolts. A proper wood frame should move your deck up and forward to match the bossing on the seat back and the deck does not attach to the seat back. If you find that your deck will take to much work to fix you could replace it with a after market wood pickup bed as many did back in the 1920’s, I think Langs sells a pickup bed kit. Enjoy your Model T project.

User avatar

Pep C Strebeck
Posts: 578
Joined: Sun Jan 06, 2019 11:12 am
First Name: Joseph
Last Name: M
Location: MI

Re: Question on attaching 1920 roadster turtle deck

Post by Pep C Strebeck » Sun Dec 12, 2021 3:20 pm

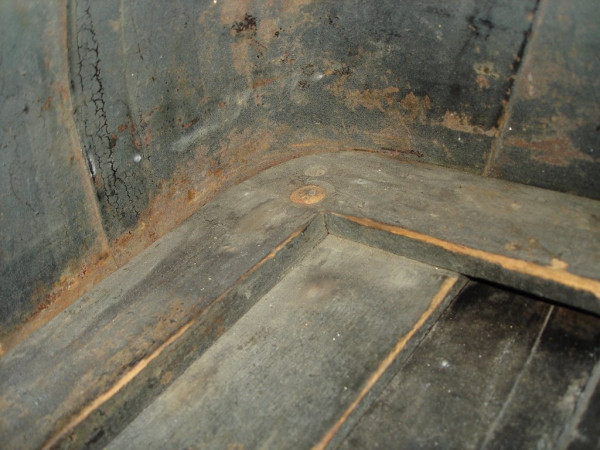

Below is a link to a previous thread about attaching the turtle deck on a '21, different year, same basic attachment. I do not have any photos of my '20 Runabout and its turtle deck mounting, but I can assure you it is the same as shown in the photos in the link (I have attached one to this thread).

viewtopic.php?f=2&t=20479&p=156646#p156646

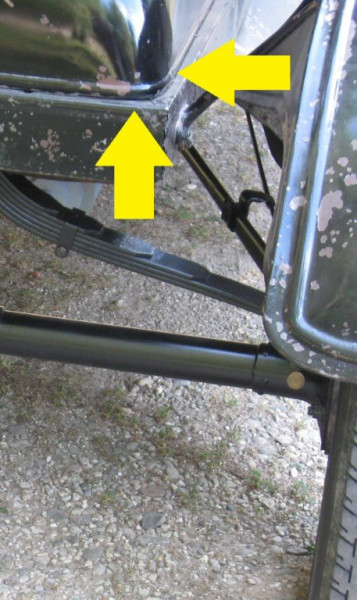

I agree with Scott, it looks a bit low, but that may be because of it not having the right frame/base to sit on, also it is just a dry fit right now. The corners look a bit off to me as shown in the photo below, but that may just be the photo.
