Original “Safety Wrench” for bands

Post by Chris Paulsen » Tue Dec 14, 2021 7:37 pm

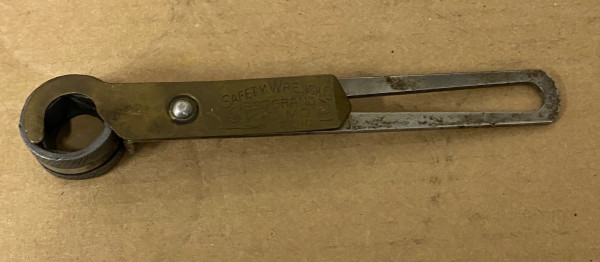

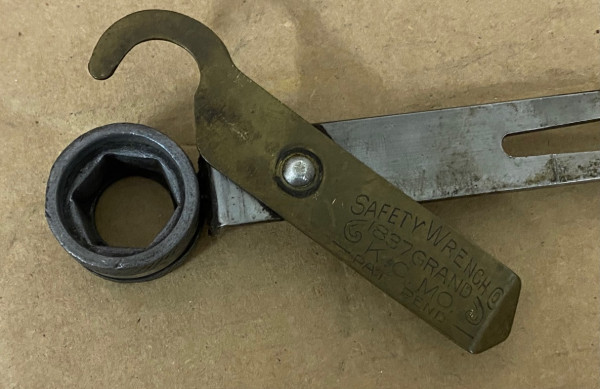

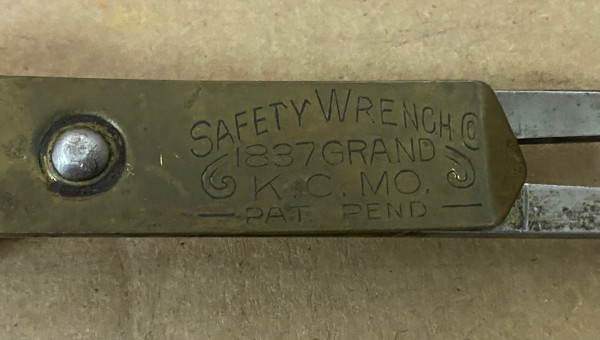

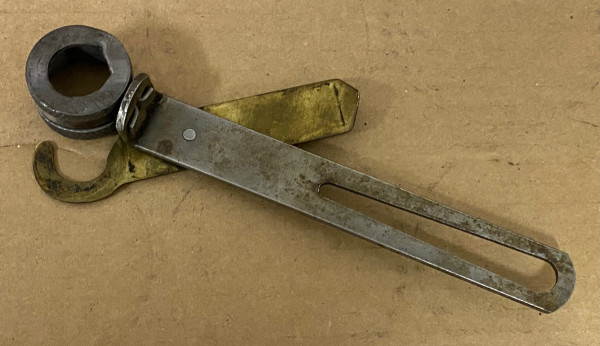

Neither my father nor I had ever seen one of these, so I thought I’d share a few photos. Similar to the ones available today.
Attachments

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Original “Safety Wrench” for bands

Post by RajoRacer » Tue Dec 14, 2021 7:58 pm

Well, that's cool ! I have an original one that the repros were copied off of - they are handy !

User avatar

dobro1956
Posts: 1413
Joined: Sun Jan 06, 2019 10:13 pm
First Name: Donnie
Last Name: Brown
* REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring, 1919 Speedster, 1914 Speedster, Wards tractor conversion, non starter 1926 Improved Touring
Location: Hills of Arkansas

Re: Original “Safety Wrench” for bands

Post by dobro1956 » Tue Dec 14, 2021 8:23 pm

That's nice.....

User avatar

Kaiser
Posts: 1102
Joined: Mon Jan 07, 2019 5:32 am
First Name: Leo
Last Name: van Stirum
* REQUIRED* Type and Year of Model Ts owned: 1923 Huckster, '66 CJ5 daily driver
Location: Netherlands
Board Member Since: 2016

Re: Original “Safety Wrench” for bands

Post by Kaiser » Wed Dec 15, 2021 5:38 am

Do i see it right, is this a wrench that securely holds the nut when mounting the bands and prevents it from dropping in the dark unfathomable depths of the transmission...
Cool ! i want one !
When in trouble, do not fear, blame the second engineer ! 8-)
Leo van Stirum, Netherlands
'23 Huckster, '66 CJ5 daily driver


Topic author
Chris Paulsen
Posts: 146
Joined: Sun Jan 06, 2019 6:00 pm
First Name: Chris
Last Name: Paulsen
* REQUIRED* Type and Year of Model Ts owned: 1910 Touring, 1914 Pickup
Location: Kansas
Board Member Since: 1999

Re: Original “Safety Wrench” for bands

Post by Chris Paulsen » Wed Dec 15, 2021 8:19 am

Kaiser- that’s exactly what it is.

User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:

Re: Original “Safety Wrench” for bands

Post by DanTreace » Wed Dec 15, 2021 8:40 am

Chris

Really like that design on the "Safety Wrench" band nut/washer holding wrench. The flat style is more practical in use IMO, and the clip like Church Key lock would be simple to open and close in the tight space of the hogshead opening. Works by rotating that collar to spin the washer and nut on or off the shaft. And that side-action fork is a neater idea!

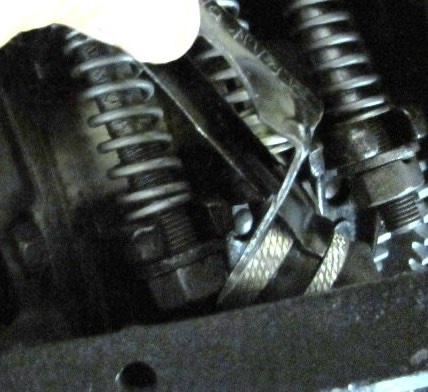

Have used the modern repop of another style, but it is clumsy with the convex handle, and the spring fork to clamp behind the lock washer and nut, fitting on the end of a bare pedal shaft isn't easy as the maybe the one you pictured!

The only time the repop is handy for me is when removing a washer and nut, can be assured they stay captive, but takes a lot of fiddling to remove the assembly due to the clumsy handle and lock fork, the angle of the handle isn't really helpful. That removal takes a screwdriver to force the band lug and spring back to get the fork behind the lock washer, can be done, but tough. For install, don't use this tool, but use double loop of Dental Floss tied to the washer and nut to keep them from falling away, and the floss still allows threading on the nut.

Someone should make that flat style you have!!! ;)

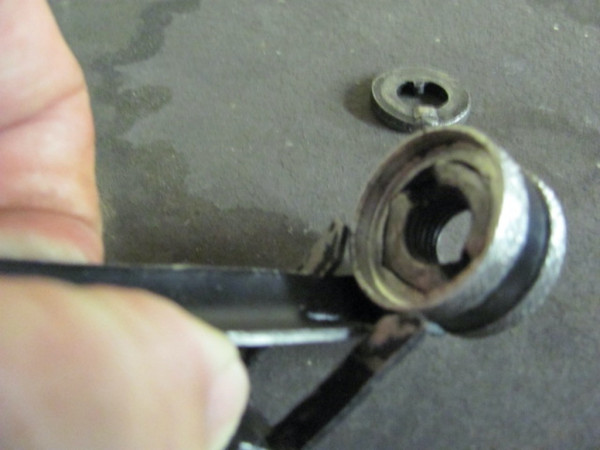

Clumsy and bulky handle of the repop lock washer and band nut insertion and removal tool.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Original “Safety Wrench” for bands

Post by John kuehn » Wed Dec 15, 2021 10:14 am

I was going to ask if the repos that’s made these days is actually a copy of an original. I wonder who came up with the repos idea. When I saw this it sure looked like this was a better idea! And it wasn’t from Ford but an original old time accessory!

User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:

Re: Original “Safety Wrench” for bands

Post by Steve Jelf » Wed Dec 15, 2021 11:48 am

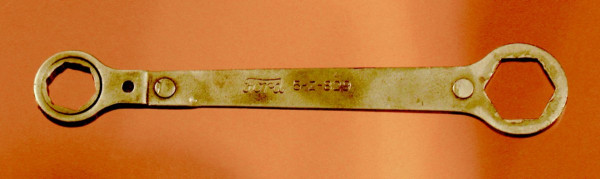

For those who may not know about it, here's the Z tool for adjusting bands. It's not tedious like the #1917 wrench that came with every car, and not terribly scarce. I see it often among the Model T tools at swap meets.

IMG_1148 copy 2.JPG
The inevitable often happens.
1915 Runabout
1923 Touring
