Another upholstry part ??? N.O.S. strange Button w/ hole

[FATMAN]

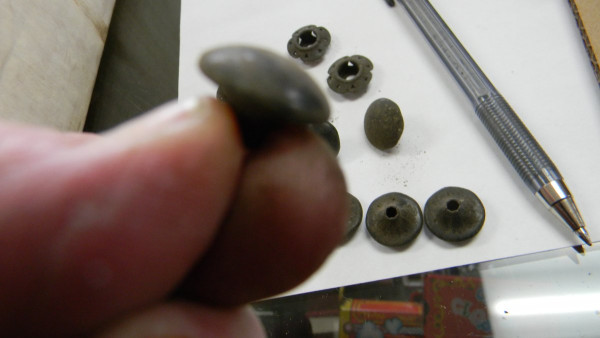

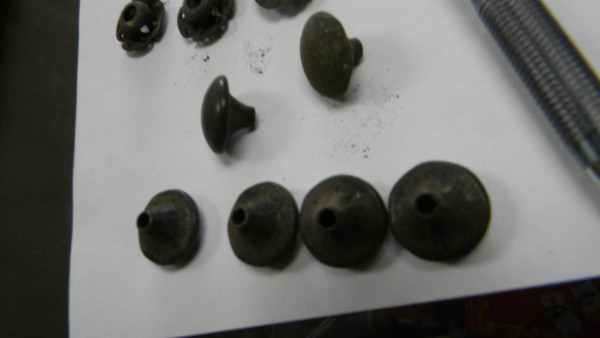

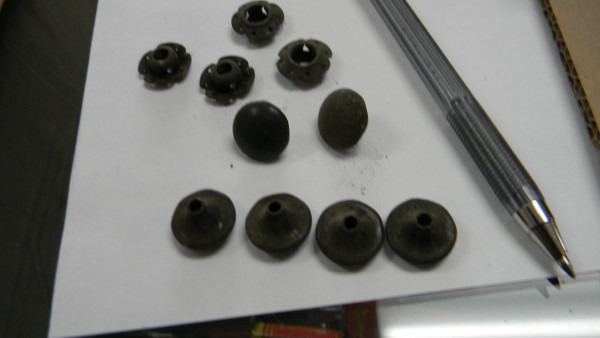

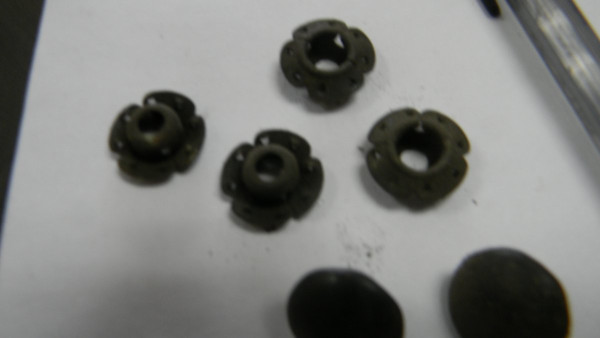

Going through some more boxes and ran across these small odd shape looks like buttons but have odd shape and hole in other side, also some odd fastners , any ideas??? Bob

[FATMAN]

Any ideas got a few boxes and appreciate the help, Bob

[DanTreace]

Bob

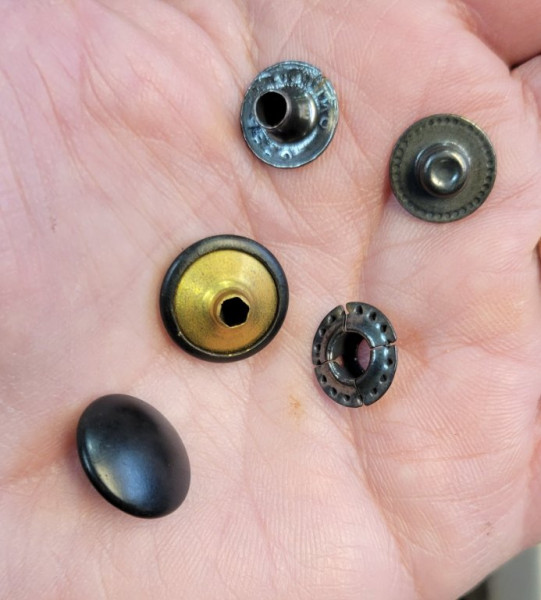

Appears to be the fabric side of the ANZO, they likely came in many cap styles, the Ford uses a more flat like cap, but these would go with the other ANZO parts you showed. Info on this older post. There is a tool that compressed the 2 part cap together.

http://www.mtfca.com/discus/messages/50 ... 1437161088

[KWTownsend]

Bob
What is the inside diameter of the female part?

What is the outside diameter of the head?

Keith

[Original Smith]

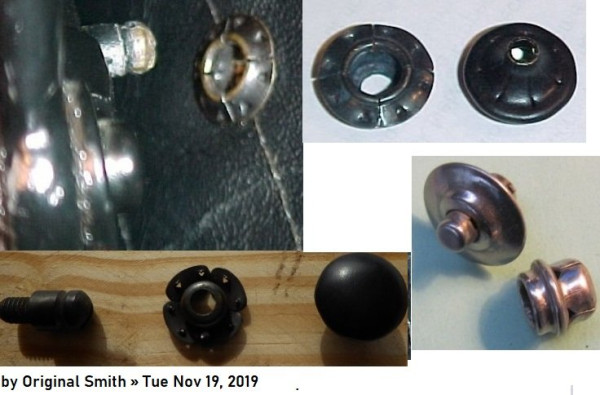

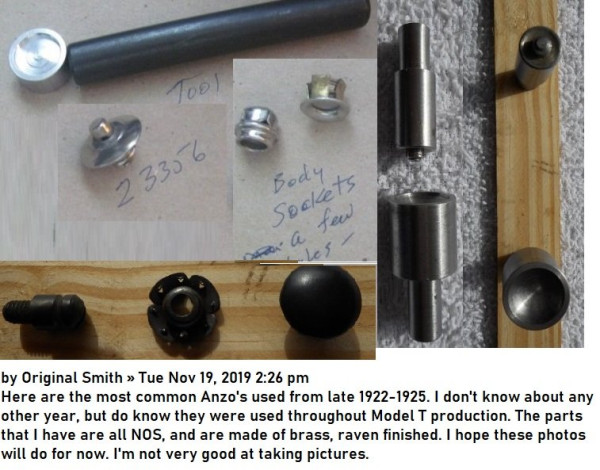

Those are indeed Anzo fasteners. When I restored my 1925, I went to a lot of trouble to find those, which are correct for many years of T's. I even had a special setting tool made to use.

[FATMAN]

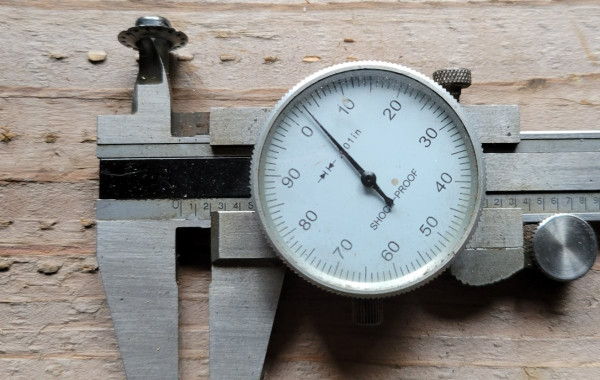

5/32" i d. any idea on the funny little top shape caps ? Bob

[KWTownsend]

Bob,
Those are a little smaller than Anzo fasteners.

I believe they were commonly called glove fasteners.

Are the heads about 5/8"?

[TRDxB2]

From past thread viewtopic.php?f=2&t=8471
Who else would know

[KWTownsend]

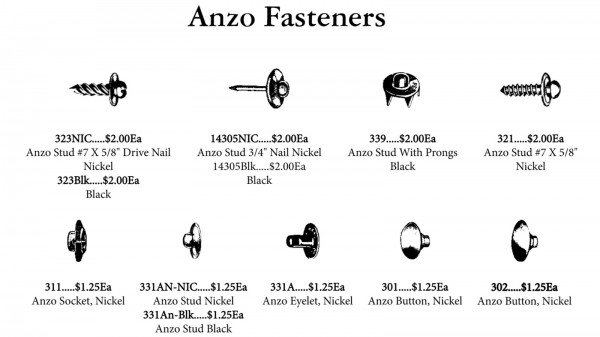

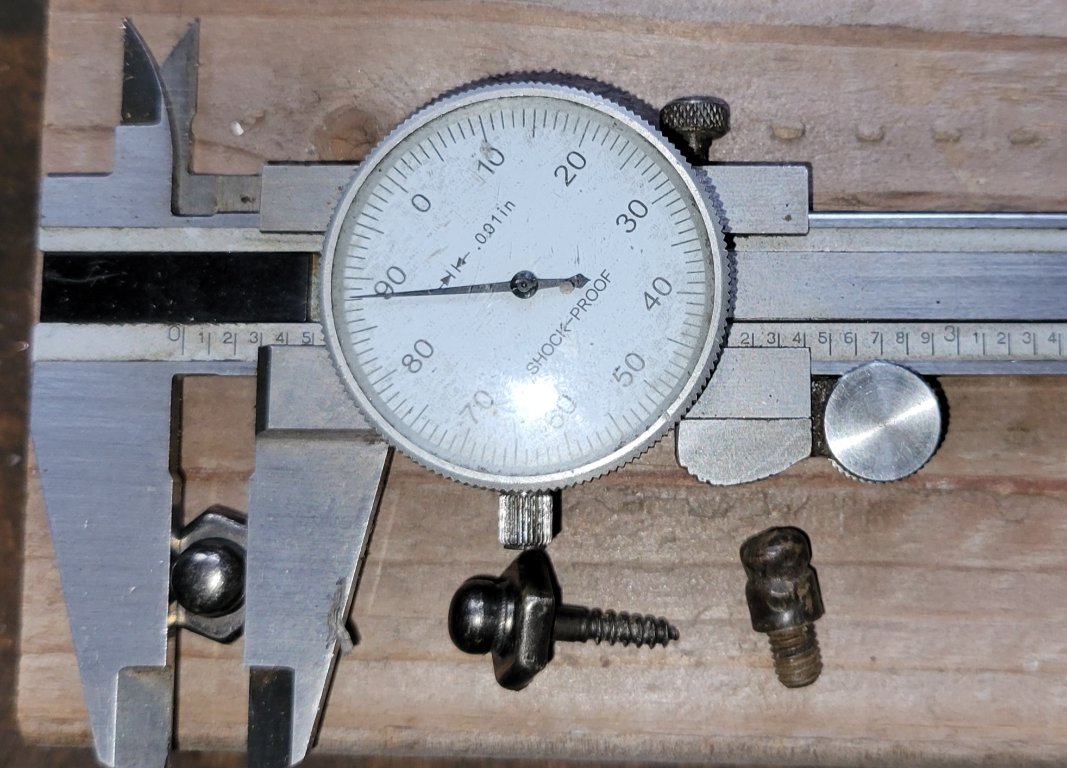

Here are Anzo studs.

The woodscrew threaded stud was used in 1911-1912 (maybe earlier too?) top bows to attach side curtains. They used the heads that look like snaps.

The stud with the machine screw threads was used with the lift a dot fasteners.

[TRDxB2]

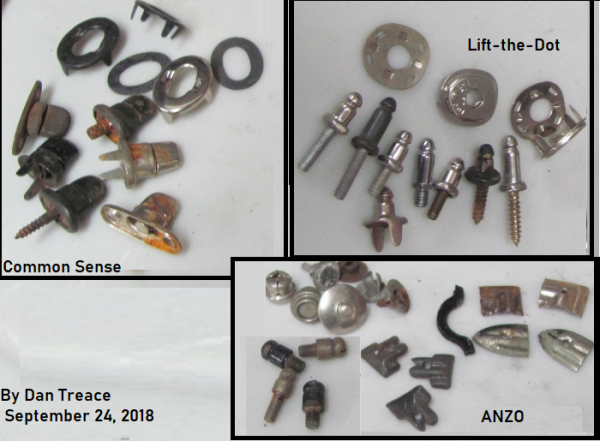

ANZO Hardware


[FATMAN]

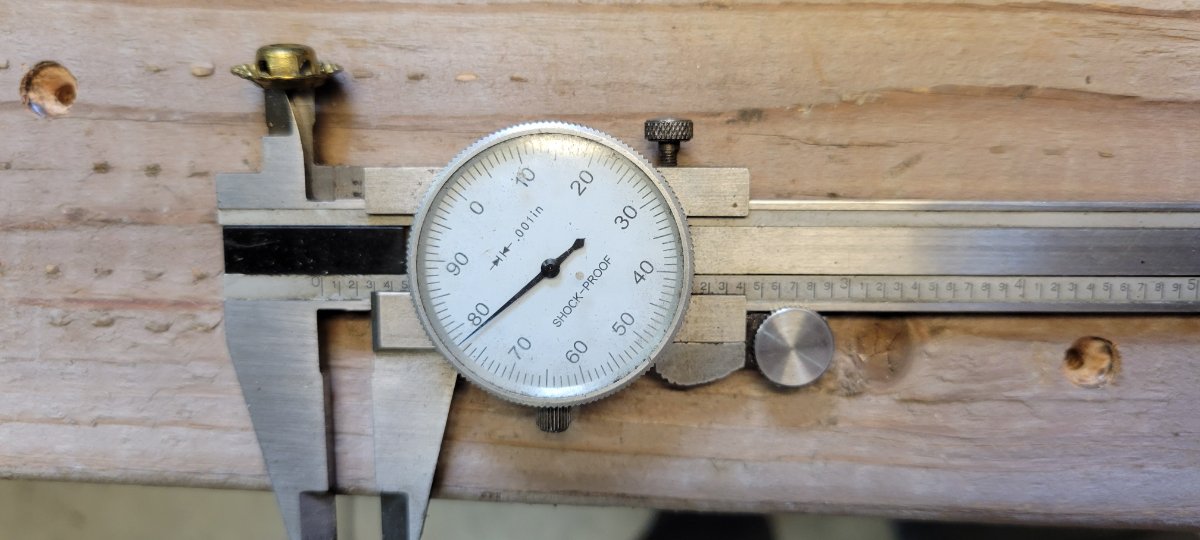

19/32" across the top hat
