Piston Identification

Post by namdc3 » Wed Apr 03, 2019 6:41 pm

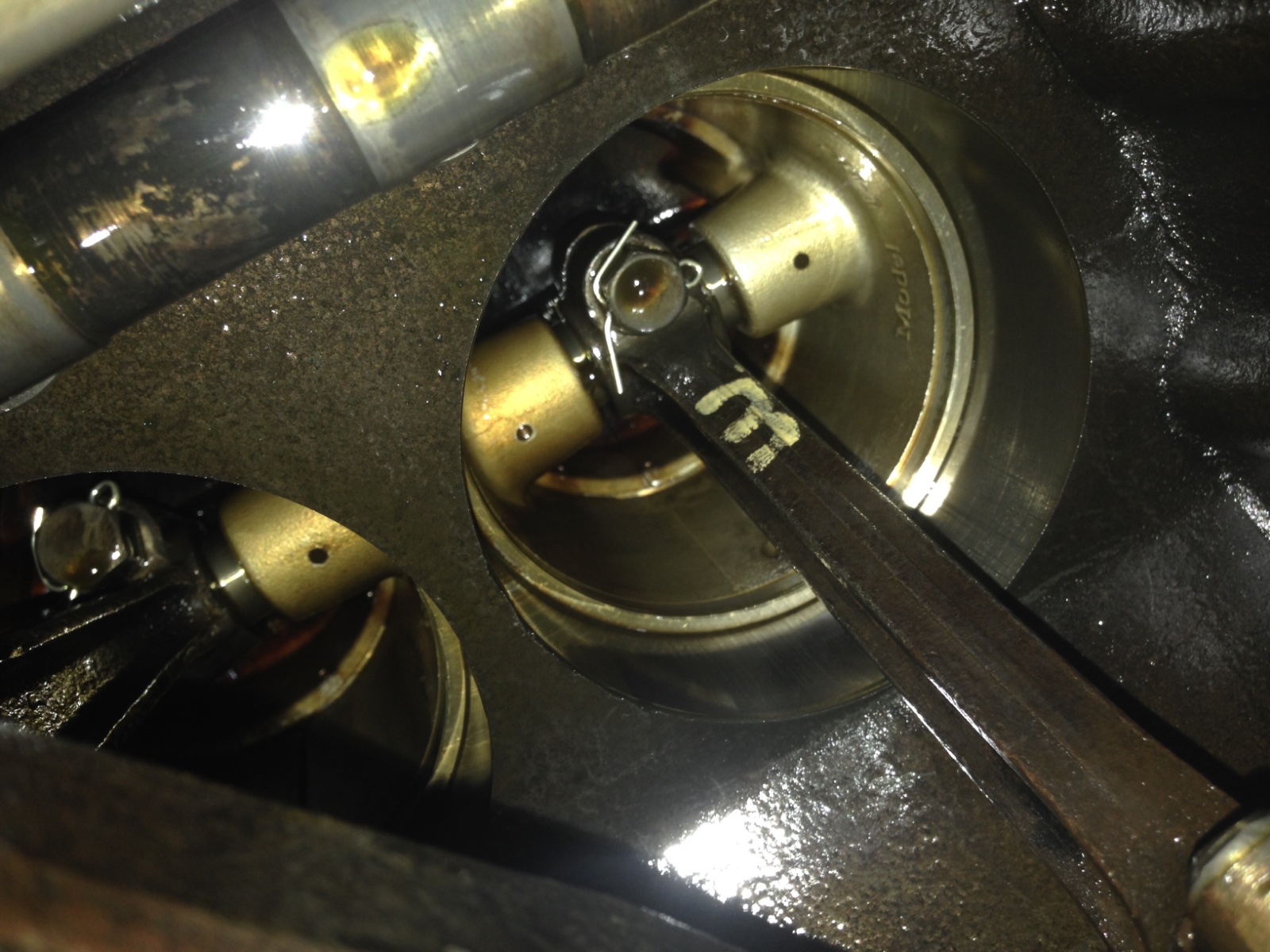

Can anyone identify these aluminum pistons from the photos without me pulling the head? They say "Model T-HC" on the inside of the skirt. Does the HC mean high compression, or is it just a coincidence in model number?
Attachments

User avatar

Mark Gregush
Posts: 1573
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Piston Identification

Post by Mark Gregush » Wed Apr 03, 2019 7:32 pm

Put the piston at TDC and look thru the spark plug hole, if the top is domed they are HC, if flat normal. Understanding that T pistons come up out of the hole not even across like others.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup

User avatar

walber
Posts: 51
Joined: Sun Jan 06, 2019 12:55 pm
First Name: Walt
Last Name: Berdan
Location: Bellevue, WA
MTFCA Number: 16421

Re: Piston Identification

Post by walber » Wed Apr 03, 2019 7:34 pm

I expect it stands for high compression but can't tell by these photos. On stock pistons the outer edge for about 5/'8" has an upward bevel and then the rest of the top is flat. Most high compression pistons have an even curved top surface, kind of a low dome.


George Andreasen
Posts: 201
Joined: Sun Jan 06, 2019 6:21 pm
First Name: George
Last Name: Andreasen
Location: Alturas, California

Re: Piston Identification

Post by George Andreasen » Wed Apr 03, 2019 7:50 pm

It's the initials of the manufacturer.......Hang Chow, a well respected recycler of old beer cans in China......... :lol:

Of course I'm kidding. They're almost surely high compression.


Humblej
Posts: 382
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Piston Identification

Post by Humblej » Wed Apr 03, 2019 8:59 pm

Those wrist pin bolts should be safety wired, the cotter pins will not do anything to keep the bolts from working loose.

User avatar

Mark Gregush
Posts: 1573
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Piston Identification

Post by Mark Gregush » Wed Apr 03, 2019 9:11 pm

I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup

User avatar

Ruxstel24
Posts: 1662
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Piston Identification

Post by Ruxstel24 » Wed Apr 03, 2019 9:34 pm

Yes, cotter pins work, but not bent that way.
Needs turned 90* and only one leg bent.


Les Schubert
Posts: 412
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Piston Identification

Post by Les Schubert » Wed Apr 03, 2019 9:49 pm

In regards to cotter pins there;
In my opinion NO!! Remove them and the bolts, apply Loktite and torque the bolts to 30 ft lbs!!

User avatar

Topic author
namdc3
Posts: 133
Joined: Sun Jan 06, 2019 4:15 pm
First Name: Nikolaus
Last Name: Martin
Location: Kansas City
MTFCA Number: 32342
MTFCI Number: 23512

Re: Piston Identification

Post by namdc3 » Wed Apr 03, 2019 10:24 pm

Thanks to all. Yes, they are domed as verified through the spark plug hole. I know it looks like the cotter pin will clear the rod and allow the bolt to turn in the photo, but it's actually long enough that it won't. I think the builder was of the opinion that using a long enough pin and bending both tails both prevented the bolt from backing out and halved the chances of the pin falling out. Thanks for the heads up, for sure, of course. If I'm reading your posts and the linked posts correctly, it's doing what it's supposed to do.


Adam
Posts: 495
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
Location: Wisconsin
MTFCA Number: 23809
MTFCI Number: 1
Board Member Since: 2000

Re: Piston Identification

Post by Adam » Wed Apr 03, 2019 11:07 pm

15,000,000 Model T’s were built with cotter pins in the wrist pin bolts...
