Window Regulator Problems

Post by pron022020 » Sat Feb 19, 2022 12:36 pm

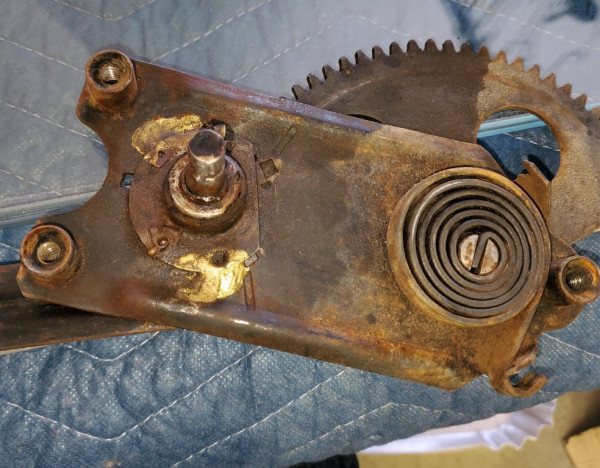

So I pulled the driver side regulator out of my 27 Coupe and I think I figured out why the glass fell to the bottom of the door. It looks like somebody did a homemade repair to it by brazing part of it in place. The shaft has a bunch of play in it, and it doesn't feel like there is any notch inside to grab the regulator teeth. My question is, can it be repaired, and if not, what should I do?
Attachments


John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Window Regulator Problems

Post by John kuehn » Sat Feb 19, 2022 1:07 pm

Buy a new one. Lang’s has them that will fit you car. Reasonably priced. They have for either right or left side 27 closed car doors. $47.95. Right or left You can repair them but after a while it’s time to move on. https://cdn.modeltford.com/i/c/476375l.jpg
Last edited by John kuehn on Sat Feb 19, 2022 1:25 pm, edited 2 times in total.


jab35
Posts: 1001
Joined: Sun Jan 06, 2019 12:28 pm
First Name: James
Last Name: Bartsch
* REQUIRED* Type and Year of Model Ts owned: '26 Coupe
Location: Dryden, NY 13053
MTFCA Life Member: YES

Re: Window Regulator Problems

Post by jab35 » Sat Feb 19, 2022 1:17 pm

I agree with John, but I'm curious what failed. Since the teeth on the large sector look perfect, The pinion gear might be ok, just turning on the shaft, but the worn bearing and prior repair would still cause me to pitch the part. I'd order a replacement and once you have it 'open up' the old one just for curiosity. jb


Topic author
pron022020
Posts: 147
Joined: Thu Dec 23, 2021 1:43 pm
First Name: Tyler
Last Name: Prondzinski
* REQUIRED* Type and Year of Model Ts owned: 1927 Coupe
Location: Spring Grove, Illinois
Board Member Since: 2021

Re: Window Regulator Problems

Post by pron022020 » Sat Feb 19, 2022 1:33 pm

Okay that sounds good. Are the repros pretty good quality? Have heard mixed response.

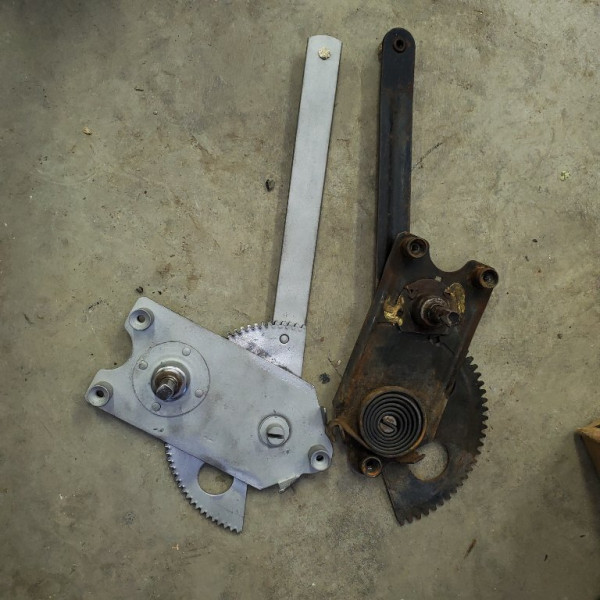

I pulled the passenger side out and it works as it should. It does look a little different though, I think the other one is replacement from years back.
Attachments


John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Window Regulator Problems

Post by John kuehn » Sat Feb 19, 2022 1:37 pm

With any of the new replacement parts you will always get mixed responses. Just so you know. If it fits works good go for it.
