Front wheel drive Model T

Post by Chris Instness » Wed Feb 23, 2022 1:05 pm

I was looking at some photos of a supercharged, overhead valve, front wheel drive Model T speedster and wondered if anyone has tried to recreate this car or any front wheel drive Model T? I’m aware of the 4 wheel drive conversions. This speedster appears to be hand built with a backward engine to allow for a centered differential.
Top

Kevin Pharis
Posts: 1558
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA
Contact:
Contact Kevin Pharis

Re: Front wheel drive Model T

Post by Kevin Pharis » Wed Feb 23, 2022 1:21 pm

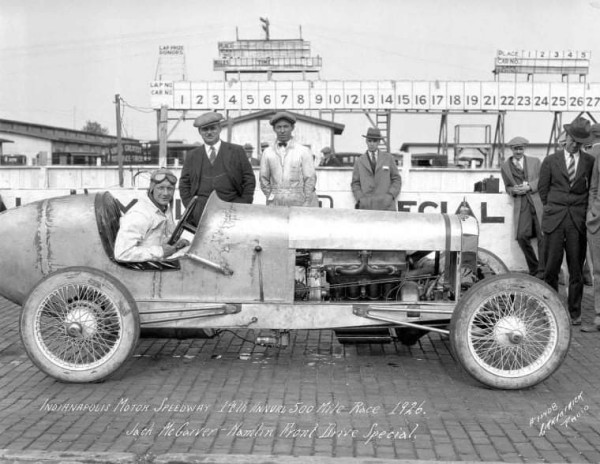

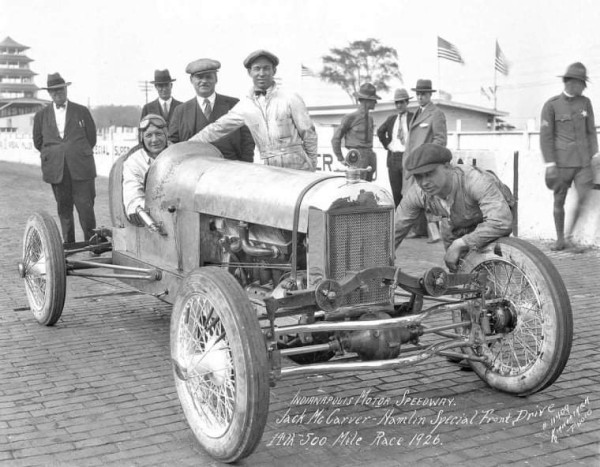

Not yet! But have had pics of this McCarver Special stashed away for some time. The front end work is amazing! No wonder they didn’t have time to paint it 😉
Top
User avatar

Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Front wheel drive Model T

Post by Henry K. Lee » Wed Feb 23, 2022 1:57 pm

The first independent front suspension????? LOL
Top

Been Here Before
Posts: 654
Joined: Mon Oct 07, 2019 2:00 pm
First Name: George John
Last Name: Drobnock
* REQUIRED* Type and Year of Model Ts owned: 1922 Coupe
Location: Central Pennsylvania

Re: Front wheel drive Model T

Post by Been Here Before » Wed Feb 23, 2022 4:39 pm

FYI


Title The Design of a Front Wheel Drive for a Motor Car
Author Arthur Agnus Nichols
Publisher Massachusetts Institute of Technology, Department of Mechanical Engineering, 1928

Title Features of the Front Wheel Drive for Motor Vehicles
Author William Carl Smith
Published 1929

Title Tracta Front-wheel Drive
Author Arthur Stuart Auto Services, Ltd
Publisher Arthur Stuart Auto Services, Limited, 1929
Top

Rich P. Bingham
Posts: 1611
Joined: Sun Feb 13, 2022 11:24 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho
Board Member Since: 2015

Re: Front wheel drive Model T

Post by Rich P. Bingham » Wed Feb 23, 2022 4:47 pm

Mighty interesting ! The racer appears to have utilized a Model T differential case and rear frame cross-member (at least).

Also interesting is the reference to an MIT paper on a front wheel drive design. E. L. Cord marketed his first FWD cars that same year (1929).

Fascinating stuff ! Thanks for posting, fellows.
Get a horse !
Top
User avatar

Craig Leach
Posts: 1906
Joined: Tue Jan 08, 2019 12:22 am
First Name: craig
Last Name: leach
* REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
Location: Laveen Az

Re: Front wheel drive Model T

Post by Craig Leach » Wed Feb 23, 2022 5:06 pm

Chris,
You got my attention @ supercharged??? There was a guy in northern Az. building a Miller copy using a over head Model A turned around like that. Been awhile I'm sure it's finished by now.
Craig.
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Front wheel drive Model T

Post by TRDxB2 » Wed Feb 23, 2022 5:10 pm

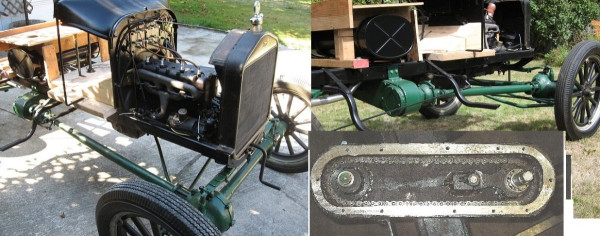

Here are some pictures of a Livingood 4x4 drive
Attachments

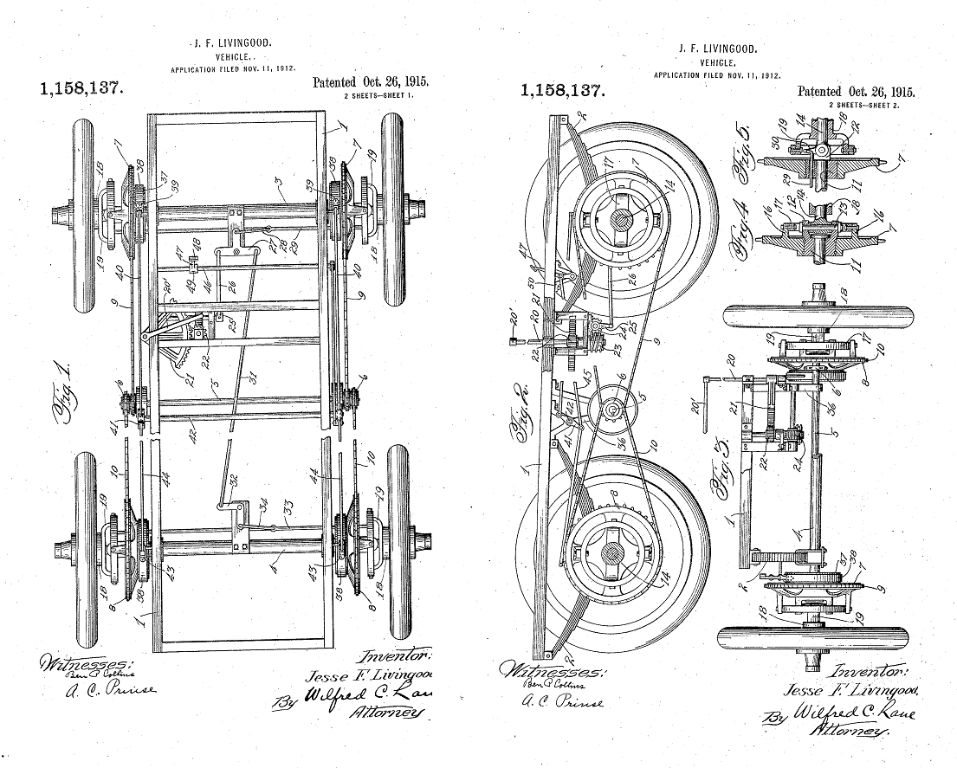

Patent number 1158137.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Front wheel drive Model T

Post by TRDxB2 » Wed Feb 23, 2022 5:26 pm

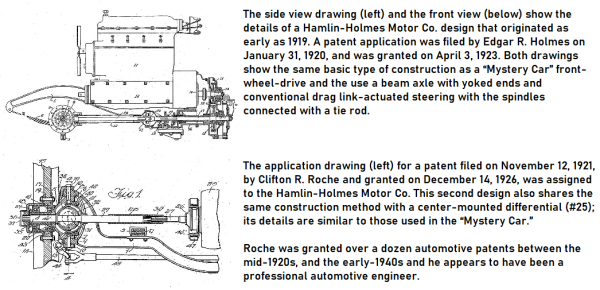

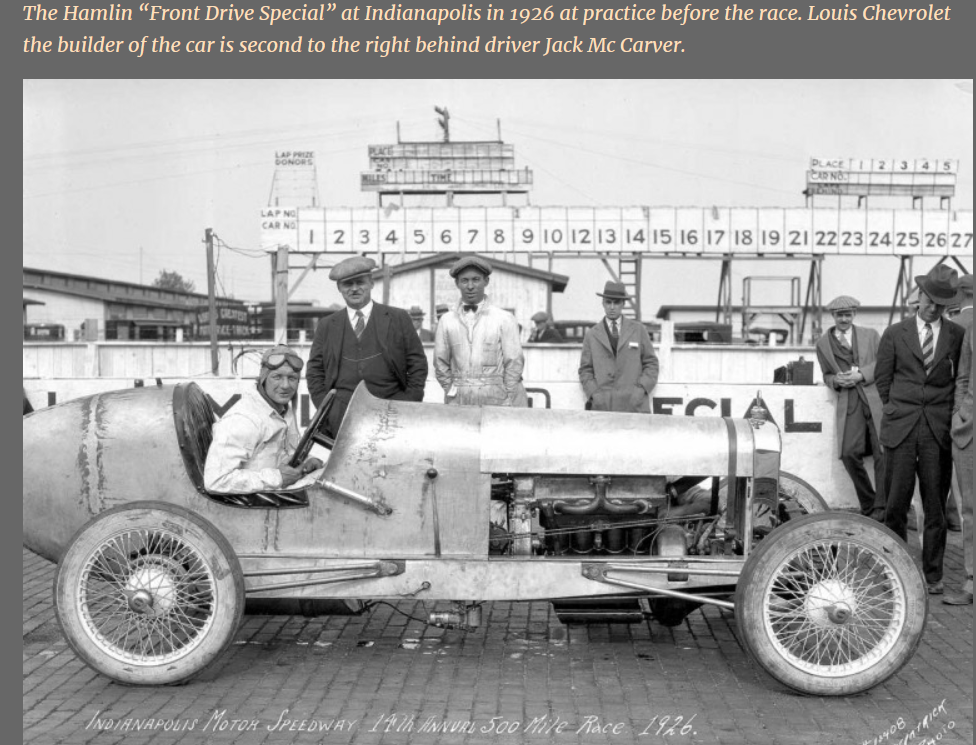

Open the link to this OLD MOTOR article to see more about the Hamlin Front Drive Special https://theoldmotor.com/?p=151334
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
